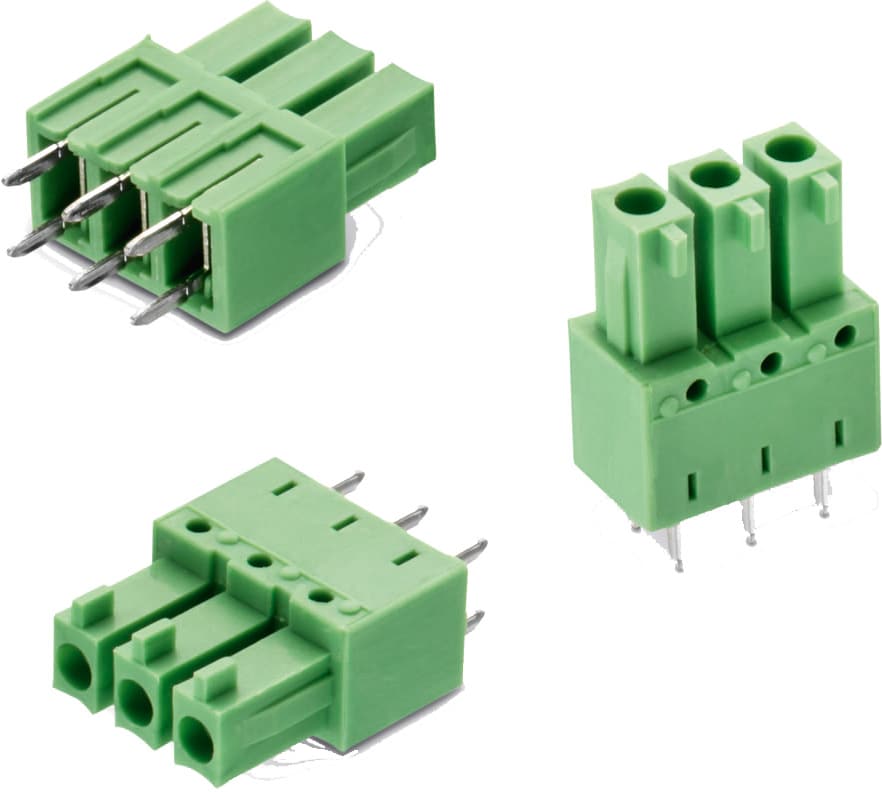

WR-TBL Series 3073 - 3.81 mm Vertical Reversed PCB Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +115 °C
Compliance	Lead free / RoHS
Pitch	3.81 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Type	Stamped

Electrical Properties
I_R	8 A
I_R[cULus]	8 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
R_C	20 mΩ

Certification
cULus Approval	E315414

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit
691307300002	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691307300002_1 (rev1).pdf \| 125.2 KB IGS 691307300002 (rev1).iges \| 1.6 MB STP 691307300002 (rev1).stp \| 639.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Pluggable	PCB	No	Vertical	691001
691307300003	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691307300003_1 (rev1).pdf \| 162.2 KB IGS 691307300003 (rev1).iges \| 2.1 MB STP 691307300003 (rev1).stp \| 814.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Pluggable	PCB	No	Vertical	691002
691307300004	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691307300004_1 (rev1).pdf \| 196.1 KB IGS 691307300004 (rev1).iges \| 2.5 MB STP 691307300004 (rev1).stp \| 991.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Pluggable	PCB	No	Vertical	–
691307300005	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691307300005_1 (rev1).pdf \| 233.5 KB IGS 691307300005 (rev1).iges \| 2.9 MB STP 691307300005 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	5	Pluggable	PCB	No	Vertical	–
691307300006	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691307300006_1 (rev1).pdf \| 270.5 KB IGS 691307300006 (rev1).iges \| 3.4 MB STP 691307300006 (rev1).stp \| 1.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	6	Pluggable	PCB	No	Vertical	–
691307300007	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 3D_691307300007 (rev1).pdf \| 295.3 KB IGS Download_IGES_691307300007 (rev1).iges \| 3.8 MB STP Download_STP_691307300007 (rev1).stp \| 1.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	7	Pluggable	PCB	No	Vertical	–
691307300008	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691307300008_1 (rev1).pdf \| 331.1 KB IGS 691307300008 (rev1).iges \| 4.2 MB STP 691307300008 (rev1).stp \| 1.6 MB	Active i\| Production is active. Expected lifetime: >10 years.	8	Pluggable	PCB	No	Vertical	–
691307300012	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 3D_691307300012 (rev1).pdf \| 454.4 KB IGS Download_IGES_691307300012 (rev1).iges \| 6 MB STP Download_STP_691307300012 (rev1).stp \| 2.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	12	Pluggable	PCB	No	Vertical	–

Order Code	Datasheet
691307300002	SPEC
691307300003	SPEC
691307300004	SPEC
691307300005	SPEC
691307300006	SPEC
691307300007	SPEC
691307300008	SPEC
691307300012	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit	Samples

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
