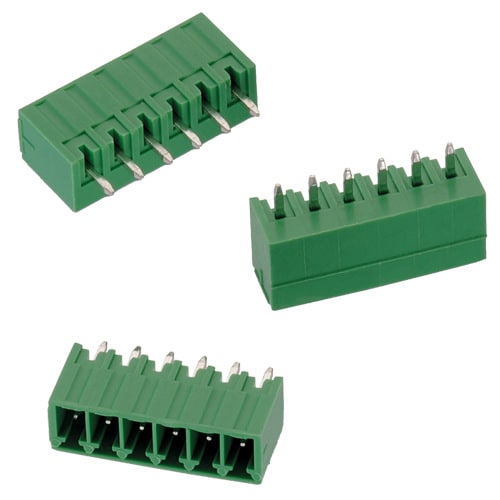

WR-TBL Series 3211 - 3.50 mm Vertical PCB Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	3.5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin

Electrical Properties
I_R	10 A; 10.5 A
I_{R cULus}	10 A
I_{R VDE}	10.5 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
Contact Resistance [cULus]	20 mΩ
Contact Resistance [VDE]	20 mΩ

Certification
cULus Approval	E315414
VDE Approval	40023195

Application Notes

Products

Order Code	Datasheet	Downloads	Pins	Application	PCB/Cable/Panel	Modularity	Type	Design Kit
691321100002	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691321100002_1 (rev1).pdf \| 68.8 KB IGS IGES_691321100002 (rev1).iges \| 680.4 KB STP 691321100002 (rev1).stp \| 275.1 KB	2	Pluggable	PCB	No	Vertical	691002
691321100003	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691321100003_1 (rev1).pdf \| 92.7 KB IGS IGES_691321100003 (rev1).iges \| 923.3 KB STP 691321100003 (rev1).stp \| 370.2 KB	3	Pluggable	PCB	Yes	Vertical	–
691321100004	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691321100004_1 (rev1).pdf \| 114.6 KB IGS IGES_691321100004 (rev1).iges \| 1.1 MB STP 691321100004 (rev1).stp \| 465.4 KB	4	Pluggable	PCB	No	Vertical	–
691321100005	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691321100005 (rev1).pdf \| 136.4 KB IGS Download_IGES_691321100005 (rev1).iges \| 1.4 MB STP Download_STP_691321100005 (rev1).stp \| 560.4 KB	5	Pluggable	PCB	No	Vertical	–
691321100006	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691321100006_1 (rev1).pdf \| 155.2 KB IGS IGES_691321100006 (rev1).iges \| 1.6 MB STP 691321100006 (rev1).stp \| 658.8 KB	6	Pluggable	PCB	No	Vertical	–
691321100007	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691321100007 (rev1).pdf \| 174.5 KB IGS Download_IGES_691321100007 (rev1).iges \| 1.9 MB STP Download_STP_691321100007 (rev1).stp \| 756.7 KB	7	Pluggable	PCB	No	Vertical	–
691321100008	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691321100008_1 (rev1).pdf \| 189.3 KB IGS IGES_691321100008 (rev1).iges \| 2.1 MB STP 691321100008 (rev1).stp \| 856.1 KB	8	Pluggable	PCB	No	Vertical	–
691321100012	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691321100012 (rev1).pdf \| 277.6 KB IGS Download_IGES_691321100012 (rev1).iges \| 3.1 MB STP Download_STP_691321100012 (rev1).stp \| 1.2 MB	12	Pluggable	PCB	No	Vertical	–

Order Code	Datasheet
691321100002	SPEC
691321100003	SPEC
691321100004	SPEC
691321100005	SPEC
691321100006	SPEC
691321100007	SPEC
691321100008	SPEC
691321100012	SPEC
