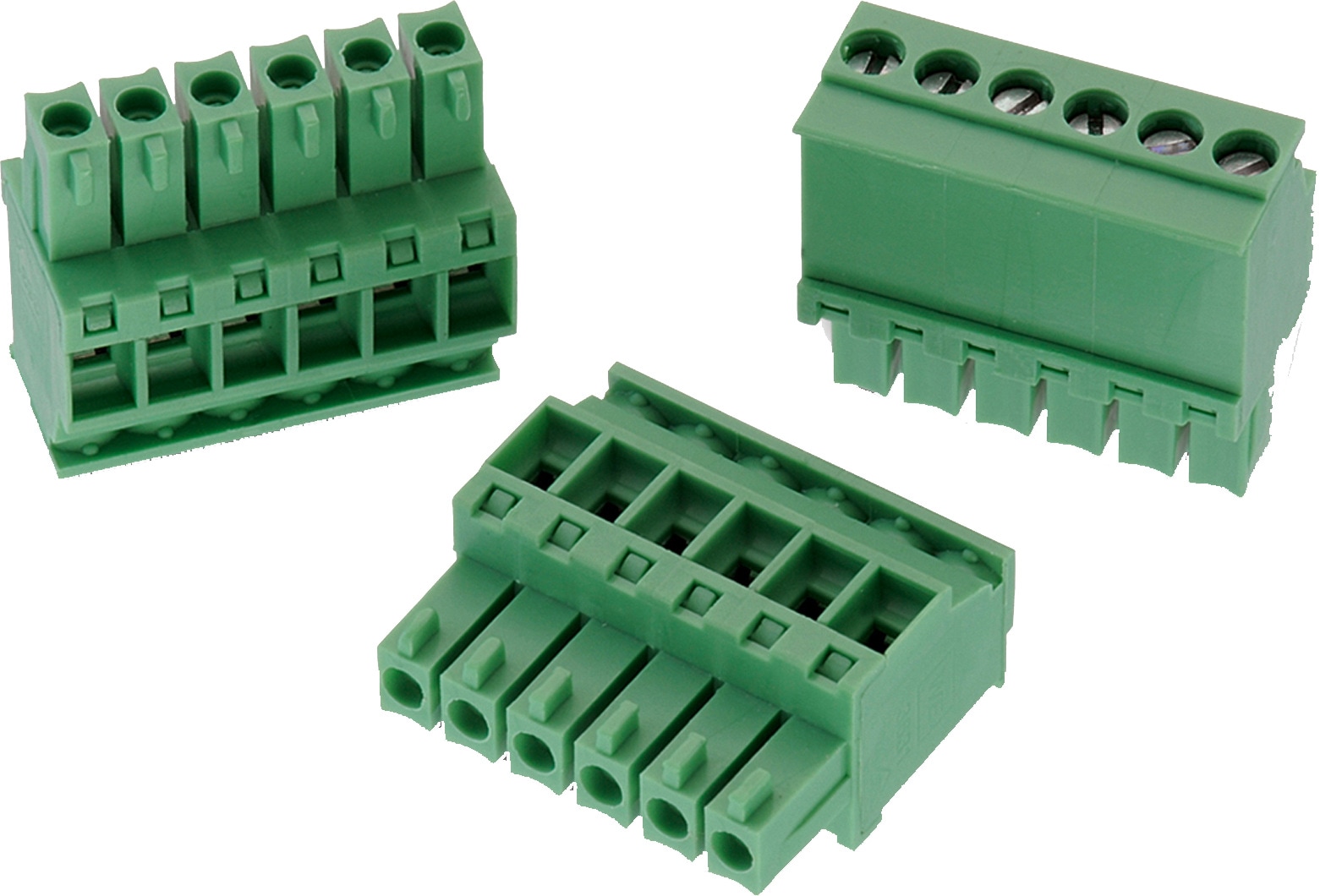

WR-TBL Series 3631 - 3.50 mm Horizontal with hook on wire Side | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	3.5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Phosphor Bronze

Electrical Properties
I_R	8 A; 10 A
I_R[cULus]	8 A
I_R[VDE]	10 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Mechanical Properties
Screw	M2

Wire Properties
Solid Wire Section (AWG)	16 to 28 (AWG)
Solid Wire Section (Metric)	1.31 to 0.0810 (mm²)
Stranded Wire Section (AWG)	16 to 28 (AWG)
Stranded Wire Section (Metric)	1.31 to 0.0810 (mm²)

Certification
cULus Approval	E315414
VDE Approval	40023402

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691363110002	SPEC	3 files CAD files ZIP 3D 691363110002_1 (rev1).pdf \| 227.5 KB IGS 691363110002 (rev1).igs \| 1.9 MB STP 691363110002 (rev1).stp \| 752.7 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	Pluggable	Cable	No	Horizontal	16 to 28 (AWG) 1.31 to 0.0810 (mm²)	–
691363110003	SPEC	3 files CAD files ZIP 3D 691363110003_1 (rev1).pdf \| 279.9 KB IGS 691363110003 (rev1).igs \| 2.5 MB STP 691363110003 (rev1).stp \| 988.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	Pluggable	Cable	No	Horizontal	16 to 28 (AWG) 1.31 to 0.0810 (mm²)	691002
691363110004	SPEC	3 files CAD files ZIP 3D 691363110004_1 (rev1).pdf \| 330.5 KB IGS 691363110004 (rev1).igs \| 3.1 MB STP 691363110004 (rev1).stp \| 1.2 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	Pluggable	Cable	No	Horizontal	16 to 28 (AWG) 1.31 to 0.0810 (mm²)	–
691363110005	SPEC	3 files CAD files ZIP 3D 691363110005_1 (rev1).pdf \| 379.8 KB IGS 691363110005 (rev1).igs \| 3.7 MB STP 691363110005 (rev1).stp \| 1.4 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	Pluggable	Cable	No	Horizontal	16 to 28 (AWG) 1.31 to 0.0810 (mm²)	–
691363110006	SPEC	3 files CAD files ZIP 3D 691363110006_1 (rev1).pdf \| 433.1 KB IGS 691363110006 (rev1).igs \| 4.3 MB STP 691363110006 (rev1).stp \| 1.7 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	Pluggable	Cable	No	Horizontal	16 to 28 (AWG) 1.31 to 0.0810 (mm²)	–
691363110007	SPEC	3 files CAD files ZIP 3D 3D_691363110007 (rev1).pdf \| 466.2 KB IGS Download_IGES_691363110007 (rev1).iges \| 4.8 MB STP Download_STP_691363110007 (rev1).stp \| 1.9 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	Pluggable	Cable	No	Horizontal	16 to 28 (AWG) 1.31 to 0.0810 (mm²)	–
691363110008	SPEC	3 files CAD files ZIP 3D 691363110008_1 (rev1).pdf \| 517.3 KB IGS 691363110008 (rev1).igs \| 5.4 MB STP 691363110008 (rev1).stp \| 2.1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	Pluggable	Cable	No	Horizontal	16 to 28 (AWG) 1.31 to 0.0810 (mm²)	–
691363110012	SPEC	3 files CAD files ZIP 3D 3D_691363110012 (rev1).pdf \| 667.2 KB IGS Download_IGES_691363110012 (rev1).iges \| 7.8 MB STP Download_STP_691363110012 (rev1).stp \| 3 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	Pluggable	Cable	No	Horizontal	16 to 28 (AWG) 1.31 to 0.0810 (mm²)	–

Order Code	Datasheet
691363110002	SPEC
691363110003	SPEC
691363110004	SPEC
691363110005	SPEC
691363110006	SPEC
691363110007	SPEC
691363110008	SPEC
691363110012	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	Samples
