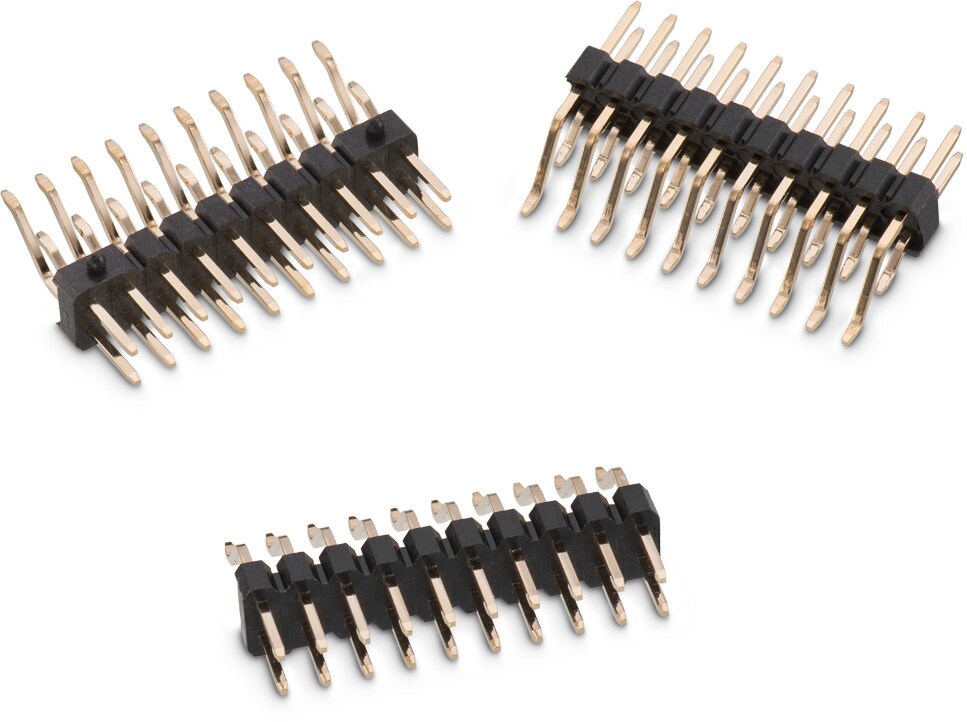

WR-PHD 2.00 mm SMT Angled Dual Pin Header

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins	4 pcs; 6 pcs; 8 pcs; 10 pcs; 12 pcs; 14 pcs; 16 pcs; 20 pcs

Material Properties
Insulator Material	PA9T
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	Lead free / RoHS
Pitch	2 mm
Durability	50 Cycles
Rows	Dual
Gender	Pin Header
Type	Angled

Electrical Properties
I_R	2 A
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tape and Reel with Pad

Products

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples
	621304284521	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 3D_621304284521 (rev1).pdf \| 79.7 KB IGS Download_IGES_621304284521 (rev1).iges \| 953.8 KB STP Download_STP_621304284521 (rev1).stp \| 210.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Dual	Pin Header	Angled	2	Tape and Reel with Pad	–
	621306284521	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 3D_621306284521 (rev1).pdf \| 106.5 KB IGS Download_IGES_621306284521 (rev1).iges \| 1.1 MB STP Download_STP_621306284521 (rev1).stp \| 247.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Dual	Pin Header	Angled	2	Tape and Reel with Pad	–
	621308284521	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 3D_621308284521 (rev1).pdf \| 106.2 KB IGS Download_IGES_621308284521 (rev1).iges \| 1.3 MB STP Download_STP_621308284521 (rev1).stp \| 288.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Dual	Pin Header	Angled	2	Tape and Reel with Pad	613001
	621310284521	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 3D_621310284521 (rev1).pdf \| 113.1 KB IGS Download_IGES_621310284521 (rev1).iges \| 1.5 MB STP Download_STP_621310284521 (rev1).stp \| 330.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Dual	Pin Header	Angled	2	Tape and Reel with Pad	613001
	621312284521	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 3D_621312284521 (rev1).pdf \| 116.8 KB IGS Download_IGES_621312284521 (rev1).iges \| 1.6 MB STP Download_STP_621312284521 (rev1).stp \| 373 KB	Active i\| Production is active. Expected lifetime: >10 years.	12	Dual	Pin Header	Angled	2	Tape and Reel with Pad	–
	621314284521	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 3D_621314284521 (rev1).pdf \| 124.8 KB IGS Download_IGES_621314284521 (rev1).iges \| 1.8 MB STP Download_STP_621314284521 (rev1).stp \| 416.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	14	Dual	Pin Header	Angled	2	Tape and Reel with Pad	–
	621316284521	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 3D_621316284521 (rev1).pdf \| 132.6 KB IGS Download_IGES_621316284521 (rev1).iges \| 2 MB STP Download_STP_621316284521 (rev1).stp \| 460.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	16	Dual	Pin Header	Angled	2	Tape and Reel with Pad	–
	621320284521	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 3D_621320284521 (rev1).pdf \| 145.5 KB IGS Download_IGES_621320284521 (rev1).iges \| 2.3 MB STP Download_STP_621320284521 (rev1).stp \| 544.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	20	Dual	Pin Header	Angled	2	Tape and Reel with Pad	613001

	Order Code	Datasheet
	621304284521	SPEC
	621306284521	SPEC
	621308284521	SPEC
	621310284521	SPEC
	621312284521	SPEC
	621314284521	SPEC
	621316284521	SPEC
	621320284521	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples

Mates with

WR-PHD 2.00 mm Dual Socket Header

WR-PHD 2.00 mm Dual SMT Socket Header Low Profile Bottom Entry

WR-PHD 2.00 mm Dual SMT Socket Header Angled

WR-PHD 2.00 mm Jumper with Test Point

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-PHD Pin & Socket Header
