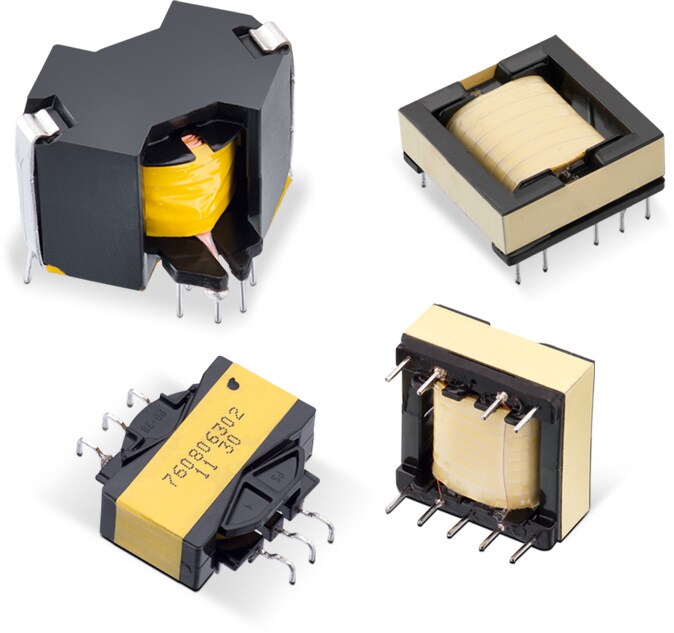

WE-PFC PFC Chokes

Size Dimen­sionsL
(mm)
W
(mm)
H
(mm)
Mount

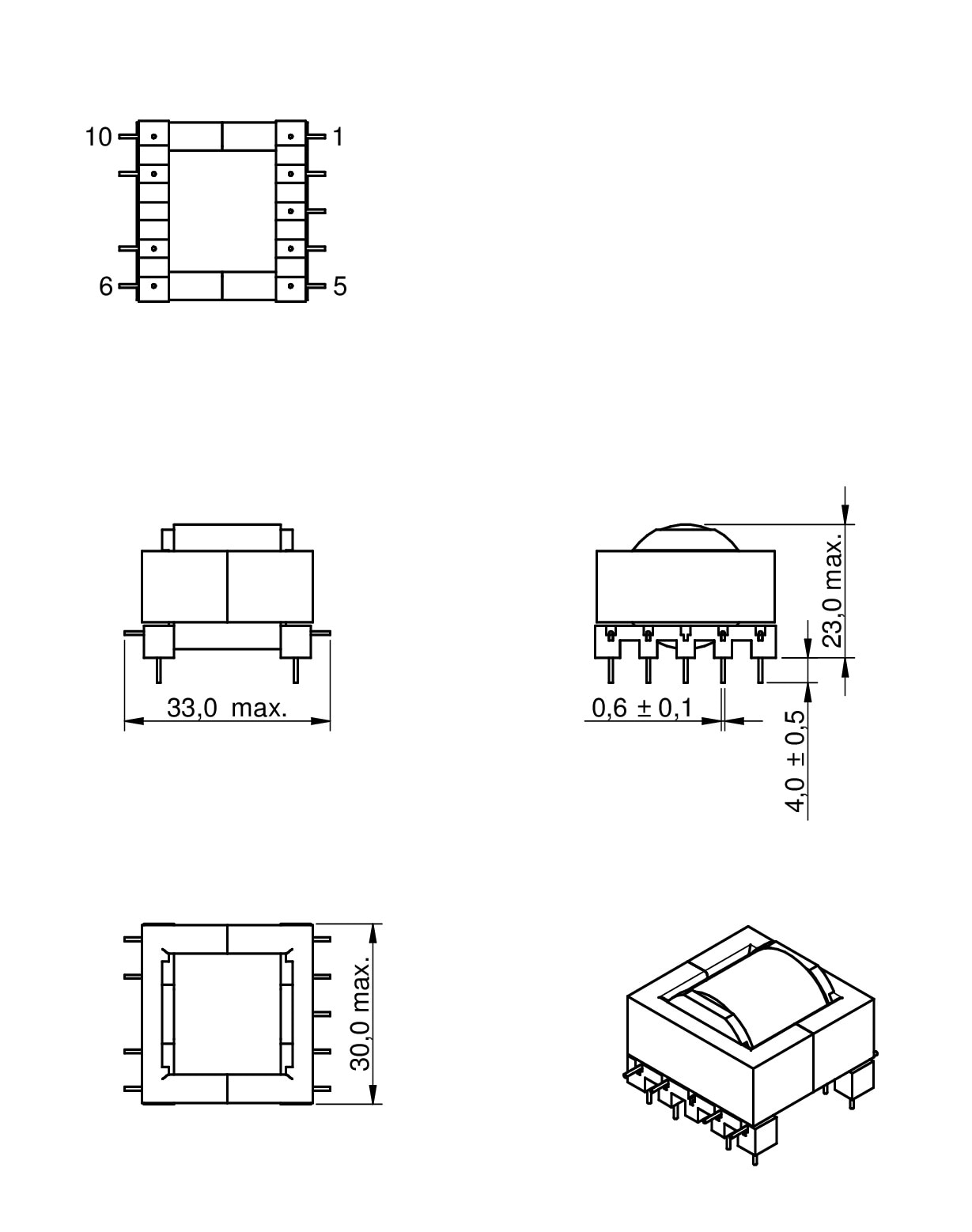

EER28 33 30 23 THT

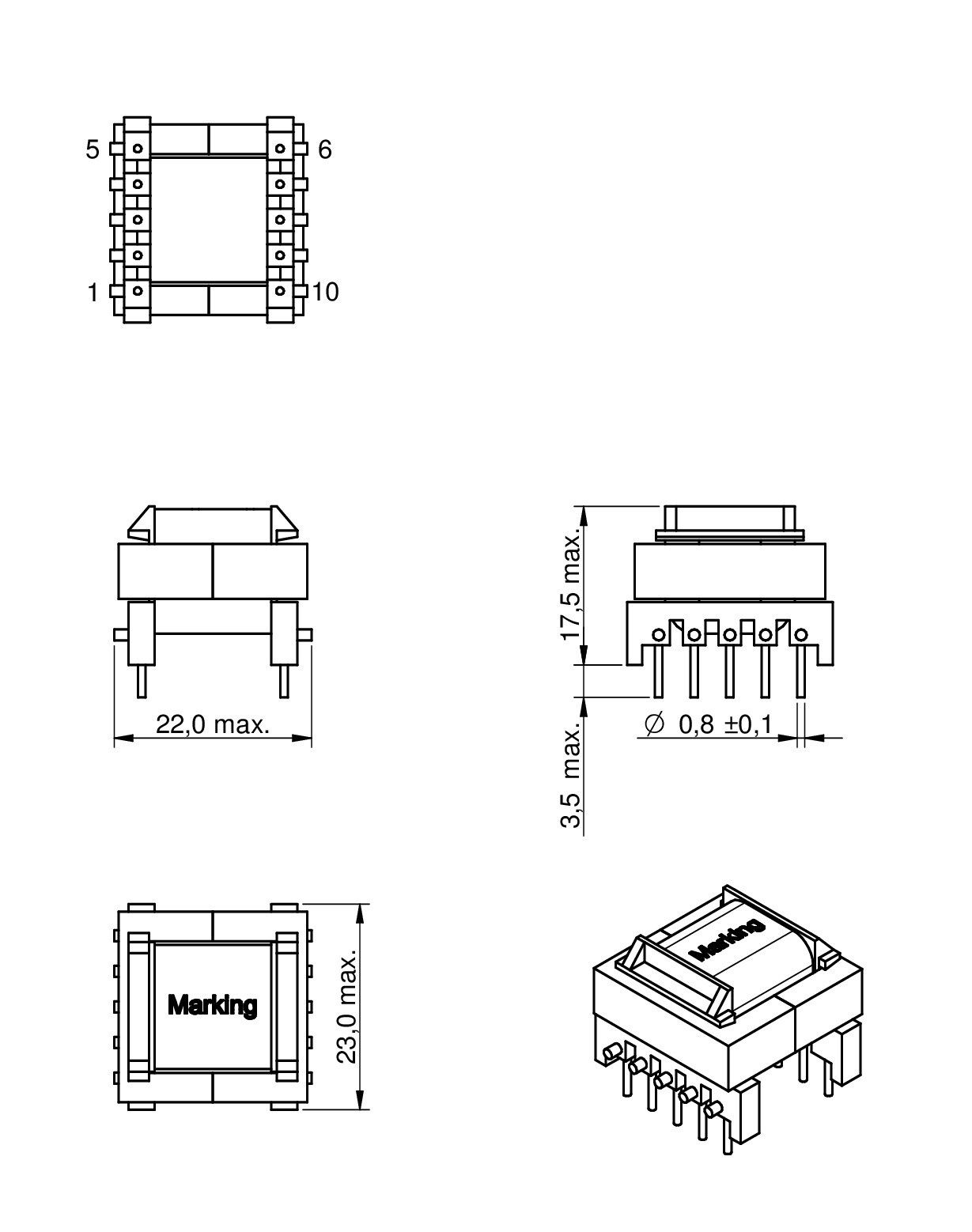

EE20/10/6 22 23 17.5 THT

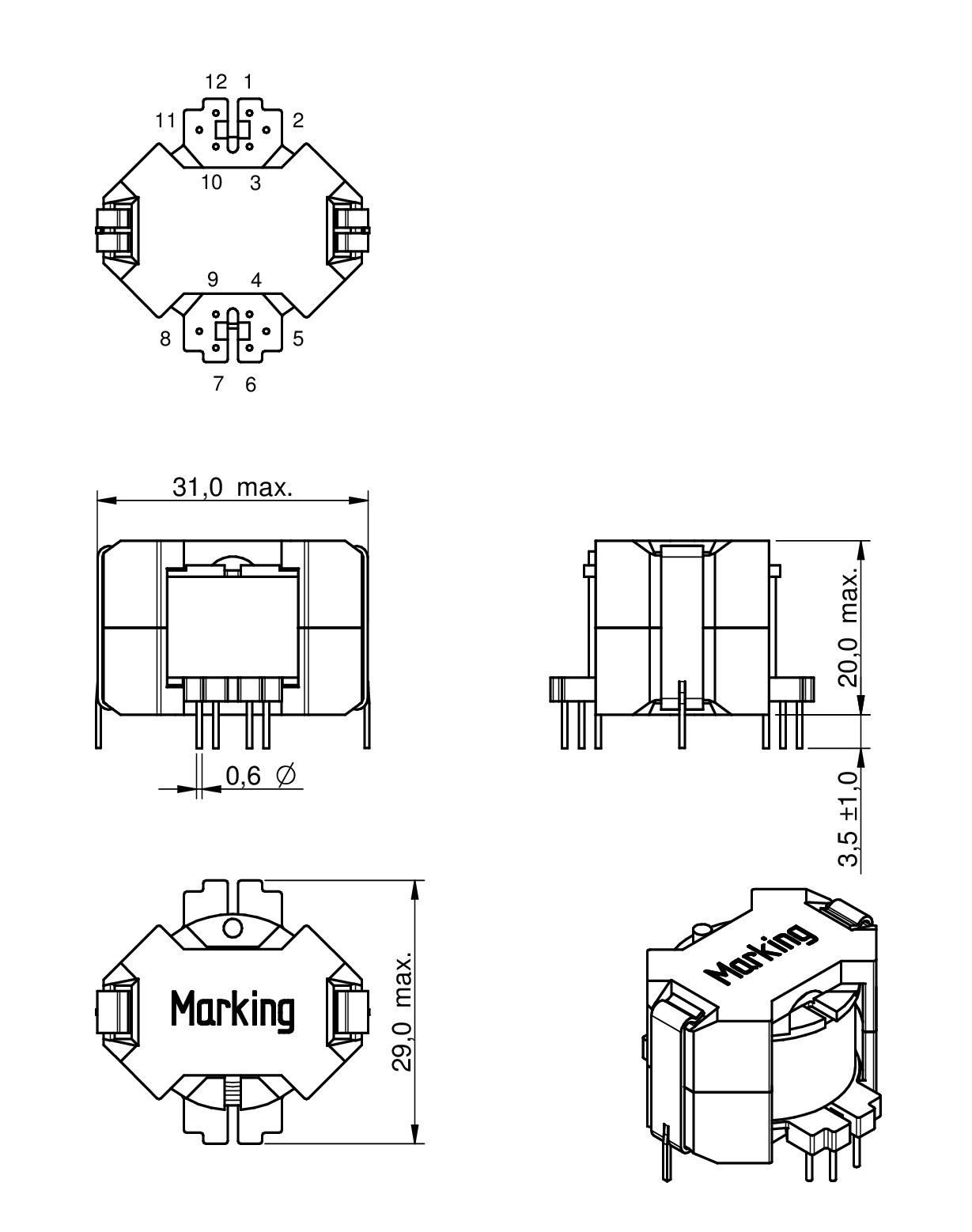

RM10 31 29 20 THT

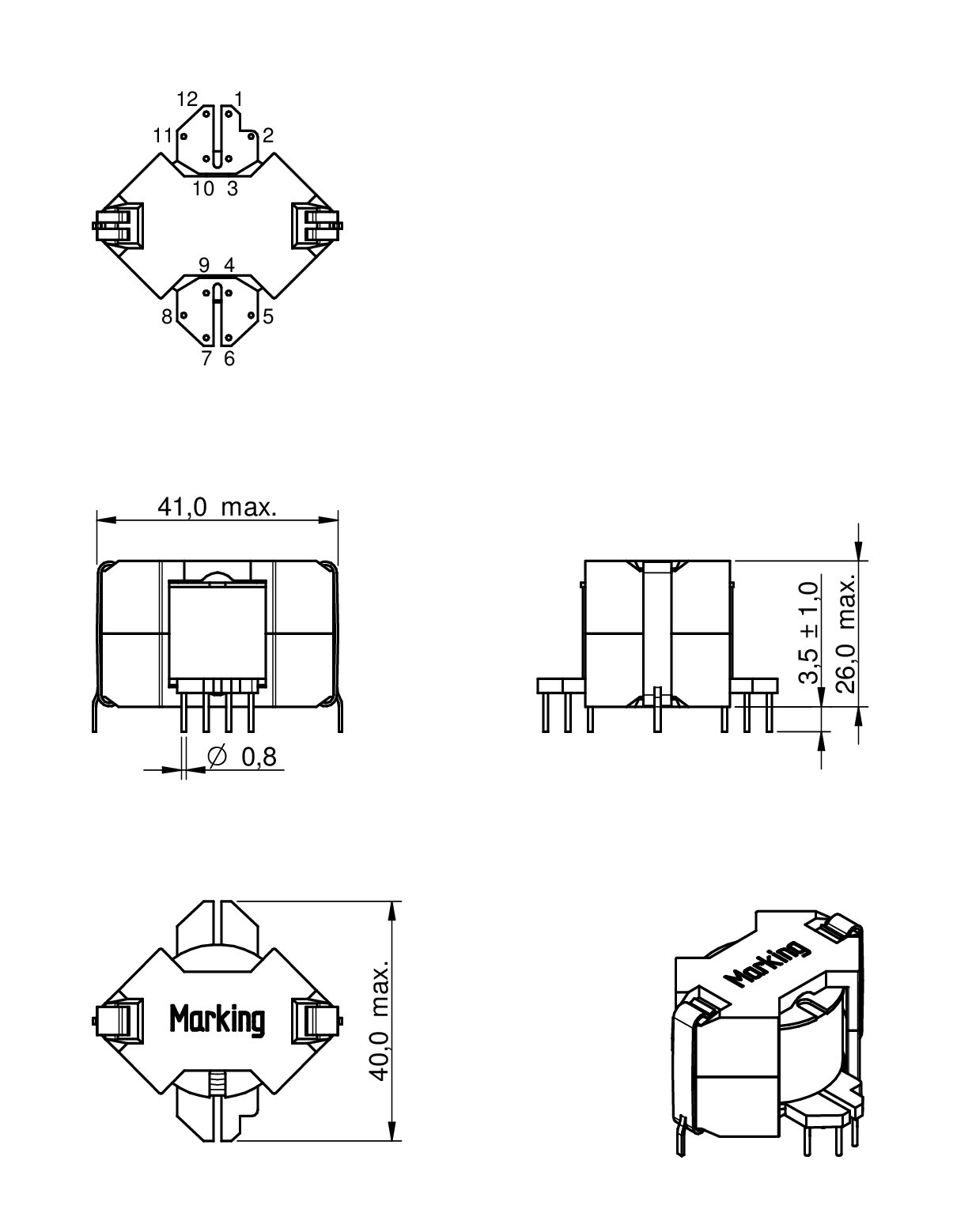

RM12 41 40 26 THT

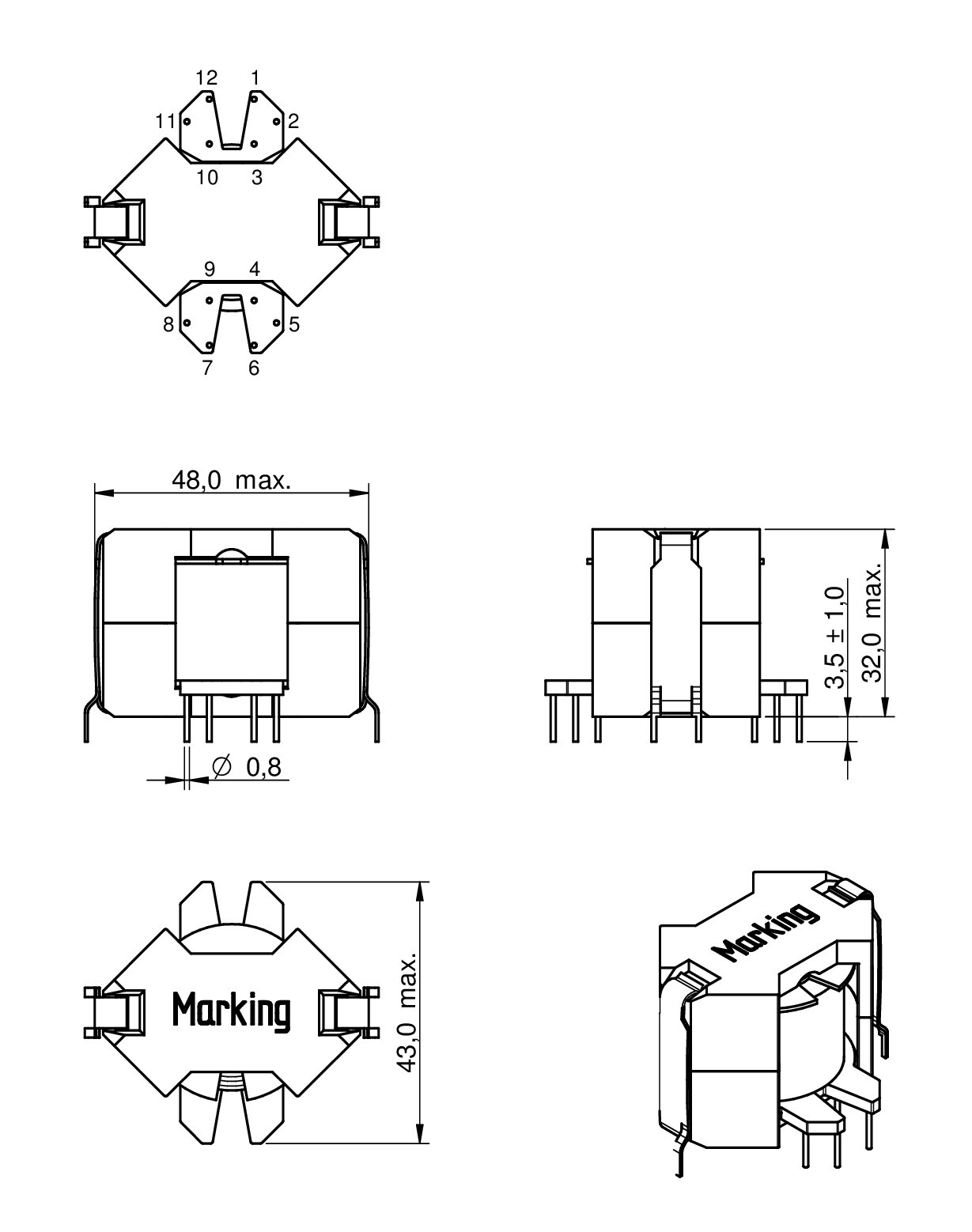

RM14 48 43 32 THT

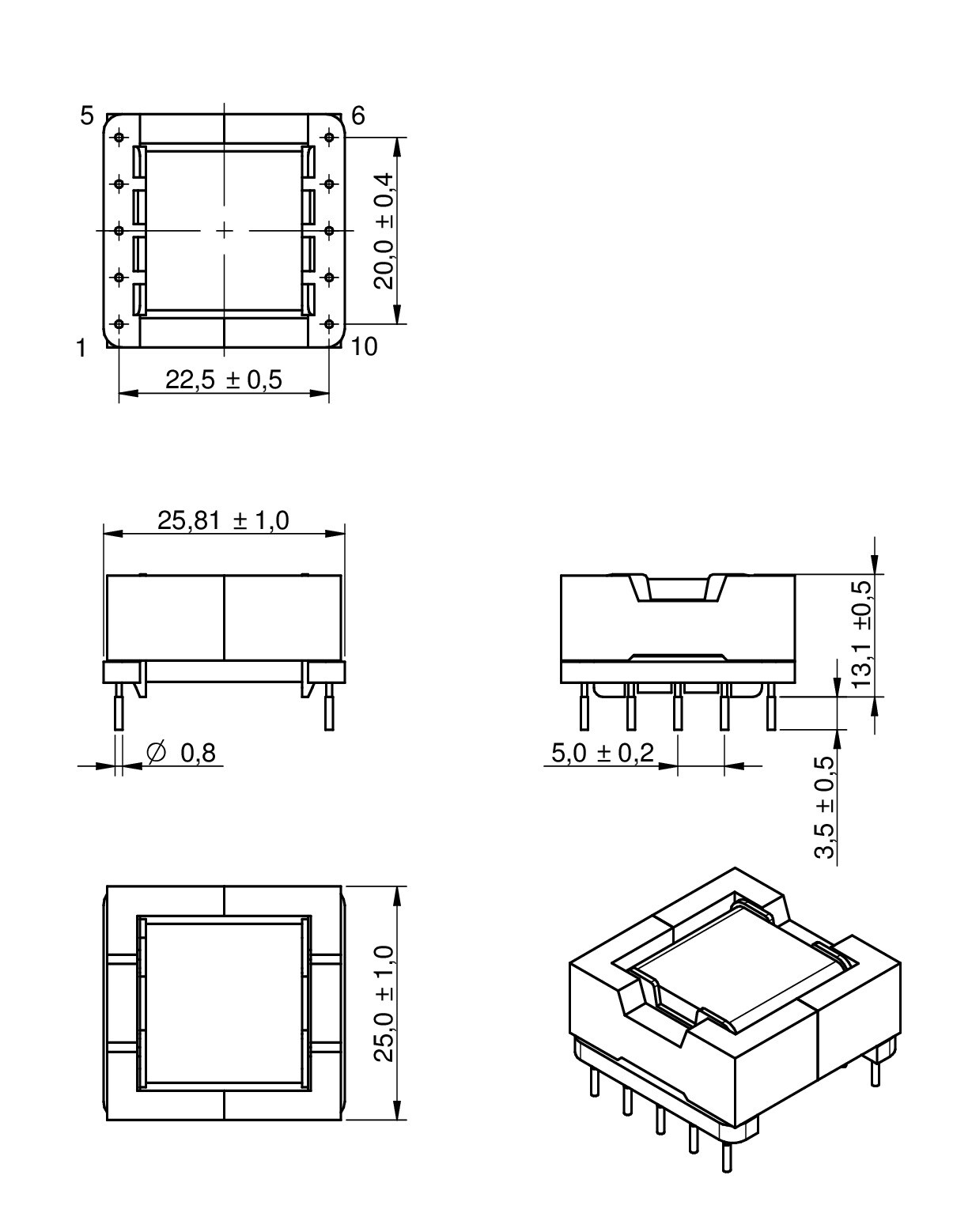

EFD25 25.81 25 13.1 THT

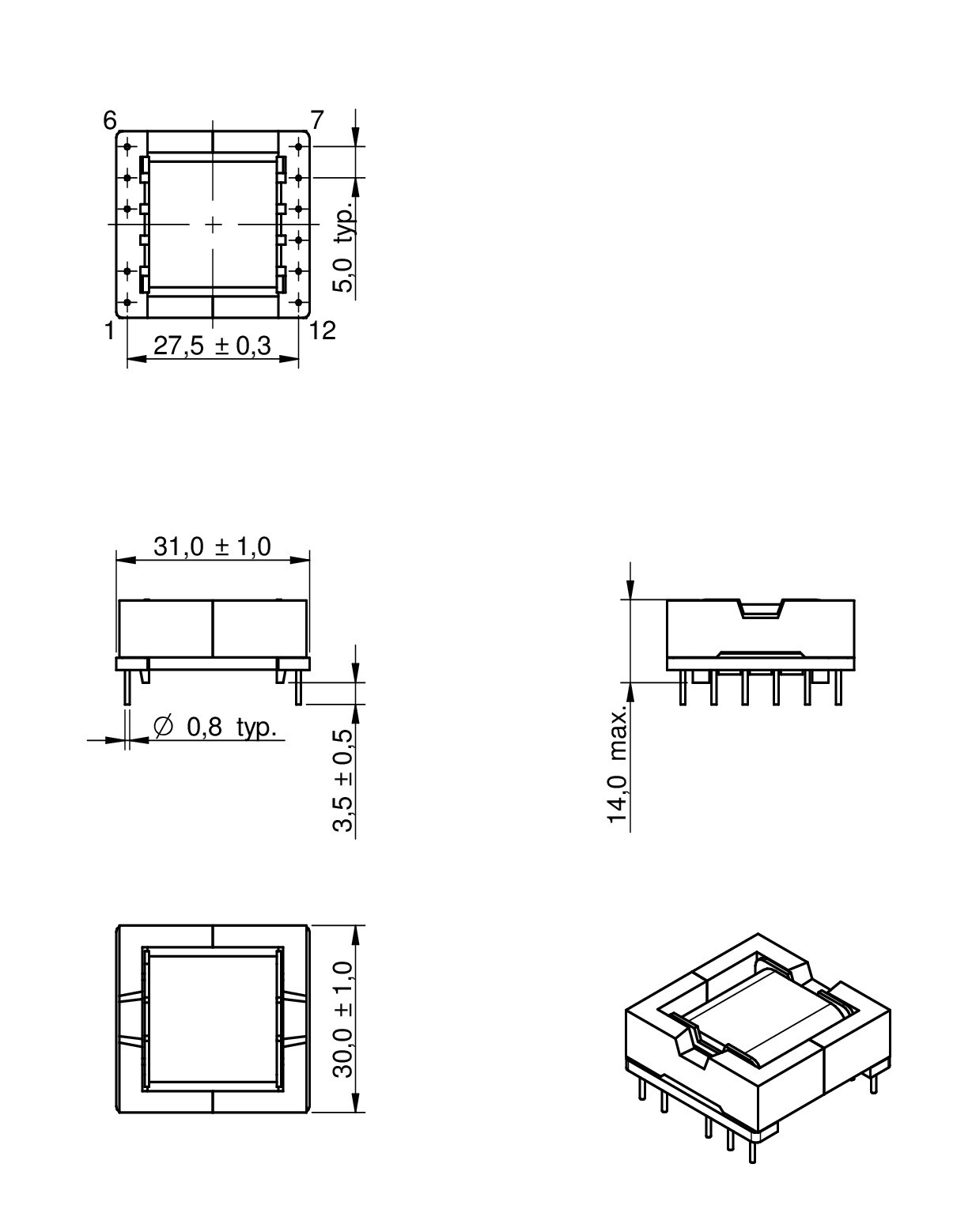

EFD30 31 30 14 THT

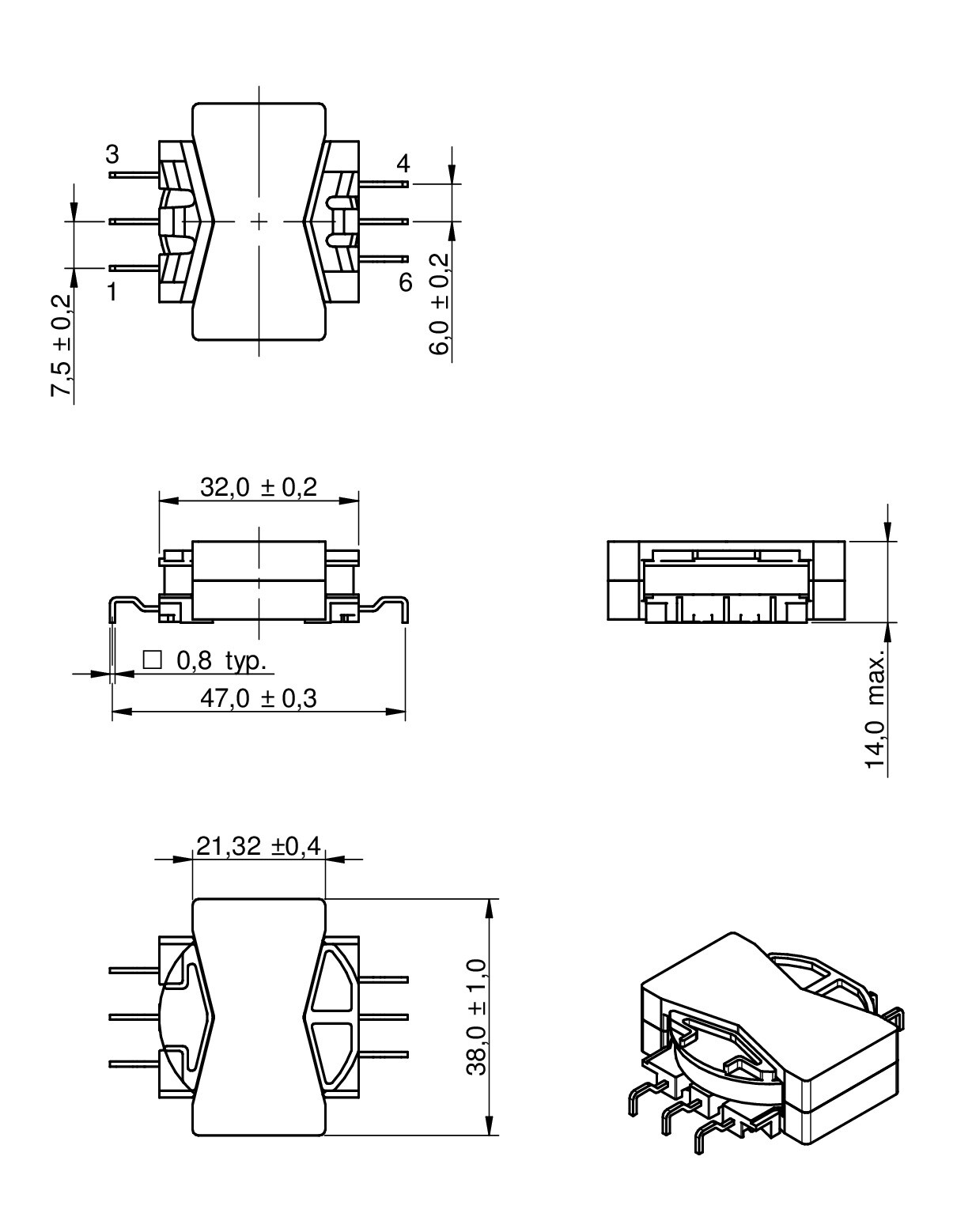

PQ38/11 47 38 14 THT

Characteristics

  • High efficiency
  • Good EMC behavior
  • Height as low as 13.1 mm
  • Small footprint
  • Suitable for mains voltage
  • Isolation voltage of 1.5 kV AC
  • Operating temperature: -40 °C to 125 °C

Applications

  • Active power factor correction
  • Lighting applications
  • SMPS for 75 W - 250 W
  • Modes of operation: DCM
  • REDEXPERT PFC Choke calculator tool available
  • Reference Designs for ICs NCP1606B & MC33262 of ON semiconductors and others

Products

All
EER28
EE20/10/6
RM10
RM12
RM14
EFD25
EFD30
PQ38/11
Order Code Data­sheet Simu­lation DownloadsVINL1
(µH)
nIR
(A)
ISAT
(A)
RDC1 max
(mΩ)
RDC2 max
(mΩ)
VT
(V (AC))
Size Samples
760803200SPEC
7 files 85 - 265 V (AC) 150 9.17:1 1.5 12 190 140 800 EER28
760800080SPEC
7 files 85 - 265 V (AC) 1800 12.9:1 0.3 1 1550 1200 1500 EE20/10/6
760801130SPEC
7 files 85 - 265 V (AC) 750 90:8 0.9 3.9 720 320 1500 RM10
760804310SPEC
7 files 85 - 265 V (AC) 300 52:5 2.4 7.4 170 250 1500 RM12
760802122SPEC
7 files 85 - 265 V (AC) 450 10:1 1.2 5.6 330 200 1500 RM12
760805410SPEC
7 files 85 - 265 V (AC) 225 39:4 2.4 12.4 87 200 1500 RM14
760806400SPEC
7 files 85 - 265 V (AC) 180 9:1 3 13.2 78 200 1500 RM14
760801131SPEC
7 files 85 - 265 V (AC) 750 34:3 0.9 3.3 950 580 1500 EFD30
760806302SPEC
7 files 85 - 265 V (AC) 300 8.75:1 3 5.1 197.3 310 1500 PQ38/11
760802112SPEC
7 files 195 - 265 V (AC) 375 12:1 0.8 5.4 360 180 1500 RM10
760801020SPEC
7 files 195 - 265 V (AC) 500 12:1 0.6 4 360 180 1500 RM10
760801030SPEC
7 files 195 - 265 V (AC) 650 10,71:1 0.4 3.9 480 260 1500 RM10
760804110SPEC
7 files 195 - 265 V (AC) 250 44:5 1.1 5.6 150 200 1500 RM10
760805210SPEC
7 files 195 - 265 V (AC) 200 39:5 1.4 8.4 120 250 1500 RM12
760806200SPEC
7 files 195 - 265 V (AC) 150 33:4 1.4 11 80 180 1500 RM12
760801031SPEC
7 files 195 - 265 V (AC) 650 90:8 0.4 2.6 1020 460 1500 EFD25
760801021SPEC
7 files 195 - 265 V (AC) 500 21:2 0.6 4.2 620 540 1500 EFD30
760802113SPEC
7 files 195 - 265 V (AC) 375 65:6 0.8 4 470 390 1500 EFD30
760804111SPEC
7 files 195 - 265 V (AC) 250 50:5 1.1 4.8 300 350 1500 EFD30
760805211SPEC
7 files 195 - 265 V (AC) 200 50:5 1.4 6 300 350 1500 EFD30
760806201SPEC
7 files 195 - 265 V (AC) 150 42:5 1.4 6.8 190 350 1500 EFD30
