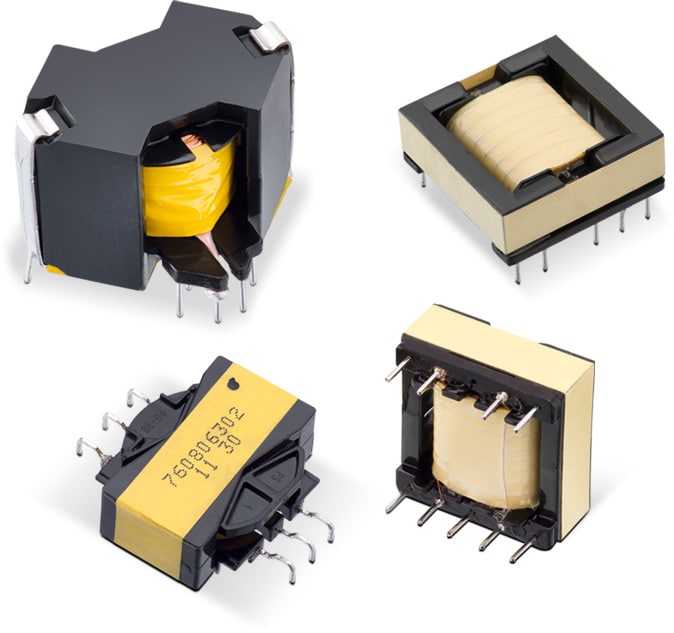

WE-PFC PFC Chokes

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
EER28		33	30	23	THT
EE20/10/6		22	23	17.5	THT
RM10		31	29	20	THT
RM12		41	40	26	THT
RM14		48	43	32	THT
EFD25		25.81	25	13.1	THT
EFD30		31	30	14	THT
PQ38/11		47	38	14	THT

LTSpice files

LT
LTSpice_WE-PFC (rev23a).zip
|
2.9 KB

Characteristics

High efficiency
Good EMC behavior
Height as low as 13.1 mm
Small footprint
Suitable for mains voltage
Isolation voltage of 1.5 kV AC
Operating temperature: -40 °C to 125 °C

Applications

Active power factor correction
Lighting applications
SMPS for 75 W - 250 W
Modes of operation: DCM
REDEXPERT PFC Choke calculator tool available
Reference Designs for ICs NCP1606B & MC33262 of ON semiconductors and others

Can’t find the suitable product?

We will be glad to help you! We will take your specifications and work to find a solution that fits your needs. Simply fill out our inquiry form with your specifications.

Find your custom solution

Products

All

EER28

EE20/10/6

RM10

RM12

RM14

EFD25

EFD30

PQ38/11

Filter article data

show article in 8 product lines

article in 8 product lines

	Order Code	Datasheet	Simulation	Downloads	Status	V_IN	L(µH)	n	I_R(A)	I_SAT(A)	R_{DC1 max}(mΩ)	R_{DC2 max}(mΩ)	V_T(V (AC))	Size	Samples
