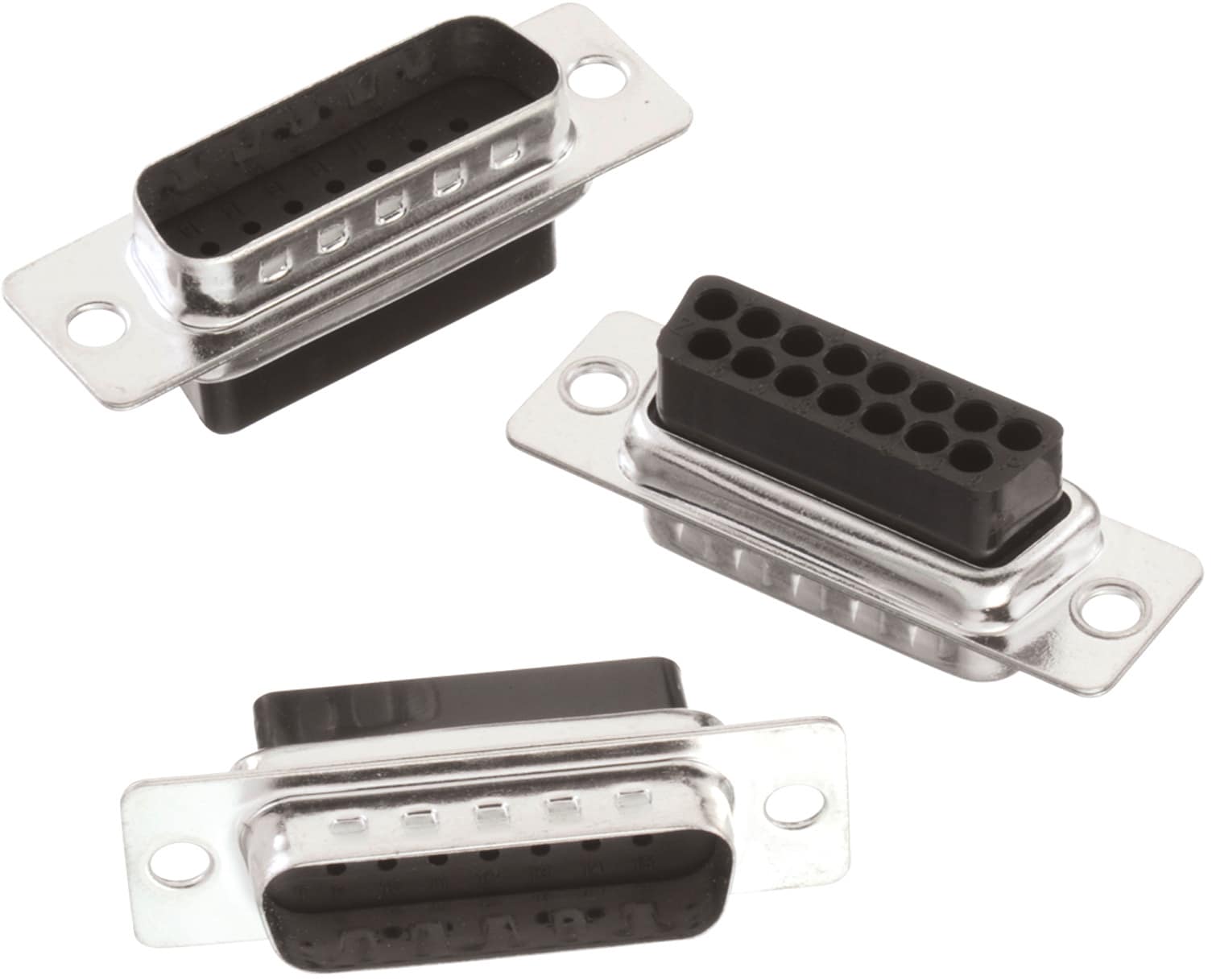

WR-DSUB Male Terminal Housing | Electromechanical Components | Würth Elektronik Product Catalog

Product unitElectromechanical Components Product groupConnectors Product familyInput/Output Connectors Product sub-familyWR-DSUB Connectors OrientationCable GenderMale Product seriesWR-DSUB Male Terminal Housing

Kind Properties
Gender	Male
Type	Crimp Housing

General Information
Operating Temperature	-55 up to +105 °C

Electrical Properties
I_{R 1}	3 A
Working Voltage	125 V (AC)

Application Notes

ANP083a Adapter PCB for filtering electromagnetic interference on an RS-485 interface

Products

Order Code	Datasheet	Downloads	Pins	Gender	Type	Samples
618009217122		IGE STE 3D	9	Male	Crimp Housing
618015217122		IGE STE 3D	15	Male	Crimp Housing
618025217122		IGE STE 3D	25	Male	Crimp Housing
618037217122		IGE STE 3D	37	Male	Crimp Housing

Order Code	Datasheet
618009217122
618015217122
618025217122
618037217122

Samples

Order Code	Datasheet	Downloads	Pins	Gender	Type	Samples

Tools

Manual Crimping Tool for WR-DSUB

WR-DSUB Male Crimp Contact

Use with

WA-HEX Hexagonal Lock Screws for D-Sub

WA-PCCA Plastic Caps for D-SUB

WR-DSUB Male Crimp Contact

WR-DSUB Metalized Plastic Hood Top Entry 4-40 Screw

WR-DSUB Plastic Hood Small Top Entry 4-40 Screw

WR-DSUB Plastic Hood Top Entry 4-40 Screw

Mates with

WR-DSUB 10.30 mm Female Angled PCB Connector w. Hex Screw

WR-DSUB 10.30 mm Female Angled PCB Connector w/o Hex Screw

WR-DSUB 8.08 mm Female Angled PCB Connector w. Hex Screw

WR-DSUB 8.08 mm Female Angled PCB Connector w/o Hex Screw

WR-DSUB Female IDC

WR-DSUB Female PCB Connector

WR-DSUB Female Terminal Housing

WR-DSUB Metalized Plastic Hood Top Entry 4-40 Screw
