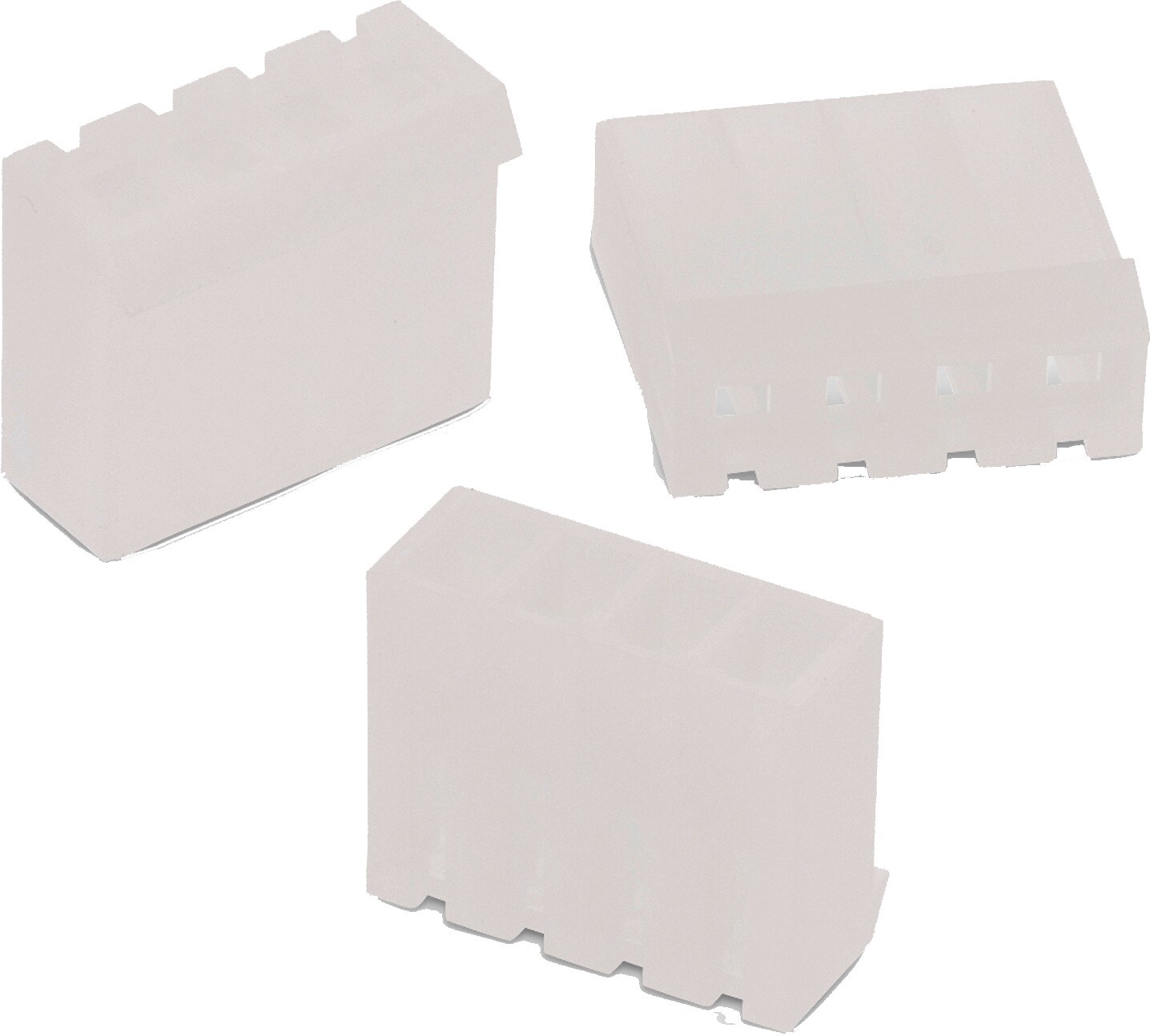

WR-WTB 3.96 mm Female Terminal Housing

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-2
Color	White

General Information
Compliance	RoHS
Withstanding Voltage	1500 V (AC)
R_ISO	1000 MΩ
Pitch	3.96 mm
Gender	Female
Type	Terminal Housing
Operating Temperature	-40 °C up to +105 °C

Certification
UL Approval	E323964

Packaging Properties
Packaging	Bag

Products

Filter article data

show article in 0 product lines

article in 0 product lines

	Order Code	Datasheet	Downloads	Status	Gender	Pins	Type	Packaging	Bidirectional	Mates with	Design Kit	Samples
	645004113322	Female, 4, Terminal Housing	Downloads4 files CAD files ZIP 3D 645004113322_1 (rev1).pdf \| 73.6 KB IGS 645004113322 (rev1).iges \| 696.5 KB IGS 645004113322 (rev1).igs \| 694.7 KB STP 645004113322 (rev1).stp \| 289.2 KB Download all 4 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Pins4	TypeTerminal Housing	PackagingBag	Bidirectional 645004114822	Mates with 645004117322	Design Kit 645001
	645005113322	Female, 5, Terminal Housing	Downloads4 files CAD files ZIP 3D 645005113322_1 (rev1).pdf \| 91.4 KB IGS 645005113322 (rev1).iges \| 861.9 KB IGS 645005113322 (rev1).igs \| 859.9 KB STP 645005113322 (rev1).stp \| 356.3 KB Download all 4 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Pins5	TypeTerminal Housing	PackagingBag	Bidirectional –	Mates with 645005114822 645005117322	Design Kit 645001
	645006113322	Female, 6, Terminal Housing	Downloads4 files CAD files ZIP 3D 645006113322_1 (rev1).pdf \| 112.8 KB IGS 645006113322 (rev1).iges \| 1 MB IGS 645006113322 (rev1).igs \| 1 MB STP 645006113322 (rev1).stp \| 423.6 KB Download all 4 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Pins6	TypeTerminal Housing	PackagingBag	Bidirectional –	Mates with 645006114822	Design Kit 645001
	645008113322	Female, 8, Terminal Housing	Downloads4 files CAD files ZIP 3D 645008113322_1 (rev1).pdf \| 78.1 KB IGS 645008113322 (rev1).iges \| 1.3 MB IGS 645008113322 (rev1).igs \| 1.3 MB STP 645008113322 (rev1).stp \| 559.1 KB Download all 4 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Pins8	TypeTerminal Housing	PackagingBag	Bidirectional –	Mates with 645008114822 645008117322	Design Kit 612690 645001
	645010113322	Female, 10, Terminal Housing	Downloads4 files CAD files ZIP 3D 645010113322_1 (rev1).pdf \| 94.8 KB IGS 645010113322 (rev1).iges \| 1.7 MB IGS 645010113322 (rev1).igs \| 1.7 MB STP 645010113322 (rev1).stp \| 700.1 KB Download all 4 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Pins10	TypeTerminal Housing	PackagingBag	Bidirectional –	Mates with 645010114822 645010117322	Design Kit 645001
	645002113322	Female, 2, Terminal Housing	Downloads3 files CAD files ZIP 3D 645002113322_1 (rev1).pdf \| 42 KB IGS 645002113322 (rev1).iges \| 365.7 KB STP 645002113322 (rev1).stp \| 151.9 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Pins2	TypeTerminal Housing	PackagingBag	Bidirectional –	Mates with –	Design Kit 645001
	645003113322	Female, 3, Terminal Housing	Downloads3 files CAD files ZIP 3D 645003113322_1 (rev1).pdf \| 57.8 KB IGS 645003113322 (rev1).iges \| 530 KB STP 645003113322 (rev1).stp \| 219.4 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Pins3	TypeTerminal Housing	PackagingBag	Bidirectional –	Mates with 645003114822 645003117322	Design Kit 645001
