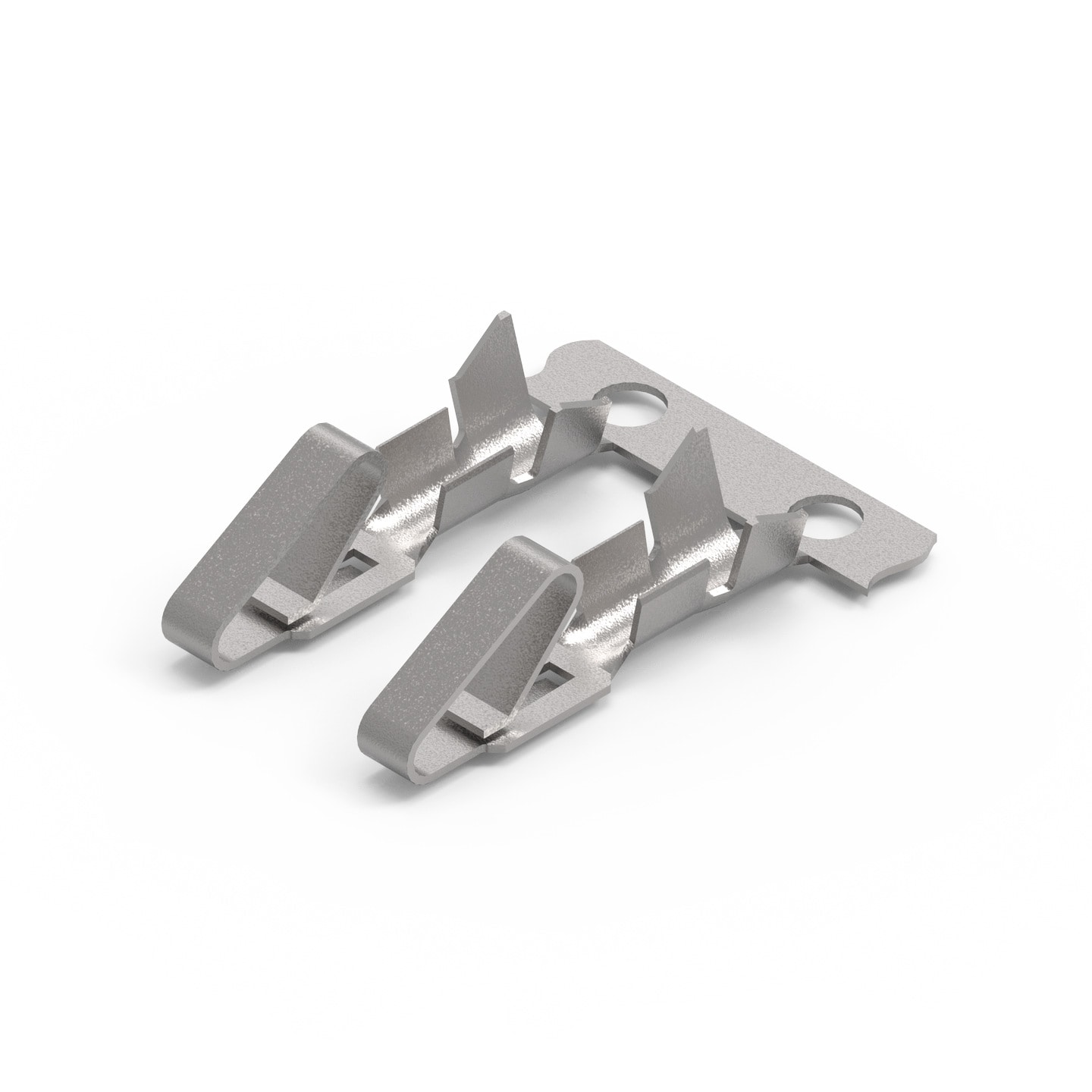

WR-WTB 3.96 mm Female Crimp Contact

Material Properties
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Type	Stamped

General Information
Compliance	RoHS
I_R	7 A
Working Voltage	250 V (AC)
Contact Resistance	20 mΩ
Pitch	3.96 mm
Gender	Female
Type	Crimp Terminal
Operating Temperature	-40 °C up to +105 °C

Wire Properties
Solid Wire Section (Metric)	0.326 to 0.823 (mm²)
Stranded Wire Section (AWG)	22 to 18 (AWG)
Stranded Wire Section (Metric)	0.326 to 0.823 (mm²)

Packaging Properties
Packaging	Bag; Big Reel; Small Reel

Products

Filter article data

show articles in 0 product lines

articles in 0 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Downloads	Status	Gender	Stranded Wire Section (AWG)	Stranded Wire Section (Metric)	Packaging	Qty.(pcs)	Manual Crimping Tool	Automatic Crimping Tool	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	64500113722	SPECFemale, 22 to 18 (AWG), 0.326 to 0.823 (mm²)	Availability –	Downloads3 files 3D 64500113722_1 (rev1).pdf \| 177.2 KB IGS 64500113722 (rev1).igs \| 1.2 MB STP 64500113722 (rev1).stp \| 376.7 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	GenderFemale	Stranded Wire Section (AWG)22 to 18 (AWG)	Stranded Wire Section (Metric)0.326 to 0.823 (mm²)	PackagingBig Reel	Packaging Unit6000 pcs	Manual Crimping Tool 600396396001	Automatic Crimping Tool 600645401	Design Kit –	–Check availability
	64510113722	SPECFemale, 22 to 18 (AWG), 0.326 to 0.823 (mm²)	Availability –	Downloads3 files 3D 64510113722_1 (rev1).pdf \| 106.7 KB IGS 64510113722 (rev1).iges \| 1.2 MB STP 64510113722 (rev1).stp \| 425.5 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	GenderFemale	Stranded Wire Section (AWG)22 to 18 (AWG)	Stranded Wire Section (Metric)0.326 to 0.823 (mm²)	PackagingSmall Reel	Packaging Unit500 pcs	Manual Crimping Tool 600396396001	Automatic Crimping Tool 600645401	Design Kit –	–Check availability
	64500113722DEC	SPECFemale, 22 to 18 (AWG), 0.326 to 0.823 (mm²)	Availability –	Downloads3 files 3D 64500113722DEC_1 (rev1).pdf \| 89.7 KB IGS 64500113722DEC (rev1).iges \| 732.2 KB STP 64500113722DEC (rev1).stp \| 179.5 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	GenderFemale	Stranded Wire Section (AWG)22 to 18 (AWG)	Stranded Wire Section (Metric)0.326 to 0.823 (mm²)	PackagingBag	Packaging Unit100 pcs	Manual Crimping Tool 600396396001	Automatic Crimping Tool –	Design Kit 612690 645001	–Check availability

Suitable for

WR-WTB 3.96 mm Female Terminal Housing

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
