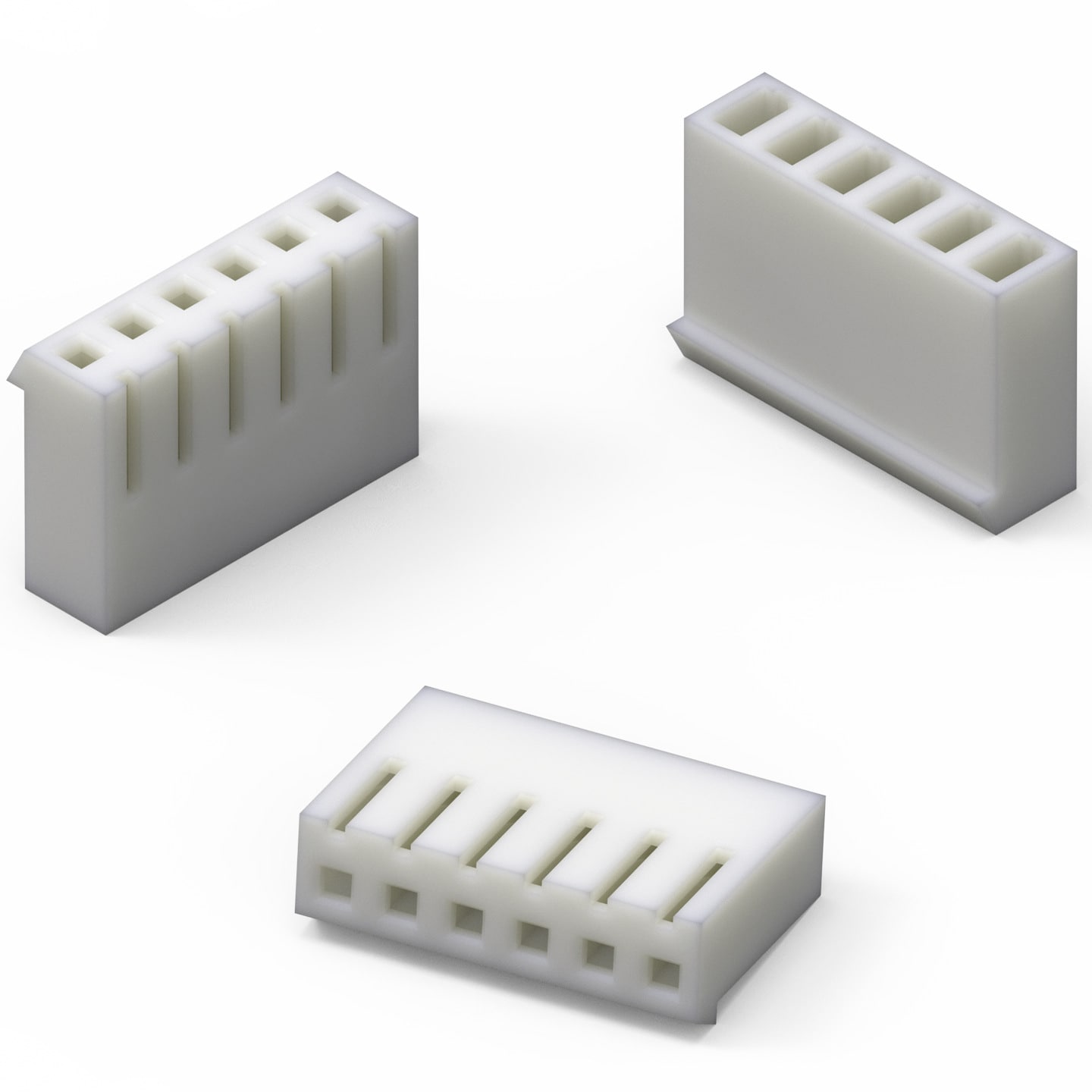

WR-WTB 3.96 mm Female Terminal Housing

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-2
Color	White

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Withstanding Voltage	1500 V (AC)
R_ISO	1000 MΩ
Pitch	3.96 mm
Gender	Female
Type	Terminal Housing

Certification
UL Approval	E323964

Packaging Properties
Packaging	Bag

Products

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Gender	Type	PCB/Cable/Panel	L (mm)	Packaging	Design Kit	Samples
	645002113322	SPEC	3 files CAD files ZIP 3D 645002113322_1 (rev1).pdf \| 42 KB IGS 645002113322 (rev1).iges \| 365.7 KB STP 645002113322 (rev1).stp \| 151.9 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	3.96	Female	Terminal Housing	Cable	9.06	Bag	645001
	645003113322	SPEC	3 files CAD files ZIP 3D 645003113322_1 (rev1).pdf \| 57.8 KB IGS 645003113322 (rev1).iges \| 530 KB STP 645003113322 (rev1).stp \| 219.4 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	3.96	Female	Terminal Housing	Cable	13.02	Bag	645001
	645004113322	SPEC	4 files CAD files ZIP 3D 645004113322_1 (rev1).pdf \| 73.6 KB IGS 645004113322 (rev1).iges \| 696.5 KB IGS 645004113322 (rev1).igs \| 694.7 KB STP 645004113322 (rev1).stp \| 289.2 KB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	3.96	Female	Terminal Housing	Cable	16.98	Bag	645001
	645005113322	SPEC	4 files CAD files ZIP 3D 645005113322_1 (rev1).pdf \| 91.4 KB IGS 645005113322 (rev1).iges \| 861.9 KB IGS 645005113322 (rev1).igs \| 859.9 KB STP 645005113322 (rev1).stp \| 356.3 KB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	3.96	Female	Terminal Housing	Cable	20.94	Bag	645001
	645006113322	SPEC	4 files CAD files ZIP 3D 645006113322_1 (rev1).pdf \| 112.8 KB IGS 645006113322 (rev1).iges \| 1 MB IGS 645006113322 (rev1).igs \| 1 MB STP 645006113322 (rev1).stp \| 423.6 KB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	3.96	Female	Terminal Housing	Cable	24.9	Bag	645001
	645008113322	SPEC	4 files CAD files ZIP 3D 645008113322_1 (rev1).pdf \| 78.1 KB IGS 645008113322 (rev1).iges \| 1.3 MB IGS 645008113322 (rev1).igs \| 1.3 MB STP 645008113322 (rev1).stp \| 559.1 KB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	3.96	Female	Terminal Housing	Cable	32.82	Bag	612690 645001
	645010113322	SPEC	4 files CAD files ZIP 3D 645010113322_1 (rev1).pdf \| 94.8 KB IGS 645010113322 (rev1).iges \| 1.7 MB IGS 645010113322 (rev1).igs \| 1.7 MB STP 645010113322 (rev1).stp \| 700.1 KB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	3.96	Female	Terminal Housing	Cable	40.74	Bag	645001
