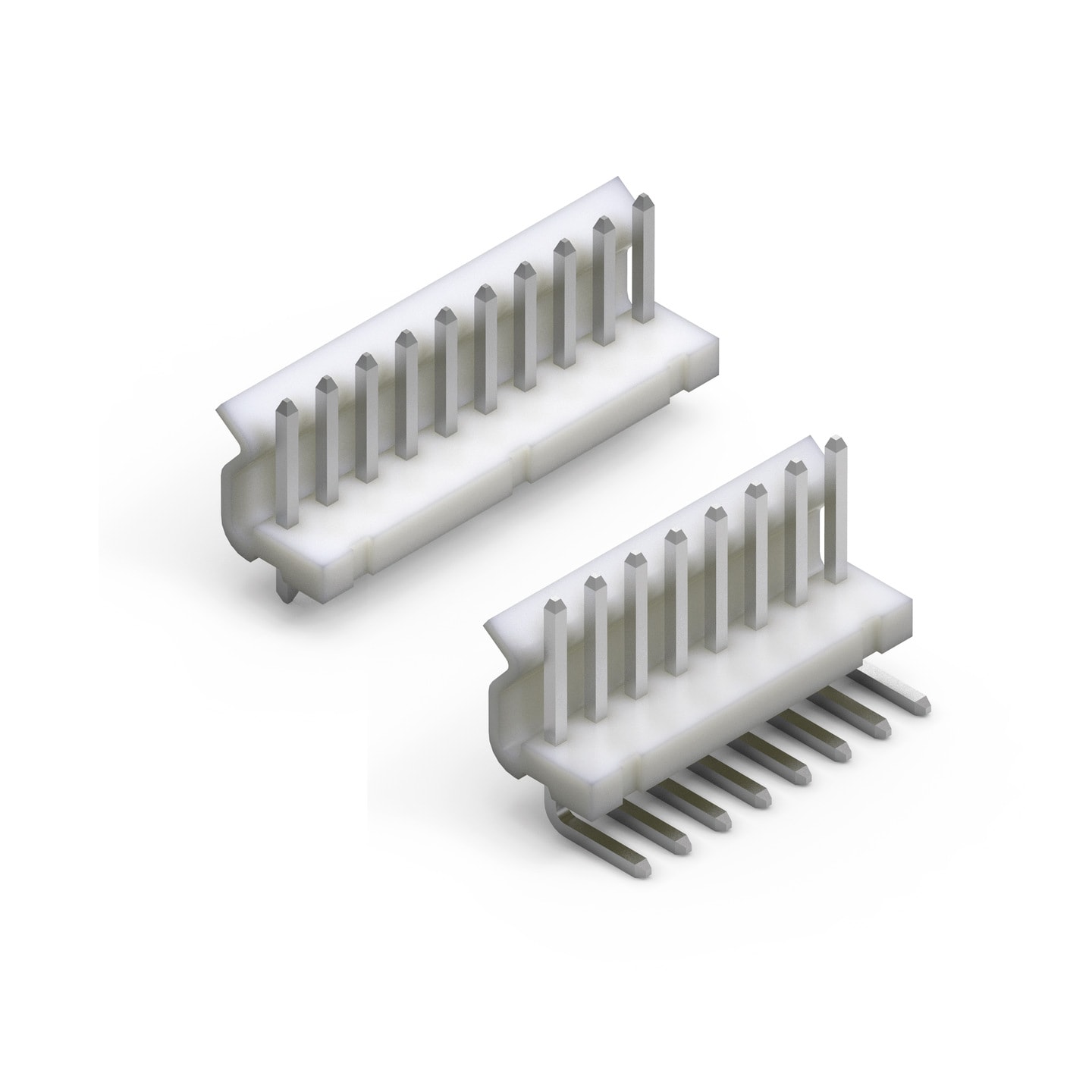

WR-WTB 3.96 mm Male Header

Size	Dimensions	Mount
Horizontal		THT
Vertical		THT

Characteristics

Properties:
Rated Current: 7 A
Working Voltage: 250 V
UL94 V-2
Pitch: 3.96 mm
Features:
Fine pitch
THT soldering
Operating temperature: -40 °C up to +105 °C

Applications

Microelectronic
Portable devices
Industry 4.0

Products

All

Horizontal

Vertical

Filter article data

show article in 2 product lines

article in 2 product lines

Order Code	Datasheet	Downloads	Status	Pins	Type	Mount	I_R(A)	PCB/Cable/Panel	L(mm)	Packaging	Mates with	Design Kit	SamplesAvailability & Sample
645002117322	SPEC2, Right Angled, THT	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB CAD files ZIP 3D 645002117322_1 (rev1).pdf \| 30.6 KB IGS 645002117322 (rev1).iges \| 371.7 KB STP 645002117322 (rev1).stp \| 144.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	TypeRight Angled	MountTHT	Rated Current7 A	PCB/Cable/PanelPCB	Length7.92 mm	PackagingBag	Mates with 645002113322	Design Kit 645001	–Check availability
645002114822	SPEC2, Vertical, THT	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB CAD files ZIP 3D 645002114822_1 (rev1).pdf \| 28.1 KB IGS 645002114822 (rev1).iges \| 342.4 KB STP 645002114822 (rev1).stp \| 134.6 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	TypeVertical	MountTHT	Rated Current7 A	PCB/Cable/PanelPCB	Length7.92 mm	PackagingBag	Mates with 645002113322	Design Kit 645001	–Check availability
645003117322	SPEC3, Right Angled, THT	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB CAD files ZIP 3D 645003117322_1 (rev1).pdf \| 32.9 KB IGS 645003117322 (rev1).iges \| 420.5 KB STP 645003117322 (rev1).stp \| 165.6 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	TypeRight Angled	MountTHT	Rated Current7 A	PCB/Cable/PanelPCB	Length11.88 mm	PackagingBag	Mates with 645003113322	Design Kit 645001	–Check availability
645003114822	SPEC3, Vertical, THT	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB CAD files ZIP 3D 645003114822_1 (rev1).pdf \| 30.5 KB IGS 645003114822 (rev1).iges \| 391.2 KB STP 645003114822 (rev1).stp \| 155.6 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	TypeVertical	MountTHT	Rated Current7 A	PCB/Cable/PanelPCB	Length11.88 mm	PackagingBag	Mates with 645003113322	Design Kit 645001	–Check availability
645004114822	SPEC4, Vertical, THT	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB CAD files ZIP 3D 645004114822_1 (rev1).pdf \| 32.8 KB IGS 645004114822 (rev1).iges \| 441.4 KB STP 645004114822 (rev1).stp \| 176.6 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	TypeVertical	MountTHT	Rated Current7 A	PCB/Cable/PanelPCB	Length15.84 mm	PackagingBag	Mates with 645004113322	Design Kit 645001	–Check availability
645004117322	SPEC4, Right Angled, THT	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB CAD files ZIP 3D 645004117322_1 (rev1).pdf \| 34.9 KB IGS 645004117322 (rev1).iges \| 470.7 KB STP 645004117322 (rev1).stp \| 186.6 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	TypeRight Angled	MountTHT	Rated Current7 A	PCB/Cable/PanelPCB	Length15.84 mm	PackagingBag	Mates with 645004113322	Design Kit 645001	–Check availability
645005114822	SPEC5, Vertical, THT	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB CAD files ZIP 3D 645005114822_1 (rev1).pdf \| 36.3 KB IGS 645005114822 (rev1).iges \| 491.6 KB STP 645005114822 (rev1).stp \| 197.6 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	TypeVertical	MountTHT	Rated Current7 A	PCB/Cable/PanelPCB	Length19.8 mm	PackagingBag	Mates with 645005113322	Design Kit 645001	–Check availability
645005117322	SPEC5, Right Angled, THT	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB CAD files ZIP 3D 645005117322_1 (rev1).pdf \| 38.6 KB IGS 645005117322 (rev1).iges \| 520.9 KB STP 645005117322 (rev1).stp \| 207.6 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	TypeRight Angled	MountTHT	Rated Current7 A	PCB/Cable/PanelPCB	Length19.8 mm	PackagingBag	Mates with 645005113322	Design Kit 645001	–Check availability
645006114822	SPEC6, Vertical, THT	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB CAD files ZIP 3D 645006114822_1 (rev1).pdf \| 43.4 KB IGS 645006114822 (rev1).iges \| 566.3 KB STP 645006114822 (rev1).stp \| 228.1 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	TypeVertical	MountTHT	Rated Current7 A	PCB/Cable/PanelPCB	Length23.76 mm	PackagingBag	Mates with 645006113322	Design Kit 645001	–Check availability
645008114822	SPEC8, Vertical, THT	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB CAD files ZIP 3D 645008114822_1 (rev1).pdf \| 49.6 KB IGS 645008114822 (rev1).iges \| 666.7 KB STP 645008114822 (rev1).stp \| 270.1 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	TypeVertical	MountTHT	Rated Current7 A	PCB/Cable/PanelPCB	Length31.68 mm	PackagingBag	Mates with 645008113322	Design Kit 612690 645001	–Check availability
645008117322	SPEC8, Right Angled, THT	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB CAD files ZIP 3D 645008117322_1 (rev1).pdf \| 50.8 KB IGS 645008117322 (rev1).iges \| 696 KB STP 645008117322 (rev1).stp \| 280 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	TypeRight Angled	MountTHT	Rated Current7 A	PCB/Cable/PanelPCB	Length31.68 mm	PackagingBag	Mates with 645008113322	Design Kit 612690 645001	–Check availability
645010114822	SPEC10, Vertical, THT	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB CAD files ZIP 3D 645010114822_1 (rev1).pdf \| 56.4 KB IGS 645010114822 (rev1).iges \| 795.9 KB STP 645010114822 (rev1).stp \| 321.6 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins10	TypeVertical	MountTHT	Rated Current7 A	PCB/Cable/PanelPCB	Length39.6 mm	PackagingBag	Mates with 645010113322	Design Kit 645001	–Check availability
645010117322	SPEC10, Right Angled, THT	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB CAD files ZIP 3D 645010117322_1 (rev1).pdf \| 56.4 KB IGS 645010117322 (rev1).iges \| 825.2 KB STP 645010117322 (rev1).stp \| 331.6 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins10	TypeRight Angled	MountTHT	Rated Current7 A	PCB/Cable/PanelPCB	Length39.6 mm	PackagingBag	Mates with 645010113322	Design Kit 645001	–Check availability

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
