WR-WTB 2.00 mm Female Crimp Contact | Electromechanical Components | Würth Elektronik Product Catalog

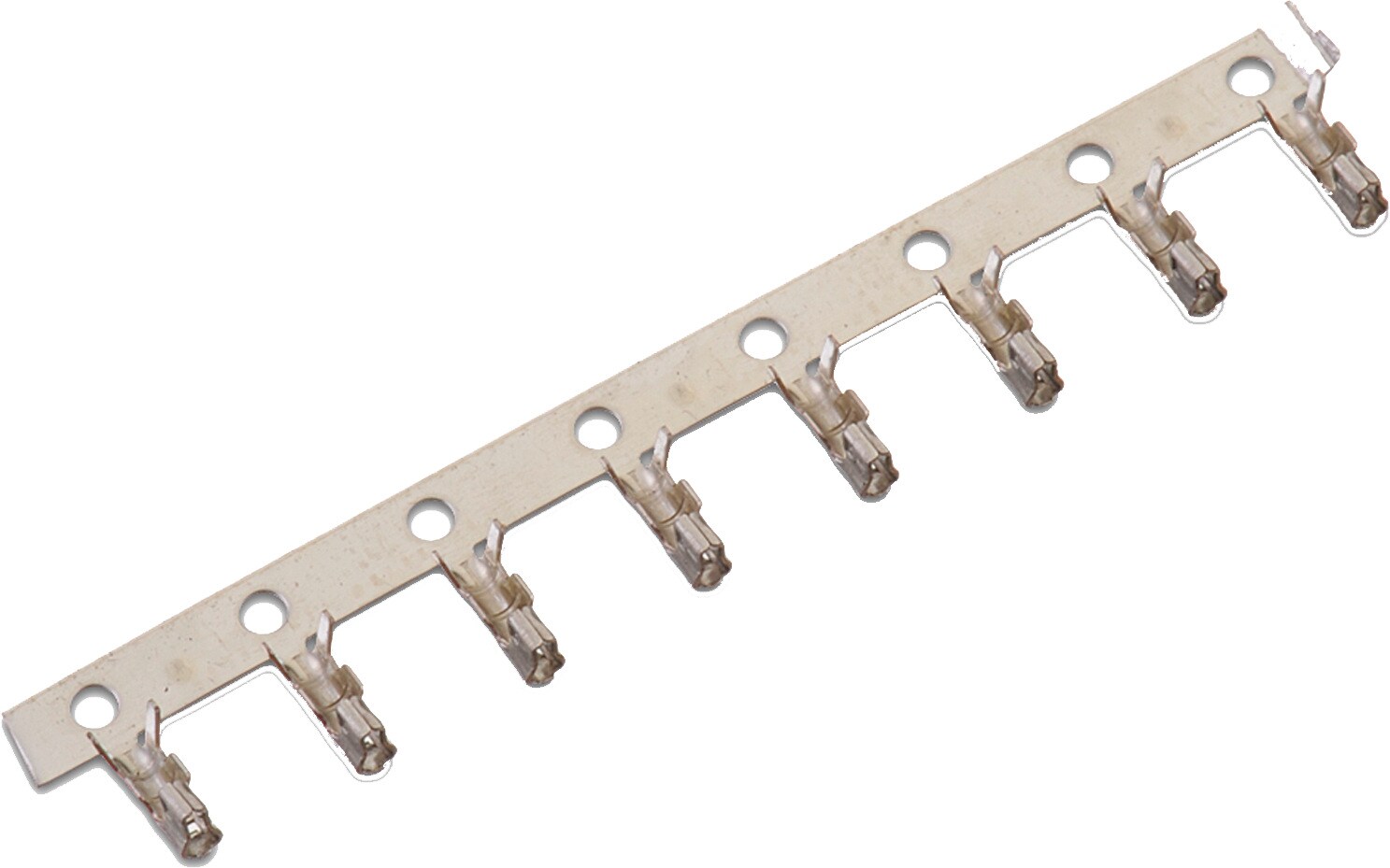

WR-WTB 2.00 mm Female Crimp Contact

Material Properties
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Type	Stamped

General Information
Compliance	RoHS
I_R	2 A
Working Voltage	100 V (AC)
Contact Resistance	20 mΩ
Pitch	2 mm
Gender	Female
Type	Crimp Terminal
Operating Temperature	-25 °C up to +85 °C

Wire Properties
Stranded Wire Section (AWG)	28 to 24 (AWG)
Stranded Wire Section (Metric)	0.081 to 0.205 (mm²)

Packaging Properties
Packaging	Bag; Big Reel; Small Reel

Products

Filter article data

show articles in 0 product lines

articles in 0 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Downloads	Status	Gender	Stranded Wire Section (AWG)	Stranded Wire Section (Metric)	Packaging	Qty.(pcs)	Automatic Crimping Tool	Manual Crimping Tool	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	62000113722	SPECFemale, 28 to 24 (AWG), 0.081 to 0.205 (mm²)	Availability –	Downloads3 files 3D 62000113722_1 (rev1).pdf \| 216.7 KB IGS 62000113722 (rev1).igs \| 1.1 MB STP 62000113722 (rev1).stp \| 390.9 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	GenderFemale	Stranded Wire Section (AWG)28 to 24 (AWG)	Stranded Wire Section (Metric)0.081 to 0.205 (mm²)	PackagingBig Reel	Packaging Unit10000 pcs	Automatic Crimping Tool 600620230220	Manual Crimping Tool 600620401	Design Kit –	–Check availability
	62010113722	SPECFemale, 28 to 24 (AWG), 0.081 to 0.205 (mm²)	Availability –	Downloads2 files 3D 62010113722_1 (rev1).pdf \| 235.7 KB STP Download_STP_62010113722 (rev1).stp \| 899.7 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	GenderFemale	Stranded Wire Section (AWG)28 to 24 (AWG)	Stranded Wire Section (Metric)0.081 to 0.205 (mm²)	PackagingSmall Reel	Packaging Unit600 pcs	Automatic Crimping Tool 600620401	Manual Crimping Tool 600620230220	Design Kit –	–Check availability
	62000113722DEC	SPECFemale, 28 to 24 (AWG), 0.081 to 0.205 (mm²)	Availability –	Downloads2 files 3D 62000113722DEC_1 (rev1).pdf \| 113.3 KB STP Download_STP_62000113722DEC (rev1).stp \| 899.7 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	GenderFemale	Stranded Wire Section (AWG)28 to 24 (AWG)	Stranded Wire Section (Metric)0.081 to 0.205 (mm²)	PackagingBag	Packaging Unit100 pcs	Automatic Crimping Tool –	Manual Crimping Tool 600620230220	Design Kit 612690 645001	–Check availability

Use with

WR-WTB 2.00 mm Female Terminal Housing

Tools

WR-WTB Manual Crimping Tool

WR-WTB Automatic Crimping Tool

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
