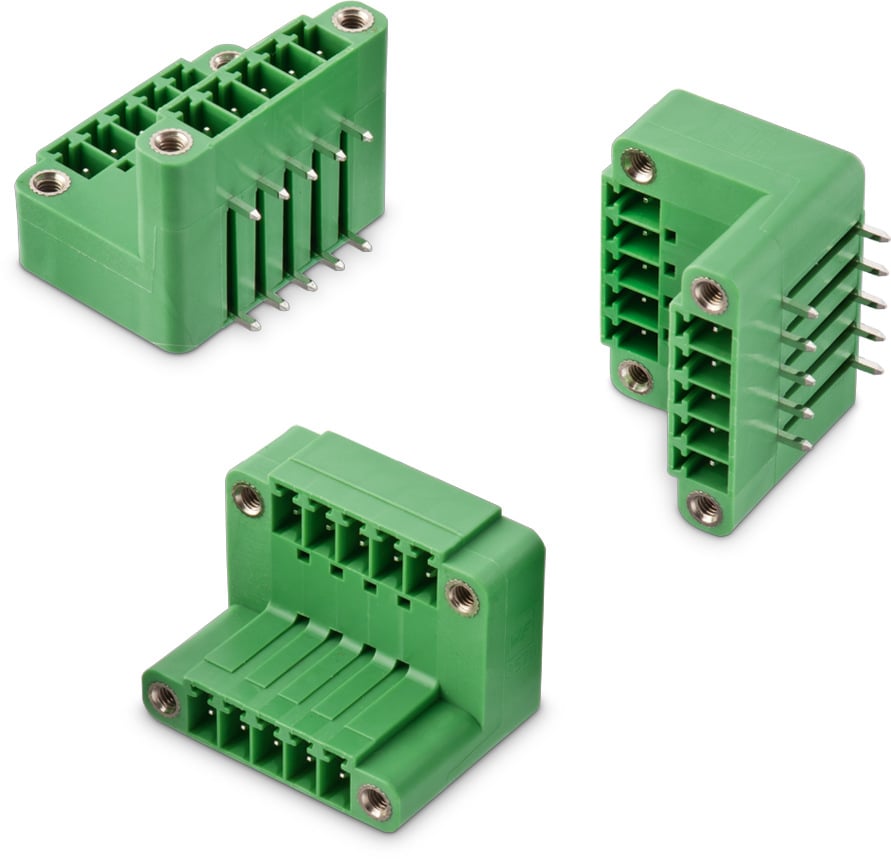

WR-TBL Series 357B - 3.81 mm Double Level Vertical Male PCB Header with Flanges

General Information
Operating Temperature-40 °C up to +105 °C
ComplianceRoHS
Pitch3.81 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Contact MaterialBrass
Contact PlatingTin
Electrical Properties
IR10 A
IR cULus10 A
Working Voltage300 V (AC)
Working Voltage [cULus]300 V (AC)
Withstanding Voltage [cULus]2000 V (AC)
Contact Resistance [cULus]20 mΩ
Certification
cULus ApprovalE315414

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityType Samples
691357300004BSPEC
6 files 4 Pluggable PCB No Vertical
691357300006BSPEC
6 files 6 Pluggable PCB No Vertical
691357300008BSPEC
6 files 8 Pluggable PCB No Vertical
691357300010BSPEC
6 files 10 Pluggable PCB No Vertical
691357300012BSPEC
6 files 12 Pluggable PCB No Vertical
Order Code Data­sheet
691357300004BSPEC
691357300006BSPEC
691357300008BSPEC
691357300010BSPEC
691357300012BSPEC
