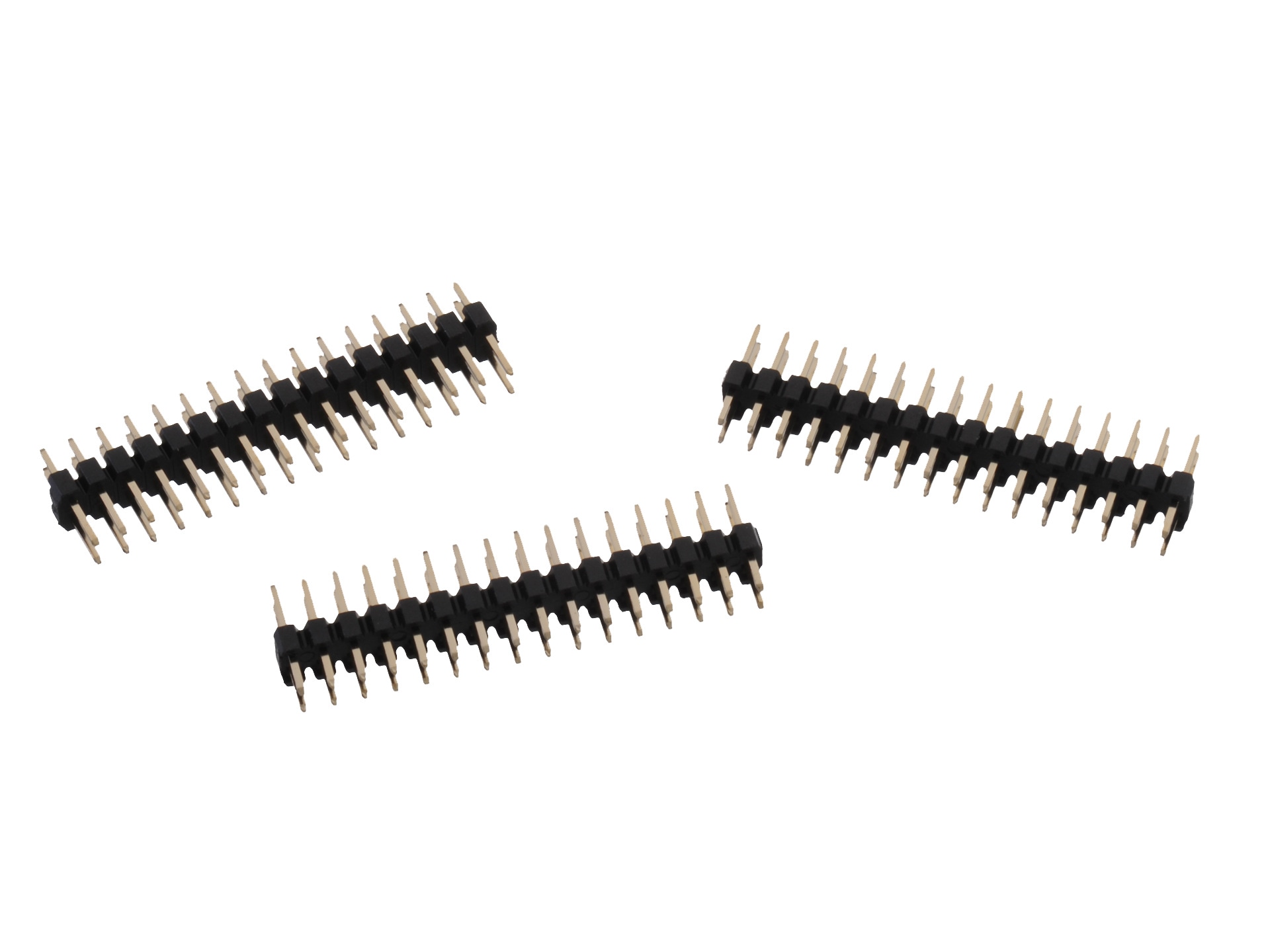

WR-PHD 2.00 mm THT Dual Pin Header

Article Properties
Pins4 mm; 6 mm; 8 mm; 10 mm; 16 mm; 20 mm; 24 mm; 28 mm; 32 mm; 40 mm; 44 mm
Kind Properties
Pitch2 mm
RowsDual
GenderPin Header
TypeStraight
Material Properties
Insulator MaterialPA9T
Insulator Flammability RatingUL94 V-0
Contact MaterialCopper Alloy
Contact PlatingGold
Contact TypeStamped
General Information
Operating Temperature-40 up to +105 °C
Electrical Properties
IR2 A
Withstanding Voltage500 V (AC)
Contact Resistance20 mΩ
RISO1000 MΩ
Certification
UL ApprovalE323964
Packaging Properties
PackagingBag

Products

Order Code Data­sheet DownloadsPins
(mm)
RowsGenderTypeIR
(A)
PackagingDesign Kit Samples
62000421121SPEC
6 files 4 Dual Pin Header Straight 2 Bag613001
62000621121SPEC
6 files 6 Dual Pin Header Straight 2 Bag
62000821121SPEC
6 files 8 Dual Pin Header Straight 2 Bag613001
62001021121SPEC
6 files 10 Dual Pin Header Straight 2 Bag613001
62001621121SPEC
6 files 16 Dual Pin Header Straight 2 Bag612690
62002021121SPEC
6 files 20 Dual Pin Header Straight 2 Bag613001
62002421121SPEC
6 files 24 Dual Pin Header Straight 2 Bag
62002821121SPEC
6 files 28 Dual Pin Header Straight 2 Bag613001
62003221121SPEC
6 files 32 Dual Pin Header Straight 2 Bag
62004021121SPEC
6 files 40 Dual Pin Header Straight 2 Bag
62004421121SPEC
6 files 44 Dual Pin Header Straight 2 Bag
Order Code Data­sheet
62000421121SPEC
62000621121SPEC
62000821121SPEC
62001021121SPEC
62001621121SPEC
62002021121SPEC
62002421121SPEC
62002821121SPEC
62003221121SPEC
62004021121SPEC
62004421121SPEC
Samples
Order Code Data­sheet DownloadsPins
(mm)
RowsGenderTypeIR
(A)
PackagingDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
