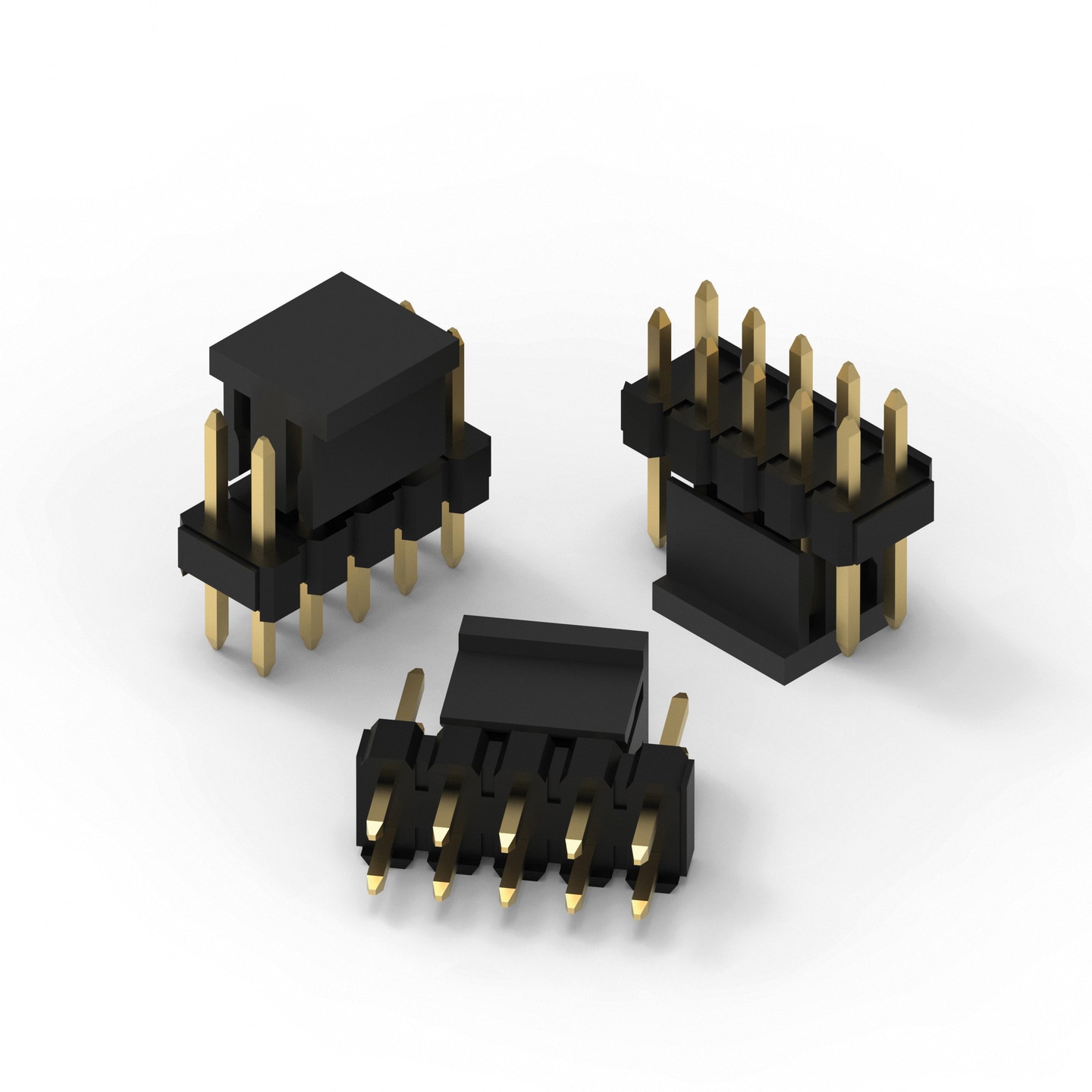

WR-PHD 2.00 mm THT Dual Pin Header

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins	4 pcs; 6 pcs; 8 pcs; 10 pcs; 16 pcs; 20 pcs; 24 pcs; 28 pcs; 32 pcs; 40 pcs; 44 pcs

Material Properties
Insulator Material	PA9T
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	2 mm
Durability	50 Cycles
Rows	Dual
Gender	Pin Header
Type	Straight

Electrical Properties
I_R	2 A
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Bag

Products

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples
	62000421121	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62000421121_1 (rev1).pdf \| 29.8 KB IGS Download_IGES_62000421121 (rev1).iges \| 408.3 KB STP 62000421121 (rev1).stp \| 99.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Dual	Pin Header	Straight	2	Bag	613001
	62000621121	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62000621121_1 (rev1).pdf \| 41.3 KB IGS 62000621121 (rev1).iges \| 599 KB STP 62000621121 (rev1).stp \| 143.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Dual	Pin Header	Straight	2	Bag	–
	62000821121	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62000821121_1 (rev1).pdf \| 49.2 KB IGS 62000821121 (rev1).iges \| 777.6 KB STP 62000821121 (rev1).stp \| 185.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Dual	Pin Header	Straight	2	Bag	613001
	62001021121	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62001021121_1 (rev1).pdf \| 58.4 KB IGS Download_IGES_62001021121 (rev1).iges \| 957.3 KB STP 62001021121 (rev1).stp \| 229.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Dual	Pin Header	Straight	2	Bag	613001
	62001621121	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62001621121_1 (rev1).pdf \| 86.2 KB IGS Download_IGES_62001621121 (rev1).iges \| 1.5 MB STP 62001621121 (rev1).stp \| 358.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	16	Dual	Pin Header	Straight	2	Bag	–
	62002021121	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62002021121_1 (rev1).pdf \| 104.6 KB IGS Download_IGES_62002021121 (rev1).iges \| 1.8 MB STP 62002021121 (rev1).stp \| 447.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	20	Dual	Pin Header	Straight	2	Bag	613001
	62002421121	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62002421121_1 (rev1).pdf \| 123.4 KB IGS Download_IGES_62002421121 (rev1).iges \| 2.2 MB STP 62002421121 (rev1).stp \| 537.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	24	Dual	Pin Header	Straight	2	Bag	–
	62002821121	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62002821121_1 (rev1).pdf \| 142.2 KB IGS Download_IGES_62002821121 (rev1).iges \| 2.5 MB STP 62002821121 (rev1).stp \| 626.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	28	Dual	Pin Header	Straight	2	Bag	613001
	62003221121	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62003221121_1 (rev1).pdf \| 161.1 KB IGS Download_IGES_62003221121 (rev1).iges \| 2.9 MB STP 62003221121 (rev1).stp \| 716.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	32	Dual	Pin Header	Straight	2	Bag	–
	62004021121	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62004021121_1 (rev1).pdf \| 198.2 KB IGS Download_IGES_62004021121 (rev1).iges \| 3.6 MB STP 62004021121 (rev1).stp \| 898.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	40	Dual	Pin Header	Straight	2	Bag	–
	62004421121	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62004421121_1 (rev1).pdf \| 217.3 KB IGS Download_IGES_62004421121 (rev1).iges \| 4 MB STP 62004421121 (rev1).stp \| 982.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	44	Dual	Pin Header	Straight	2	Bag	–

	Order Code	Datasheet
	62000421121	SPEC
	62000621121	SPEC
	62000821121	SPEC
	62001021121	SPEC
	62001621121	SPEC
	62002021121	SPEC
	62002421121	SPEC
	62002821121	SPEC
	62003221121	SPEC
	62004021121	SPEC
	62004421121	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples

Mates with

WR-PHD 2.00 mm Dual Socket Header

WR-PHD 2.00 mm Dual SMT Socket Header Bottom Entry

WR-PHD 2.00 mm Dual SMT Socket Header Low Profile Bottom Entry

WR-PHD 2.00 mm Dual SMT Socket Header Angled

WR-PHD 2.00 mm Jumper with Test Point

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-PHD Pin & Socket Header
