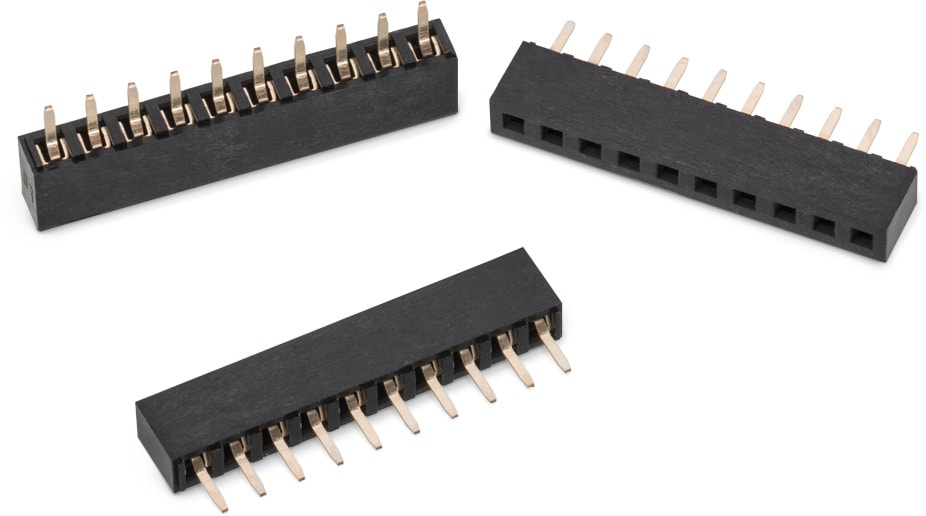

WR-PHD 2.00 mm Socket Header

Article Properties
Pins2 mm; 4 mm; 6 mm; 8 mm; 10 mm; 20 mm; 32 mm
Kind Properties
Pitch2 mm
Quality Class3 as per CECC 75 301-802
RowsSingle
GenderSocket Header
TypeStraight
Material Properties
Insulator MaterialPA9T
Insulator Flammability RatingUL94 V-0
Contact MaterialCopper Alloy
Contact PlatingGold
Contact TypeStamped
General Information
Operating Temperature-40 up to +105 °C
ComplianceLead free / RoHS
Electrical Properties
IR2 A
Withstanding Voltage500 V (AC)
Contact Resistance20 mΩ
RISO1000 MΩ
Certification
UL ApprovalE323964
Packaging Properties
PackagingTube

Products

Order Code Data­sheet DownloadsPins
(mm)
RowsGenderTypeIR
(A)
PackagingDesign Kit Samples
62000211821SPEC
6 files 2 Single Socket Header Straight 2 Tube
62000411821SPEC
6 files 4 Single Socket Header Straight 2 Tube613001
62000611821SPEC
6 files 6 Single Socket Header Straight 2 Tube612690
62000811821SPEC
6 files 8 Single Socket Header Straight 2 Tube613001
62001011821SPEC
6 files 10 Single Socket Header Straight 2 Tube613001
62002011821SPEC
6 files 20 Single Socket Header Straight 2 Tube613001
62003211821SPEC
6 files 32 Single Socket Header Straight 2 Tube613001
Order Code Data­sheet
62000211821SPEC
62000411821SPEC
62000611821SPEC
62000811821SPEC
62001011821SPEC
62002011821SPEC
62003211821SPEC
Samples
Order Code Data­sheet DownloadsPins
(mm)
RowsGenderTypeIR
(A)
PackagingDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
