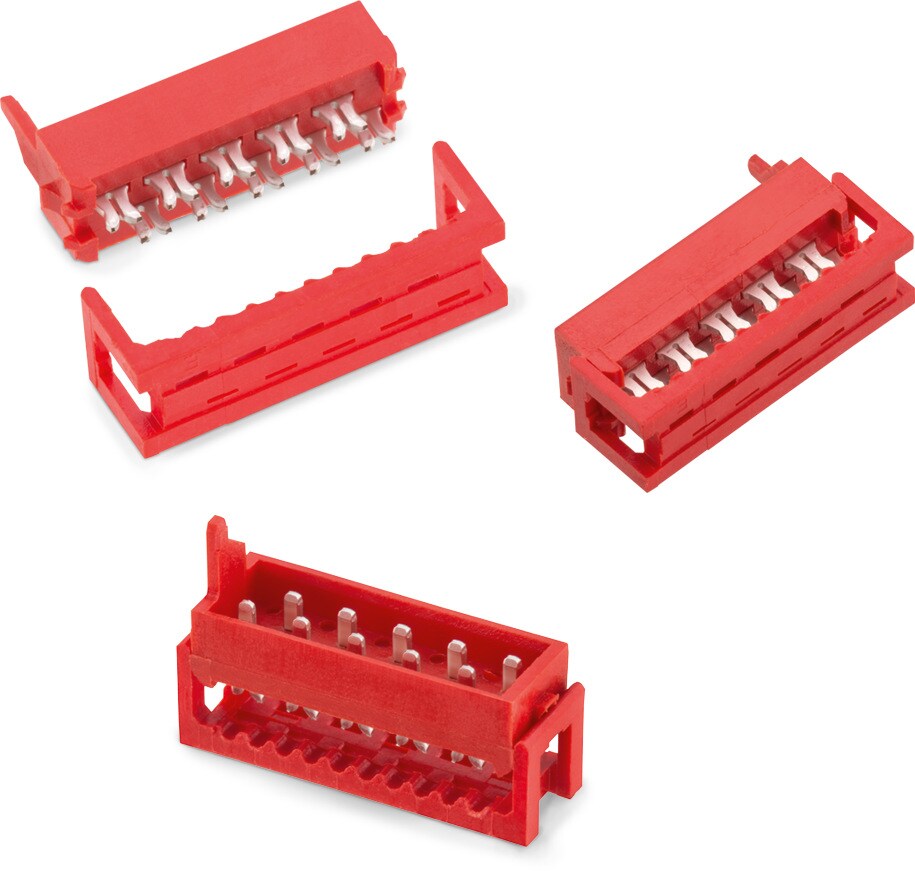

WR-MM Male IDC Connector

Kind Properties
Pitch2.54 mm
GenderMale IDC
Material Properties
Insulator MaterialPBT
Insulator Flammability RatingUL94 V-0
Insulator ColorRed
Contact MaterialPhosphor Bronze
Contact PlatingMatte Tin over Nickel
Contact TypeStamped
General Information
Operating Temperature-40 up to +105 °C
Electrical Properties
Working Voltage100 V (AC)
Withstanding Voltage500 V (AC)
Contact Resistance10 mΩ
RISO1000 MΩ
Certification
cULus ApprovalE323964
Packaging Properties
PackagingTube

Products

Order Code Data­sheet DownloadsPins
(mm)
Pitch
(mm)
GenderL
(mm)
Working Voltage
(V (AC))
IR
(A)
Contact Resistance
(mΩ)
Tol. RPackagingDesign Kit Samples
690157000472SPEC
3 files 4 2.54 Male IDC 8.51 100 1 10 max. Tube690001
690157000672SPEC
3 files 6 2.54 Male IDC 11.05 100 1 10 max. Tube690001
690157000872SPEC
3 files 8 2.54 Male IDC 13.59 100 1 10 max. Tube690001
690157001072SPEC
3 files 10 2.54 Male IDC 16.13 100 1 10 max. Tube612690
690001
690157001272SPEC
3 files 12 2.54 Male IDC 18.67 100 1 10 max. Tube690001
690157001472SPEC
3 files 14 2.54 Male IDC 21.21 100 1 10 max. Tube690001
690157001672SPEC
3 files 16 2.54 Male IDC 23.75 100 1 10 max. Tube690001
690157001872SPEC
3 files 18 2.54 Male IDC 26.29 100 1 10 max. Tube690001
690157002072SPEC
3 files 20 2.54 Male IDC 28.83 100 1 10 max. Tube690001
690157002272SPEC
3 files 22 2.54 Male IDC 31.37 100 1 10 max. Tube690001
690157002472SPEC
3 files 24 2.54 Male IDC 33.91 100 1 10 max. Tube690001
690157002672SPEC
3 files 26 2.54 Male IDC 36.45 100 1 10 max. Tube690001
Order Code Data­sheet
690157000472SPEC
690157000672SPEC
690157000872SPEC
690157001072SPEC
690157001272SPEC
690157001472SPEC
690157001672SPEC
690157001872SPEC
690157002072SPEC
690157002272SPEC
690157002472SPEC
690157002672SPEC
Samples
Order Code Data­sheet DownloadsPins
(mm)
Pitch
(mm)
GenderL
(mm)
Working Voltage
(V (AC))
IR
(A)
Contact Resistance
(mΩ)
Tol. RPackagingDesign Kit Samples
