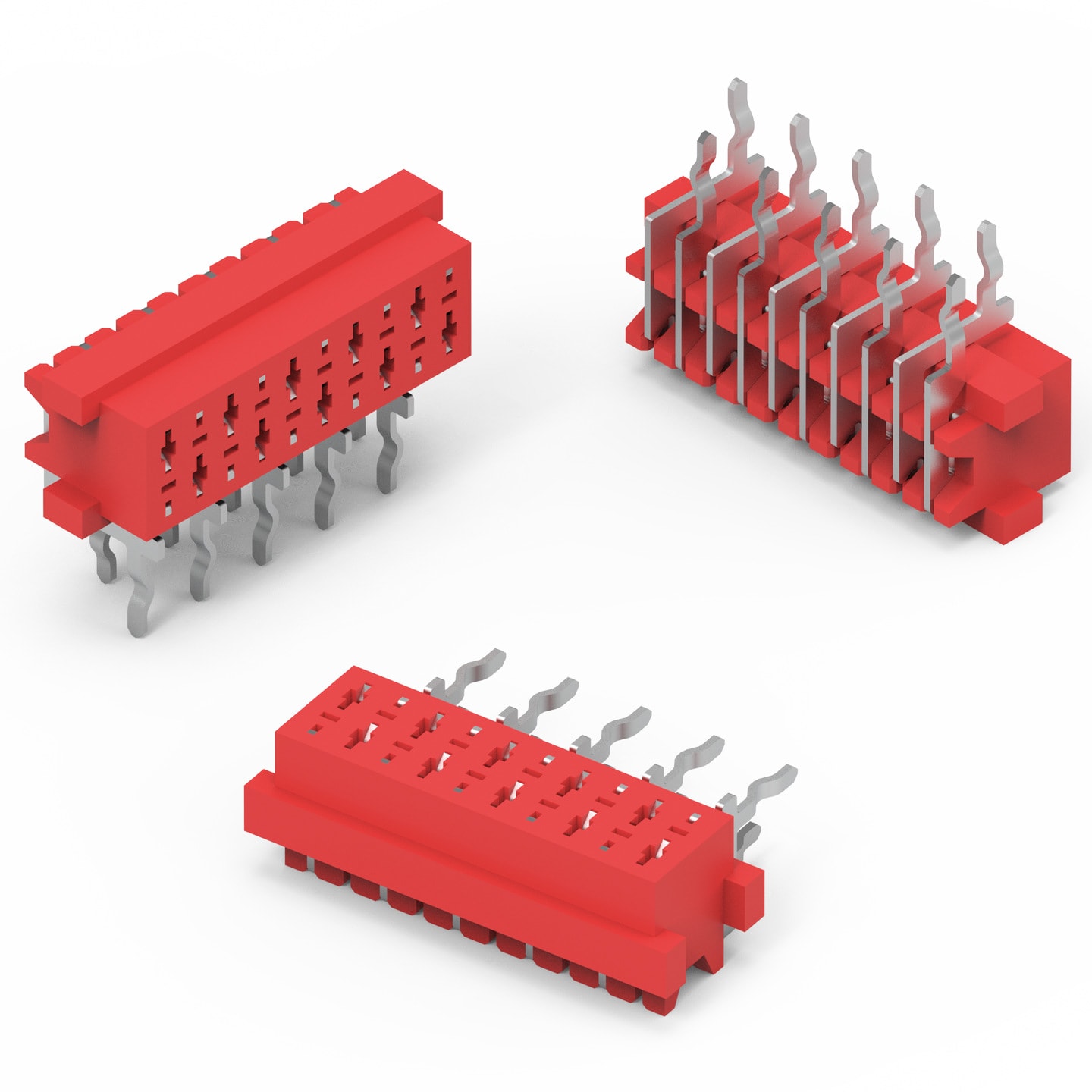

WR-MM Female Angled Connector w/o Latch & w/o Polarization

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Red
Contact Material	Phosphor Bronze
Contact Plating	Matte Tin over Nickel
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	2.54 mm
Quality Class	25 Mating cycles
Gender	Female

Electrical Properties
Working Voltage	250 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	10 mΩ
R_ISO	1000 MΩ

Certification
cULus Approval	E323964

Packaging Properties
Packaging	Tube

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.

Learn more now

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Gender	Type	Polarization	Mount	L (mm)	Working Voltage (V (AC))	I_R (A)	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit
690368180472	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690368180472 (rev1).pdf \| 111.1 KB IGS 690368180472 (rev1).iges \| 1.7 MB STP 690368180472 (rev1).stp \| 638.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	2.54	Female	Angled	No	THT	7.08	250	1.5	10	max.	Tube	690001
690368180672	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690368180672 (rev1).pdf \| 132.8 KB IGS 690368180672 (rev1).iges \| 2 MB STP 690368180672 (rev1).stp \| 786.9 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	2.54	Female	Angled	No	THT	9.62	250	1.5	10	max.	Tube	690001
690368180872	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690368180872 (rev1).pdf \| 149.8 KB IGS 690368180872 (rev1).iges \| 2.4 MB STP 690368180872 (rev1).stp \| 936.6 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	2.54	Female	Angled	No	THT	12.16	250	1.5	10	max.	Tube	690001
690368181072	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690368181072 (rev1).pdf \| 173.8 KB IGS 690368181072 (rev1).iges \| 2.7 MB STP 690368181072 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	2.54	Female	Angled	No	THT	14.7	250	1.5	10	max.	Tube	612690 690001
690368181272	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690368181272 (rev1).pdf \| 192.2 KB IGS 690368181272 (rev1).iges \| 3.1 MB STP 690368181272 (rev1).stp \| 1.2 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	2.54	Female	Angled	No	THT	17.24	250	1.5	10	max.	Tube	690001
690368181472	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690368181472 (rev1).pdf \| 212 KB IGS 690368181472 (rev1).iges \| 3.4 MB STP 690368181472 (rev1).stp \| 1.4 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	2.54	Female	Angled	No	THT	19.78	250	1.5	10	max.	Tube	690001
690368181672	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690368181672 (rev1).pdf \| 230.4 KB IGS 690368181672 (rev1).iges \| 3.8 MB STP 690368181672 (rev1).stp \| 1.5 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	2.54	Female	Angled	No	THT	22.32	250	1.5	10	max.	Tube	690001
690368181872	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690368181872 (rev1).pdf \| 260.2 KB IGS 690368181872 (rev1).iges \| 4.1 MB STP 690368181872 (rev1).stp \| 1.6 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18	2.54	Female	Angled	No	THT	24.86	250	1.5	10	max.	Tube	690001
690368182072	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690368182072 (rev1).pdf \| 280.1 KB IGS 690368182072 (rev1).iges \| 4.4 MB STP 690368182072 (rev1).stp \| 1.8 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	2.54	Female	Angled	No	THT	27.4	250	1.5	10	max.	Tube	690001
690368182272	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690368182272 (rev1).pdf \| 297.3 KB IGS 690368182272 (rev1).iges \| 4.8 MB STP 690368182272 (rev1).stp \| 1.9 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	2.54	Female	Angled	No	THT	29.94	250	1.5	10	max.	Tube	690001
690368182472	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690368182472 (rev1).pdf \| 317.7 KB IGS 690368182472 (rev1).iges \| 5.2 MB STP 690368182472 (rev1).stp \| 2.1 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	24	2.54	Female	Angled	No	THT	32.48	250	1.5	10	max.	Tube	690001
690368182672	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690368182672 (rev1).pdf \| 339.3 KB IGS 690368182672 (rev1).iges \| 5.5 MB STP 690368182672 (rev1).stp \| 2.2 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	26	2.54	Female	Angled	No	THT	35.02	250	1.5	10	max.	Tube	690001

	Order Code	Datasheet
	690368180472	SPEC
	690368180672	SPEC
	690368180872	SPEC
	690368181072	SPEC
	690368181272	SPEC
	690368181472	SPEC
	690368181672	SPEC
	690368181872	SPEC
	690368182072	SPEC
	690368182272	SPEC
	690368182472	SPEC
	690368182672	SPEC
