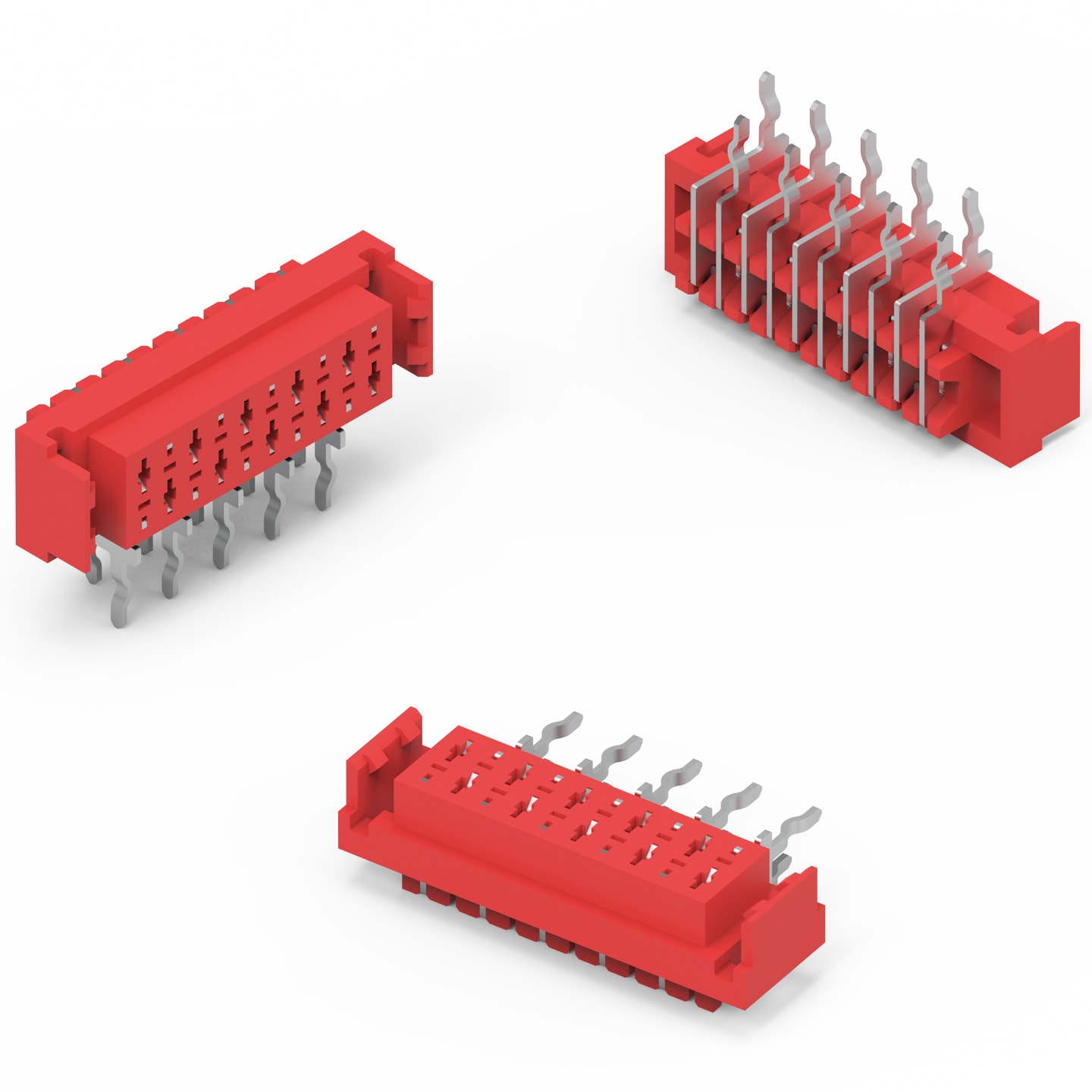

WR-MM Female Angled Connector with Latch & Polarization

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Red
Contact Material	Phosphor Bronze
Contact Plating	Matte Tin over Nickel
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	2.54 mm
Gender	Female

Electrical Properties
Working Voltage	250 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	10 mΩ
R_ISO	1000 MΩ

Certification
cULus Approval	E323964

Packaging Properties
Packaging	Tube

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.

Learn more now

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Gender	Type	Polarization	Mount	L (mm)	Working Voltage (V (AC))	I_R (A)	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit
690368190472	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690368190472 (rev1).pdf \| 128.8 KB IGS 690368190472 (rev1).igs \| 2 MB STP 690368190472 (rev1).stp \| 760.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	2.54	Female	Angled	Yes	THT	9.68	250	1.5	10	max.	Tube	690001
690368190672	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690368190672 (rev1).pdf \| 150.3 KB IGS 690368190672 (rev1).igs \| 2.3 MB STP 690368190672 (rev1).stp \| 909.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	2.54	Female	Angled	Yes	THT	12.22	250	1.5	10	max.	Tube	690001
690368190872	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690368190872 (rev1).pdf \| 167.7 KB IGS 690368190872 (rev1).igs \| 2.7 MB STP 690368190872 (rev1).stp \| 1 MB	Active i\| Production is active. Expected lifetime: >10 years.	8	2.54	Female	Angled	Yes	THT	14.76	250	1.5	10	max.	Tube	690001
690368191072	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690368191072 (rev1).pdf \| 191.6 KB IGS 690368191072 (rev1).igs \| 3 MB STP 690368191072 (rev1).stp \| 1.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	10	2.54	Female	Angled	Yes	THT	17.3	250	1.5	10	max.	Tube	612690 690001
690368191272	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690368191272 (rev1).pdf \| 209.9 KB IGS 690368191272 (rev1).igs \| 3.4 MB STP 690368191272 (rev1).stp \| 1.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	12	2.54	Female	Angled	Yes	THT	19.84	250	1.5	10	max.	Tube	690001
690368191472	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690368191472 (rev1).pdf \| 229.8 KB IGS 690368191472 (rev1).igs \| 3.7 MB STP 690368191472 (rev1).stp \| 1.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	14	2.54	Female	Angled	Yes	THT	22.38	250	1.5	10	max.	Tube	690001
690368191672	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690368191672 (rev1).pdf \| 248.3 KB IGS 690368191672 (rev1).igs \| 4 MB STP 690368191672 (rev1).stp \| 1.6 MB	Active i\| Production is active. Expected lifetime: >10 years.	16	2.54	Female	Angled	Yes	THT	24.92	250	1.5	10	max.	Tube	690001
690368191872	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690368191872 (rev1).pdf \| 278.1 KB IGS 690368191872 (rev1).igs \| 4.4 MB STP 690368191872 (rev1).stp \| 1.8 MB	Active i\| Production is active. Expected lifetime: >10 years.	18	2.54	Female	Angled	Yes	THT	27.46	250	1.5	10	max.	Tube	690001
690368192072	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690368192072 (rev1).pdf \| 298.4 KB IGS 690368192072 (rev1).igs \| 4.8 MB STP 690368192072 (rev1).stp \| 1.9 MB	Active i\| Production is active. Expected lifetime: >10 years.	20	2.54	Female	Angled	Yes	THT	30	250	1.5	10	max.	Tube	690001
690368192272	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690368192272 (rev1).pdf \| 315.4 KB IGS 690368192272 (rev1).igs \| 5.1 MB STP 690368192272 (rev1).stp \| 2.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	22	2.54	Female	Angled	Yes	THT	32.54	250	1.5	10	max.	Tube	690001
690368192472	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690368192472 (rev1).pdf \| 335.8 KB IGS 690368192472 (rev1).igs \| 5.5 MB STP 690368192472 (rev1).stp \| 2.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	24	2.54	Female	Angled	Yes	THT	35.08	250	1.5	10	max.	Tube	690001
690368192672	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690368192672 (rev1).pdf \| 357.3 KB IGS 690368192672 (rev1).igs \| 5.8 MB STP 690368192672 (rev1).stp \| 2.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	26	2.54	Female	Angled	Yes	THT	37.62	250	1.5	10	max.	Tube	690001

	Order Code	Datasheet
	690368190472	SPEC
	690368190672	SPEC
	690368190872	SPEC
	690368191072	SPEC
	690368191272	SPEC
	690368191472	SPEC
	690368191672	SPEC
	690368191872	SPEC
	690368192072	SPEC
	690368192272	SPEC
	690368192472	SPEC
	690368192672	SPEC
