Kind Properties | |
---|---|
P | 5 mm |
Material Properties | |
---|---|
Isolationsmaterial | PA66 |
Isolation Brennbarkeitsklasse | UL94 V-0 |
Isolationsfarbe | Blau |
Kontaktmaterial | Messing |
Kontaktbeschichtung | Kupfer über Zink |
Schraubanschlussbeschichtung | Stahl |
Schraubanschlussmaterial | Zink |
Kabelschutzmaterial | Edelstahl |
General Information | |
---|---|
Betriebstemperatur | -40 bis zu +105 °C |
Einhaltung | Lead free / RoHS |
Electrical Properties | |
---|---|
IR cULus | 15 A |
IR VDE | 17.5 A |
Arbeitsspannung | 250 V (AC); 300 V (AC) |
Arbeitsspannung [cULus] | 300 V (AC) |
Arbeitsspannung [VDE] | 250 V (AC) |
Spannungsfestigkeit [UL] | 1600 V (AC) |
Spannungsfestigkeit [cULus] | 1600 V (AC) |
Spannungsfestigkeit [VDE] | 2000 V (AC) |
Kontaktwiderstand [UL] | 20 mΩ |
Kontaktwiderstand [cULus] | 20 mΩ |
Kontaktwiderstand [VDE] | 20 mΩ |
Mechanical Properties | |
---|---|
Kabellänge | 5 up to 6 (mm) |
Schraube | M2.6 |
Certification | |
---|---|
cULus Zulassung | E315414 |
UL-Zulassung | E315414 |
VDE-Zulassung | 40022612 |
VDE-Zulassung | 40022612 Model number 102 |
Packaging Properties | |
---|---|
Verpackung | Karton |
Application Notes
Artikeldaten
Artikel Nr. | Datenblatt | Downloads | Pins (mm) | Anwendung | PCB/Kabel/Panel | Modularity | Typ | Wire Section | Design Kit | Muster |
---|---|---|---|---|---|---|---|---|---|---|

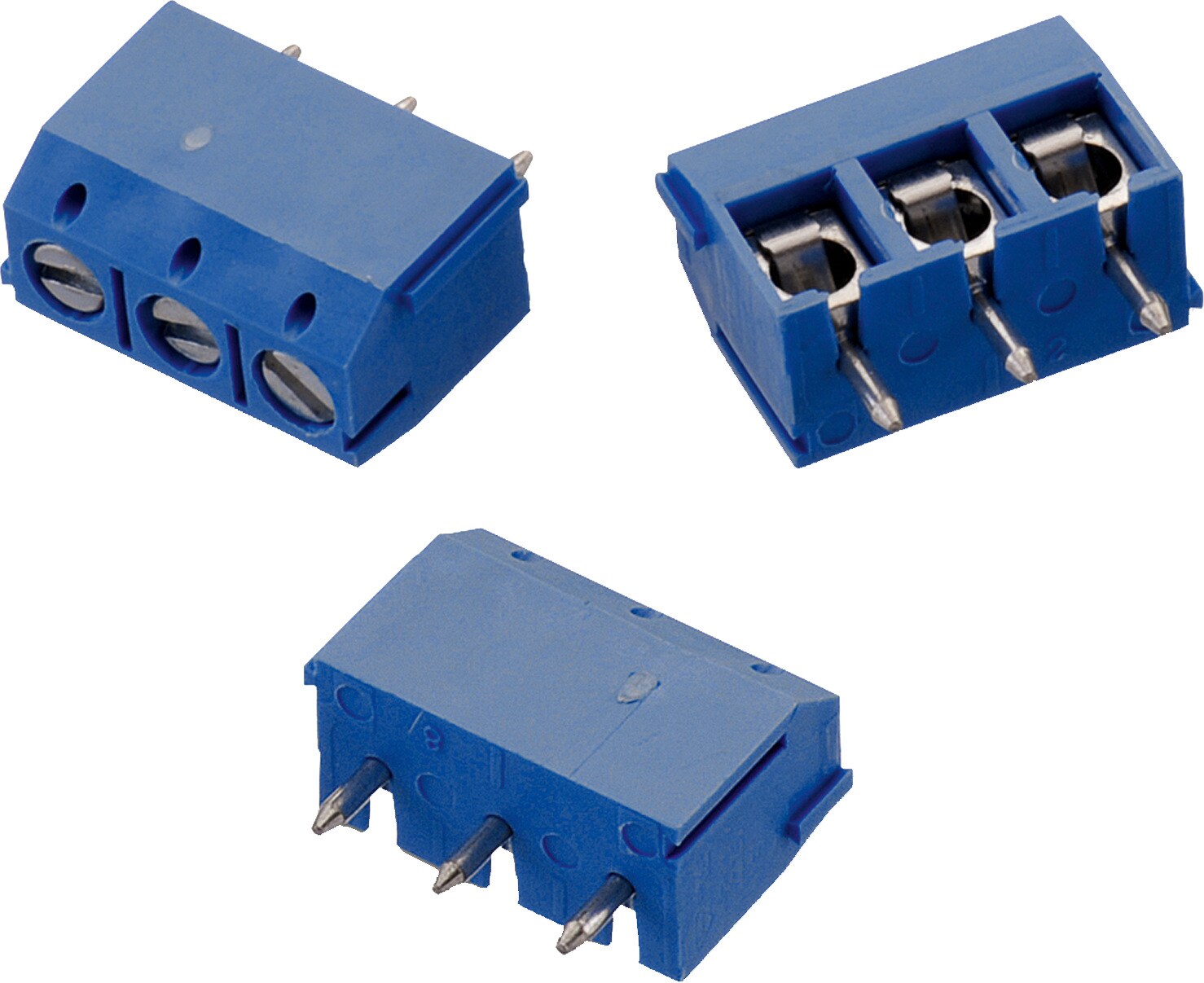

691102710002 | SPEC | 6 Dateien | 2 | Pressure Clamp | PCB | Ja | Horizontal | 22 to 14 (AWG) 0.326 to 2.08 (mm²) | 691001 | |
691102710003 | SPEC | 6 Dateien | 3 | Pressure Clamp | PCB | Ja | Horizontal | 22 to 14 (AWG) 0.326 to 2.08 (mm²) | 744999 |
Muster |
---|
Artikel Nr. | Datenblatt | Downloads | Pins (mm) | Anwendung | PCB/Kabel/Panel | Modularity | Typ | Wire Section | Design Kit | Muster |
---|
