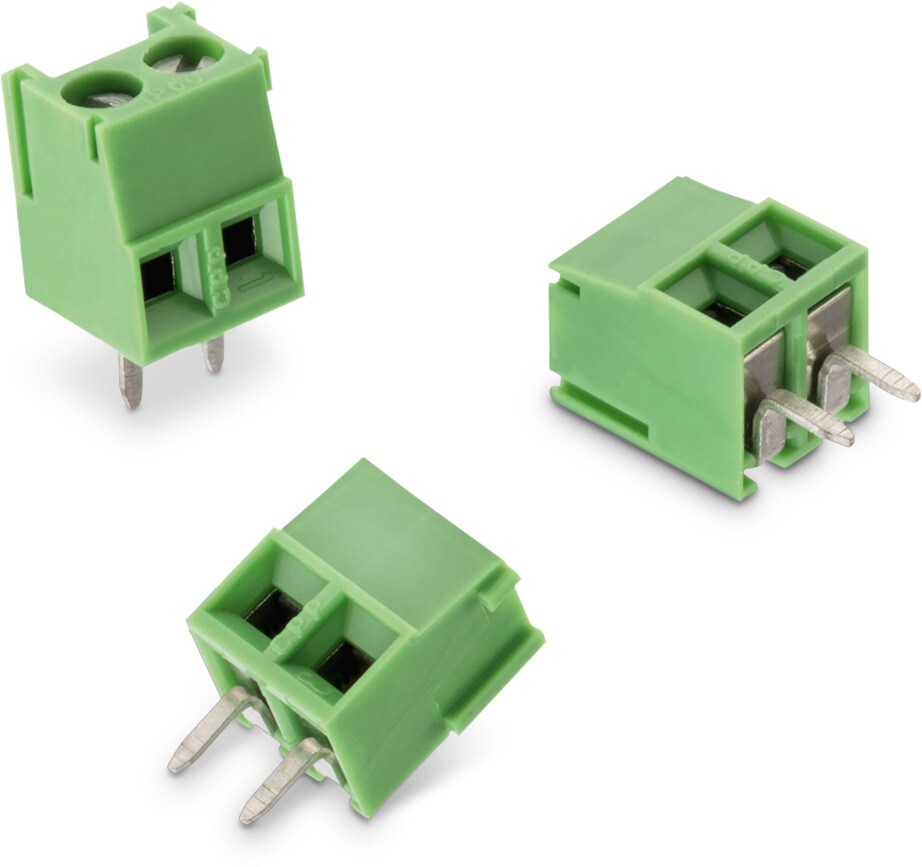

Kind Properties | |
---|---|
P | 3.5 mm |
Material Properties | |
---|---|
Isolationsmaterial | PA6/66 |
Isolation Brennbarkeitsklasse | UL94 V-0 |
Isolationsfarbe | Grün |
Kontaktmaterial | Kupferlegierung |
Kontaktbeschichtung | Nickel über Zinn |
Kontakttyp | Stamped |
Schraubanschlussbeschichtung | Stahl |
Schraubanschlussmaterial | Zink |
Kabelschutzmaterial | Kupferlegierung |
General Information | |
---|---|
Betriebstemperatur | -30 bis zu +120 °C |
Einhaltung | Lead free / RoHS |
Electrical Properties | |
---|---|
IR cULus | 10 A |
IR VDE | 10 A |
Arbeitsspannung | 130 V (AC); 300 V (AC) |
Arbeitsspannung [cULus] | 300 V (AC) |
Arbeitsspannung [VDE] | 130 V (AC) |
Spannungsfestigkeit [cULus] | 1600 V (AC) |
Spannungsfestigkeit [VDE] | 1250 V (AC) |
Kontaktwiderstand | 20 mΩ |
Kontaktwiderstand [cULus] | 20 mΩ |
Kontaktwiderstand [VDE] | 20 mΩ |
Mechanical Properties | |
---|---|
Kabellänge | 6 (mm) |
Schraube | M2 |
Certification | |
---|---|
cULus Zulassung | E150931 |
VDE-Zulassung | 40015437 |
VDE-Zulassung | 40015437 TYPE: CPP |
Packaging Properties | |
---|---|
Verpackung | Karton |
Application Notes
Artikeldaten
Artikel Nr. | Datenblatt | Downloads | Pins | Anwendung | PCB/Kabel/Panel | Modularity | Typ | Wire Section | IR VDE (A) | Muster |
---|---|---|---|---|---|---|---|---|---|---|
691214110002S | SPEC | 6 Dateien | 2 | Rising Cage Clamp | PCB | Ja | Horizontal | 30 to 16 (AWG) 0.05 to 1.31 (mm²) | 10 | |
691214110003S | SPEC | 6 Dateien | 3 | Rising Cage Clamp | PCB | Ja | Horizontal | 30 to 16 (AWG) 0.05 to 1.31 (mm²) | 10 |
