BASIC physical PCB sample WE.fan

Our BASIC hand sample WE.fan shows you, partially pressed or fanned out, the basic structure of a multilayer with 6 copper layers in foil technology.

Two cores carry the inner layers and are visible in the fan (right). Top and bottom layout are on copper foils and pressed with the cores by means of prepreg to form the multilayer.

Electroless nickel/gold (ENIG) is used as the solder surface.

The contour is milled.

Order WE.fan sample now WE.fan in the 100th anniversary webinar

WE CBT Collage BASIC Sample WE.fan in Detail

Overview physical PCB sample WE.fan

Image showing an overview of the details of the WE.fan physical PCB sample in BASIC technology

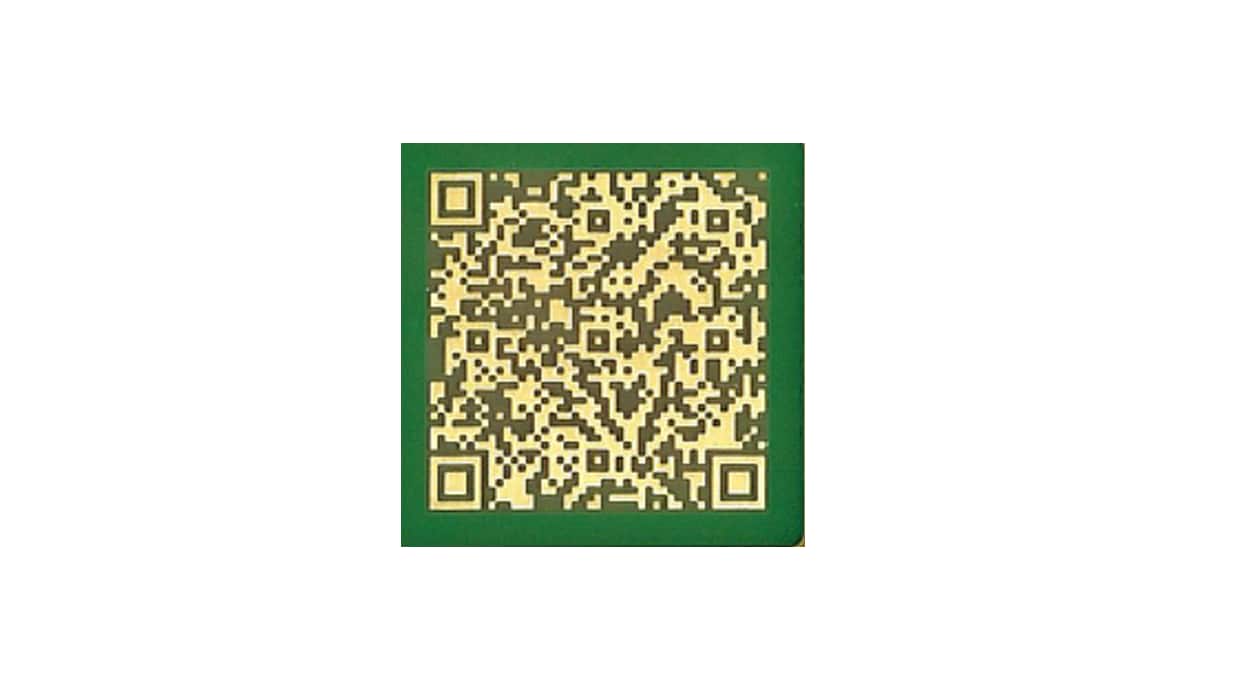

BASIC sample WE.fan in detail

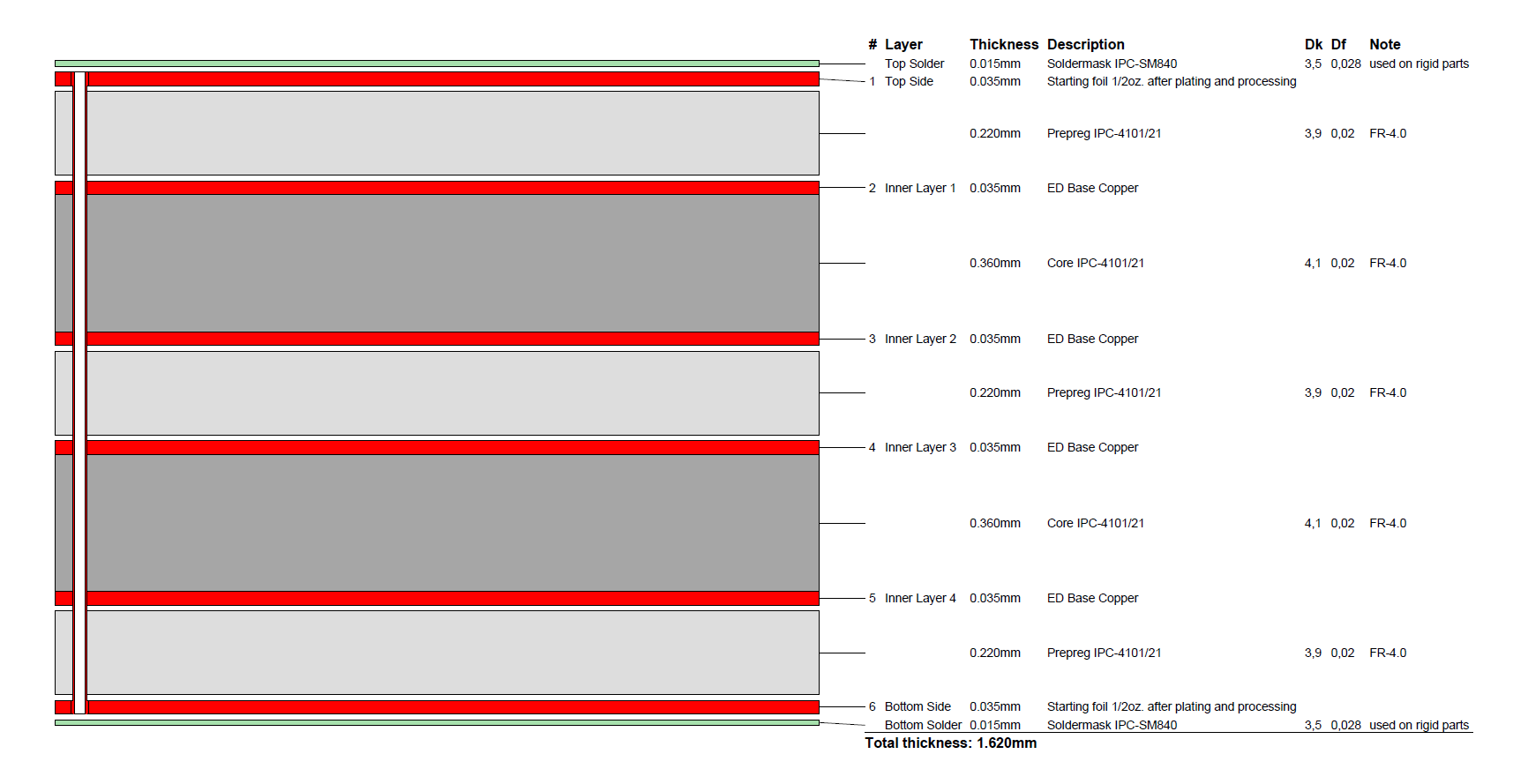

Image showing a schematic stackup of a BASIC mulitlayer PCB

Stackup: BASIC6_ML6_1.62_35
Explanations: 6 copper layers with PTHs (Plated Through Holes), base material FR-4.0 Tg 135°, foil lamination with two cores, total thickness 1.62 mm, inner layer copper foil 35 µm (1 oz.).

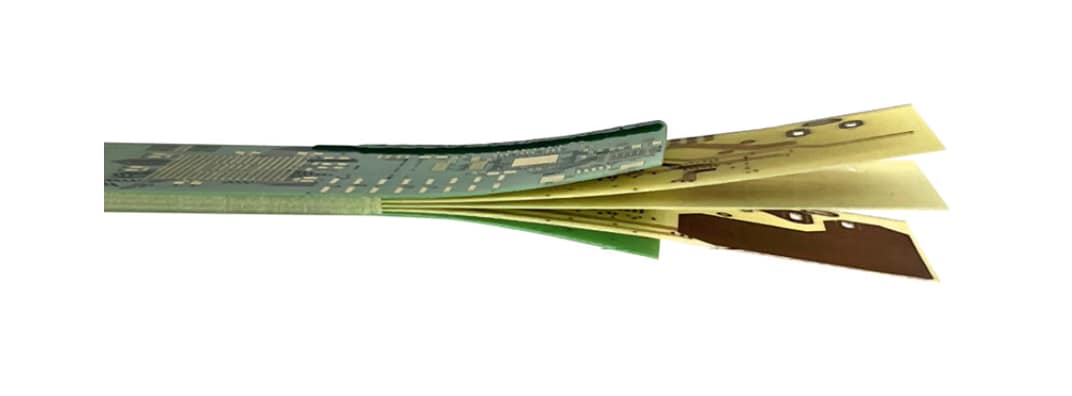

Image showing a schematic stackup of a BASIC mulitlayer PCB , fanned out on the right

Design: The multilayer is designed in three different parts.

Explanation: Fully pressed and plated through in the left third, not pressed as a fan in the middle third with all layers, without outer layers in the fan on the right.

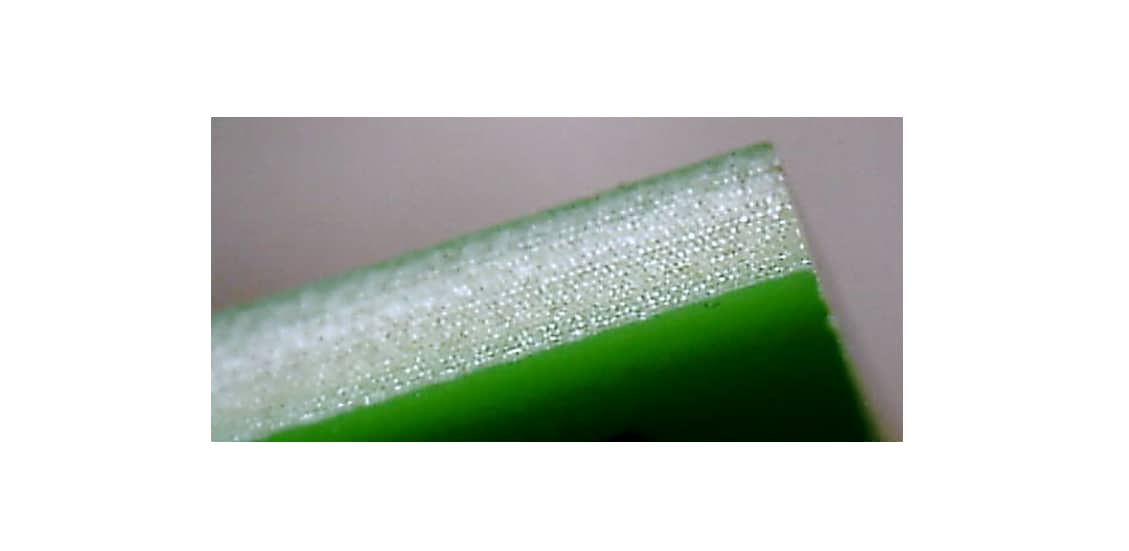

Image showing milled outline as a detail of the physical PCB sample WE.fan in BASIC technology

Design: The contour is milled

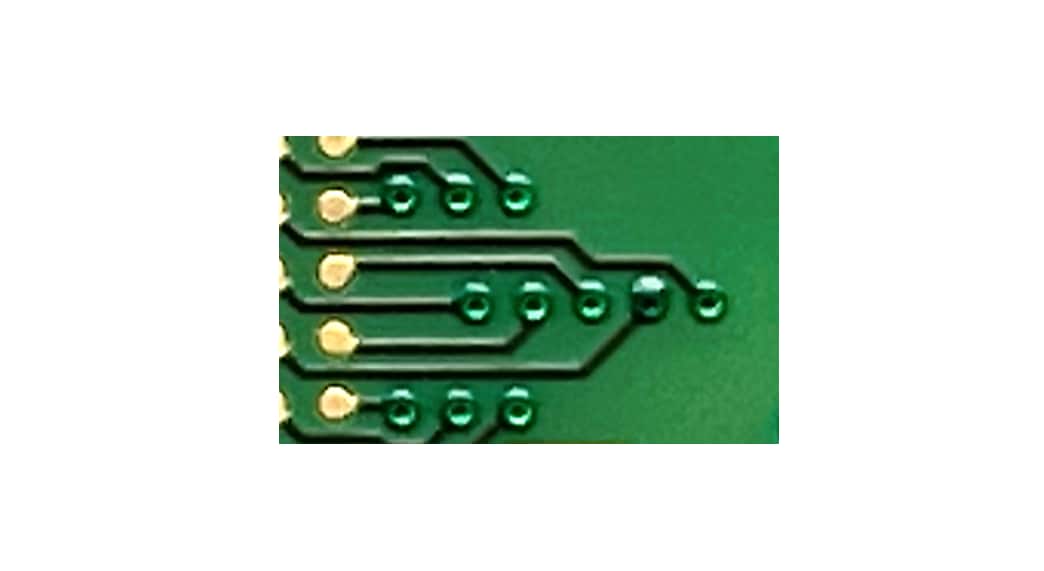

Image showing plugged vias as a detail of the physical PCB sample WE.fan in BASIC technology

Design: One-sided plugging of the vias by plugging ink in silk screen printing

Explanations: Comparable to type IIIa according to IPC-4761, but plugging process after application of solder surface: The PTH barrel is completely coated with electroless nickel/gold for high reliability!

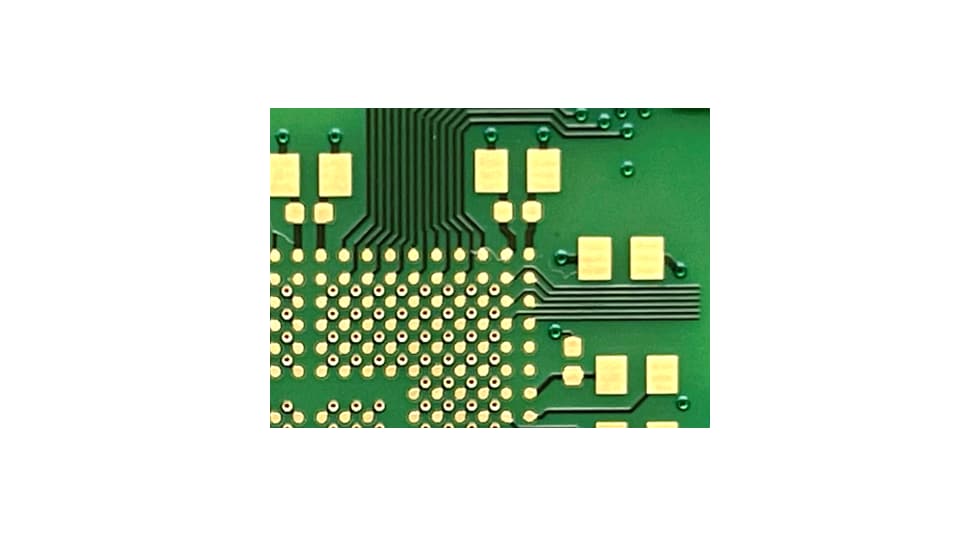

Image showing copper structures as a detail of the physical PCB sample WE.fan in BASIC technology

Design: Economical standard design rules with 6 mil (152 µm) spacing, standard PTHs with dog-bone connection

Image showing peelable mask as a detail of the physical PCB sample WE.fan in BASIC technology

Design: In the connector area on top peelable solder mask, formed handling aid on the right

DESIGN: Insulation foil out of polyimide to provide secure insulation. Outline milled.

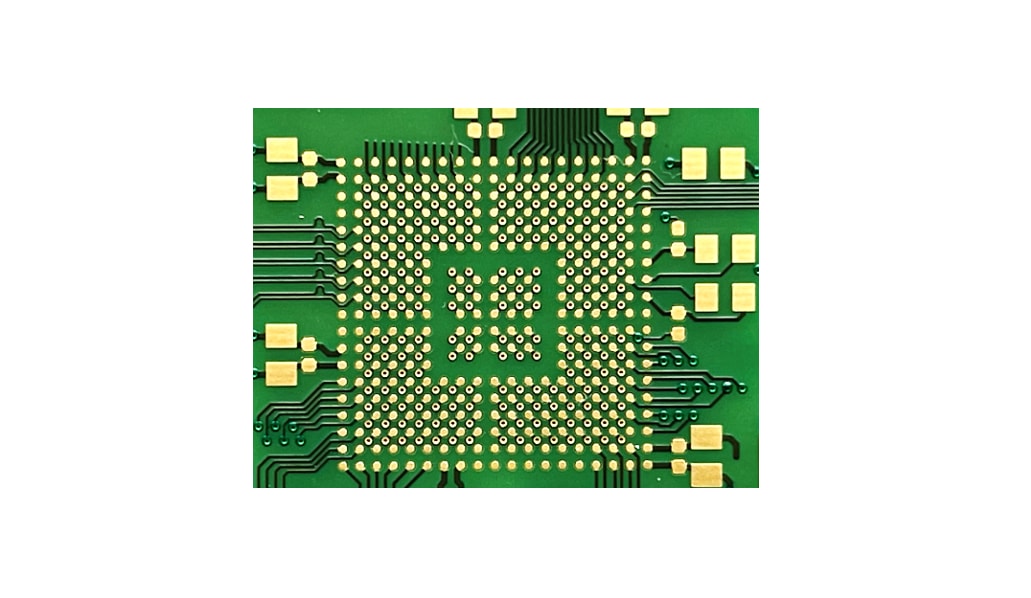

Image showing a footprint of a BGA component as a detail of the physical PCB sample WE.fan in BASIC technology

Design: The most complex component is a processor in BGA design with a pitch of 0.8 mm. This can just be routed without microvias. From a BGA pitch smaller than 0.8 mm, we recommend an HDI design with microvias.
