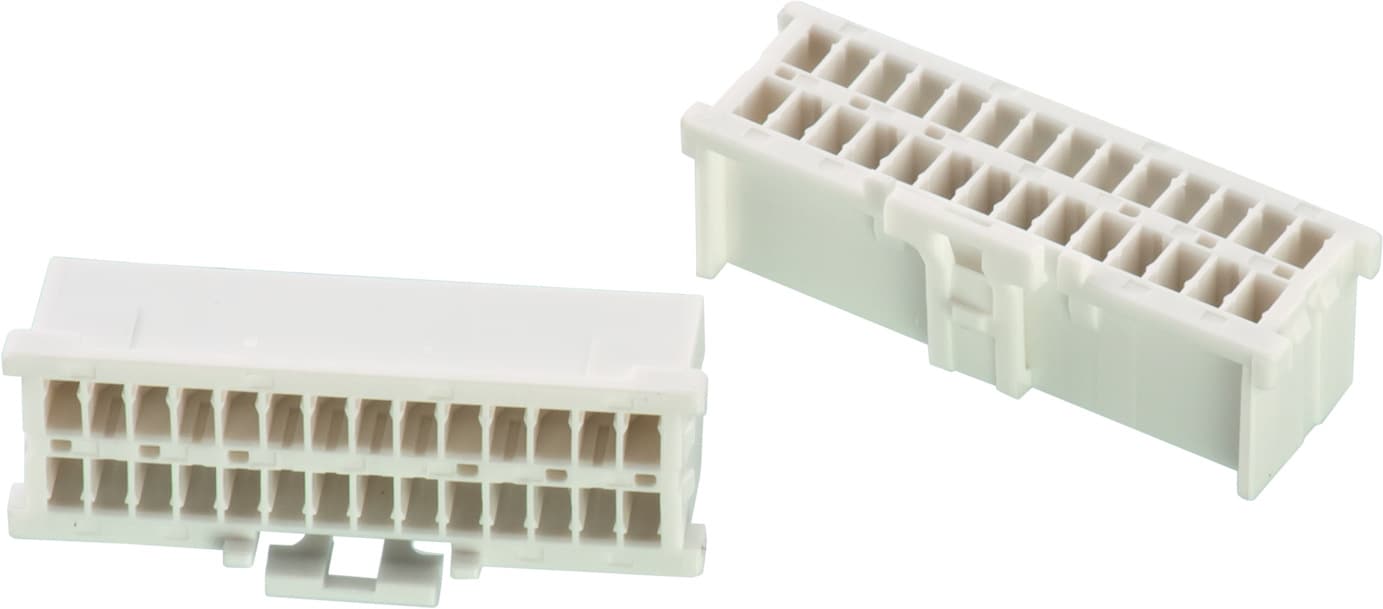

WR-WTB 2.00 mm Female Dual Row Terminal Housing w. positive locking

Material Properties
Insulator Material	Nylon 66
Insulator Flammability Rating	UL94 V-0
Insulator Color	White

General Information
Operating Temperature	-25 °C up to +85 °C
Withstanding Voltage	1000 V (AC)
R_ISO	1000 MΩ
Pitch	2 mm
Gender	Female
Type	Terminal Housing

Certification
cULus Approval	E323964

Packaging Properties
Packaging	Bag

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Gender	Type	PCB/Cable/Panel	L (mm)	Packaging	Design Kit	Samples
624008213322	SPEC	3 files CAD files ZIP 3D 624008213322_1 (rev1).pdf \| 138.3 KB IGS 624008213322 (rev1).igs \| 1.7 MB STP 624008213322 (rev1).stp \| 736.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	2	Female	Terminal Housing	Cable	11.4	Bag	645001
624010213322	SPEC	3 files CAD files ZIP 3D 624010213322_1 (rev1).pdf \| 156 KB IGS 624010213322 (rev1).igs \| 2.1 MB STP 624010213322 (rev1).stp \| 881.4 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	2	Female	Terminal Housing	Cable	13.4	Bag	612690 645001
624012213322	SPEC	3 files CAD files ZIP 3D 624012213322_1 (rev1).pdf \| 176.7 KB IGS 624012213322 (rev1).igs \| 2.5 MB STP 624012213322 (rev1).stp \| 1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	2	Female	Terminal Housing	Cable	15.4	Bag	645001
624014213322	SPEC	3 files CAD files ZIP 3D 624014213322_1 (rev1).pdf \| 193 KB IGS 624014213322 (rev1).igs \| 2.8 MB STP 624014213322 (rev1).stp \| 1.1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	2	Female	Terminal Housing	Cable	17.4	Bag	645001
624016213322	SPEC	3 files CAD files ZIP 3D 624016213322_1 (rev1).pdf \| 210 KB IGS 624016213322 (rev1).igs \| 3 MB STP 624016213322 (rev1).stp \| 1.3 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	2	Female	Terminal Housing	Cable	19.4	Bag	645001
624018213322	SPEC	3 files CAD files ZIP 3D 624018213322_1 (rev1).pdf \| 226.5 KB IGS 624018213322 (rev1).igs \| 3.3 MB STP 624018213322 (rev1).stp \| 1.4 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18	2	Female	Terminal Housing	Cable	21.4	Bag	645001
624020213322	SPEC	3 files CAD files ZIP 3D 624020213322_1 (rev1).pdf \| 241.7 KB IGS 624020213322 (rev1).igs \| 3.6 MB STP 624020213322 (rev1).stp \| 1.5 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	2	Female	Terminal Housing	Cable	23.4	Bag	645001
624022213322	SPEC	3 files CAD files ZIP 3D 624022213322_1 (rev1).pdf \| 260 KB IGS 624022213322 (rev1).igs \| 3.9 MB STP 624022213322 (rev1).stp \| 1.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	2	Female	Terminal Housing	Cable	25.4	Bag	–
624024213322	SPEC	3 files CAD files ZIP 3D 624024213322_1 (rev1).pdf \| 277.1 KB IGS 624024213322 (rev1).igs \| 4.2 MB STP 624024213322 (rev1).stp \| 1.8 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	24	2	Female	Terminal Housing	Cable	27.4	Bag	–
624026213322	SPEC	3 files CAD files ZIP 3D 624026213322_1 (rev1).pdf \| 293.8 KB IGS 624026213322 (rev1).igs \| 4.5 MB STP 624026213322 (rev1).stp \| 1.9 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	26	2	Female	Terminal Housing	Cable	29.4	Bag	–
624028213322	SPEC	3 files CAD files ZIP 3D 624028213322_1 (rev1).pdf \| 305.5 KB IGS 624028213322 (rev1).igs \| 4.8 MB STP 624028213322 (rev1).stp \| 2 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	28	2	Female	Terminal Housing	Cable	31.4	Bag	–
624030213322	SPEC	3 files CAD files ZIP 3D 624030213322_1 (rev1).pdf \| 322.3 KB IGS 624030213322 (rev1).igs \| 5.1 MB STP 624030213322 (rev1).stp \| 2.1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	30	2	Female	Terminal Housing	Cable	33.4	Bag	–
624032213322	SPEC	3 files CAD files ZIP 3D 624032213322_1 (rev1).pdf \| 338.9 KB IGS 624032213322 (rev1).igs \| 5.4 MB STP 624032213322 (rev1).stp \| 2.3 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	32	2	Female	Terminal Housing	Cable	35.4	Bag	–
624034213322	SPEC	3 files CAD files ZIP 3D 624034213322_1 (rev1).pdf \| 355.2 KB IGS 624034213322 (rev1).igs \| 5.7 MB STP 624034213322 (rev1).stp \| 2.4 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	34	2	Female	Terminal Housing	Cable	37.4	Bag	–
624036213322	SPEC	3 files CAD files ZIP 3D 624036213322_1 (rev1).pdf \| 372 KB IGS 624036213322 (rev1).igs \| 6 MB STP 624036213322 (rev1).stp \| 2.5 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	36	2	Female	Terminal Housing	Cable	39.4	Bag	–
624038213322	SPEC	3 files CAD files ZIP 3D 624038213322_1 (rev1).pdf \| 387.9 KB IGS 624038213322 (rev1).igs \| 6.3 MB STP 624038213322 (rev1).stp \| 2.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	38	2	Female	Terminal Housing	Cable	41.1	Bag	–
624040213322	SPEC	3 files CAD files ZIP 3D 624040213322_1 (rev1).pdf \| 403.6 KB IGS 624040213322 (rev1).igs \| 6.6 MB STP 624040213322 (rev1).stp \| 2.7 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	40	2	Female	Terminal Housing	Cable	43.4	Bag	–
