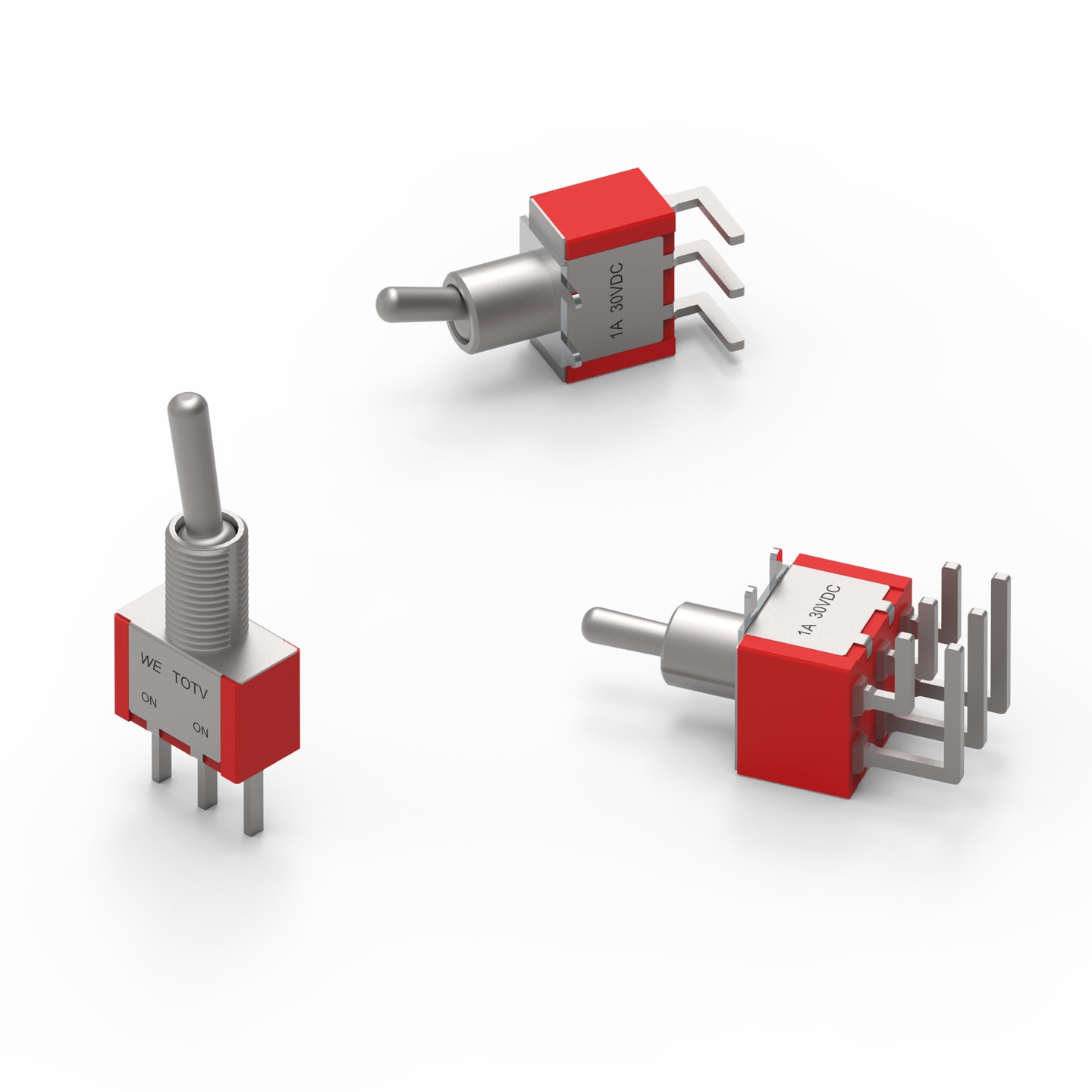

WS-TOTV Ø 6.35mm Panel Cut-Out Vertical Operation Toggle Switch

Material Properties
Actuator Material	Copper Alloy
Cover Material	Stainless Steel
Frame Material	DAP
Frame Flammability Rating	UL94 V-0
Moveable Contact Material	Copper Alloy
Moveable Contact Plating	Silver
Stationary Contact Material	Copper Alloy
Stationary Contact Plating	Silver
Terminal Material	Copper Alloy
Terminal Plating	Silver

Electrical Properties
I_R	1 A
V_R	30 V (DC)
Contact Resistance Initial	30 mΩ
R_ISO	1000 MΩ
Withstanding Voltage	500 V (AC)

Mechanical Properties
Electrical Life	50000 Steps
Connection Type	Opposite Side Connection

General Information
Operating Temperature	-40 °C up to +85 °C

Products

Filter article data

show article in 0 product lines

article in 0 product lines

	Order Code	Datasheet	Downloads	Status	Switching Function	Schematic	Actuator Length (Value)(mm)	Bushing Length (Value)(mm)	Samples
	472121010111	ON-ON, SPDT, 10.4 mm	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TOTV (rev25a).IntLib \| 10.1 MB CDS Cadence_WS-TOTV (rev25a).zip \| 37.4 MB EAG Eagle_WS-TOTV (rev25a).lbr \| 151.1 KB KIC KiCad_WS-TOTV (rev25b).zip \| 19 MB CAD files ZIP 3D 472121010111_3D (rev1).pdf \| 590.3 KB IGS 472121010111_IGS (rev1).igs \| 2.9 MB STP 472121010111_STP (rev1).stp \| 1.7 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Switching FunctionON-ON	SchematicSPDT	Actuator Length10.4 mm	Bushing Length9 mm
	472121020311	ON-ON, SPDT, 7.3 mm	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TOTV (rev25a).IntLib \| 10.1 MB CDS Cadence_WS-TOTV (rev25a).zip \| 37.4 MB EAG Eagle_WS-TOTV (rev25a).lbr \| 151.1 KB KIC KiCad_WS-TOTV (rev25b).zip \| 19 MB CAD files ZIP 3D 3D_472121020311 (rev1).pdf \| 542.4 KB IGS IGS_472121020311 (rev1).igs \| 2.8 MB STP STP_472121020311 (rev1).stp \| 1.4 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Switching FunctionON-ON	SchematicSPDT	Actuator Length7.3 mm	Bushing Length7.1 mm
	472123010111	ON-OFF-ON, SPDT, 10.7 mm	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TOTV (rev25a).IntLib \| 10.1 MB CDS Cadence_WS-TOTV (rev25a).zip \| 37.4 MB EAG Eagle_WS-TOTV (rev25a).lbr \| 151.1 KB KIC KiCad_WS-TOTV (rev25b).zip \| 19 MB CAD files ZIP 3D 3D_472123010111 (rev1).pdf \| 606.5 KB IGS IGS_472123010111 (rev1).igs \| 3.1 MB STP STP_472123010111 (rev1).stp \| 1.8 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Switching FunctionON-OFF-ON	SchematicSPDT	Actuator Length10.7 mm	Bushing Length9 mm
	472123020311	ON-OFF-ON, SPDT, 7.5 mm	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TOTV (rev25a).IntLib \| 10.1 MB CDS Cadence_WS-TOTV (rev25a).zip \| 37.4 MB EAG Eagle_WS-TOTV (rev25a).lbr \| 151.1 KB KIC KiCad_WS-TOTV (rev25b).zip \| 19 MB CAD files ZIP 3D 3D_472123020311 (rev1).pdf \| 551.8 KB IGS IGS_472123020311 (rev1).igs \| 3 MB STP STP_472123020311 (rev1).stp \| 1.4 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Switching FunctionON-OFF-ON	SchematicSPDT	Actuator Length7.5 mm	Bushing Length7.1 mm
	472131010111	ON-ON, DPDT, 10.4 mm	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TOTV (rev25a).IntLib \| 10.1 MB CDS Cadence_WS-TOTV (rev25a).zip \| 37.4 MB EAG Eagle_WS-TOTV (rev25a).lbr \| 151.1 KB KIC KiCad_WS-TOTV (rev25b).zip \| 19 MB CAD files ZIP 3D Image_3D_SwTOTV_472131010111 (rev1).pdf \| 588.2 KB IGS IGS_SwTOTV_472131010111 (rev1).igs \| 3 MB STP STP_SwTOTV_472131010111 (rev1).stp \| 1.8 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Switching FunctionON-ON	SchematicDPDT	Actuator Length10.4 mm	Bushing Length9 mm
	472133010111	ON-OFF-ON, DPDT, 10.7 mm	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TOTV (rev25a).IntLib \| 10.1 MB CDS Cadence_WS-TOTV (rev25a).zip \| 37.4 MB EAG Eagle_WS-TOTV (rev25a).lbr \| 151.1 KB KIC KiCad_WS-TOTV (rev25b).zip \| 19 MB CAD files ZIP 3D 3D_472133010111 (rev1).pdf \| 617.3 KB IGS IGS_472133010111 (rev1).igs \| 3.5 MB STP STP_472133010111 (rev1).stp \| 1.9 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Switching FunctionON-OFF-ON	SchematicDPDT	Actuator Length10.7 mm	Bushing Length9 mm
	472131020311	ON-ON, DPDT, 7.3 mm	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TOTV (rev25a).IntLib \| 10.1 MB CDS Cadence_WS-TOTV (rev25a).zip \| 37.4 MB EAG Eagle_WS-TOTV (rev25a).lbr \| 151.1 KB KIC KiCad_WS-TOTV (rev25b).zip \| 19 MB CAD files ZIP 3D 3D_472131020311 (rev1).pdf \| 541.8 KB IGS IGS_472 131 020 311 (rev1).igs \| 2.9 MB STP STP_472131020311 (rev1).stp \| 1.4 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Switching FunctionON-ON	SchematicDPDT	Actuator Length7.3 mm	Bushing Length7.1 mm
	472133020311	ON-OFF-ON, DPDT, 7.5 mm	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TOTV (rev25a).IntLib \| 10.1 MB CDS Cadence_WS-TOTV (rev25a).zip \| 37.4 MB EAG Eagle_WS-TOTV (rev25a).lbr \| 151.1 KB KIC KiCad_WS-TOTV (rev25b).zip \| 19 MB CAD files ZIP 3D 3D_472133020311 (rev1).pdf \| 554 KB IGS IGS_472133020311 (rev1).igs \| 3 MB STP STP_472133020311 (rev1).stp \| 1.4 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Switching FunctionON-OFF-ON	SchematicDPDT	Actuator Length7.5 mm	Bushing Length7.1 mm

Use with

WS-TOTV Bat-handle Cap for Ø6.35 mm Panel Cut-Out Toggle Switch
