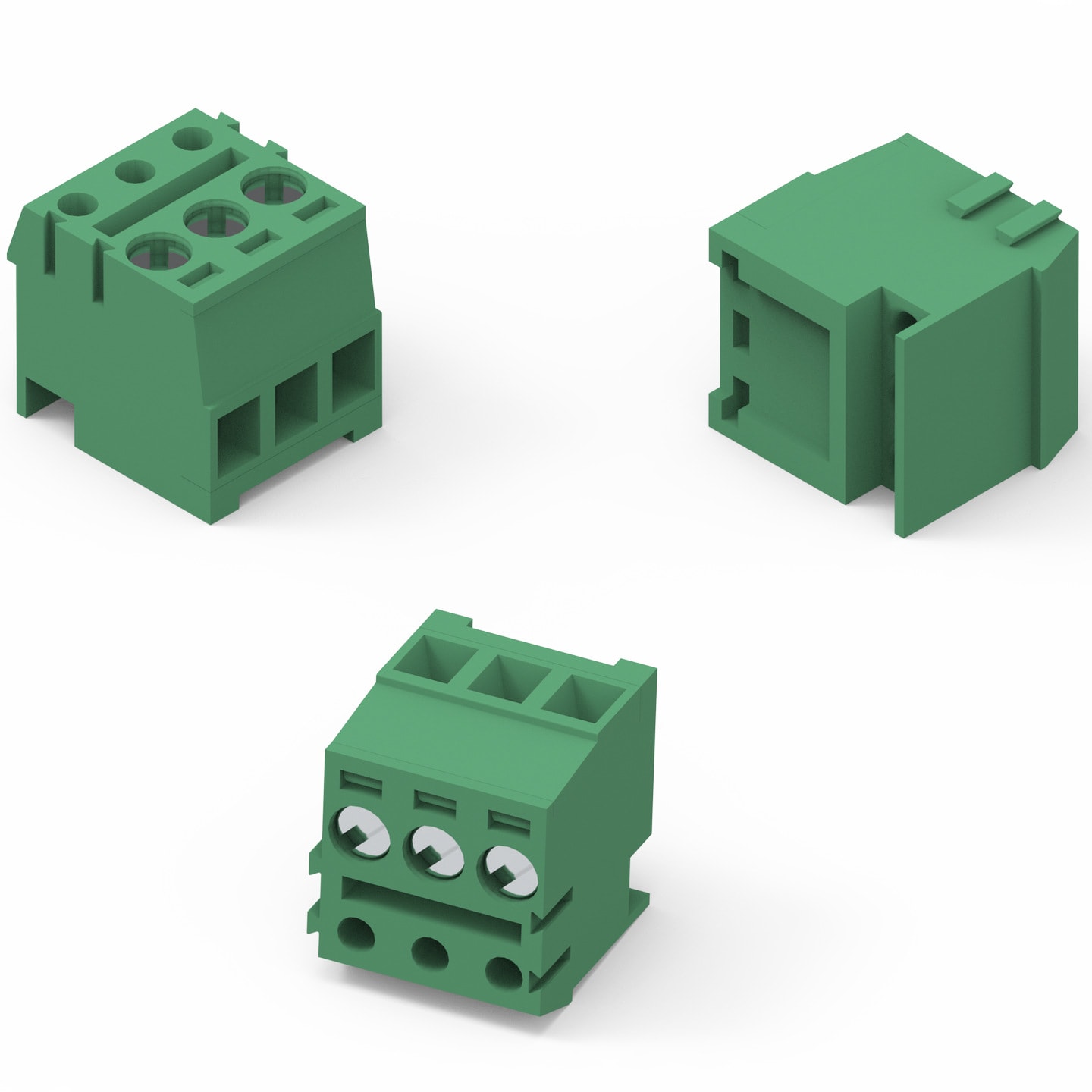

WR-TBL Series 3161 - Plug with Rising Cage Clamp 3.50mm pitch - Modular Horizontal cable entry - Cable

WR-TBL Series 3161 - Plug with Rising Cage Clamp 3.50mm pitch - Modular Horizontal cable entry - Cable
General Information
Operating Temperature-40 °C up to +115 °C
Pitch3.5 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Insulator ColorGreen
Contact MaterialPhosphor Bronze
Contact PlatingTin over Nickel
Cage MaterialBrass
Cage PlatingNickel
Terminal Screw MaterialSteel
Terminal Screw PlatingZinc
Electrical Properties
IR10 A
Working Voltage300 V (AC)
Withstanding Voltage1600 V (AC)
Contact Resistance20 mΩ
Mechanical Properties
ScrewM2
Wire Properties
Solid Wire Section (AWG)28 to 16 (AWG)
Solid Wire Section (Metric)0.2 to 1 (mm²)
Stranded Wire Section (AWG)28 to 16 (AWG)
Stranded Wire Section (Metric)0.2 to 1 (mm²)
Certification
cULus ApprovalE315414

Application Notes

Products

Filter article data
Filter by
Delete all
 show  articles in 0 product lines
 articles in 0 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Downloads
Status
Application
PCB/Cable/Panel
Modularity
Type
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
WR-TBL Series 3161 - Plug with Rising Cage Clamp 3.50mm pitch - Modular Horizontal cable entry - Cable
691316110002
SPECPlug with Rising Cage Clamp, Cable, Yes
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
ApplicationPlug with Rising Cage Clamp
PCB/Cable/PanelCable
ModularityYes
TypeHorizontal Cable Entry
–Check availability
WR-TBL Series 3161 - Plug with Rising Cage Clamp 3.50mm pitch - Modular Horizontal cable entry - Cable
691316110003
SPECPlug with Rising Cage Clamp, Cable, Yes
Availability
–
Downloads2 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
ApplicationPlug with Rising Cage Clamp
PCB/Cable/PanelCable
ModularityYes
TypeHorizontal Cable Entry
–Check availability

Mates with

WR-TBL Series 3001 - Pin Header 3.50mm pitch - Vertical cable entry - THT
