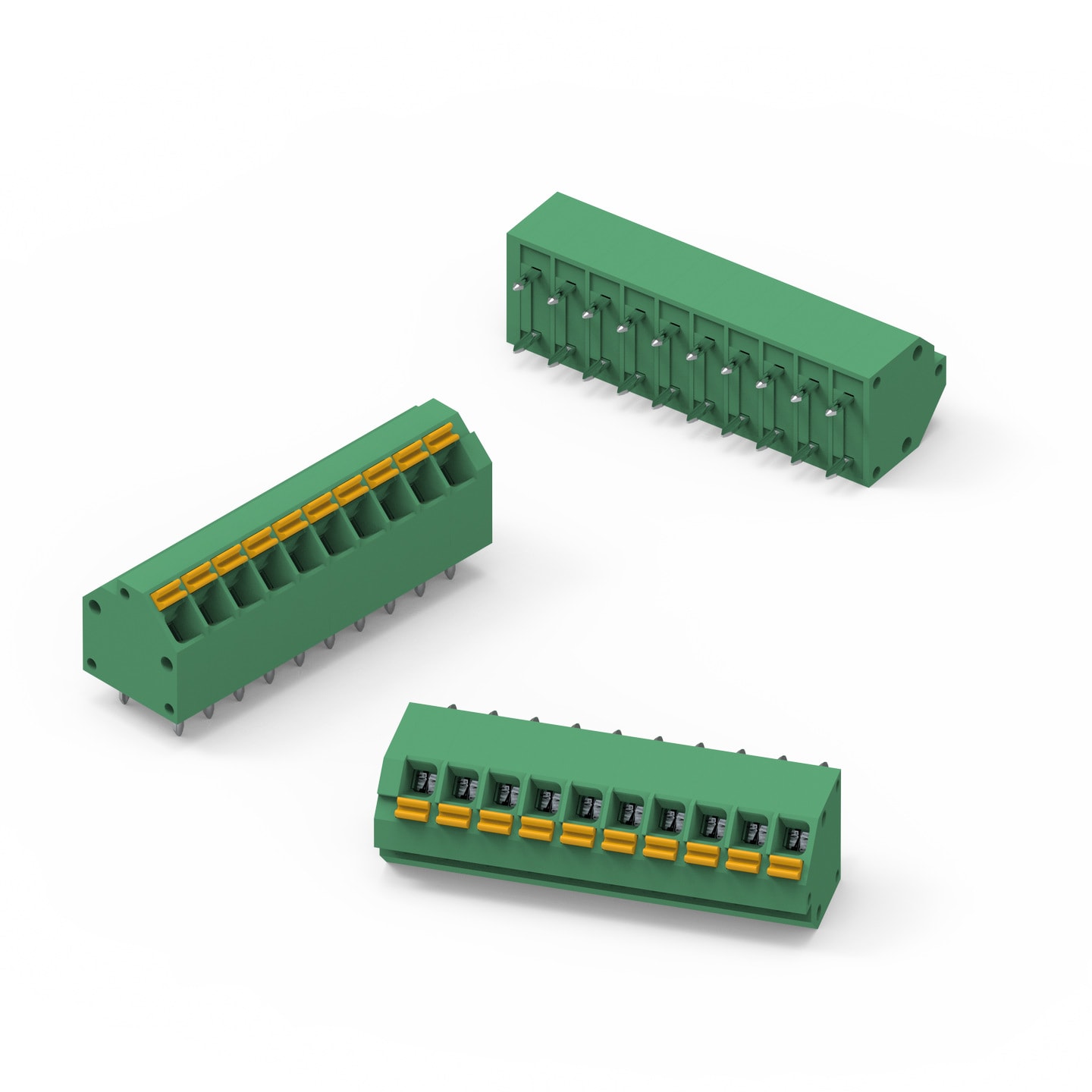

WR-TBL Series 4093 - Screwless Push In 3.81mm pitch - 45° cable entry - THT

General Information
Operating Temperature	-40 °C up to +115 °C
Pitch	3.81 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Spring Material	Stainless Steel
Pin Material	Brass
Pin Plating	Tin over Nickel

Electrical Properties
I_R[cULus]	10 A
I_R[VDE]	9 A
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	130 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	1250 V (AC)
R_C [cULus]	20 mΩ
R_C [VDE]	20 mΩ

Mechanical Properties
Wire Strip Length	8 up to 9 (mm)

Wire Properties
Solid Wire Section (AWG)	26 to 16 (AWG)
Solid Wire Section (Metric)	0.2 to 1.5 (mm²)
Stranded Wire Section (AWG)	26 to 16 (AWG)
Stranded Wire Section (Metric)	0.2 to 1.5 (mm²)

Certification
cULus Approval	E315414
VDE Approval	40055091

Packaging Properties
Packaging	Box

Application Notes

Products

Filter article data

show articles in 0 product lines

articles in 0 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Downloads	Status	Pins	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	691409320002	SPEC2, Screwless Push In, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Spring Clamp (rev26a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Spring-Clamp (rev26a).lbr \| 2 MB KIC KiCad_WR-TBL (rev26b).zip \| 377.1 MB 3D 3D_WR-TBL_4093_691409320002 (rev1).pdf \| 536.8 KB IGS IGS_WR-TBL_4093_691409320002 (rev1).igs \| 5.1 MB STP STP_WR-TBL_4093_691409320002 (rev1).stp \| 994.7 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins2	ApplicationScrewless Push In	PCB/Cable/PanelPCB	ModularityYes	Type45° Cable Entry	Wire Section 26 to 16 (AWG) 0.2 to 1.5 (mm²)	Design Kit 612690 691001	–Check availability
	691409320003	SPEC3, Screwless Push In, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Spring Clamp (rev26a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Spring-Clamp (rev26a).lbr \| 2 MB KIC KiCad_WR-TBL (rev26b).zip \| 377.1 MB 3D 3D_WR-TBL_4093_691409320003 (rev1).pdf \| 538 KB IGS IGS_WR-TBL-4093_691409320003 (rev1).igs \| 5.1 MB STP STP_WR-TBL_4093_691409320003 (rev1).stp \| 995.4 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins3	ApplicationScrewless Push In	PCB/Cable/PanelPCB	ModularityYes	Type45° Cable Entry	Wire Section 26 to 16 (AWG) 0.2 to 1.5 (mm²)	Design Kit –	–Check availability
	691409320004	SPEC4, Screwless Push In, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Spring Clamp (rev26a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Spring-Clamp (rev26a).lbr \| 2 MB KIC KiCad_WR-TBL (rev26b).zip \| 377.1 MB 3D 3D-WR-TBL_4093_691409320004 (rev1).pdf \| 539.2 KB IGS IGS_WR-TBL_4093_691409320004 (rev1).igs \| 5.1 MB STP STP_WR-TBL_4093_691409320004 (rev1).stp \| 996 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins4	ApplicationScrewless Push In	PCB/Cable/PanelPCB	ModularityYes	Type45° Cable Entry	Wire Section 26 to 16 (AWG) 0.2 to 1.5 (mm²)	Design Kit –	–Check availability
	691409320005	SPEC5, Screwless Push In, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Spring Clamp (rev26a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Spring-Clamp (rev26a).lbr \| 2 MB KIC KiCad_WR-TBL (rev26b).zip \| 377.1 MB 3D 3D_WR-TBL_4093_691409320005 (rev1).pdf \| 540.5 KB IGS IGS_WR-TBL_4093_691409320005 (rev1).igs \| 5.1 MB STP STP_WR-TBL_4093_691409320005 (rev1).stp \| 996.7 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins5	ApplicationScrewless Push In	PCB/Cable/PanelPCB	ModularityYes	Type45° Cable Entry	Wire Section 26 to 16 (AWG) 0.2 to 1.5 (mm²)	Design Kit –	–Check availability
	691409320006	SPEC6, Screwless Push In, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Spring Clamp (rev26a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Spring-Clamp (rev26a).lbr \| 2 MB KIC KiCad_WR-TBL (rev26b).zip \| 377.1 MB 3D 3D_WR-TBL_4093_691409320006 (rev1).pdf \| 541.7 KB IGS IGS_WR-TBL_4093_691409320006 (rev1).igs \| 5.1 MB STP STP_WR-TBL_4093_691409320006 (rev1).stp \| 997.4 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins6	ApplicationScrewless Push In	PCB/Cable/PanelPCB	ModularityYes	Type45° Cable Entry	Wire Section 26 to 16 (AWG) 0.2 to 1.5 (mm²)	Design Kit –	–Check availability
	691409320007	SPEC7, Screwless Push In, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Spring Clamp (rev26a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Spring-Clamp (rev26a).lbr \| 2 MB KIC KiCad_WR-TBL (rev26b).zip \| 377.1 MB 3D 3D_WR-TBL_4093_691409320007 (rev1).pdf \| 543 KB IGS IGS_WR-TBL_4093_691409320007 (rev1).igs \| 5.1 MB STP STP_WR-TBL_4093_691409320007 (rev1).stp \| 998 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins7	ApplicationScrewless Push In	PCB/Cable/PanelPCB	ModularityYes	Type45° Cable Entry	Wire Section 26 to 16 (AWG) 0.2 to 1.5 (mm²)	Design Kit –	–Check availability
	691409320008	SPEC8, Screwless Push In, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Spring Clamp (rev26a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Spring-Clamp (rev26a).lbr \| 2 MB KIC KiCad_WR-TBL (rev26b).zip \| 377.1 MB 3D 3D_WR-TBL_4093_691409320008 (rev1).pdf \| 544.2 KB IGS IGS-WR-TBL_4093_691409320008 (rev1).igs \| 5.1 MB STP STP_WR-TBL_4093_691409320008 (rev1).stp \| 998.7 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins8	ApplicationScrewless Push In	PCB/Cable/PanelPCB	ModularityYes	Type45° Cable Entry	Wire Section 26 to 16 (AWG) 0.2 to 1.5 (mm²)	Design Kit –	–Check availability
	691409320010	SPEC10, Screwless Push In, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Spring Clamp (rev26a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Spring-Clamp (rev26a).lbr \| 2 MB KIC KiCad_WR-TBL (rev26b).zip \| 377.1 MB 3D 3D_WR-TBL_4093_691409320010 (rev1).pdf \| 546.7 KB IGS IGS_WR-TBL_4093_691409320010 (rev1).igs \| 5.1 MB STP STP_WR-TBL_4093_691409320010 (rev1).stp \| 999.9 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins10	ApplicationScrewless Push In	PCB/Cable/PanelPCB	ModularityYes	Type45° Cable Entry	Wire Section 26 to 16 (AWG) 0.2 to 1.5 (mm²)	Design Kit –	–Check availability
	691409320012	SPEC12, Screwless Push In, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Spring Clamp (rev26a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Spring-Clamp (rev26a).lbr \| 2 MB KIC KiCad_WR-TBL (rev26b).zip \| 377.1 MB 3D 3D_WR-TBL_4093_691409320012 (rev1).pdf \| 549.2 KB IGS IGS_WR-TBL_4093_691409320012 (rev1).igs \| 5.1 MB STP STP_WR-TBL_4093_691409320012 (rev1).stp \| 1001.2 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins12	ApplicationScrewless Push In	PCB/Cable/PanelPCB	ModularityYes	Type45° Cable Entry	Wire Section 26 to 16 (AWG) 0.2 to 1.5 (mm²)	Design Kit –	–Check availability

Use with

WR-TBL Adhesive Marker Card Horizontally Printed

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit SINGLE BLOCK / WR-TBL
