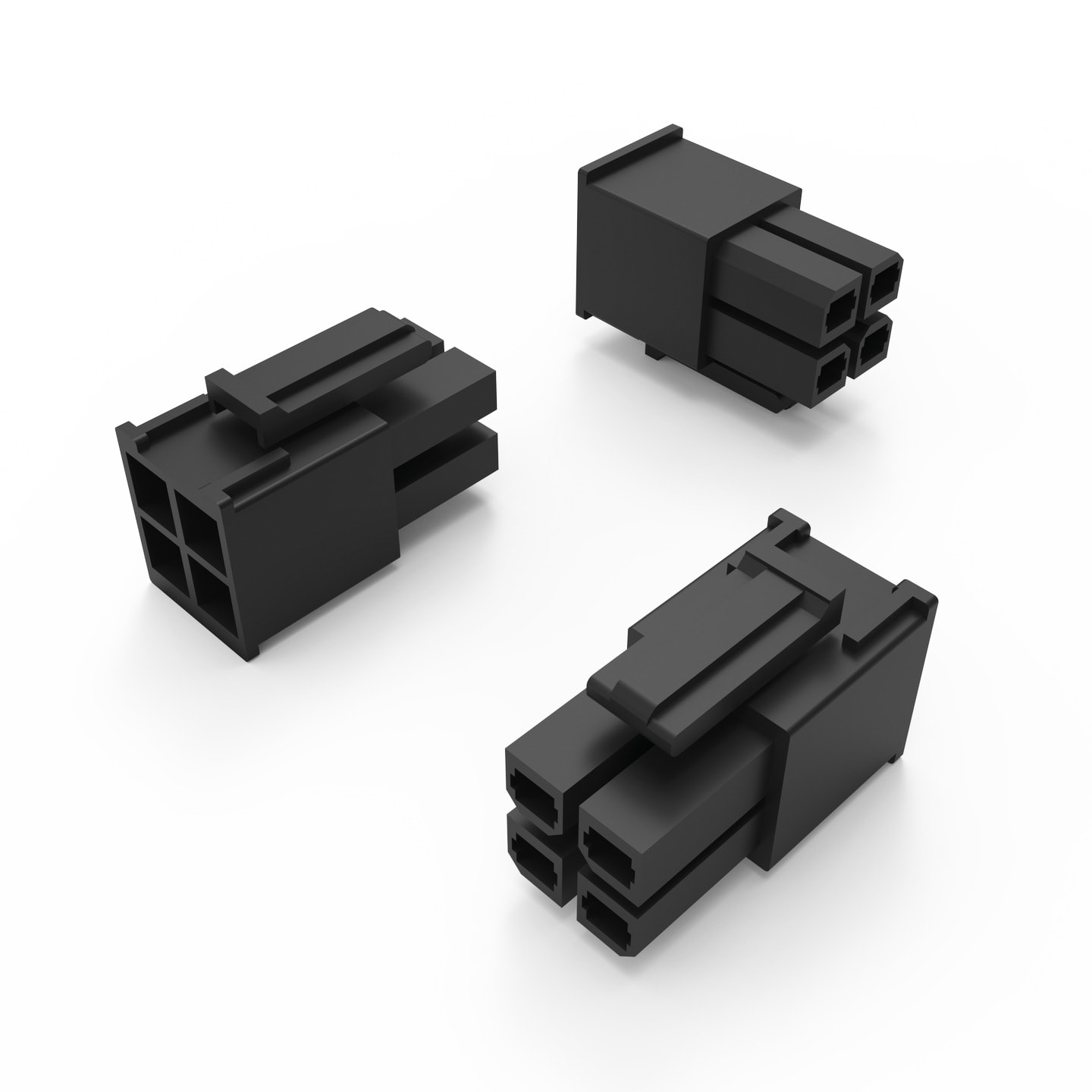

WR-MPC5 5.70 mm Female Receptacle Housing Dual Row

General Information
Pitch	5.7 mm
Rows	Dual
Type	Receptacle Housing
Operating Temperature	-40 °C up to +105 °C
Durability	25 Mating cycles

Certification
REACh Approval	Conform or declared [(EC)1907/2006]
RoHS Approval	Compliant [2011/65/EU&2015/863]
UL Approval	E323964
Glow Wire Approval	Conform [IEC 60335-1]

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black

Packaging Properties
Packaging	Bag

Electrical Properties
I_R	26 A
Working Voltage	600 V (AC)
Withstanding Voltage	2200 V (AC)
Contact Resistance	2 mΩ

Products

Order Code	Datasheet	Downloads	Polarity	Pitch (mm)	Gender	Type	Rows	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Packaging	Design Kit	Samples
657002250201	SPEC	3 files CAD files ZIP 3D 3D_MPC5_657002250201 (rev1).pdf \| 53.6 KB IGS IGS_MPC5_657002250201 (rev1).iges \| 894.5 KB STP STP_MPC5_657002250201 (rev1).stp \| 198.9 KB Download all 3 files as zip archive ZIP	2	5.7	Female	Receptacle Housing	Dual	26	600	2	Bag	657001
657004250201	SPEC	3 files CAD files ZIP 3D 3D_MPC5_657004250201 (rev1).pdf \| 82.5 KB IGS IGS_MPC5_657004250201 (rev1).iges \| 1.5 MB STP STP_MPC5_657004250201 (rev1).stp \| 336.7 KB Download all 3 files as zip archive ZIP	4	5.7	Female	Receptacle Housing	Dual	26	600	2	Bag	657001
657006250201	SPEC	3 files CAD files ZIP 3D 3D_MPC5_657006250201 (rev1).pdf \| 109.9 KB IGS IGS_MPC5_657006250201 (rev1).iges \| 2 MB STP STP_MPC5_657006250201 (rev1).stp \| 457.8 KB Download all 3 files as zip archive ZIP	6	5.7	Female	Receptacle Housing	Dual	26	600	2	Bag	657001
657008250201	SPEC	3 files CAD files ZIP 3D 3D_MPC5_657008250201 (rev1).pdf \| 132.1 KB IGS IGS_MPC5_657008250201 (rev1).iges \| 2.5 MB STP STP_MPC5_657008250201 (rev1).stp \| 580.7 KB Download all 3 files as zip archive ZIP	8	5.7	Female	Receptacle Housing	Dual	26	600	2	Bag	657001
657010250201	SPEC	3 files CAD files ZIP 3D 3D_MPC5_657010250201 (rev1).pdf \| 156.9 KB IGS IGS_MPC5_657010250201 (rev1).iges \| 3 MB STP STP_MPC5_657010250201 (rev1).stp \| 707 KB Download all 3 files as zip archive ZIP	10	5.7	Female	Receptacle Housing	Dual	26	600	2	Bag	–
657012250201	SPEC	3 files CAD files ZIP 3D 3D_MPC5_657012250201 (rev1).pdf \| 181.6 KB IGS IGS_MPC5_657012250201 (rev1).iges \| 3.5 MB STP STP_MPC5_657012250201 (rev1).stp \| 837.1 KB Download all 3 files as zip archive ZIP	12	5.7	Female	Receptacle Housing	Dual	26	600	2	Bag	657001

Order Code	Datasheet
657002250201	SPEC
657004250201	SPEC
657006250201	SPEC
657008250201	SPEC
657010250201	SPEC
657012250201	SPEC

Samples

Order Code	Datasheet	Downloads	Polarity	Pitch (mm)	Gender	Type	Rows	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Packaging	Design Kit	Samples

Mates with

WR-MPC5 5.70 mm Male Header Dual Row Right Angled

WR-MPC5 5.70 mm Male Header Dual Row Vertical

WR-MPC5 5.70 mm Male Header Dual Row Right Angled with Snap-in Plastic Pegs

WR-MPC5 5.70 mm Male Header Dual Row Vertical with Snap-in Plastic Pegs

Use with

WR-MPC5 5.70 mm Female Crimp Contact

WR-MPC5 5.70 mm Female Pre-crimped Wire

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-MPC5 Mega Power Connector
