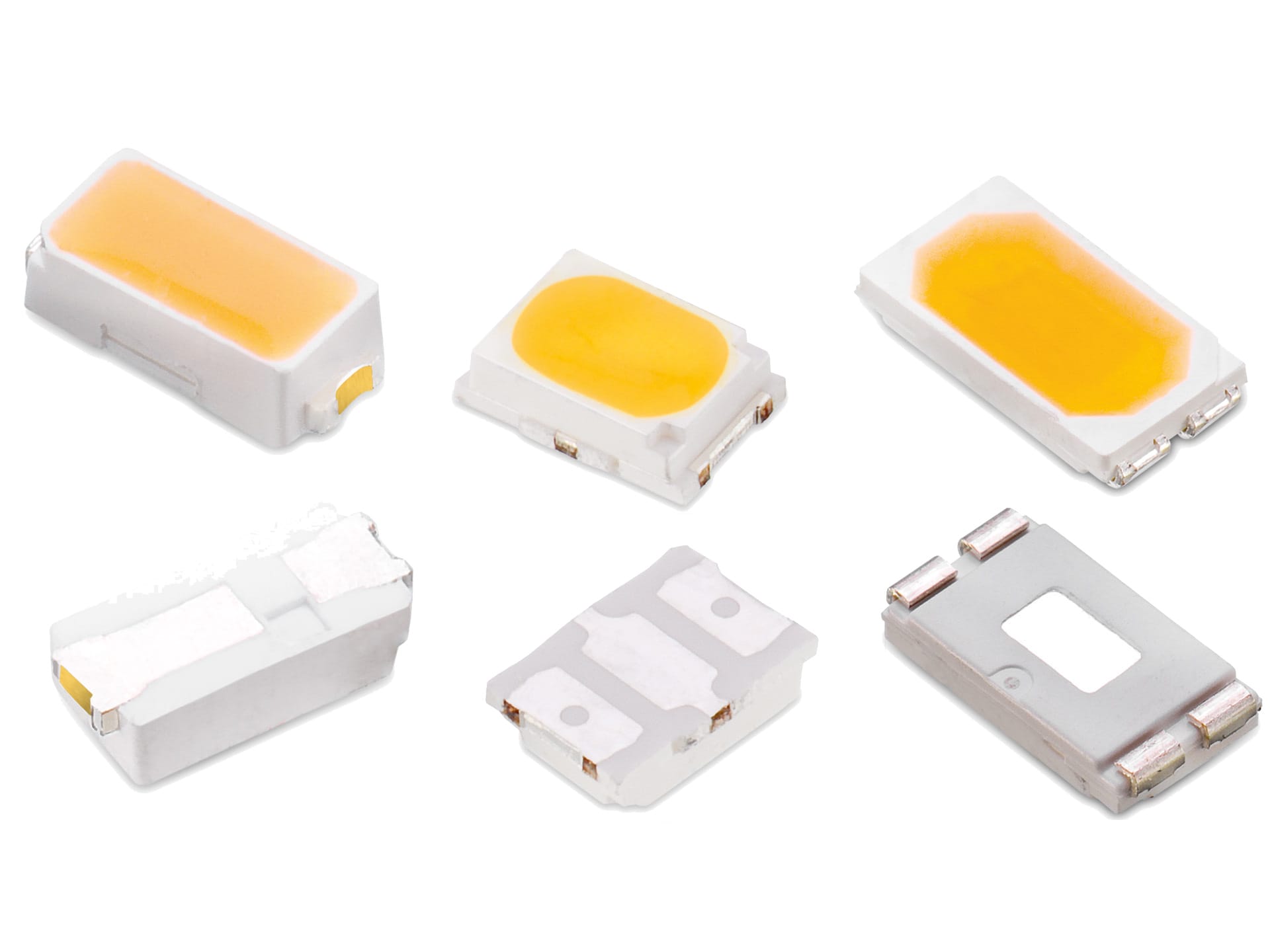

WL-SWTP SMT White Top view PLCC

Size	L (mm)	W (mm)	H (mm)	Mount

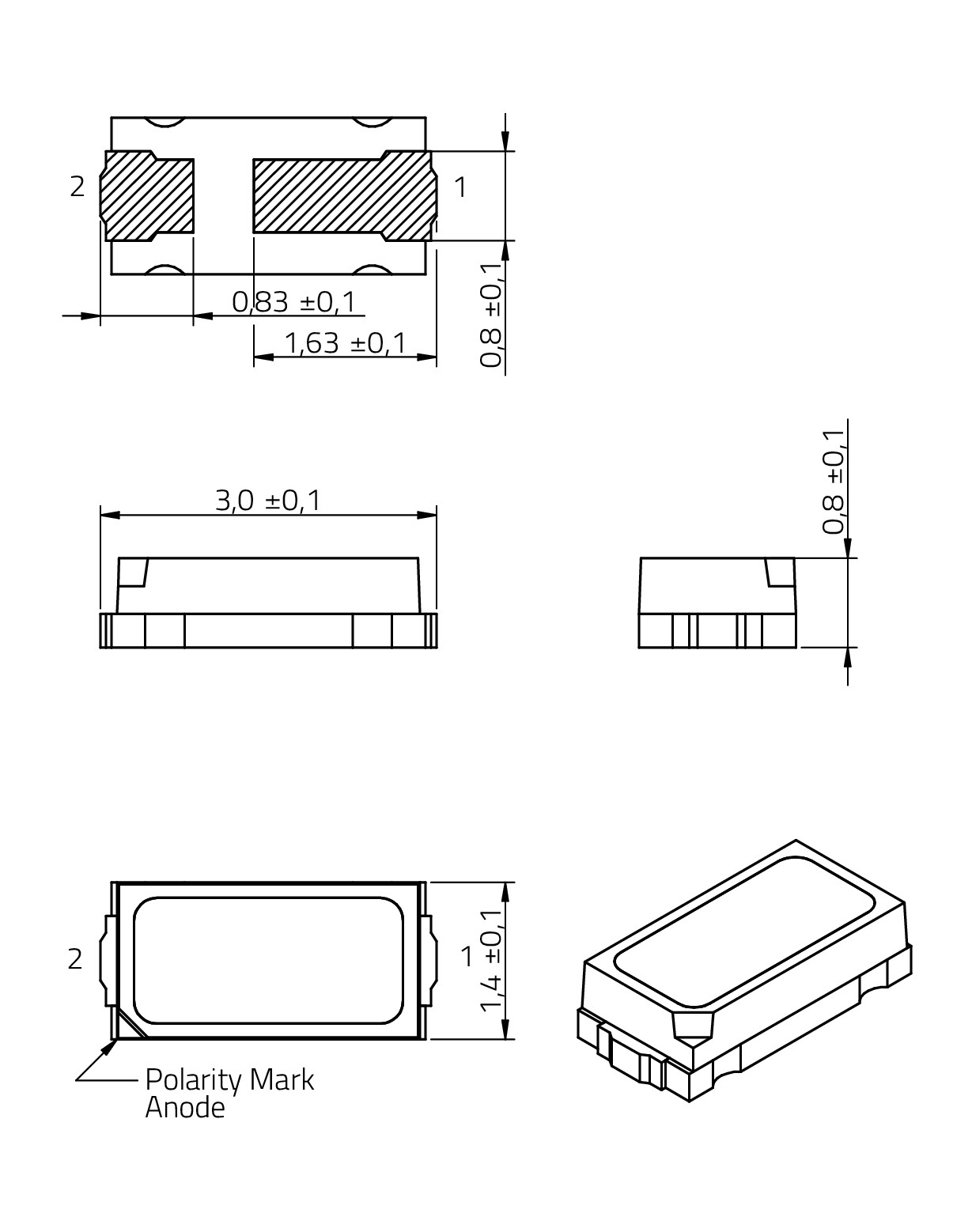

3014	3	1.4	-	SMT

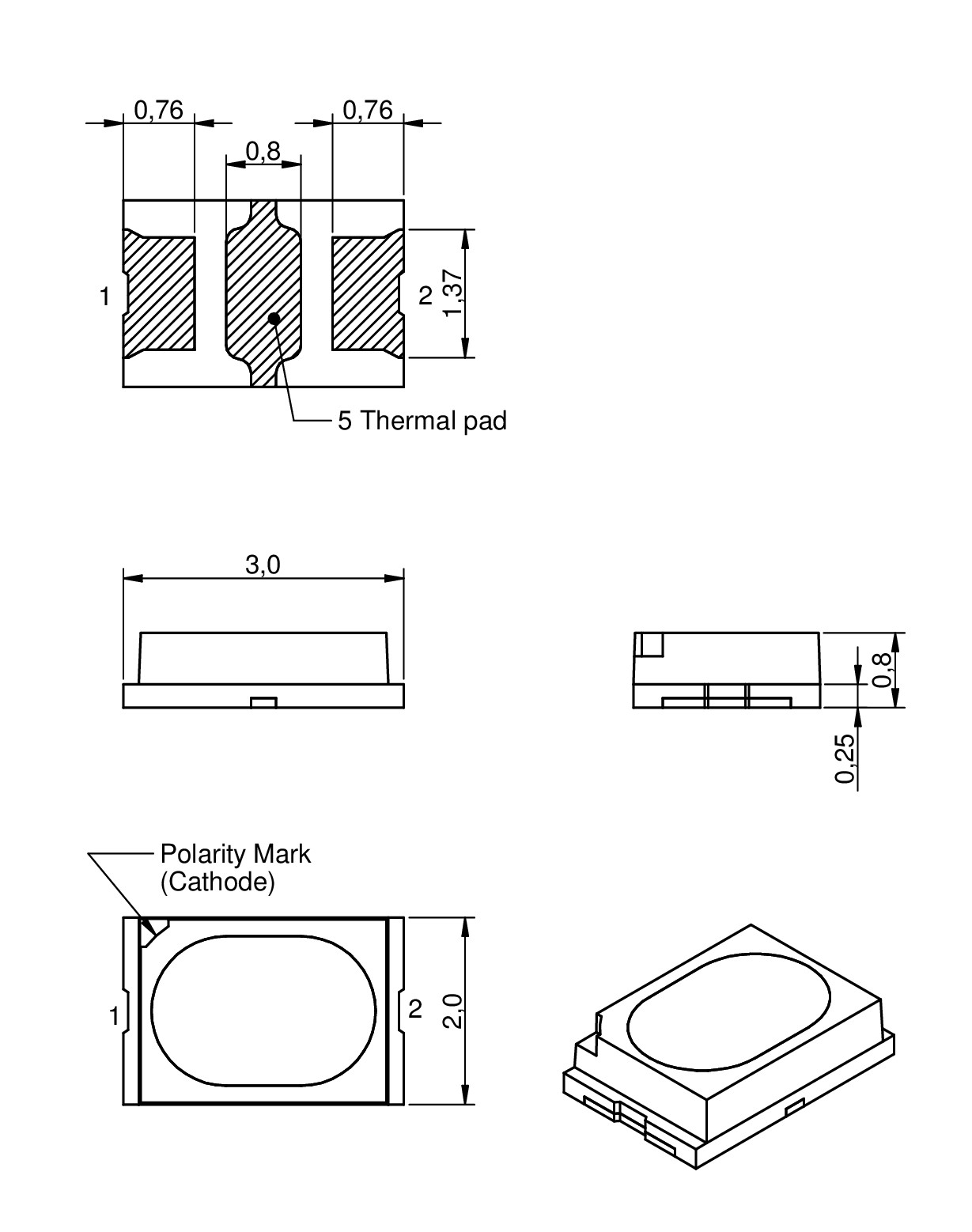

3022	3	2.1	0.8	SMT
3030	3	3	0.67	-

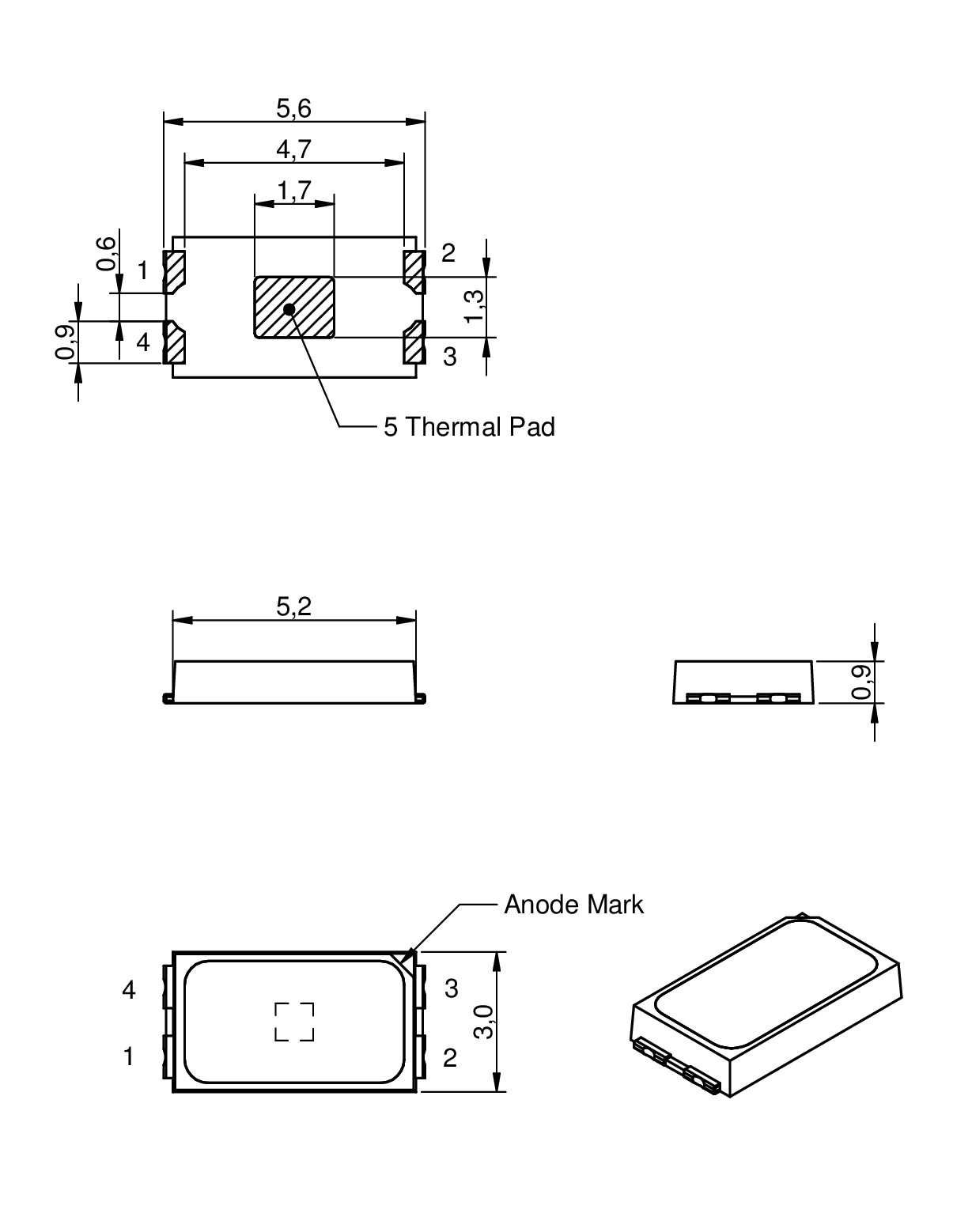

5630	-	3	-	SMT

LTSpice files

LT
LTSpice_WL-SWTP (rev22a).zip
|
2.2 KB

Characteristics

Fast switching
No IR radiation
High CRI
Slim and miniature size
Low power consumption
Suitable for all SMT assembly methods
Top view
Wide viewing angle
Various of color temperatures
LED junction temperature: 130°C

Applications

Signal lights
Indoor displays
Backlights
General illumination, industrial and commercial lighting systems
Decorative and Entertainment lighting
Switch lights
LED lighting fixtures
LED decoration strips
Indicator lights and backlighting for wireless mobile devices and consumer electronics
Flat backlight for LCD
LED backlighting and SMT type indicator lights
LED Module
Light pipe application
Indicator lights and backlighting for consumer and industrial applications
Indoor area lighting
Downlight
Outdoor and architectural lighting systems
High bay & Low bay
Display & TV Backlight
General lighting

Products

All

3014

3022

3030

5630

Reset all

Filter article data

show article in 4 product lines

article in 4 product lines

Reset all

Order Code	Datasheet	Simulation	Downloads	Status	Emitting Color	CRI typ.	Φ_{V typ.}(lm)	V_{F typ.}(V)	Chip Technology	2θ_{50% typ.}(°)	Size	Design Kit
158301260	Cool White, 90, 9 lm	Simulation	Downloads28 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS Download_IGS_WL-SWTP-3014 (rev1).igs \| 395 KB STP Download_STP_WL-SWTP-3014 (rev1).stp \| 229.7 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB RAY files ASA asap-and-apex_dis_158301260_5M (rev1).zip \| 120.6 MB COD CodeV_ray_158301260_5M (rev1).zip \| 120.6 MB FRE Fred_dat_158301260_5M (rev1).zip \| 120.6 MB FRE Fred_txt_158301260_5M (rev1).zip \| 188.5 MB LIG LightTools_ray_158301260_5M (rev1).zip \| 120.6 MB LIG LightTools_txt_158301260_5M (rev1).zip \| 188.6 MB LUC LucidShape_ray_158301260_5M (rev1).zip \| 120.6 MB LUC LucidShape_txt_158301260_5M (rev1).zip \| 188.6 MB OPT OpTaliX_dis_158301260_5M (rev1).zip \| 120.6 MB OPT OpTaliX_txt_158301260_5M (rev1).zip \| 188.6 MB OPT OptiCAD_dat_158301260_5M (rev1).zip \| 120.6 MB OPT OptiCAD_txt_158301260_5M (rev1).zip \| 188.6 MB OPT optisWorks_ray_158301260_5M (rev1).zip \| 124.9 MB RIR photopia_rir_158301260_5M (rev1).zip \| 120.6 MB SIM simulux_ray_158301260_5M (rev1).zip \| 120.6 MB SPE speosCAA_ray_158301260_5M (rev1).zip \| 124.9 MB SPE speosProEng_ray_158301260_5M (rev1).zip \| 124.9 MB SPE speos_ray_158301260_5M (rev1).zip \| 124.9 MB SRC Lucaray-maker_src_158301260_5M (rev1).zip \| 120.6 MB TRA TracePro_txt_158301260_5M (rev1).zip \| 188.6 MB ZEM zemaxBin_dat_158301260_5M (rev1).zip \| 120.6 MB ZEM zemax_dat_158301260_5M (rev1).zip \| 188.6 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorCool White	Color Rendering Index [typ.]90	Luminous Flux [typ.]9 lm	Forward Voltage [typ.]3 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Size3014	Design Kit 158300
158302260	Cool White, 90, 22 lm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS Download_IGS_WL-SWTP-3022 (rev1).igs \| 581.5 KB STP Download_STP_WL-SWTP-3022 (rev1).stp \| 246.6 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorCool White	Color Rendering Index [typ.]90	Luminous Flux [typ.]22 lm	Forward Voltage [typ.]3.2 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Size3022	Design Kit 158300
158563460	Cool White, 90, 39 lm	Simulation	Downloads29 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP 3D Download_WL-SWTP_158563xxx_3D (rev1).pdf \| 95 KB IGS Download_IGS_WL-SWTP-5630 (rev1).igs \| 1.3 MB STP Download_STP_WL-SWTP-5630 (rev1).stp \| 352 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB RAY files ASA asap-and-apex_dis_158563460_5M (rev1).zip \| 121.5 MB COD CodeV_ray_158563460_5M (rev1).zip \| 121.5 MB FRE Fred_dat_158563460_5M (rev1).zip \| 121.5 MB FRE Fred_txt_158563460_5M (rev1).zip \| 189.2 MB LIG LightTools_ray_158563460_5M (rev1).zip \| 121.5 MB LIG LightTools_txt_158563460_5M (rev1).zip \| 189.4 MB LUC LucidShape_ray_158563460_5M (rev1).zip \| 121.5 MB LUC LucidShape_txt_158563460_5M (rev1).zip \| 189.1 MB OPT OpTaliX_dis_158563460_5M (rev1).zip \| 112.3 MB OPT OpTaliX_txt_158563460_5M (rev1).zip \| 189.1 MB OPT OptiCAD_dat_158563460_5M (rev1).zip \| 121.5 MB OPT OptiCAD_txt_158563460_5M (rev1).zip \| 189.1 MB OPT optisWorks_ray_158563460_5M (rev1).zip \| 125.6 MB RIR photopia_rir_158563460_5M (rev1).zip \| 121.5 MB SIM simulux_ray_158563460_5M (rev1).zip \| 121.5 MB SPE speosCAA_ray_158563460_5M (rev1).zip \| 125.6 MB SPE speosProEng_ray_158563460_5M (rev1).zip \| 125.6 MB SPE speos_ray_158563460_5M (rev1).zip \| 125.6 MB SRC Lucaray-maker_src_158563460_5M (rev1).zip \| 121.5 MB TRA TracePro_txt_158563460_5M (rev1).zip \| 189.4 MB ZEM zemaxBin_dat_158563460_5M (rev1).zip \| 121.5 MB ZEM zemax_dat_158563460_5M (rev1).zip \| 189.1 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorCool White	Color Rendering Index [typ.]90	Luminous Flux [typ.]39 lm	Forward Voltage [typ.]3 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Size5630	Design Kit 158300
158301260A	Cool White, 85, 26 lm	Simulation–	Downloads25 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS Download_IGS_1583012xxA (rev1).igs \| 886.1 KB STP Download_STEP_1583015xxA (rev1).stp \| 192 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB RAY files ASA ASAP-and-APEX_dis_158301260A_5M (rev1p0).zip \| 120.5 MB COD CodeV_ray_158301260A_5M (rev1p0).zip \| 120.5 MB FRE Fred_dat_158301260A_5M (rev1p0).zip \| 120.5 MB FRE Fred_txt_158301260A_5M (rev1p0).zip \| 188.7 MB LIG LightTools_ray_158301260A_5M (rev1p0).zip \| 120.5 MB LIG LightTools_txt_158301260A_5M (rev1p0).zip \| 188.7 MB LUC LucidShape_ray_158301260A_5M (rev1p0).zip \| 120.5 MB LUC LucidShape_txt_158301260A_5M (rev1p0).zip \| 188.8 MB OPT OpTaliX_dis_158301260A_5M (rev1p0).zip \| 120.5 MB OPT OpTaliX_txt_158301260A_5M (rev1p0).zip \| 188.7 MB OPT OptiCAD_dat_158301260A_5M (rev1p0).zip \| 120.5 MB OPT OptiCAD_txt_158301260A_5M (rev1p0).zip \| 188.8 MB RIR Photopia_rir_158301260A_5M (rev1p0).zip \| 120.5 MB SIM Simulux_ray_158301260A_5M (rev1p0).zip \| 120.5 MB SPE Speos_ray_158301260A_5M (rev1p0).zip \| 124.3 MB SRC Lucaray-maker_src_158301260A_5M (rev1p0).zip \| 120.5 MB TRA TracePro_txt_158301260A_5M (rev1p0).zip \| 188.7 MB ZEM ZemaxBin_dat_158301260A_5M (rev1p0).zip \| 120.5 MB ZEM Zemax_dat_158301260A_5M (rev1p0).zip \| 188.8 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorCool White	Color Rendering Index [typ.]85	Luminous Flux [typ.]26 lm	Forward Voltage [typ.]2.8 V	Chip TechnologyAlInGaN	Viewing Angle Phi 0° [typ.]120 °	Size3014	Design Kit –
158303260A	Cool White, 85, 36 lm	Simulation–	Downloads25 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS Download_IGS_1583032xxA (rev1).igs \| 591.4 KB STP Download_STEP_1583032xxA (rev1).stp \| 151 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB RAY files ASA ASAP-and-APEX_dis_158303260A_5M (rev1p0).zip \| 120.5 MB COD CodeV_ray_158303260A_5M (rev1p0).zip \| 120.5 MB FRE Fred_dat_158303260A_5M (rev1p0).zip \| 120.5 MB FRE Fred_txt_158303260A_5M (rev1p0).zip \| 188.8 MB LIG LightTools_ray_158303260A_5M (rev1p0).zip \| 120.5 MB LIG LightTools_txt_158303260A_5M (rev1p0).zip \| 188.8 MB LUC LucidShape_ray_158303260A_5M (rev1p0).zip \| 120.5 MB LUC LucidShape_txt_158303260A_5M (rev1p0).zip \| 188.9 MB OPT OpTaliX_dis_158303260A_5M (rev1p0).zip \| 120.5 MB OPT OpTaliX_txt_158303260A_5M (rev1p0).zip \| 188.8 MB OPT OptiCAD_dat_158303260A_5M (rev1p0).zip \| 120.5 MB OPT OptiCAD_txt_158303260A_5M (rev1p0).zip \| 188.9 MB RIR Photopia_rir_158303260A_5M (rev1p0).zip \| 120.5 MB SIM Simulux_ray_158303260A_5M (rev1p0).zip \| 120.5 MB SPE Speos_ray_158303260A_5M (rev1p0).zip \| 124.8 MB SRC Lucaray-maker_src_158303260A_5M (rev1p0).zip \| 120.5 MB TRA TracePro_txt_158303260A_5M (rev1p0).zip \| 188.8 MB ZEM ZemaxBin_dat_158303260A_5M (rev1p0).zip \| 120.5 MB ZEM Zemax_dat_158303260A_5M (rev1p0).zip \| 188.9 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorCool White	Color Rendering Index [typ.]85	Luminous Flux [typ.]36 lm	Forward Voltage [typ.]2.8 V	Chip TechnologyAlInGaN	Viewing Angle Phi 0° [typ.]120 °	Size3030	Design Kit –
158563260A	Cool White, 85, 35 lm	Simulation	Downloads25 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS IGS_WL-SWTP_5630A (rev1).igs \| 988.6 KB STP STP_WL-SWTP_5630A (rev1).stp \| 218 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB RAY files ASA ASAP-and-APEX_dis_158563260A_5M (rev1p0).zip \| 121.5 MB COD CodeV_ray_158563260A_5M (rev1p0).zip \| 121.5 MB FRE Fred_dat_158563260A_5M (rev1p0).zip \| 121.5 MB FRE Fred_txt_158563260A_5M (rev1p0).zip \| 189.2 MB LIG LightTools_ray_158563260A_5M (rev1p0).zip \| 121.5 MB LIG LightTools_txt_158563260A_5M (rev1p0).zip \| 189.5 MB LUC LucidShape_ray_158563260A_5M (rev1p0).zip \| 121.5 MB LUC LucidShape_txt_158563260A_5M (rev1p0).zip \| 189.2 MB OPT OpTaliX_dis_158563260A_5M (rev1p0).zip \| 121.5 MB OPT OpTaliX_txt_158563260A_5M (rev1p0).zip \| 189.2 MB OPT OptiCAD_dat_158563260A_5M (rev1p0).zip \| 121.5 MB OPT OptiCAD_txt_158563260A_5M (rev1p0).zip \| 189.2 MB RIR Photopia_rir_158563260A_5M (rev1p0).zip \| 121.5 MB SIM Simulux_ray_158563260A_5M (rev1p0).zip \| 121.5 MB SPE Speos_ray_158563260A_5M (rev1p0).zip \| 125.7 MB SRC Lucaray-maker_src_158563260A_5M (rev1p0).zip \| 121.5 MB TRA TracePro_txt_158563260A_5M (rev1p0).zip \| 189.5 MB ZEM ZemaxBin_dat_158563260A_5M (rev1p0).zip \| 121.5 MB ZEM Zemax_dat_158563260A_5M (rev1p0).zip \| 189.2 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorCool White	Color Rendering Index [typ.]85	Luminous Flux [typ.]35 lm	Forward Voltage [typ.]2.8 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Size5630	Design Kit –
158301250	Daylight, 85, 9 lm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS Download_IGS_WL-SWTP-3014 (rev1).igs \| 395 KB STP Download_STP_WL-SWTP-3014 (rev1).stp \| 229.7 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorDaylight	Color Rendering Index [typ.]85	Luminous Flux [typ.]9 lm	Forward Voltage [typ.]3 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Size3014	Design Kit 158300
158302250	Daylight, 85, 22 lm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS Download_IGS_WL-SWTP-3022 (rev1).igs \| 581.5 KB STP Download_STP_WL-SWTP-3022 (rev1).stp \| 246.6 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorDaylight	Color Rendering Index [typ.]85	Luminous Flux [typ.]22 lm	Forward Voltage [typ.]3.2 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Size3022	Design Kit 158300
158563450	Daylight, 85, 39 lm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS Download_IGS_WL-SWTP-5630 (rev1).igs \| 1.3 MB STP Download_STP_WL-SWTP-5630 (rev1).stp \| 352 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorDaylight	Color Rendering Index [typ.]85	Luminous Flux [typ.]39 lm	Forward Voltage [typ.]3 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Size5630	Design Kit 158300
158301250A	Daylight, 85, 26 lm	Simulation–	Downloads6 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS Download_IGS_1583012xxA (rev1).igs \| 886.1 KB STP Download_STEP_1583015xxA (rev1).stp \| 192 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorDaylight	Color Rendering Index [typ.]85	Luminous Flux [typ.]26 lm	Forward Voltage [typ.]2.8 V	Chip TechnologyAlInGaN	Viewing Angle Phi 0° [typ.]120 °	Size3014	Design Kit –
158303250A	Daylight, 85, 36 lm	Simulation–	Downloads6 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS Download_IGS_1583032xxA (rev1).igs \| 591.4 KB STP Download_STEP_1583032xxA (rev1).stp \| 151 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorDaylight	Color Rendering Index [typ.]85	Luminous Flux [typ.]36 lm	Forward Voltage [typ.]2.8 V	Chip TechnologyAlInGaN	Viewing Angle Phi 0° [typ.]120 °	Size3030	Design Kit –
158563250A	Daylight, 85, 35 lm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS IGS_WL-SWTP_5630A (rev1).igs \| 988.6 KB STP STP_WL-SWTP_5630A (rev1).stp \| 218 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorDaylight	Color Rendering Index [typ.]85	Luminous Flux [typ.]35 lm	Forward Voltage [typ.]2.8 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Size5630	Design Kit –
158301240	Moonlight, 85, 8.5 lm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS Download_IGS_WL-SWTP-3014 (rev1).igs \| 395 KB STP Download_STP_WL-SWTP-3014 (rev1).stp \| 229.7 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorMoonlight	Color Rendering Index [typ.]85	Luminous Flux [typ.]8.5 lm	Forward Voltage [typ.]3 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Size3014	Design Kit 158300
158302240	Moonlight, 85, 22 lm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS Download_IGS_WL-SWTP-3022 (rev1).igs \| 581.5 KB STP Download_STP_WL-SWTP-3022 (rev1).stp \| 246.6 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorMoonlight	Color Rendering Index [typ.]85	Luminous Flux [typ.]22 lm	Forward Voltage [typ.]3.2 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Size3022	Design Kit 158300
158563440	Moonlight, 85, 36 lm	Simulation	Downloads28 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS Download_IGS_WL-SWTP-5630 (rev1).igs \| 1.3 MB STP Download_STP_WL-SWTP-5630 (rev1).stp \| 352 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB RAY files ASA asap-and-apex_dis_158563440_5M (rev1).zip \| 121.6 MB COD CodeV_ray_158563440_5M (rev1).zip \| 121.6 MB FRE Fred_dat_158563440_5M (rev1).zip \| 121.6 MB FRE Fred_txt_158563440_5M (rev1).zip \| 189.4 MB LIG LightTools_ray_158563440_5M (rev1).zip \| 121.6 MB LIG LightTools_txt_158563440_5M (rev1).zip \| 189.4 MB LUC LucidShape_ray_158563440_5M (rev1).zip \| 121.6 MB LUC LucidShape_txt_158563440_5M (rev1).zip \| 189.4 MB OPT OpTaliX_dis_158563440_5M (rev1).zip \| 121.6 MB OPT OpTaliX_txt_158563440_5M (rev1).zip \| 189.4 MB OPT OptiCAD_dat_158563440_5M (rev1).zip \| 121.6 MB OPT OptiCAD_txt_158563440_5M (rev1).zip \| 189.4 MB OPT optisWorks_ray_158563440_5M (rev1).zip \| 125.3 MB RIR photopia_rir_158563440_5M (rev1).zip \| 121.6 MB SIM simulux_ray_158563440_5M (rev1).zip \| 121.6 MB SPE speosCAA_ray_158563440_5M (rev1).zip \| 125.3 MB SPE speosProEng_ray_158563440_5M (rev1).zip \| 125.3 MB SPE speos_ray_158563440_5M (rev1).zip \| 125.3 MB SRC Lucaray-maker_src_158563440_5M (rev1).zip \| 121.6 MB TRA TracePro_txt_158563440_5M (rev1).zip \| 189.4 MB ZEM zemaxBin_dat_158563440_5M (rev1).zip \| 121.6 MB ZEM zemax_dat_158563440_5M (rev1).zip \| 189.4 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorMoonlight	Color Rendering Index [typ.]85	Luminous Flux [typ.]36 lm	Forward Voltage [typ.]3 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Size5630	Design Kit 158300
158301240A	Moonlight, 85, 26 lm	Simulation–	Downloads6 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS Download_IGS_1583012xxA (rev1).igs \| 886.1 KB STP Download_STEP_1583015xxA (rev1).stp \| 192 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorMoonlight	Color Rendering Index [typ.]85	Luminous Flux [typ.]26 lm	Forward Voltage [typ.]2.8 V	Chip TechnologyAlInGaN	Viewing Angle Phi 0° [typ.]120 °	Size3014	Design Kit –
158303240A	Moonlight, 85, 36 lm	Simulation–	Downloads6 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS Download_IGS_1583032xxA (rev1).igs \| 591.4 KB STP Download_STEP_1583032xxA (rev1).stp \| 151 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorMoonlight	Color Rendering Index [typ.]85	Luminous Flux [typ.]36 lm	Forward Voltage [typ.]2.8 V	Chip TechnologyAlInGaN	Viewing Angle Phi 0° [typ.]120 °	Size3030	Design Kit –
158563240A	Moonlight, 85, 32 lm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS IGS_WL-SWTP_5630A (rev1).igs \| 988.6 KB STP STP_WL-SWTP_5630A (rev1).stp \| 218 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorMoonlight	Color Rendering Index [typ.]85	Luminous Flux [typ.]32 lm	Forward Voltage [typ.]2.8 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Size5630	Design Kit –
158301227	Sunrise, 85, 8 lm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS Download_IGS_WL-SWTP-3014 (rev1).igs \| 395 KB STP Download_STP_WL-SWTP-3014 (rev1).stp \| 229.7 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorSunrise	Color Rendering Index [typ.]85	Luminous Flux [typ.]8 lm	Forward Voltage [typ.]3 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Size3014	Design Kit 158300
158302227	Sunrise, 85, 20 lm	Simulation	Downloads28 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS Download_IGS_WL-SWTP-3022 (rev1).igs \| 581.5 KB STP Download_STP_WL-SWTP-3022 (rev1).stp \| 246.6 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB RAY files ASA asap-and-apex_dis_158302227_5M (rev1).zip \| 121.8 MB COD CodeV_ray_158302227_5M (rev1).zip \| 121.8 MB FRE Fred_dat_158302227_5M (rev1).zip \| 121.8 MB FRE Fred_txt_158302227_5M (rev1).zip \| 189.6 MB LIG LightTools_ray_158302227_5M (rev1).zip \| 121.8 MB LIG LightTools_txt_158302227_5M (rev1).zip \| 189.7 MB LUC LucidShape_ray_158302227_5M (rev1).zip \| 121.8 MB LUC LucidShape_txt_158302227_5M (rev1).zip \| 189.6 MB OPT OpTaliX_dis_158302227_5M (rev1).zip \| 121.8 MB OPT OpTaliX_txt_158302227_5M (rev1).zip \| 189.6 MB OPT OptiCAD_dat_158302227_5M (rev1).zip \| 121.8 MB OPT OptiCAD_txt_158302227_5M (rev1).zip \| 189.6 MB OPT optisWorks_ray_158302227_5M (rev1).zip \| 125.7 MB RIR photopia_rir_158302227_5M (rev1).zip \| 121.8 MB SIM simulux_ray_158302227_5M (rev1).zip \| 121.8 MB SPE speosCAA_ray_158302227_5M (rev1).zip \| 125.7 MB SPE speosProEng_ray_158302227_5M (rev1).zip \| 125.7 MB SPE speos_ray_158302227_5M (rev1).zip \| 125.7 MB SRC Lucaray-maker_src_158302227_5M (rev1).zip \| 121.8 MB TRA TracePro_txt_158302227_5M (rev1).zip \| 189.7 MB ZEM zemaxBin_dat_158302227_5M (rev1).zip \| 121.8 MB ZEM zemax_dat_158302227_5M (rev1).zip \| 189.6 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorSunrise	Color Rendering Index [typ.]85	Luminous Flux [typ.]20 lm	Forward Voltage [typ.]3.2 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Size3022	Design Kit 158300
158563427	Sunrise, 85, 34 lm	Simulation	Downloads28 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS Download_IGS_WL-SWTP-5630 (rev1).igs \| 1.3 MB STP Download_STP_WL-SWTP-5630 (rev1).stp \| 352 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB RAY files ASA asap-and-apex_dis_158563427_5M (rev1).zip \| 121.5 MB COD CodeV_ray_158563427_5M (rev1).zip \| 121.5 MB FRE Fred_dat_158563427_5M (rev1).zip \| 121.5 MB FRE Fred_txt_158563427_5M (rev1).zip \| 189.1 MB LIG LightTools_ray_158563427_5M (rev1).zip \| 121.5 MB LIG LightTools_txt_158563427_5M (rev1).zip \| 189.2 MB LUC LucidShape_ray_158563427_5M (rev1).zip \| 121.5 MB LUC LucidShape_txt_158563427_5M (rev1).zip \| 189.2 MB OPT OpTaliX_dis_158563427_5M (rev1).zip \| 121.5 MB OPT OpTaliX_txt_158563427_5M (rev1).zip \| 189.2 MB OPT OptiCAD_dat_158563427_5M (rev1).zip \| 121.5 MB OPT OptiCAD_txt_158563427_5M (rev1).zip \| 189.2 MB OPT optisWorks_ray_158563427_5M (rev1).zip \| 125.2 MB RIR photopia_rir_158563427_5M (rev1).zip \| 121.5 MB SIM simulux_ray_158563427_5M (rev1).zip \| 121.5 MB SPE speosCAA_ray_158563427_5M (rev1).zip \| 125.2 MB SPE speosProEng_ray_158563427_5M (rev1).zip \| 125.2 MB SPE speos_ray_158563427_5M (rev1).zip \| 125.2 MB SRC Lucaray-maker_src_158563427_5M (rev1).zip \| 121.5 MB TRA TracePro_txt_158563427_5M (rev1).zip \| 189.4 MB ZEM zemaxBin_dat_158563427_5M (rev1).zip \| 121.5 MB ZEM zemax_dat_158563427_5M (rev1).zip \| 189.2 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorSunrise	Color Rendering Index [typ.]85	Luminous Flux [typ.]34 lm	Forward Voltage [typ.]3 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Size5630	Design Kit 158300
158301227A	Sunrise, 85, 26 lm	Simulation–	Downloads25 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS Download_IGS_1583012xxA (rev1).igs \| 886.1 KB STP Download_STEP_1583015xxA (rev1).stp \| 192 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB RAY files ASA ASAP-and-APEX_dis_158301227A_5M (rev1p0).zip \| 120.2 MB COD CodeV_ray_158301227A_5M (rev1p0).zip \| 120.2 MB FRE Fred_dat_158301227A_5M (rev1p0).zip \| 120.2 MB FRE Fred_txt_158301227A_5M (rev1p0).zip \| 188.7 MB LIG LightTools_ray_158301227A_5M (rev1p0).zip \| 120.2 MB LIG LightTools_txt_158301227A_5M (rev1p0).zip \| 188.6 MB LUC LucidShape_ray_158301227A_5M (rev1p0).zip \| 120.2 MB LUC LucidShape_txt_158301227A_5M (rev1p0).zip \| 188.7 MB OPT OpTaliX_dis_158301227A_5M (rev1p0).zip \| 120.2 MB OPT OpTaliX_txt_158301227A_5M (rev1p0).zip \| 188.7 MB OPT OptiCAD_dat_158301227A_5M (rev1p0).zip \| 120.2 MB OPT OptiCAD_txt_158301227A_5M (rev1p0).zip \| 188.7 MB RIR Photopia_rir_158301227A_5M (rev1p0).zip \| 120.2 MB SIM Simulux_ray_158301227A_5M (rev1p0).zip \| 120.2 MB SPE Speos_ray_158301227A_5M (rev1p0).zip \| 124.5 MB SRC Lucaray-maker_src_158301227A_5M (rev1p0).zip \| 120.2 MB TRA TracePro_txt_158301227A_5M (rev1p0).zip \| 188.6 MB ZEM ZemaxBin_dat_158301227A_5M (rev1p0).zip \| 120.2 MB ZEM Zemax_dat_158301227A_5M (rev1p0).zip \| 188.7 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorSunrise	Color Rendering Index [typ.]85	Luminous Flux [typ.]26 lm	Forward Voltage [typ.]2.8 V	Chip TechnologyAlInGaN	Viewing Angle Phi 0° [typ.]120 °	Size3014	Design Kit –
158303227A	Sunrise, 85, 34 lm	Simulation–	Downloads25 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS Download_IGS_1583032xxA (rev1).igs \| 591.4 KB STP Download_STEP_1583032xxA (rev1).stp \| 151 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB RAY files ASA ASAP-and-APEX_dis_158303227A_5M (rev1p0).zip \| 120.4 MB COD CodeV_ray_158303227A_5M (rev1p0).zip \| 120.4 MB FRE Fred_dat_158303227A_5M (rev1p0).zip \| 120.4 MB FRE Fred_txt_158303227A_5M (rev1p0).zip \| 188.8 MB LIG LightTools_ray_158303227A_5M (rev1p0).zip \| 120.4 MB LIG LightTools_txt_158303227A_5M (rev1p0).zip \| 188.8 MB LUC LucidShape_ray_158303227A_5M (rev1p0).zip \| 120.4 MB LUC LucidShape_txt_158303227A_5M (rev1p0).zip \| 188.8 MB OPT OpTaliX_dis_158303227A_5M (rev1p0).zip \| 120.4 MB OPT OpTaliX_txt_158303227A_5M (rev1p0).zip \| 188.8 MB OPT OptiCAD_dat_158303227A_5M (rev1p0).zip \| 120.4 MB OPT OptiCAD_txt_158303227A_5M (rev1p0).zip \| 188.8 MB RIR Photopia_rir_158303227A_5M (rev1p0).zip \| 120.4 MB SIM Simulux_ray_158303227A_5M (rev1p0).zip \| 120.4 MB SPE Speos_ray_158303227A_5M (rev1p0).zip \| 124.6 MB SRC Lucaray-maker_src_158303227A_5M (rev1p0).zip \| 120.4 MB TRA TracePro_txt_158303227A_5M (rev1p0).zip \| 188.8 MB ZEM ZemaxBin_dat_158303227A_5M (rev1p0).zip \| 120.4 MB ZEM Zemax_dat_158303227A_5M (rev1p0).zip \| 188.8 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorSunrise	Color Rendering Index [typ.]85	Luminous Flux [typ.]34 lm	Forward Voltage [typ.]2.8 V	Chip TechnologyAlInGaN	Viewing Angle Phi 0° [typ.]120 °	Size3030	Design Kit –
158563227A	Sunrise, 85, 32 lm	Simulation	Downloads25 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS IGS_WL-SWTP_5630A (rev1).igs \| 988.6 KB STP STP_WL-SWTP_5630A (rev1).stp \| 218 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB RAY files ASA ASAP-and-APEX_dis_158563227A_5M (rev1p0).zip \| 121.4 MB COD CodeV_ray_158563227A_5M (rev1p0).zip \| 121.4 MB FRE Fred_dat_158563227A_5M (rev1p0).zip \| 121.4 MB FRE Fred_txt_158563227A_5M (rev1p0).zip \| 189.2 MB LIG LightTools_ray_158563227A_5M (rev1p0).zip \| 121.4 MB LIG LightTools_txt_158563227A_5M (rev1p0).zip \| 189.1 MB LUC LucidShape_ray_158563227A_5M (rev1p0).zip \| 121.4 MB LUC LucidShape_txt_158563227A_5M (rev1p0).zip \| 189.2 MB OPT OpTaliX_dis_158563227A_5M (rev1p0).zip \| 121.4 MB OPT OpTaliX_txt_158563227A_5M (rev1p0).zip \| 189.1 MB OPT OptiCAD_dat_158563227A_5M (rev1p0).zip \| 121.4 MB OPT OptiCAD_txt_158563227A_5M (rev1p0).zip \| 189.2 MB RIR Photopia_rir_158563227A_5M (rev1p0).zip \| 121.4 MB SIM Simulux_ray_158563227A_5M (rev1p0).zip \| 121.4 MB SPE Speos_ray_158563227A_5M (rev1p0).zip \| 125.4 MB SRC Lucaray-maker_src_158563227A_5M (rev1p0).zip \| 121.4 MB TRA TracePro_txt_158563227A_5M (rev1p0).zip \| 189.1 MB ZEM ZemaxBin_dat_158563227A_5M (rev1p0).zip \| 121.4 MB ZEM Zemax_dat_158563227A_5M (rev1p0).zip \| 189.2 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorSunrise	Color Rendering Index [typ.]85	Luminous Flux [typ.]32 lm	Forward Voltage [typ.]2.8 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Size5630	Design Kit –
158301230	Warm White, 85, 8 lm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS Download_IGS_WL-SWTP-3014 (rev1).igs \| 395 KB STP Download_STP_WL-SWTP-3014 (rev1).stp \| 229.7 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorWarm White	Color Rendering Index [typ.]85	Luminous Flux [typ.]8 lm	Forward Voltage [typ.]3 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Size3014	Design Kit 158300
158302230	Warm White, 85, 20 lm	Simulation	Downloads28 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS Download_IGS_WL-SWTP-3022 (rev1).igs \| 581.5 KB STP Download_STP_WL-SWTP-3022 (rev1).stp \| 246.6 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB RAY files ASA asap-and-apex_dis_158302230_5M (rev1).zip \| 121.3 MB COD CodeV_ray_158302230_5M (rev1).zip \| 121.3 MB FRE Fred_dat_158302230_5M (rev1).zip \| 121.3 MB FRE Fred_txt_158302230_5M (rev1).zip \| 188.5 MB LIG LightTools_ray_158302230_5M (rev1).zip \| 121.3 MB LIG LightTools_txt_158302230_5M (rev1).zip \| 188.5 MB LUC LucidShape_ray_158302230_5M (rev1).zip \| 121.3 MB LUC LucidShape_txt_158302230_5M (rev1).zip \| 188.6 MB OPT OpTaliX_dis_158302230_5M (rev1).zip \| 121.3 MB OPT OpTaliX_txt_158302230_5M (rev1).zip \| 188.5 MB OPT OptiCAD_dat_158302230_5M (rev1).zip \| 121.3 MB OPT OptiCAD_txt_158302230_5M (rev1).zip \| 188.5 MB OPT optisWorks_ray_158302230_5M (rev1).zip \| 125.2 MB RIR photopia_rir_158302230_5M (rev1).zip \| 121.3 MB SIM simulux_ray_158302230_5M (rev1).zip \| 121.3 MB SPE speosCAA_ray_158302230_5M (rev1).zip \| 125.2 MB SPE speosProEng_ray_158302230_5M (rev1).zip \| 125.2 MB SPE speos_ray_158302230_5M (rev1).zip \| 125.2 MB SRC Lucaray-maker_src_158302230_5M (rev1).zip \| 121.3 MB TRA TracePro_txt_158302230_5M (rev1).zip \| 188.5 MB ZEM zemaxBin_dat_158302230_5M (rev1).zip \| 121.3 MB ZEM zemax_dat_158302230_5M (rev1).zip \| 188.5 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorWarm White	Color Rendering Index [typ.]85	Luminous Flux [typ.]20 lm	Forward Voltage [typ.]3.2 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Size3022	Design Kit 158300
158563430	Warm White, 85, 34 lm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS Download_IGS_WL-SWTP-5630 (rev1).igs \| 1.3 MB STP Download_STP_WL-SWTP-5630 (rev1).stp \| 352 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorWarm White	Color Rendering Index [typ.]85	Luminous Flux [typ.]34 lm	Forward Voltage [typ.]3 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Size5630	Design Kit 158300
158301230A	Warm White, 85, 26 lm	Simulation–	Downloads6 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS Download_IGS_1583012xxA (rev1).igs \| 886.1 KB STP Download_STEP_1583015xxA (rev1).stp \| 192 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorWarm White	Color Rendering Index [typ.]85	Luminous Flux [typ.]26 lm	Forward Voltage [typ.]2.8 V	Chip TechnologyAlInGaN	Viewing Angle Phi 0° [typ.]120 °	Size3014	Design Kit –
158303230A	Warm White, 85, 34 lm	Simulation–	Downloads6 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS Download_IGS_1583032xxA (rev1).igs \| 591.4 KB STP Download_STEP_1583032xxA (rev1).stp \| 151 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorWarm White	Color Rendering Index [typ.]85	Luminous Flux [typ.]34 lm	Forward Voltage [typ.]2.8 V	Chip TechnologyAlInGaN	Viewing Angle Phi 0° [typ.]120 °	Size3030	Design Kit –
158563230A	Warm White, 85, 32 lm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SWTP (rev22d).IntLib \| 232 KB CDS Cadence_WL-SWTP (rev22a).zip \| 1.3 MB EAG Eagle_WL-SWTP (rev22b).lbr \| 61.5 KB CAD files ZIP IGS IGS_WL-SWTP_5630A (rev1).igs \| 988.6 KB STP STP_WL-SWTP_5630A (rev1).stp \| 218 KB Electric models ZIP PSP PSpice_WL-SWTP (rev22a).zip \| 6.9 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorWarm White	Color Rendering Index [typ.]85	Luminous Flux [typ.]32 lm	Forward Voltage [typ.]2.8 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Size5630	Design Kit –
