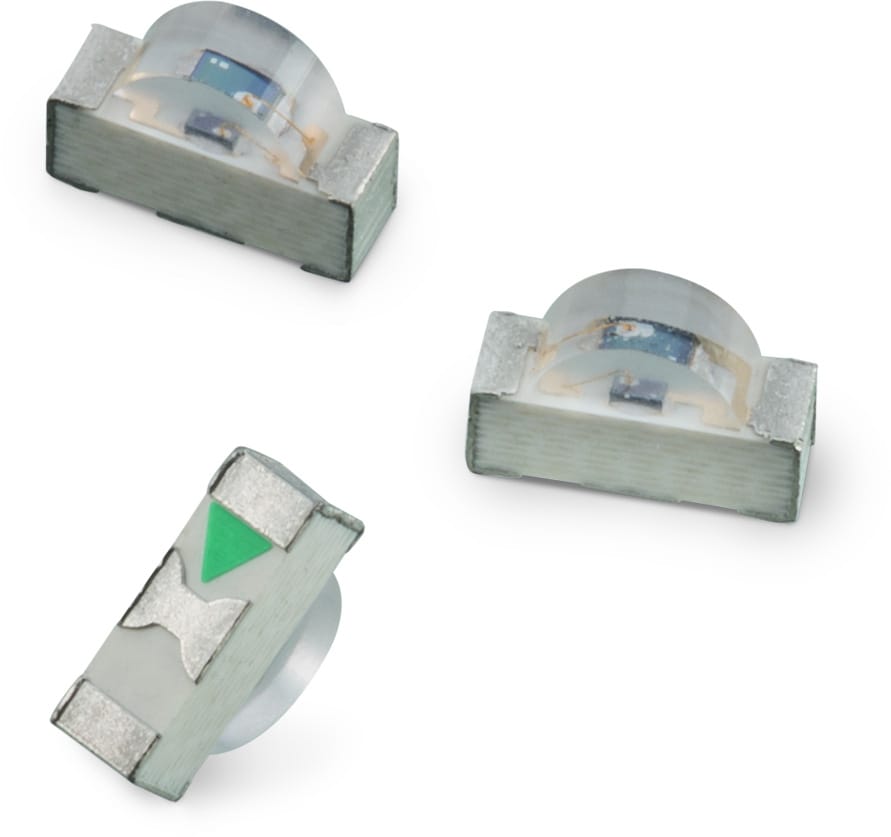

WL-STSW SMT Phototransistor Sideview Waterclear

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
1104		3	1	2	SMT

Characteristics

Small standard package size
High reliability
Perfect match to IR and visible Emitter
High photo sensitivity
Fast switching time

Applications

IR Sensors
IR Touch Panel Solutions
Security Systems

Products

1104

Order Code	Datasheet	Simulation	Downloads	Status	λ_{Peak typ.} (nm)	λ_min. (nm)	λ_max. (nm)	I_{CE.P min.} (mA)	I_{CE.P typ.} (mA)	I_{CEO.Dark max.} (nA)	Chip Technology	2θ_{50% typ.} (°)	Samples
1541141NAA570	SPEC		5 files EDA models: Components ZIP ALT Altium_WL-STSW (rev22b).IntLib \| 56.5 KB CDS Cadence_WL-STSW (rev19a).zip \| 143.8 KB EAG Eagle_WL-STSW (rev22a).lbr \| 14.6 KB CAD files ZIP IGS Download_IGS_1541141NAA570 (rev1).igs \| 662 KB STP Download_STP_1541141NAA570 (rev1).stp \| 188.7 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	940	400	1100	0.9	2.5	100	Si	150
