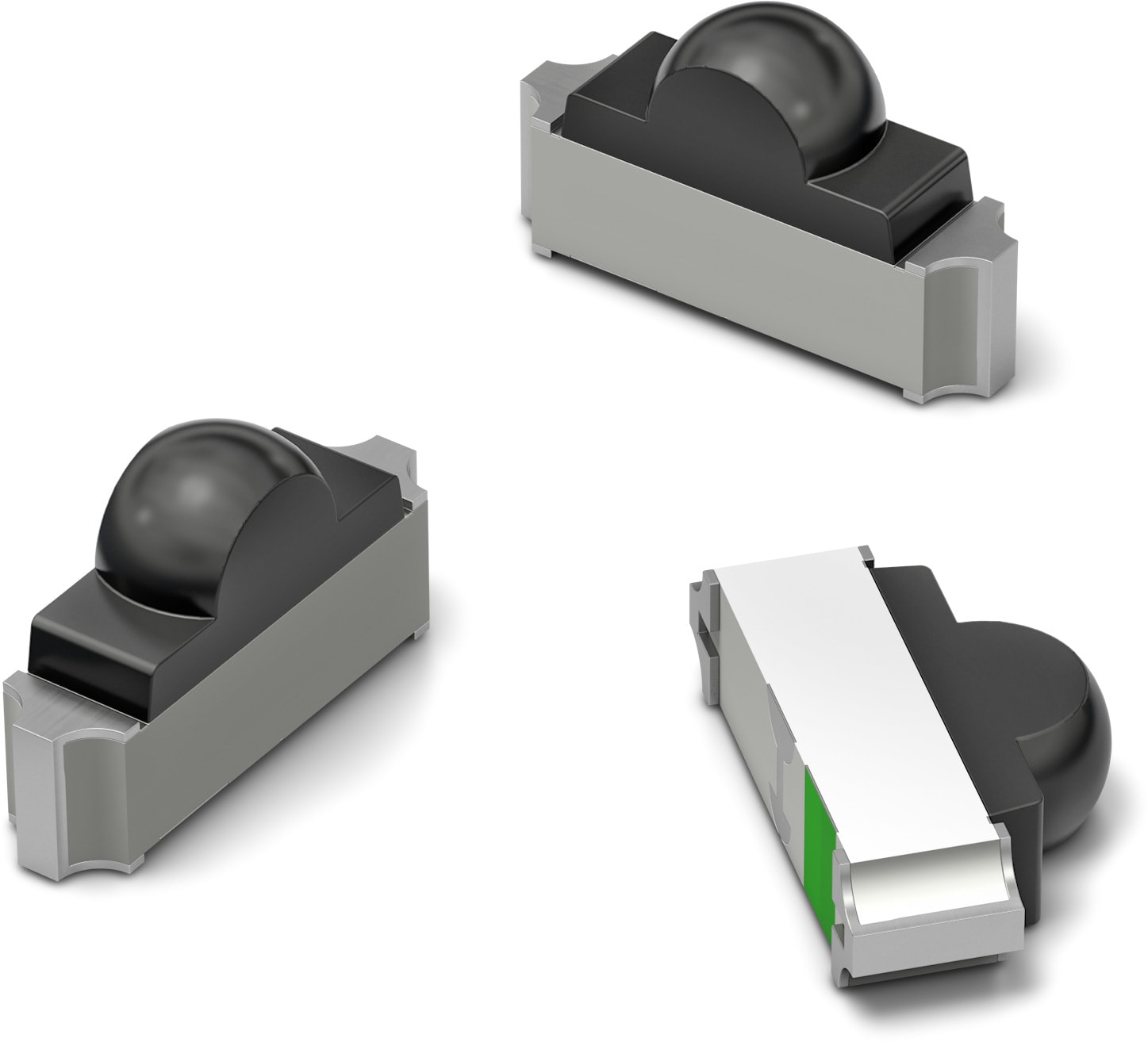

WL-STSB SMT Phototransistor Chip Black

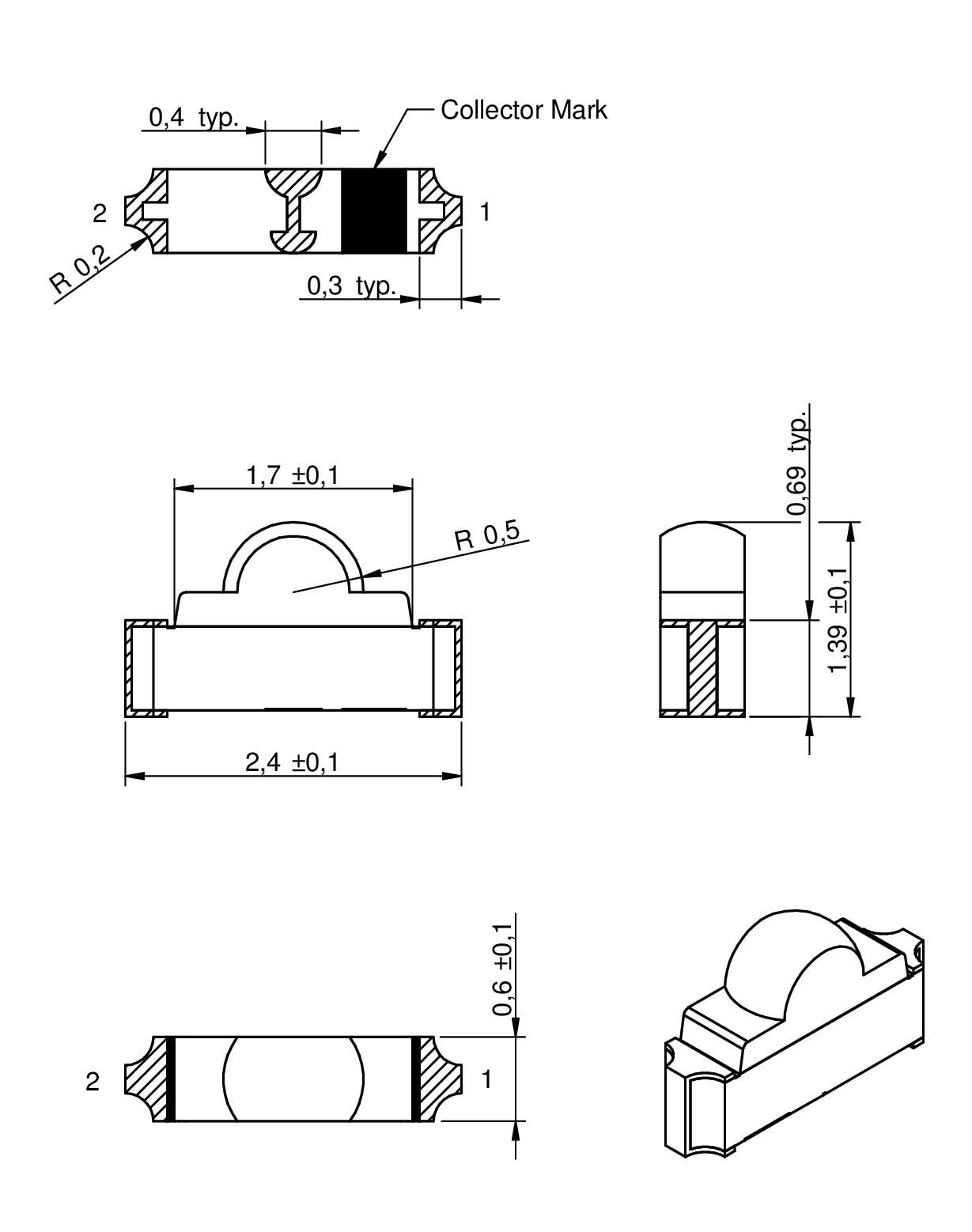

Size	Dimensions	L (mm)	W (mm)	H (mm)
1002		2.4	0.6	1.4

Characteristics

Thin Sideview Package
Wide viewing angle
High photo sensivity
With daylight filter
Perfect match with IR LEDs

Applications

Touchless and touch screens
Counter and encoder
Heart rate monitoring
Automatic doors
Fitness tracking
Automatic switches ( e.g. water syphons)

Products

1002

Order Code	Datasheet	Simulation	Downloads	Status	λ_{Peak typ.} (nm)	λ_min. (nm)	λ_max. (nm)	Test Condition I_CE.P	I_{CE.P min.} (mA)	I_{CE.P typ.} (mA)	Test Condition I_CEO.Dark	I_{CEO.Dark max.} (nA)	Chip Technology	2θ_{50% typ.} (°)	Samples
1541021NCA170	SPEC		5 files EDA models: Components ZIP ALT Altium_WL-STSB (rev22b).IntLib \| 49 KB CDS Cadence_WL-STSB (rev20a).zip \| 160.4 KB EAG Eagle_WL-STSB (rev23a).lbr \| 15 KB CAD files ZIP IGS Download_IGS_1541021NCA170 (rev1).igs \| 605.6 KB STP Download_STEP_1541021NCA170 (rev1).stp \| 142.4 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	940	700	1100	V_CE = 5 V Ee = 1 mW/cm² λ = 940 nm	0.5	1	V_CE = 20 V Ee = 0 mW/cm²	100	Si	110

Order Code	Datasheet	Simulation
1541021NCA170	SPEC

Samples

Order Code	Datasheet	Simulation	Downloads	Status	λ_{Peak typ.} (nm)	λ_min. (nm)	λ_max. (nm)	Test Condition I_CE.P	I_{CE.P min.} (mA)	I_{CE.P typ.} (mA)	Test Condition I_CEO.Dark	I_{CEO.Dark max.} (nA)	Chip Technology	2θ_{50% typ.} (°)	Samples
