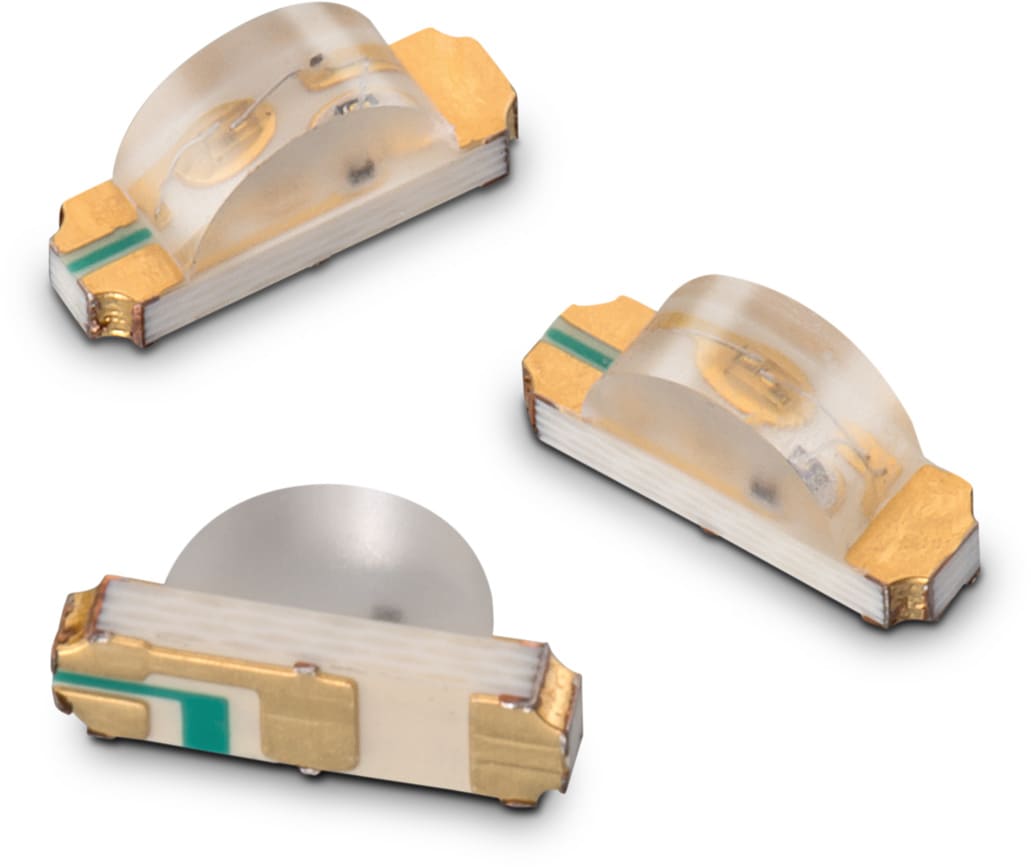

WL-SBSW SMT Bi-color Side View Waterclear

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
1204		3.2	1.5	1	SMT

LTSpice files

LT
LTSpice_WL-SBSW (rev22a).zip
|
2.6 KB

Characteristics

Dual color chips LED
Low current requirement
Fast switching
Side view
Compact package outline, very small package for exceptional brightness

Applications

Indicator
LCD illumination as in PDAs, MP3-Players, LCD monitors, LCD televisions
LED Display: Full color video notice board
Industry white goods: Oven, Microwave, Refrigerator…
Interior applications: switches, telematics, climate control system, dashboard

Products

1204

	Order Code	Datasheet	Downloads	Status	Emitting Color	λ_{Peak G typ.} (nm)	λ_{Peak R typ.} (nm)	λ_{Peak V typ.} (nm)	λ_{Dom G typ.} (nm)	λ_{Dom R typ.} (nm)	λ_{Dom V typ.} (nm)	I_{V G typ.} (mcd)	I_{V R typ.} (mcd)	I_{V V typ.} (mcd)	V_{F G typ.} (V)	V_{F R typ.} (V)	V_{F V typ.} (V)	Chip Technology	2θ_{50% typ.} (°)	Demoboard	Design Kit	Samples
	155124RG73200	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WL-SBSW (rev22c).IntLib \| 66.5 KB CDS Cadence_WL-SBSW (rev19a).zip \| 254.3 KB EAG Eagle_WL-SBSW (rev22a).lbr \| 17.3 KB CAD files ZIP IGS Download_IGS_WL-SBSW-1204 (rev1).igs \| 1.1 MB STP Download_STP_WL-SBSW-1204 (rev1).stp \| 244.2 KB Electric models ZIP PSP PSpice_WL-SBSW (rev22a).zip \| 3.1 KB Certificates ZIP CER IR_LED_certificate_WL-SBSW-1204_155124RG73200 (rev1).pdf \| 1.1 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Red & Green	520	632	–	525	624	–	160	60	–	3.3	2	–	AlInGaP + InGaN	120	9999003	150156
	155124RV73200	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WL-SBSW (rev22c).IntLib \| 66.5 KB CDS Cadence_WL-SBSW (rev19a).zip \| 254.3 KB EAG Eagle_WL-SBSW (rev22a).lbr \| 17.3 KB CAD files ZIP IGS Download_IGS_WL-SBSW-1204 (rev1).igs \| 1.1 MB STP Download_STP_WL-SBSW-1204 (rev1).stp \| 244.2 KB Electric models ZIP PSP PSpice_WL-SBSW (rev22a).zip \| 3.1 KB Certificates ZIP CER IR_LED_certificate_WL-SBSW-1204_155124RV73200 (rev1).pdf \| 1.1 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Red & Bright Green	–	632	573	–	624	571	–	60	30	–	2	2.1	AlInGaP	120	9999003	150156

	Order Code	Datasheet
	155124RG73200	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
	155124RV73200	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document

Samples

	Order Code	Datasheet	Downloads	Status	Emitting Color	λ_{Peak G typ.} (nm)	λ_{Peak R typ.} (nm)	λ_{Peak V typ.} (nm)	λ_{Dom G typ.} (nm)	λ_{Dom R typ.} (nm)	λ_{Dom V typ.} (nm)	I_{V G typ.} (mcd)	I_{V R typ.} (mcd)	I_{V V typ.} (mcd)	V_{F G typ.} (V)	V_{F R typ.} (V)	V_{F V typ.} (V)	Chip Technology	2θ_{50% typ.} (°)	Demoboard	Design Kit	Samples

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Chip LED - Reverse Mount & Side View

Demoboard Visible LEDs

Videos

Würth Elektronik Webinar: SMT LED techniques from the professional - 'the side view'

Learn more

LED Application Guide - Learn more about handling, storage and much more
