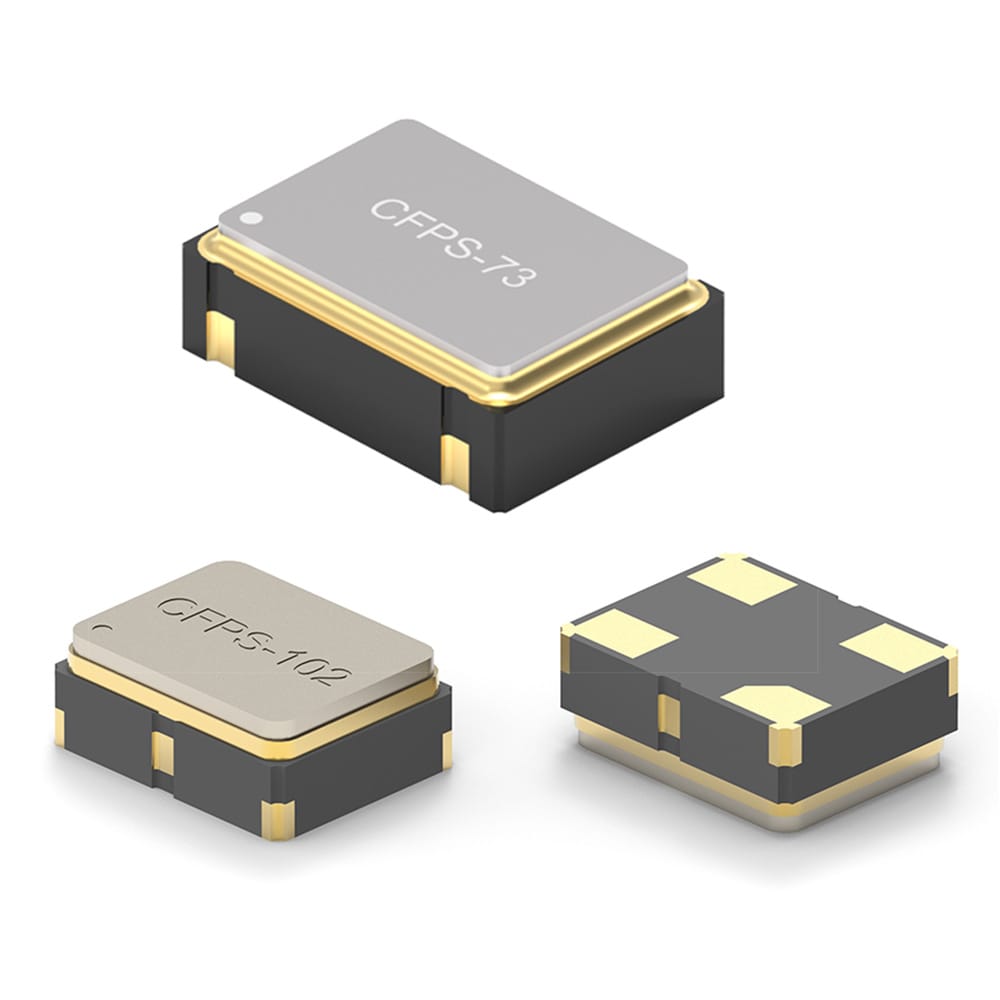

WE-SPXO Simple Packaged Quartz Oscillator

Size Dimen­sions 3DL
(mm)
W
(mm)
H
(mm)
VSupply
(V)

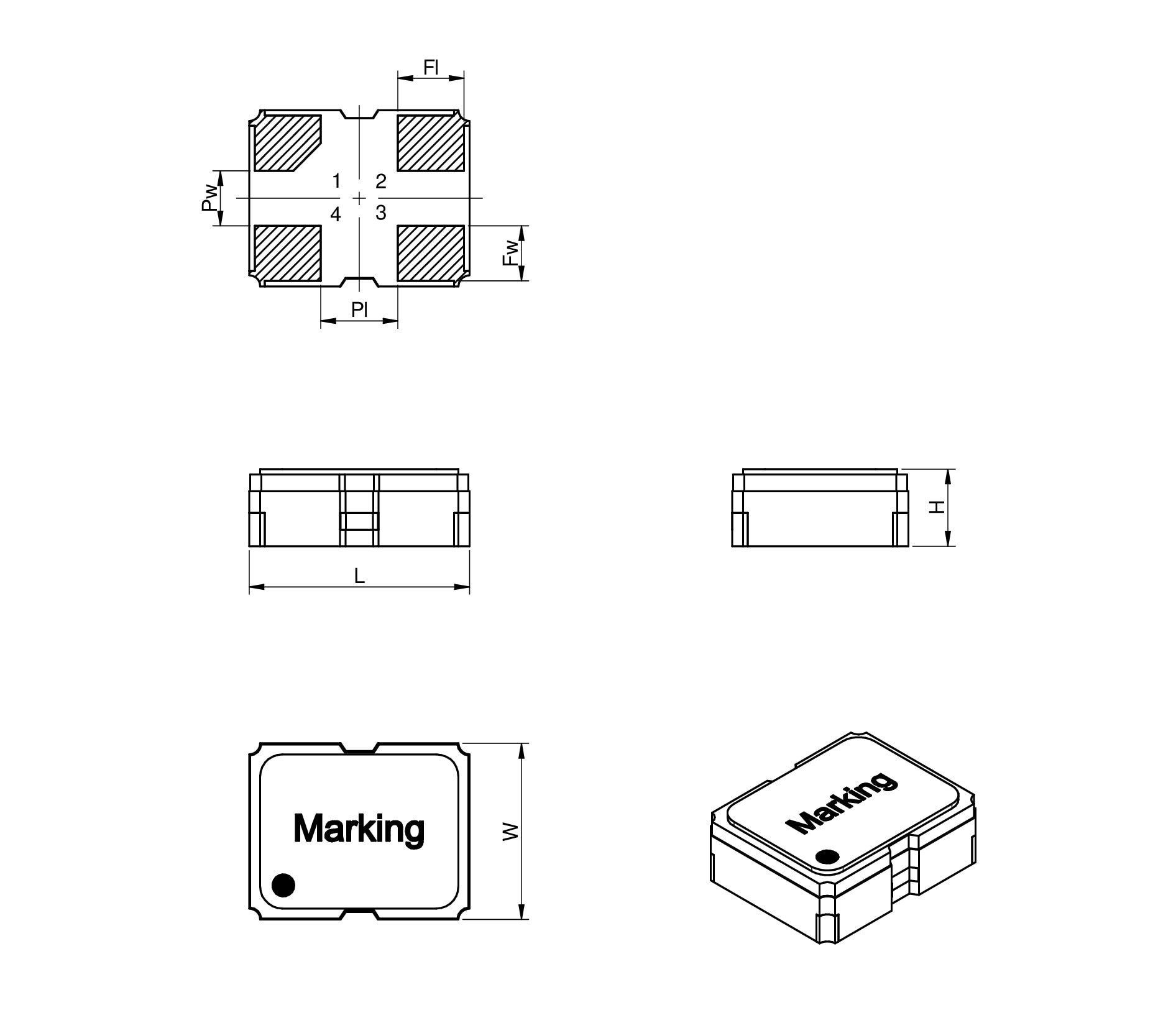

IQXO-540 2 1.6 0.7 3.3

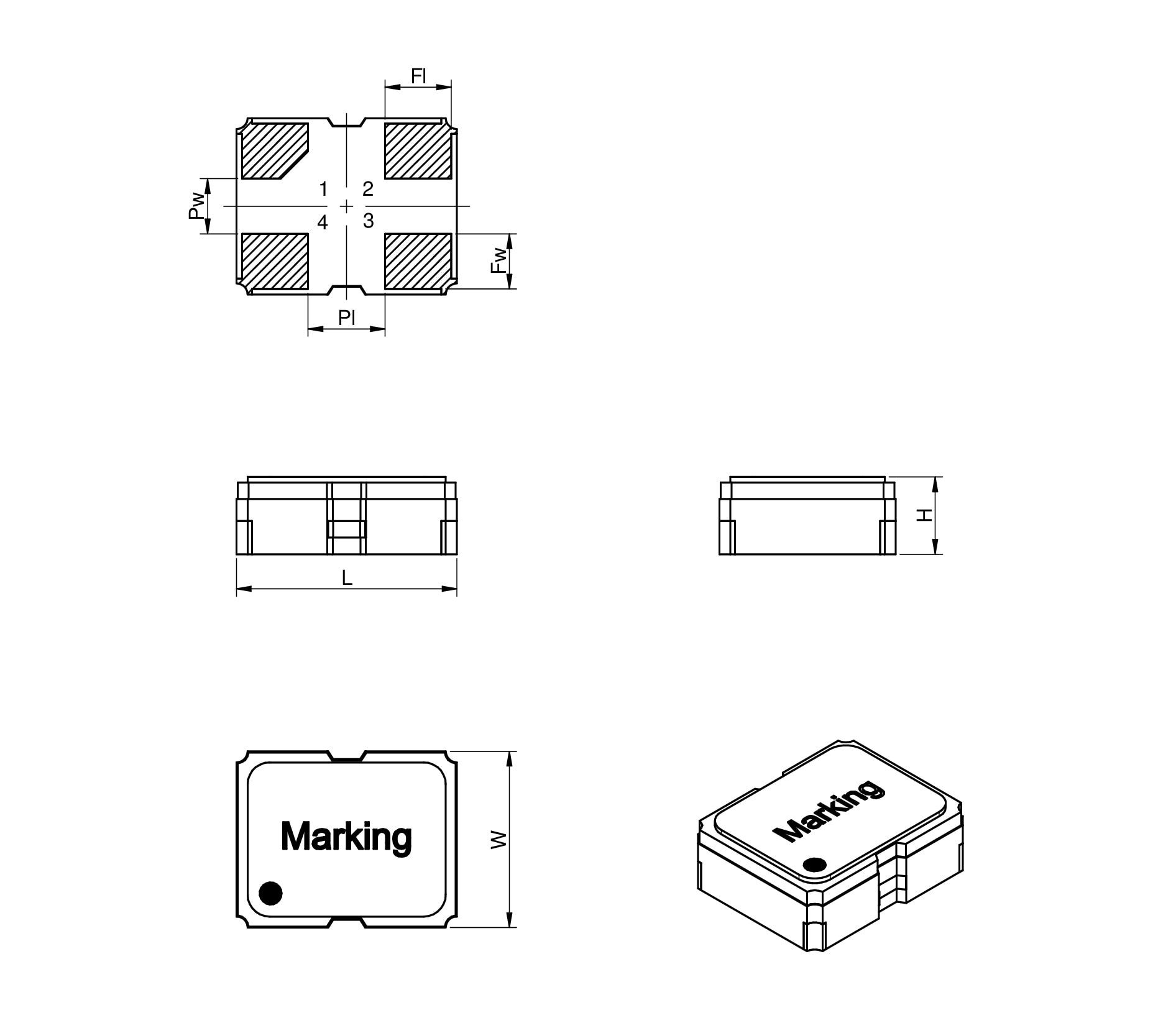

IQXO-542 2 1.6 0.7 1.8

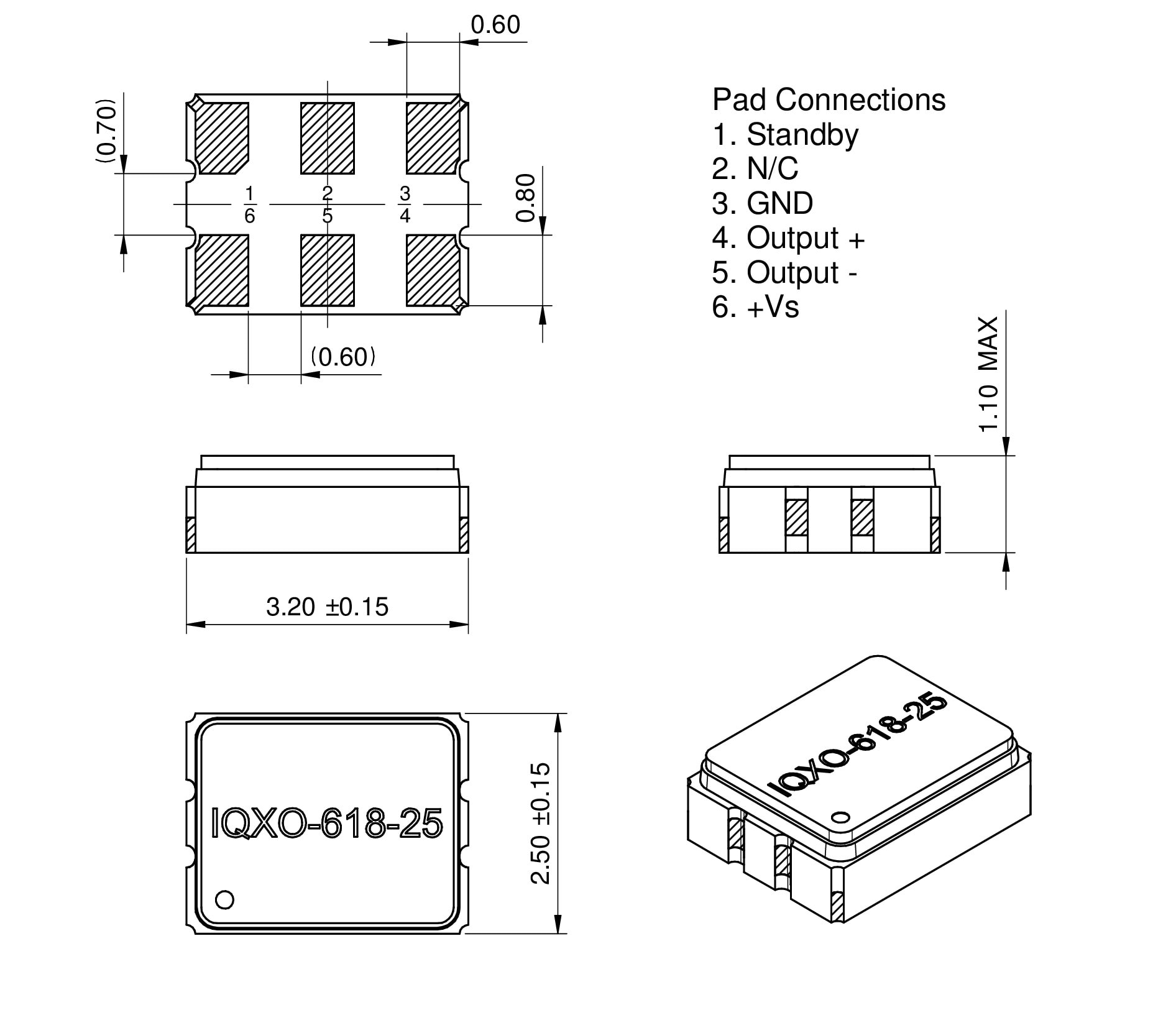

IQXO-618-25 3.2 2.5 1.1 2.5
IQXO-618-33 3.2 2.5 1.1 3.3

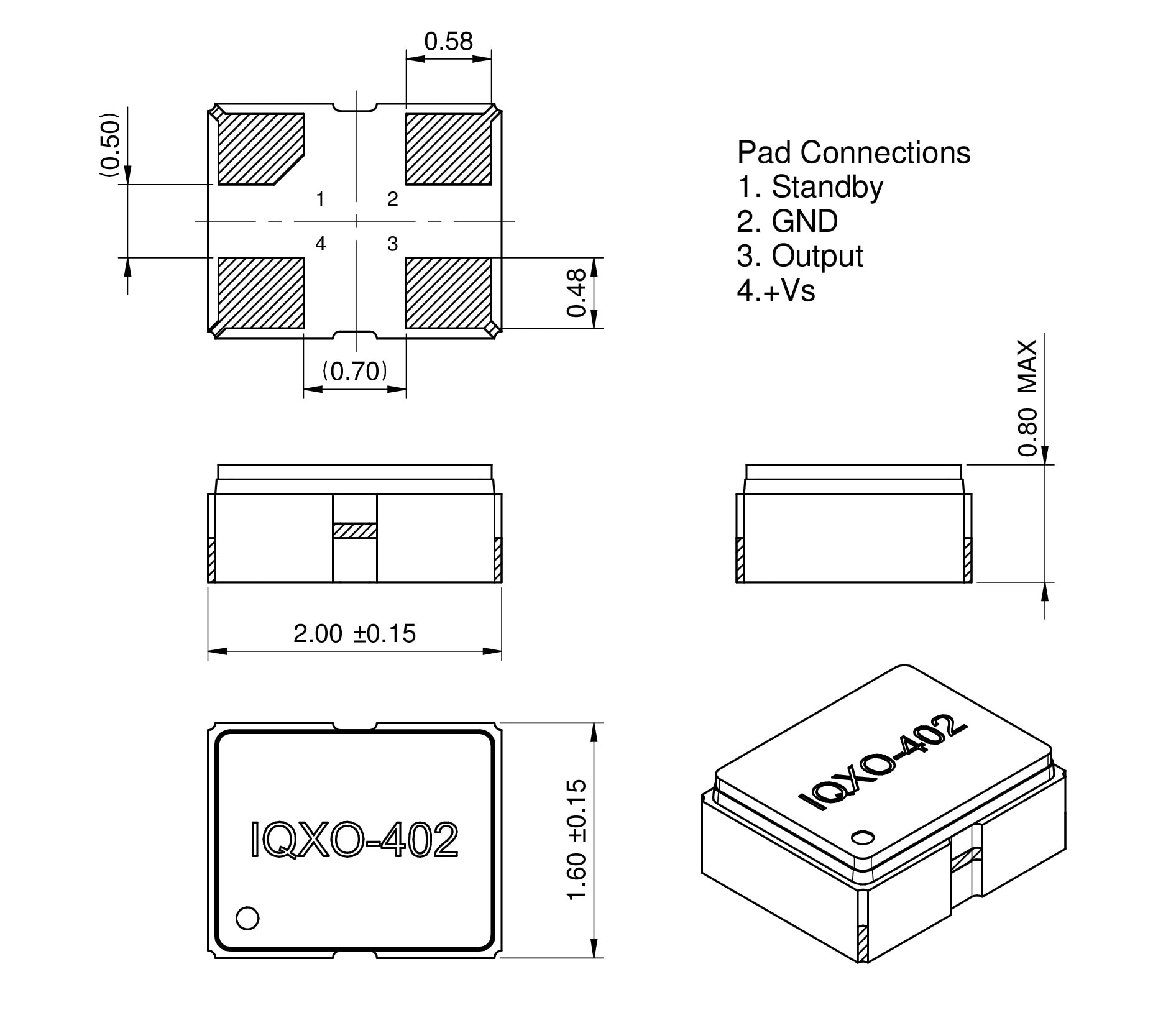

IQXO-402 2 1.6 0.8 3.3

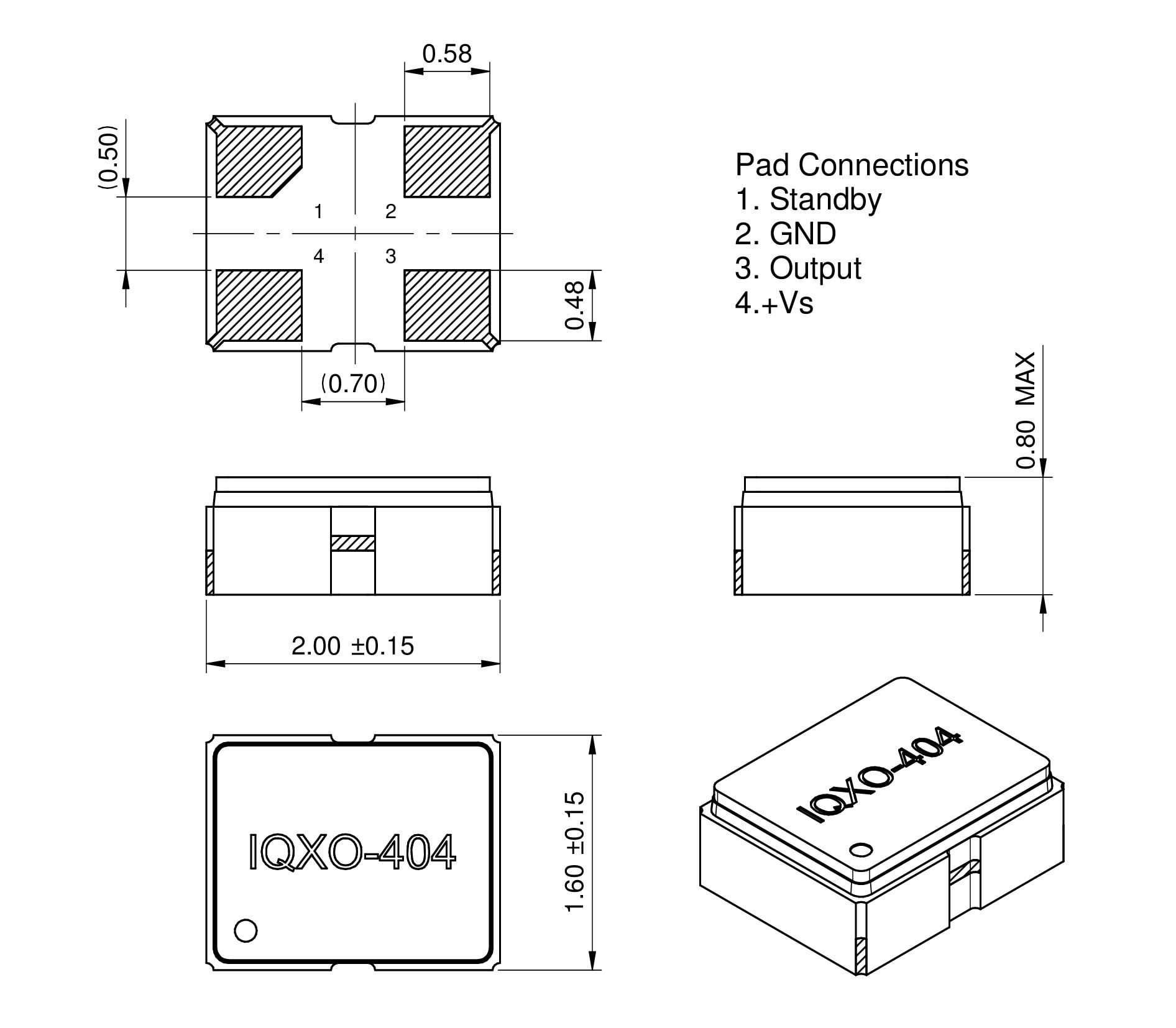

IQXO-404 2 1.6 0.8 1.8
IQXO-623 3.2 2.5 1.1 2.5

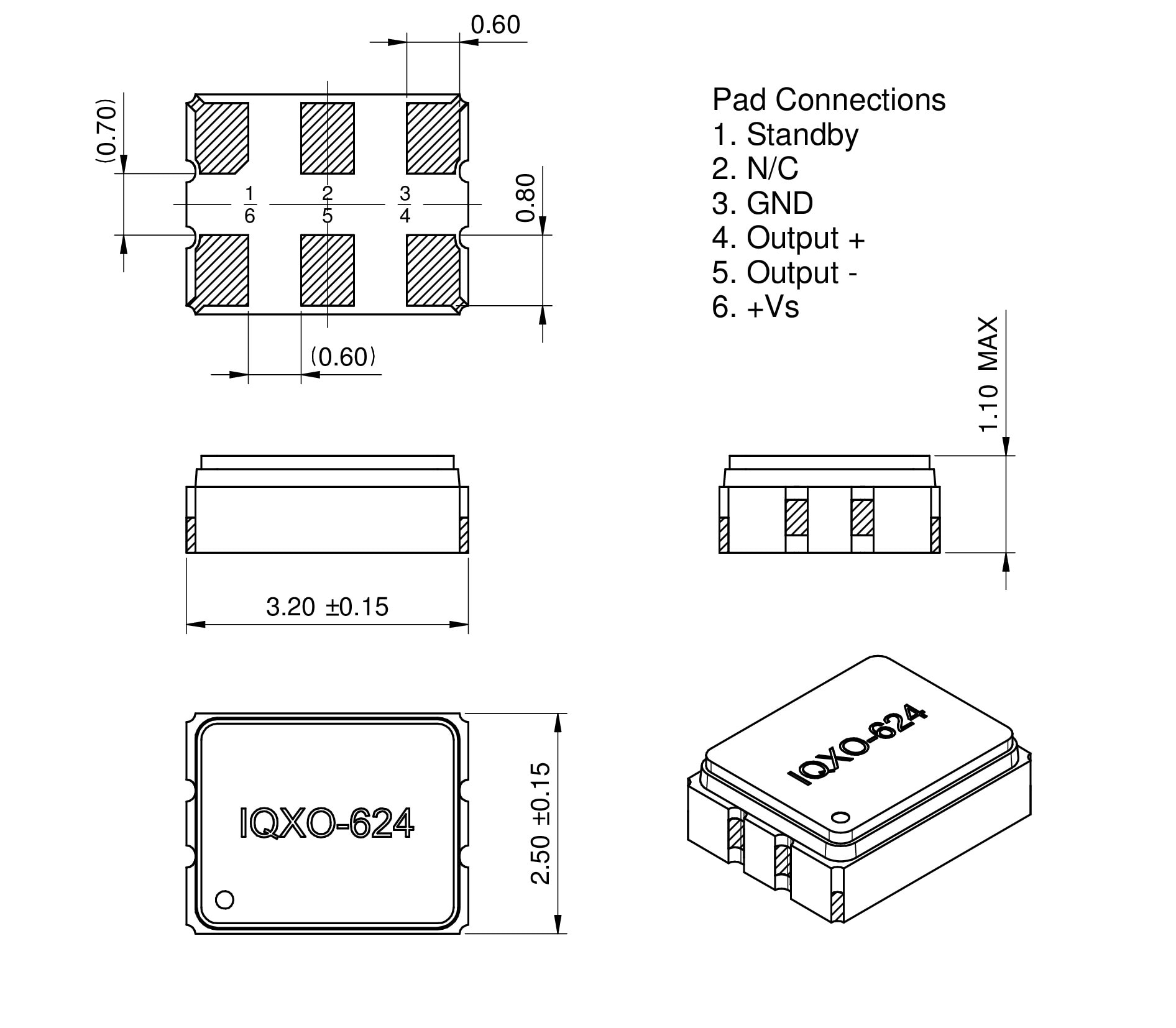

IQXO-624 3.2 2.5 1.1 3.3
IQXO-791 2.5 2 1 3.3

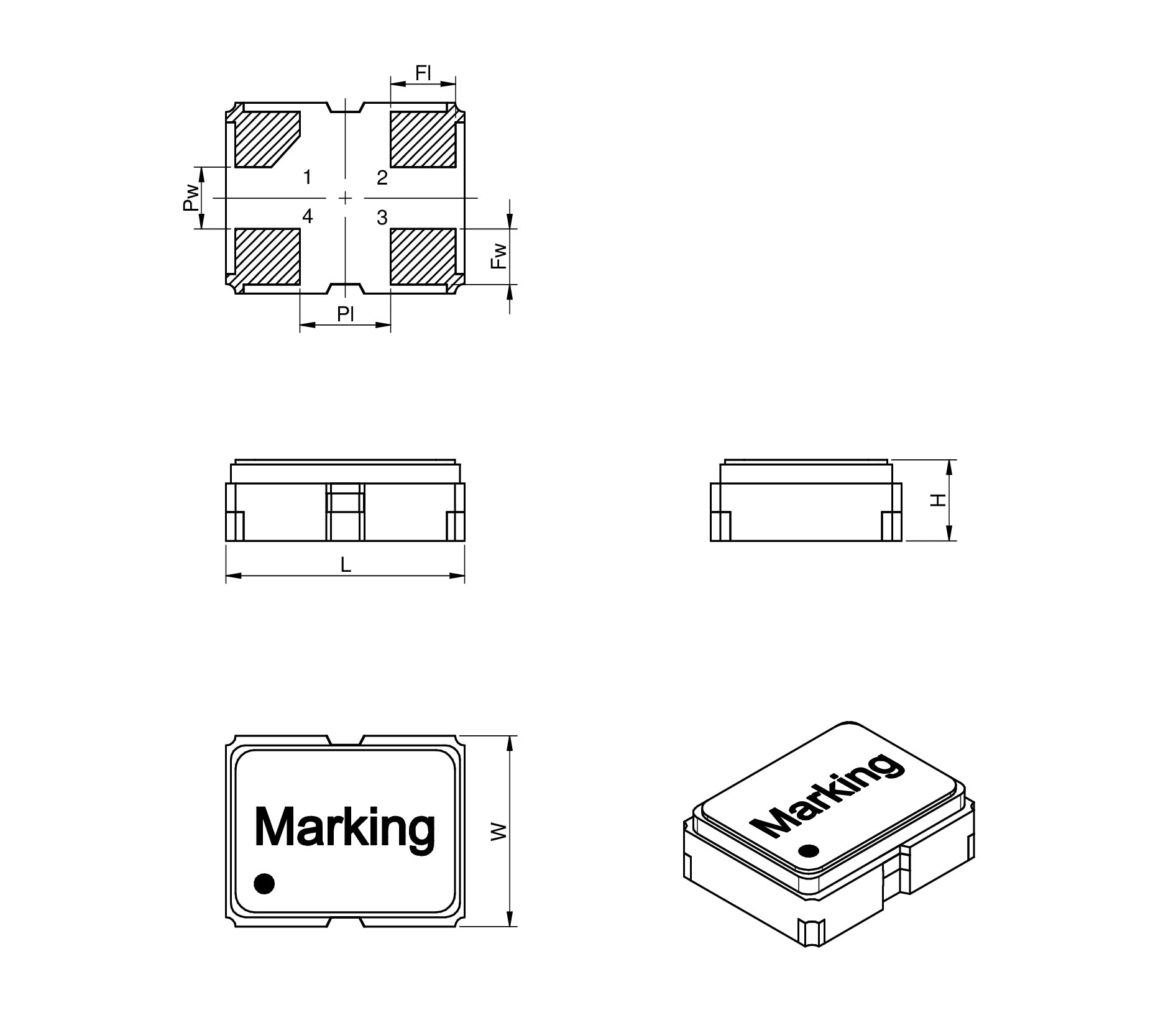

IQXO-794 2.5 2 1 1.8
CFPS-39 3.2 2.5 1.2 3.3
CFPS-9 5 3.2 1.3 3.3

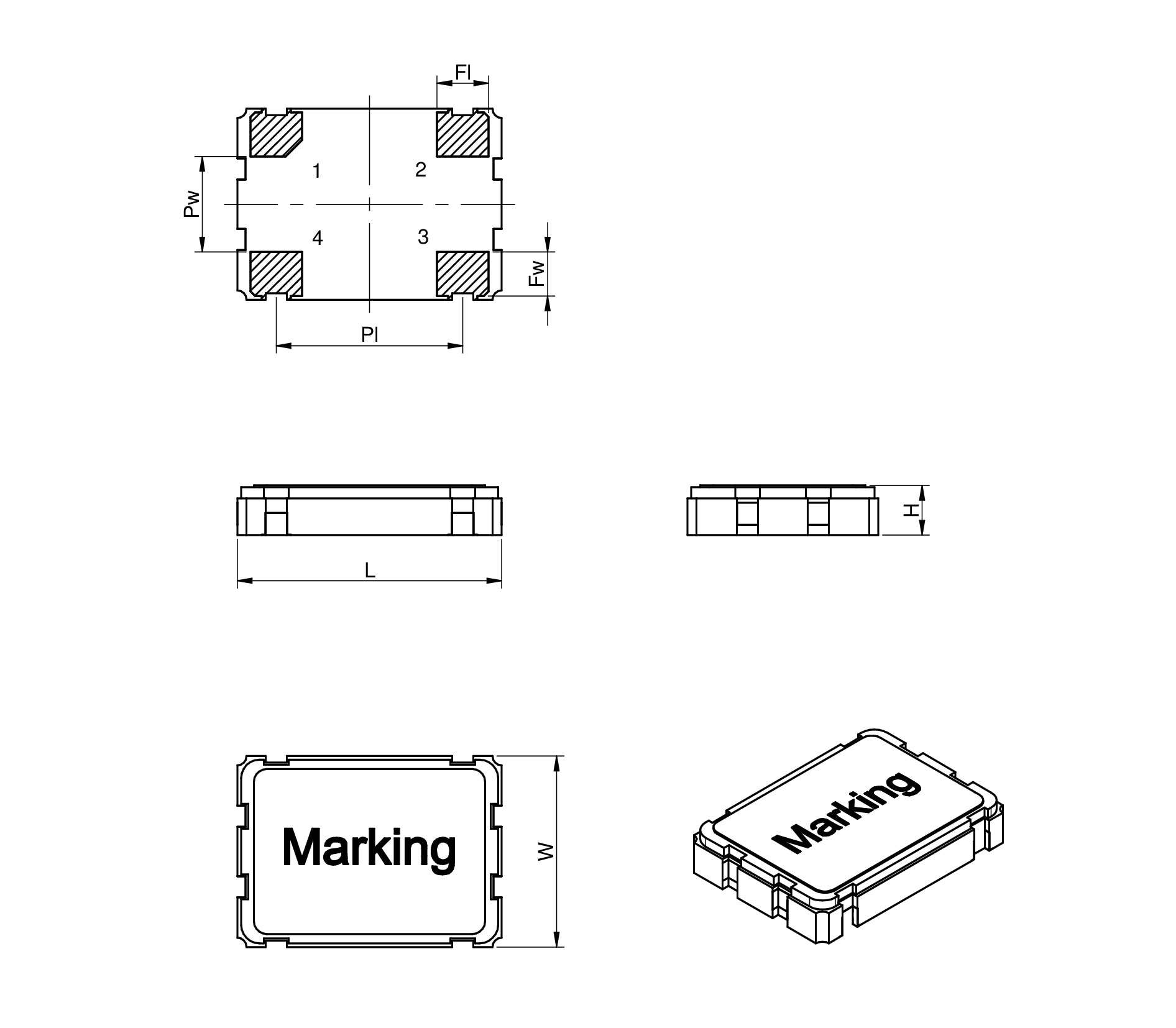

CFPS-72 7 5 1.4 5

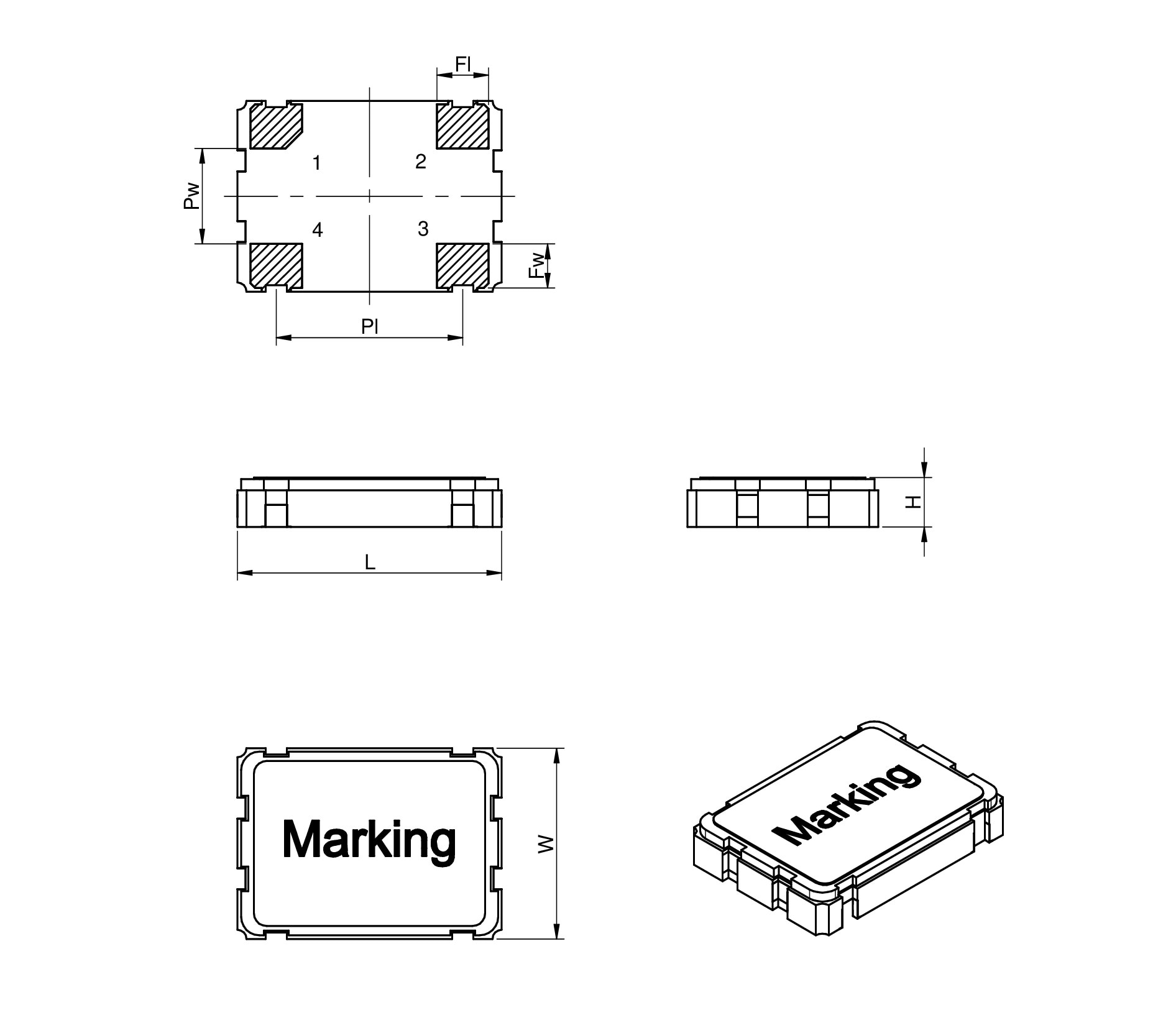

CFPS-73 7 5 1.4 3.3

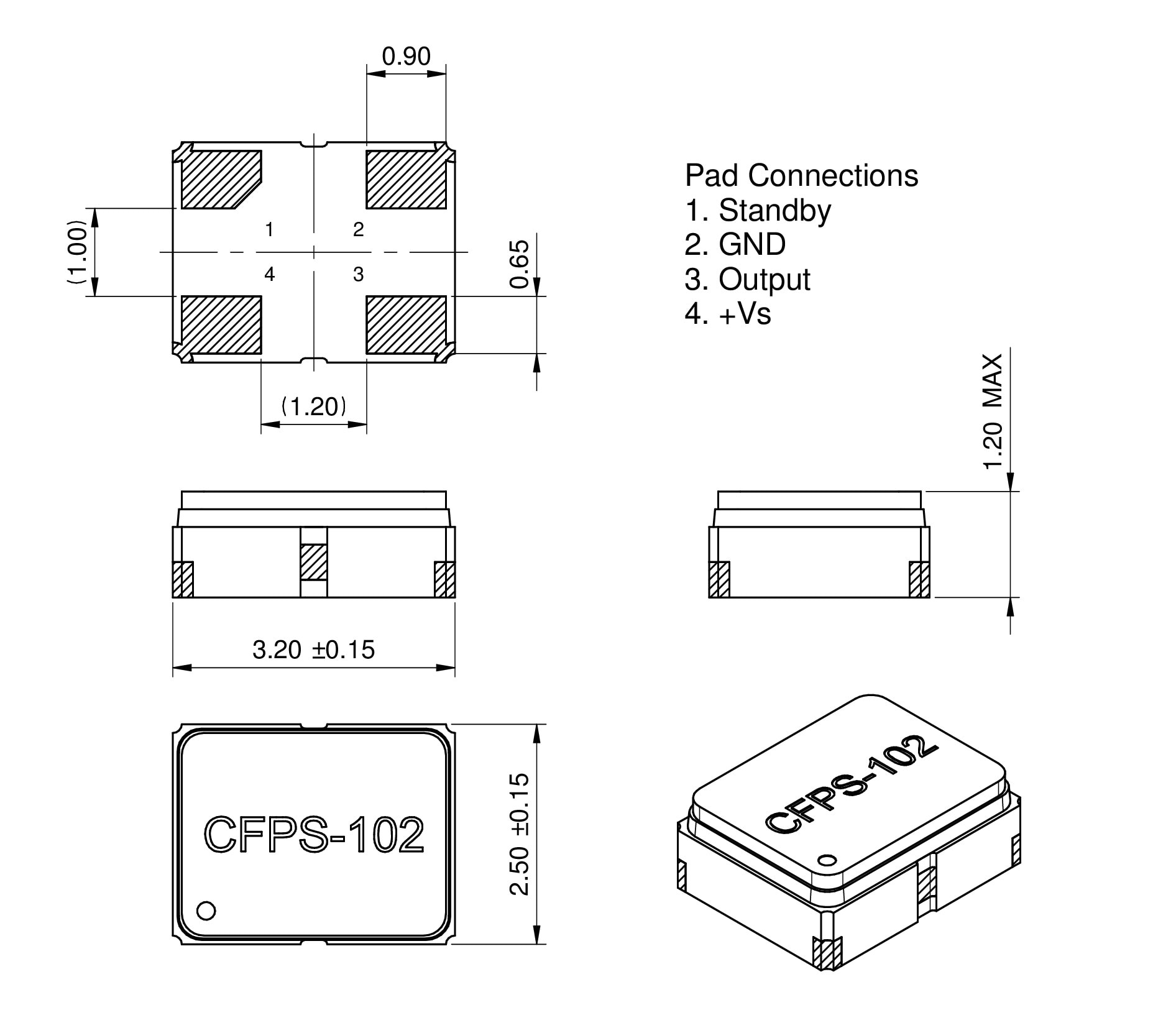

CFPS-102 3.2 2.5 1.2 1.8

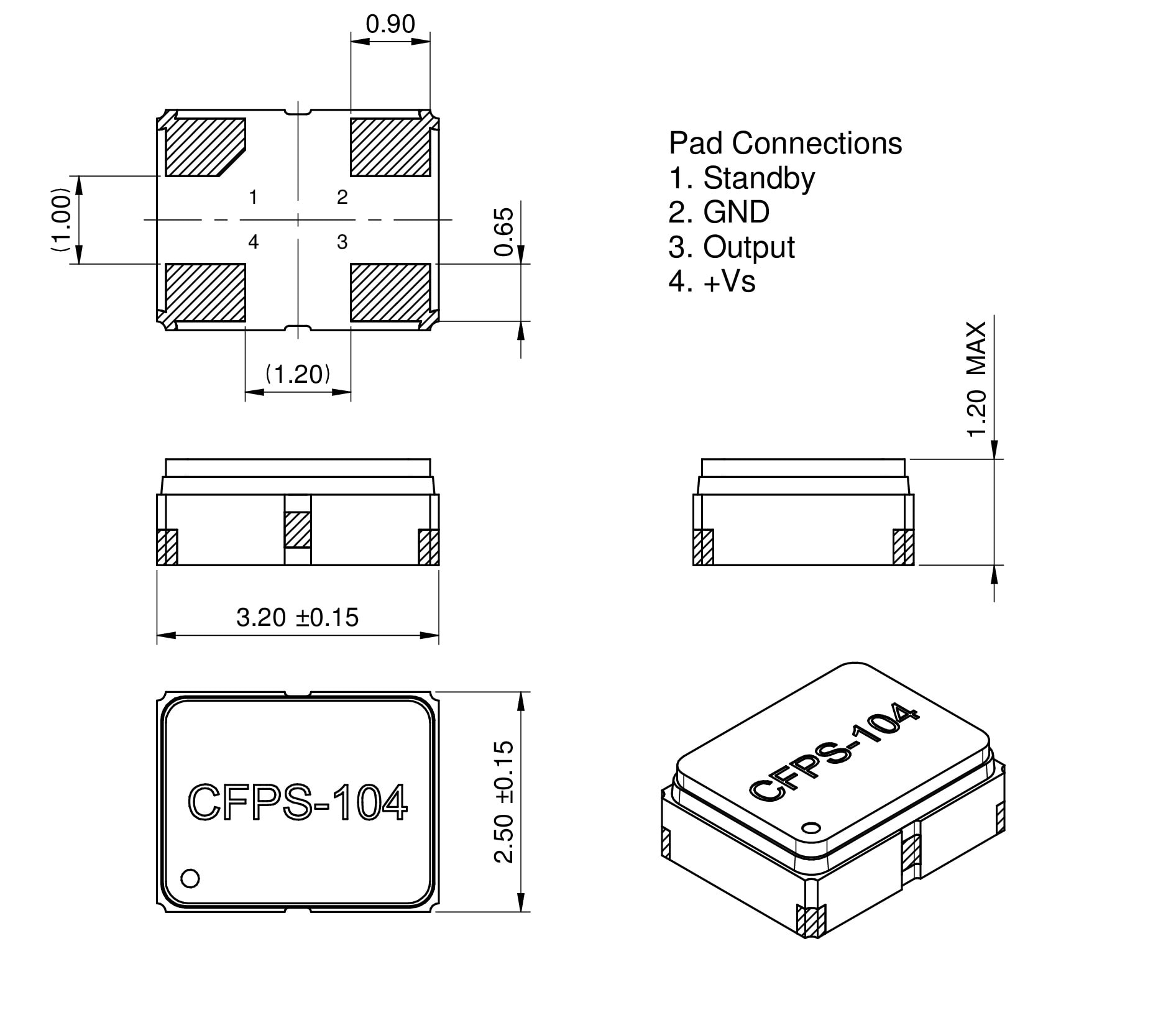

CFPS-104 3.2 2.5 1.2 3.3
CFPS-107 2.5 2 0.95 1.8

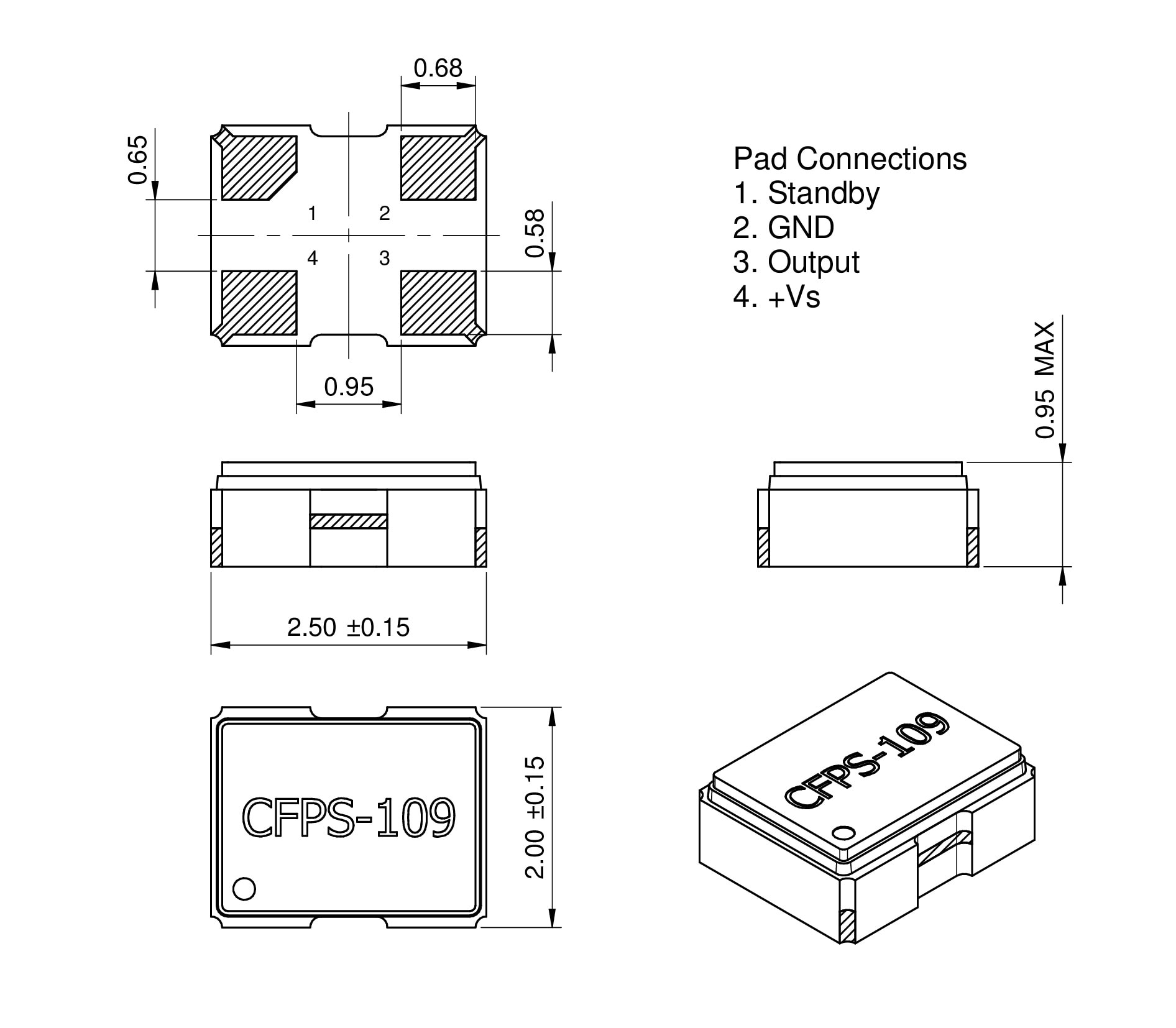

CFPS-109 2.5 2 0.95 3.3

Characteristics

  • SMT models
  • Hermetically sealed
  • Frequencies between 3.6864 MHz and 156.25 MHz plus 32.768 kHz
  • Maximum operating temperatures range:-40 °C to 105 °C
  • Stabilities down to ± 25 ppm available
  • Available supply voltages: 1.8 V, 2.5 V, 3.3 V and 5 V
  • Available output signal types: CMOS; HCMOS; HCMOS/TTL; LVDS; LVPECL

Applications

  • Microprocessor
  • Wireless Communication Devices
  • Industrial Devices
  • Real Time Clocks
  • Wired Communication (e.g. Ethernet and USB)
  • IoT
  • Optical Network
  • Audio and Multimedia Devices
  • Test and Measurement Equipment
  • Navigation and Locators

Products

All
IQXO-540
IQXO-542
IQXO-618-25
IQXO-618-33
IQXO-402
IQXO-404
IQXO-623
IQXO-624
IQXO-791
IQXO-794
CFPS-39
CFPS-9
CFPS-72
CFPS-73
CFPS-102
CFPS-104
CFPS-107
CFPS-109
Order Code Data­sheet DownloadsfStability
(ppm)
Operating TemperatureOutput LogicVSupply
(V)
Samples
830205028309SPEC
5 files 32.768 kHz 25 -40 up to +85 °C CMOS 3.3
830205297709SPEC
5 files 32.768 kHz 25 -40 up to +85 °C CMOS 1.8
830206385009SPEC
5 files 32.768 kHz 30 -40 up to +85 °C CMOS 1.8
830207370001SPEC
5 files 32.768 kHz 30 -40 up to +85 °C CMOS 3.3
830207370101SPEC
5 files 32.768 kHz 100 -40 up to +125 °C CMOS 3.3
830207370601SPEC
5 files 32.768 kHz 30 -40 up to +85 °C CMOS 1.8
830207370701SPEC
5 files 32.768 kHz 100 -40 up to +125 °C CMOS 1.8
830207390509SPEC
5 files 32.768 kHz 30 -40 up to +85 °C CMOS 3.3
830208228309SPEC
5 files 32.768 kHz 100 -40 up to +125 °C CMOS 1.8
830208228609SPEC
5 files 32.768 kHz 100 -40 up to +125 °C CMOS 3.3
830208229109SPEC
5 files 32.768 kHz 100 -40 up to +125 °C CMOS 1.8
830208229409SPEC
5 files 32.768 kHz 100 -40 up to +125 °C CMOS 3.3
831018610SPEC
5 files 3.6864 MHz 50 0 up to +70 °C HCMOS 3.3
831018033SPEC
5 files 4 MHz 50 0 up to +70 °C HCMOS/TTL 5
831018041SPEC
5 files 4 MHz 50 0 up to +70 °C HCMOS 3.3
831018379SPEC
5 files 4 MHz 50 -40 up to +85 °C HCMOS 3.3
831020502SPEC
5 files 4 MHz 50 -40 up to +85 °C HCMOS/TTL 5
831024978SPEC
5 files 4 MHz 50 -40 up to +85 °C CMOS 3.3
830208216409SPEC
5 files 4 MHz 25 -20 up to +70 °C CMOS 1.8
830208219901SPEC
5 files 4 MHz 25 -20 up to +70 °C HCMOS 3.3
830208221801SPEC
5 files 4 MHz 25 -20 up to +70 °C HCMOS 1.8
830208214609SPEC
5 files 4 MHz 25 -20 up to +70 °C CMOS 3.3
831018534SPEC
5 files 6 MHz 50 0 up to +70 °C HCMOS 3.3
831018045SPEC
5 files 8 MHz 50 0 up to +70 °C HCMOS 3.3
831019079SPEC
5 files 8 MHz 50 0 up to +70 °C HCMOS/TTL 5
831021890SPEC
5 files 8 MHz 50 -40 up to +85 °C HCMOS 3.3
831068242SPEC
5 files 8 MHz 50 -40 up to +85 °C CMOS 3.3
831072801SPEC
5 files 8 MHz 50 -40 up to +85 °C HCMOS 3.3
830207192009SPEC
5 files 8 MHz 25 -40 up to +85 °C CMOS 3.3
830202129201SPEC
5 files 8 MHz 50 -40 up to +85 °C HCMOS/TTL 5
830208214709SPEC
5 files 8 MHz 25 -20 up to +70 °C CMOS 3.3
830208216609SPEC
5 files 8 MHz 25 -20 up to +70 °C CMOS 1.8
830208220001SPEC
5 files 8 MHz 25 -20 up to +70 °C HCMOS 3.3
830208221901SPEC
5 files 8 MHz 25 -20 up to +70 °C HCMOS 1.8
831017735SPEC
5 files 10 MHz 50 0 up to +70 °C HCMOS/TTL 5
831018036SPEC
5 files 10 MHz 50 0 up to +70 °C HCMOS 3.3
831019928SPEC
5 files 10 MHz 50 -40 up to +85 °C HCMOS 3.3
831024807SPEC
5 files 10 MHz 50 -40 up to +85 °C CMOS 3.3
831054046SPEC
5 files 10 MHz 50 -40 up to +85 °C CMOS 3.3
831061624SPEC
5 files 10 MHz 50 -40 up to +85 °C HCMOS 3.3
831059271SPEC
5 files 10 MHz 25 -40 up to +85 °C CMOS 3.3
830202536501SPEC
5 files 10 MHz 25 -40 up to +85 °C HCMOS/TTL 5
830207647309SPEC
5 files 11.0592 MHz 25 -40 up to +85 °C CMOS 3.3
831018037SPEC
5 files 12 MHz 50 0 up to +70 °C HCMOS 3.3
831018785SPEC
5 files 12 MHz 100 -40 up to +85 °C HCMOS 3.3
831019966SPEC
5 files 12 MHz 50 -40 up to +85 °C HCMOS 3.3
831025492SPEC
5 files 12 MHz 50 -40 up to +85 °C CMOS 3.3
831026152SPEC
5 files 12 MHz 50 -40 up to +85 °C CMOS 3.3
831056168SPEC
5 files 12 MHz 50 -40 up to +85 °C CMOS 1.8
831056237SPEC
5 files 12 MHz 50 -40 up to +85 °C CMOS 3.3
831056262SPEC
5 files 12 MHz 50 -40 up to +85 °C HCMOS 1.8
831056289SPEC
5 files 12 MHz 50 -40 up to +85 °C HCMOS 3.3
830205530509SPEC
5 files 12 MHz 25 -40 up to +85 °C CMOS 3.3
830208214809SPEC
5 files 12 MHz 25 -20 up to +70 °C CMOS 3.3
830208216709SPEC
5 files 12 MHz 25 -20 up to +70 °C CMOS 1.8
831020465SPEC
5 files 12.288 MHz 50 0 up to +70 °C HCMOS 3.3
830208214909SPEC
5 files 12.288 MHz 25 -20 up to +70 °C CMOS 3.3
830208216809SPEC
5 files 12.288 MHz 25 -20 up to +70 °C CMOS 1.8
830208220101SPEC
5 files 12.288 MHz 25 -20 up to +70 °C HCMOS 3.3
830208222001SPEC
5 files 12.288 MHz 25 -20 up to +70 °C HCMOS 1.8
831056169SPEC
5 files 13 MHz 50 -40 up to +85 °C CMOS 1.8
831056238SPEC
5 files 13 MHz 50 -40 up to +85 °C CMOS 3.3
831056263SPEC
5 files 13 MHz 50 -40 up to +85 °C HCMOS 1.8
831056290SPEC
5 files 13 MHz 50 -40 up to +85 °C HCMOS 3.3
831018538SPEC
5 files 14.31818 MHz 50 0 up to +70 °C HCMOS 3.3
831020184SPEC
5 files 14.31818 MHz 50 -40 up to +85 °C HCMOS 3.3
831025493SPEC
5 files 14.31818 MHz 50 -40 up to +85 °C CMOS 3.3
830208197509SPEC
5 files 14.31818 MHz 25 -40 up to +85 °C CMOS 3.3
831018034SPEC
5 files 16 MHz 50 0 up to +70 °C HCMOS/TTL 5
831018038SPEC
5 files 16 MHz 50 0 up to +70 °C HCMOS 3.3
831019275SPEC
5 files 16 MHz 50 -40 up to +85 °C HCMOS/TTL 5
831019710SPEC
5 files 16 MHz 50 -40 up to +85 °C HCMOS 3.3
831025494SPEC
5 files 16 MHz 50 -40 up to +85 °C CMOS 3.3
831066629SPEC
5 files 16 MHz 50 -40 up to +85 °C CMOS 3.3
831066657SPEC
5 files 16 MHz 50 -40 up to +85 °C HCMOS 3.3
831066658SPEC
5 files 16 MHz 50 -40 up to +85 °C HCMOS 1.8
830205889709SPEC
5 files 16 MHz 25 -40 up to +85 °C CMOS 3.3
830208220201SPEC
5 files 16 MHz 25 -20 up to +70 °C HCMOS 3.3
830208222101SPEC
5 files 16 MHz 25 -20 up to +70 °C HCMOS 1.8
831020466SPEC
5 files 16.384 MHz 50 0 up to +70 °C HCMOS 3.3
831020392SPEC
5 files 18.432 MHz 50 -40 up to +85 °C HCMOS 3.3
830207658809SPEC
5 files 18.432 MHz 25 -40 up to +85 °C CMOS 3.3
831056188SPEC
5 files 19.2 MHz 50 -40 up to +85 °C CMOS 1.8
831056239SPEC
5 files 19.2 MHz 50 -40 up to +85 °C CMOS 3.3
831056264SPEC
5 files 19.2 MHz 50 -40 up to +85 °C HCMOS 1.8
830208215009SPEC
5 files 19.2 MHz 25 -20 up to +70 °C CMOS 3.3
830208217009SPEC
5 files 19.2 MHz 25 -20 up to +70 °C CMOS 1.8
830208220301SPEC
5 files 19.2 MHz 25 -20 up to +70 °C CMOS 3.3
830208222201SPEC
5 files 19.2 MHz 25 -20 up to +70 °C HCMOS 1.8
831056214SPEC
5 files 19.44 MHz 50 -40 up to +85 °C CMOS 1.8
831056240SPEC
5 files 19.44 MHz 50 -40 up to +85 °C CMOS 3.3
831018032SPEC
5 files 20 MHz 50 0 up to +70 °C HCMOS/TTL 5
831018039SPEC
5 files 20 MHz 50 0 up to +70 °C HCMOS 3.3
831019992SPEC
5 files 20 MHz 50 -40 up to +85 °C HCMOS 3.3
831025495SPEC
5 files 20 MHz 50 -40 up to +85 °C CMOS 3.3
831056215SPEC
5 files 20 MHz 50 -40 up to +85 °C CMOS 1.8
831056241SPEC
5 files 20 MHz 50 -40 up to +85 °C CMOS 3.3
831056266SPEC
5 files 20 MHz 50 -40 up to +85 °C HCMOS 1.8
831056293SPEC
5 files 20 MHz 50 -40 up to +85 °C HCMOS 3.3
830201878701SPEC
5 files 20 MHz 50 -40 up to +85 °C HCMOS/TTL 5
830208220401SPEC
5 files 20 MHz 25 -20 up to +70 °C HCMOS 3.3
830208222301SPEC
5 files 20 MHz 25 -20 up to +70 °C HCMOS 1.8
831063343SPEC
5 files 20 MHz 25 -40 up to +85 °C CMOS 3.3
830207659009SPEC
5 files 22.5792 MHz 25 -40 up to +85 °C CMOS 3.3
831018541SPEC
5 files 24 MHz 50 0 up to +70 °C HCMOS 3.3
831019082SPEC
5 files 24 MHz 50 0 up to +70 °C HCMOS/TTL 5
831021270SPEC
5 files 24 MHz 50 -40 up to +85 °C HCMOS 3.3
831024986SPEC
5 files 24 MHz 50 -40 up to +85 °C CMOS 3.3
831025558SPEC
5 files 24 MHz 50 -40 up to +85 °C CMOS 3.3
831056216SPEC
5 files 24 MHz 50 -40 up to +85 °C CMOS 1.8
831056242SPEC
5 files 24 MHz 50 -40 up to +85 °C CMOS 3.3
831056267SPEC
5 files 24 MHz 50 -40 up to +85 °C HCMOS 1.8
831056294SPEC
5 files 24 MHz 50 -40 up to +85 °C HCMOS 3.3
830205896509SPEC
5 files 24 MHz 25 -40 up to +85 °C CMOS 3.3
830208215109SPEC
6 files 24 MHz 25 -20 up to +70 °C CMOS 3.3
830208217109SPEC
5 files 24 MHz 25 -20 up to +70 °C CMOS 1.8
831025496SPEC
5 files 24.576 MHz 50 -40 up to +85 °C CMOS 3.3
831056217SPEC
5 files 24.576 MHz 50 -40 up to +85 °C CMOS 1.8
831056243SPEC
5 files 24.576 MHz 50 -40 up to +85 °C CMOS 3.3
831056268SPEC
5 files 24.576 MHz 50 -40 up to +85 °C HCMOS 1.8
831056295SPEC
5 files 24.576 MHz 50 -40 up to +85 °C HCMOS 3.3
830207659209SPEC
5 files 24.576 MHz 25 -40 up to +85 °C CMOS 3.3
830208215209SPEC
4 files 24.576 MHz 25 -20 up to +70 °C CMOS 3.3
830208217409SPEC
5 files 24.576 MHz 25 -20 up to +70 °C CMOS 1.8
831018077SPEC
5 files 25 MHz 50 0 up to +70 °C HCMOS 3.3
831019170SPEC
5 files 25 MHz 50 -40 up to +85 °C HCMOS 3.3
831025165SPEC
5 files 25 MHz 50 -40 up to +85 °C CMOS 3.3
831056218SPEC
5 files 25 MHz 50 -40 up to +85 °C CMOS 1.8
831056244SPEC
5 files 25 MHz 50 -40 up to +85 °C CMOS 3.3
831056269SPEC
5 files 25 MHz 50 -40 up to +85 °C HCMOS 1.8
831056296SPEC
5 files 25 MHz 50 -40 up to +85 °C HCMOS 3.3
831024957SPEC
5 files 25 MHz 50 -40 up to +85 °C CMOS 3.3
831055678SPEC
5 files 25 MHz 25 -40 up to +85 °C CMOS 3.3
831027167SPEC
5 files 26 MHz 50 -40 up to +85 °C CMOS 3.3
831056219SPEC
5 files 26 MHz 50 -40 up to +85 °C CMOS 1.8
831056245SPEC
5 files 26 MHz 50 -40 up to +85 °C CMOS 3.3
831056270SPEC
5 files 26 MHz 50 -40 up to +85 °C HCMOS 1.8
831056297SPEC
5 files 26 MHz 50 -40 up to +85 °C HCMOS 3.3
830207245309SPEC
5 files 26 MHz 25 -40 up to +85 °C CMOS 3.3
830208215309SPEC
5 files 26 MHz 25 -20 up to +70 °C CMOS 3.3
830208217609SPEC
5 files 26 MHz 25 -20 up to +70 °C CMOS 1.8
830208220501SPEC
5 files 26 MHz 25 -20 up to +70 °C HCMOS 3.3
830208222401SPEC
5 files 26 MHz 25 -20 up to +70 °C HCMOS 1.8
831026368SPEC
5 files 27 MHz 50 -40 up to +85 °C CMOS 3.3
831056220SPEC
5 files 27 MHz 50 -40 up to +85 °C CMOS 1.8
831056246SPEC
5 files 27 MHz 50 -40 up to +85 °C CMOS 3.3
831056271SPEC
5 files 27 MHz 50 -40 up to +85 °C HCMOS 1.8
831056298SPEC
5 files 27 MHz 50 -40 up to +85 °C HCMOS 3.3
830205530709SPEC
5 files 27 MHz 25 -40 up to +85 °C CMOS 3.3
830208215409SPEC
5 files 27 MHz 25 -20 up to +70 °C CMOS 3.3
830208217809SPEC
5 files 27 MHz 25 -20 up to +70 °C CMOS 1.8
831025497SPEC
5 files 30 MHz 50 -40 up to +85 °C CMOS 3.3
830208215509SPEC
5 files 30 MHz 25 -20 up to +70 °C CMOS 3.3
830208217909SPEC
5 files 30 MHz 25 -20 up to +70 °C CMOS 1.8
831018040SPEC
5 files 32 MHz 50 0 up to +70 °C HCMOS 3.3
831019083SPEC
5 files 32 MHz 50 0 up to +70 °C HCMOS/TTL 5
831024880SPEC
5 files 32 MHz 50 -40 up to +85 °C CMOS 3.3
831025019SPEC
5 files 32 MHz 50 -40 up to +85 °C CMOS 3.3
831068248SPEC
5 files 32 MHz 50 -40 up to +85 °C CMOS 3.3
830205312509SPEC
5 files 32 MHz 25 -40 up to +85 °C CMOS 3.3
830208222901SPEC
5 files 32 MHz 25 -20 up to +70 °C HCMOS 1.8
830206415801SPEC
5 files 32 MHz 25 -20 up to +70 °C HCMOS 3.3
831019203SPEC
5 files 32.768 MHz 50 0 up to +70 °C HCMOS 3.3
830208215609SPEC
5 files 32.768 MHz 25 -20 up to +70 °C CMOS 3.3
830208218109SPEC
5 files 32.768 MHz 25 -20 up to +70 °C CMOS 1.8
830208220601SPEC
5 files 32.768 MHz 25 -20 up to +70 °C HCMOS 3.3
830208222501SPEC
5 files 32.768 MHz 25 -20 up to +70 °C HCMOS 1.8
830208220701SPEC
5 files 33.3333 MHz 25 -20 up to +70 °C HCMOS 3.3
830208222601SPEC
5 files 33.3333 MHz 25 -20 up to +70 °C HCMOS 1.8
831068250SPEC
5 files 38.4 MHz 50 -40 up to +85 °C CMOS 3.3
831017885SPEC
5 files 40 MHz 50 -40 up to +85 °C HCMOS 3.3
831018042SPEC
5 files 40 MHz 50 0 up to +70 °C HCMOS 3.3
831018739SPEC
5 files 40 MHz 50 0 up to +70 °C HCMOS/TTL 5
831019137SPEC
5 files 40 MHz 50 -40 up to +85 °C HCMOS/TTL 5
831019870SPEC
5 files 40 MHz 100 -40 up to +85 °C HCMOS 3.3
831025559SPEC
5 files 40 MHz 50 -40 up to +85 °C CMOS 3.3
831026068SPEC
5 files 40 MHz 50 -40 up to +85 °C CMOS 3.3
831056221SPEC
5 files 40 MHz 50 -40 up to +85 °C CMOS 1.8
831056247SPEC
5 files 40 MHz 50 -40 up to +85 °C CMOS 3.3
831056272SPEC
5 files 40 MHz 50 -40 up to +85 °C HCMOS 1.8
831056299SPEC
5 files 40 MHz 50 -40 up to +85 °C HCMOS 3.3
830205075709SPEC
5 files 40 MHz 25 -40 up to +85 °C CMOS 3.3
830206415701SPEC
5 files 40 MHz 25 -20 up to +70 °C HCMOS 3.3
830208222701SPEC
5 files 40 MHz 25 -20 up to +70 °C HCMOS 1.8
831018043SPEC
5 files 48 MHz 50 0 up to +70 °C HCMOS 3.3
831018287SPEC
5 files 48 MHz 100 -40 up to +85 °C HCMOS 3.3
831018577SPEC
5 files 48 MHz 50 -40 up to +85 °C HCMOS 3.3
831018871SPEC
5 files 48 MHz 100 -40 up to +85 °C HCMOS/TTL 5
831019805SPEC
5 files 48 MHz 50 -40 up to +85 °C HCMOS/TTL 5
831019884SPEC
5 files 48 MHz 50 0 up to +70 °C HCMOS/TTL 5
831025166SPEC
5 files 48 MHz 50 -40 up to +85 °C CMOS 3.3
831056222SPEC
5 files
