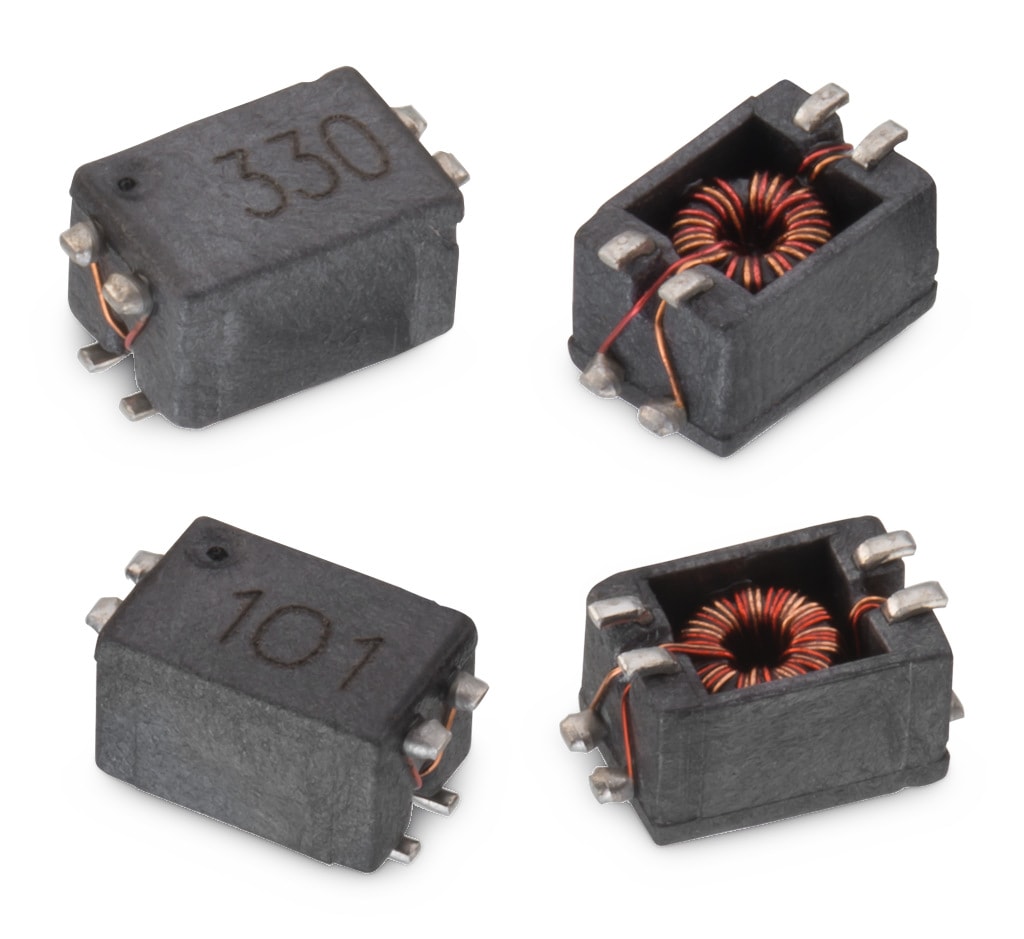

WE-SLM SMT Common Mode Line Filter

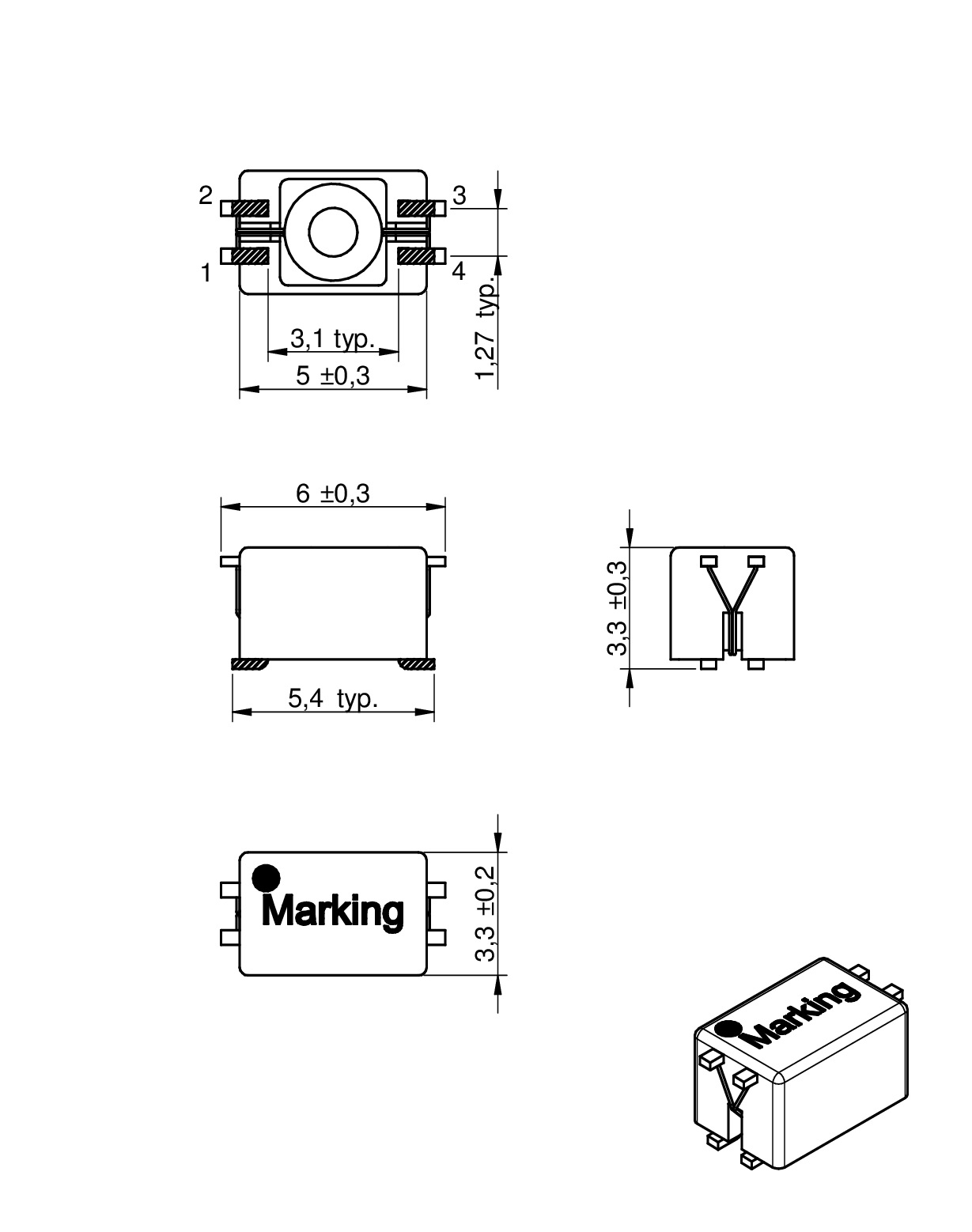

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
WE-SLM		6	3.3	3.3	SMT

LTSpice files

LT
LTSpice_WE-SLM (rev22a).zip
|
2.8 KB

Characteristics

High current capability up to 400 mA
Rated voltage: 80 VDC (42 VAC)
Flammability corresponding to UL 94 V-0
Climatic category 40/125/21

Applications

USB
CAN
FireWire
Signal and sensor lines
Power supply systems
Data lines
Suppression of common mode noise

Products

WE-SLM

Order Code	Datasheet	Simulation	Downloads	Winding Style	Number of windings	L (µH)	Z_max (Ω)	I_R (mA)	R_{DC max.} (Ω)	V_R (V)	Application	Design Kit	Samples
744242110	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		7 files EDA models: Components ZIP ALT WE-SLM (rev22a).IntLib \| 118.5 KB ZUK Cadstar_WE-SLM (rev19a).zip \| 5.4 KB CDS Cadence_WE-SLM (rev18a).zip \| 352.9 KB EAG Eagle_WE-SLM (rev19a).lbr \| 16.8 KB CAD files ZIP IGS WE-SLM_744242 (rev1).igs \| 16 MB STP WE-SLM_744242 (rev1).stp \| 5.4 MB Electric models ZIP PSP PSpice_WE-SLM (rev22a).zip \| 4.9 KB Download all 7 files as zip archive ZIP	bifiliar	2	11	800	300	0.18	80	–	744725
744242220	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		7 files EDA models: Components ZIP ALT WE-SLM (rev22a).IntLib \| 118.5 KB ZUK Cadstar_WE-SLM (rev19a).zip \| 5.4 KB CDS Cadence_WE-SLM (rev18a).zip \| 352.9 KB EAG Eagle_WE-SLM (rev19a).lbr \| 16.8 KB CAD files ZIP IGS WE-SLM_744242 (rev1).igs \| 16 MB STP WE-SLM_744242 (rev1).stp \| 5.4 MB Electric models ZIP PSP PSpice_WE-SLM (rev22a).zip \| 4.9 KB Download all 7 files as zip archive ZIP	bifiliar	2	22	1500	300	0.23	80	–	–
744242330	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		7 files EDA models: Components ZIP ALT WE-SLM (rev22a).IntLib \| 118.5 KB ZUK Cadstar_WE-SLM (rev19a).zip \| 5.4 KB CDS Cadence_WE-SLM (rev18a).zip \| 352.9 KB EAG Eagle_WE-SLM (rev19a).lbr \| 16.8 KB CAD files ZIP IGS WE-SLM_744242 (rev1).igs \| 16 MB STP WE-SLM_744242 (rev1).stp \| 5.4 MB Electric models ZIP PSP PSpice_WE-SLM (rev22a).zip \| 4.9 KB Download all 7 files as zip archive ZIP	bifiliar	2	33	2000	300	0.27	80	–	–
744242510	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		7 files EDA models: Components ZIP ALT WE-SLM (rev22a).IntLib \| 118.5 KB ZUK Cadstar_WE-SLM (rev19a).zip \| 5.4 KB CDS Cadence_WE-SLM (rev18a).zip \| 352.9 KB EAG Eagle_WE-SLM (rev19a).lbr \| 16.8 KB CAD files ZIP IGS WE-SLM_744242 (rev1).igs \| 16 MB STP WE-SLM_744242 (rev1).stp \| 5.4 MB Electric models ZIP PSP PSpice_WE-SLM (rev22a).zip \| 4.9 KB Download all 7 files as zip archive ZIP	bifiliar	2	51	2500	400	0.32	80	CAN	744725
744242101	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		7 files EDA models: Components ZIP ALT WE-SLM (rev22a).IntLib \| 118.5 KB ZUK Cadstar_WE-SLM (rev19a).zip \| 5.4 KB CDS Cadence_WE-SLM (rev18a).zip \| 352.9 KB EAG Eagle_WE-SLM (rev19a).lbr \| 16.8 KB CAD files ZIP IGS WE-SLM_744242 (rev1).igs \| 16 MB STP WE-SLM_744242 (rev1).stp \| 5.4 MB Electric models ZIP PSP PSpice_WE-SLM (rev22a).zip \| 4.9 KB Download all 7 files as zip archive ZIP	bifiliar	2	100	4000	300	0.58	80	–	–
744242471	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		7 files EDA models: Components ZIP ALT WE-SLM (rev22a).IntLib \| 118.5 KB ZUK Cadstar_WE-SLM (rev19a).zip \| 5.4 KB CDS Cadence_WE-SLM (rev18a).zip \| 352.9 KB EAG Eagle_WE-SLM (rev19a).lbr \| 16.8 KB CAD files ZIP IGS WE-SLM_744242 (rev1).igs \| 16 MB STP WE-SLM_744242 (rev1).stp \| 5.4 MB Electric models ZIP PSP PSpice_WE-SLM (rev22a).zip \| 4.9 KB Download all 7 files as zip archive ZIP	bifiliar	2	470	2200	400	0.35	80	–	744725
