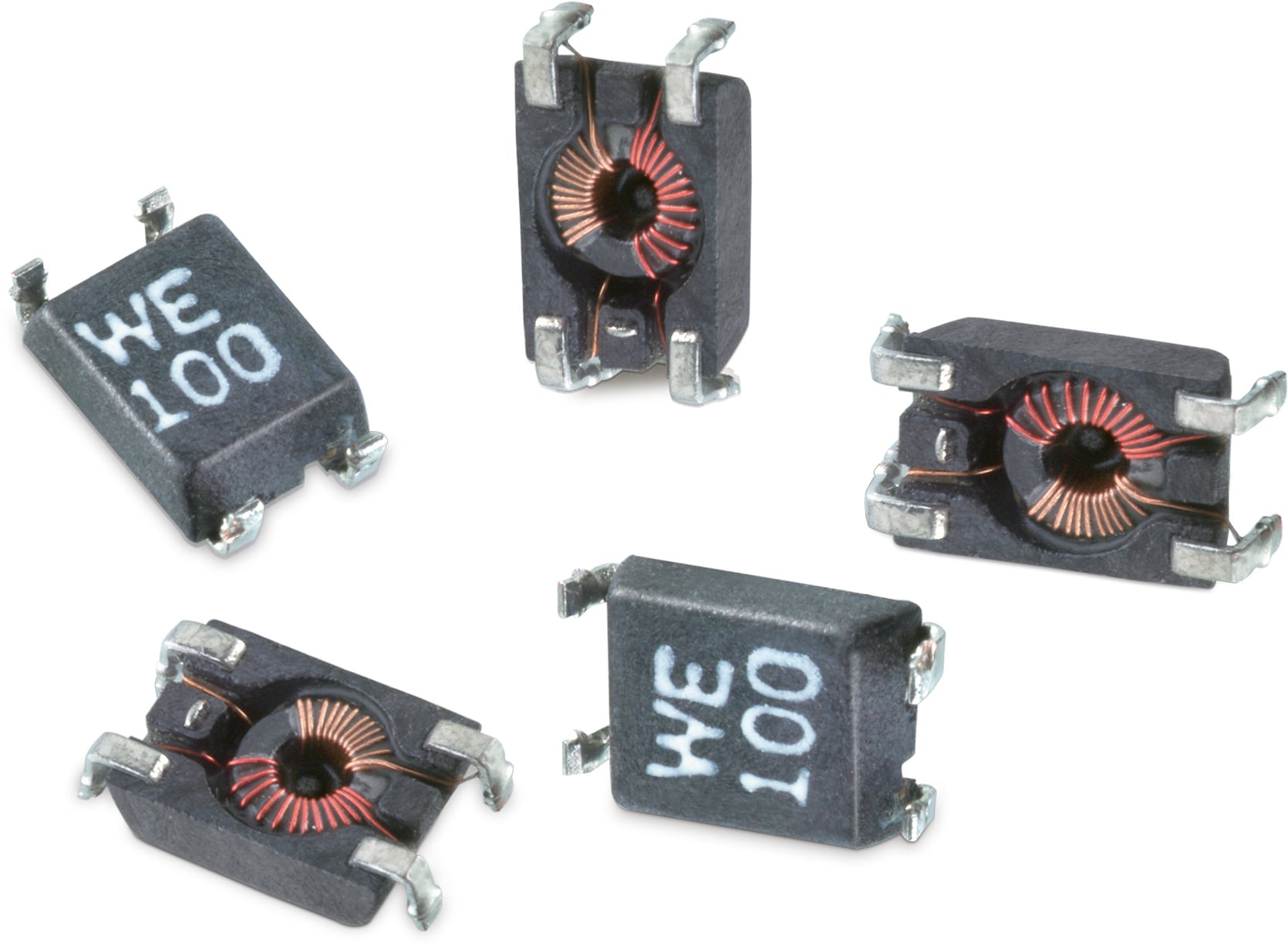

WE-SL1 SMT Common Mode Line Filter

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
WE-SL1		6.3	3.6	1.65	SMT

LTSpice files

LT
LTSpice_WE-SL1 (rev25a).zip
|
2.9 KB

Characteristics

Low profile, only 1.65 mm
High current up to 300 mA
Rated voltage: 80 VDC (42 VAC)
Flammability corresponding to UL 94 V-0
Climatic category 40/105/21

Applications

USB
CAN
FireWire
Signal and sensor lines
Power supply system
Data lines
Suppression of common mode noise

Products

WE-SL1

Reset all

Filter article data

show article in 1 product lines

article in 1 product lines

Reset all

Order Code	Datasheet	Simulation	Downloads	Status	Winding Style	Number of windings	L(µH)	Z_max(Ω)	I_R(mA)	R_{DC max.}(Ω)	V_R(V)	Design Kit
744212100	sectional, 2, 10 µH	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-SL1 (rev22a).IntLib \| 327.5 KB CDS Cadence_WE-SL1 (rev20a).zip \| 1.2 MB EAG Eagle_WE-SL1 (rev19a).lbr \| 17.9 KB KIC KiCad_WE-SL1 (rev25b).zip \| 1.4 MB ZUK Cadstar_WE-SL1 (rev19a).zip \| 5.5 KB CAD files ZIP IGS WE-SL1_744212 (rev1).igs \| 7 MB STP WE-SL1_744212 (rev1).stp \| 1.6 MB Electric models ZIP PSP PSpice_WE-SL1 (rev25a).zip \| 5.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Winding Stylesectional	Number of windings2	Inductance10 µH	Maximum Impedance1200 Ω	Rated Current300 mA	DC Resistance0.24 Ω	Rated Voltage80 V	Design Kit 744725
744212470	sectional, 2, 47 µH	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-SL1 (rev22a).IntLib \| 327.5 KB CDS Cadence_WE-SL1 (rev20a).zip \| 1.2 MB EAG Eagle_WE-SL1 (rev19a).lbr \| 17.9 KB KIC KiCad_WE-SL1 (rev25b).zip \| 1.4 MB ZUK Cadstar_WE-SL1 (rev19a).zip \| 5.5 KB CAD files ZIP IGS WE-SL1_744212 (rev1).igs \| 7 MB STP WE-SL1_744212 (rev1).stp \| 1.6 MB Electric models ZIP PSP PSpice_WE-SL1 (rev25a).zip \| 5.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Winding Stylesectional	Number of windings2	Inductance47 µH	Maximum Impedance300 Ω	Rated Current300 mA	DC Resistance0.16 Ω	Rated Voltage80 V	Design Kit –
744212510	sectional, 2, 51 µH	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-SL1 (rev22a).IntLib \| 327.5 KB CDS Cadence_WE-SL1 (rev20a).zip \| 1.2 MB EAG Eagle_WE-SL1 (rev19a).lbr \| 17.9 KB KIC KiCad_WE-SL1 (rev25b).zip \| 1.4 MB ZUK Cadstar_WE-SL1 (rev19a).zip \| 5.5 KB CAD files ZIP IGS WE-SL1_744212 (rev1).igs \| 7 MB STP WE-SL1_744212 (rev1).stp \| 1.6 MB Electric models ZIP PSP PSpice_WE-SL1 (rev25a).zip \| 5.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Winding Stylesectional	Number of windings2	Inductance51 µH	Maximum Impedance300 Ω	Rated Current300 mA	DC Resistance0.16 Ω	Rated Voltage80 V	Design Kit –
744212820	sectional, 2, 82 µH	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-SL1 (rev22a).IntLib \| 327.5 KB CDS Cadence_WE-SL1 (rev20a).zip \| 1.2 MB EAG Eagle_WE-SL1 (rev19a).lbr \| 17.9 KB KIC KiCad_WE-SL1 (rev25b).zip \| 1.4 MB ZUK Cadstar_WE-SL1 (rev19a).zip \| 5.5 KB CAD files ZIP IGS WE-SL1_744212 (rev1).igs \| 7 MB STP WE-SL1_744212 (rev1).stp \| 1.6 MB Electric models ZIP PSP PSpice_WE-SL1 (rev25a).zip \| 5.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Winding Stylesectional	Number of windings2	Inductance82 µH	Maximum Impedance440 Ω	Rated Current300 mA	DC Resistance0.2 Ω	Rated Voltage80 V	Design Kit 744725
744212101	sectional, 2, 100 µH	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-SL1 (rev22a).IntLib \| 327.5 KB CDS Cadence_WE-SL1 (rev20a).zip \| 1.2 MB EAG Eagle_WE-SL1 (rev19a).lbr \| 17.9 KB KIC KiCad_WE-SL1 (rev25b).zip \| 1.4 MB ZUK Cadstar_WE-SL1 (rev19a).zip \| 5.5 KB CAD files ZIP IGS WE-SL1_744212 (rev1).igs \| 7 MB STP WE-SL1_744212 (rev1).stp \| 1.6 MB Electric models ZIP PSP PSpice_WE-SL1 (rev25a).zip \| 5.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Winding Stylesectional	Number of windings2	Inductance100 µH	Maximum Impedance500 Ω	Rated Current300 mA	DC Resistance0.22 Ω	Rated Voltage80 V	Design Kit –
744212181	sectional, 2, 180 µH	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-SL1 (rev22a).IntLib \| 327.5 KB CDS Cadence_WE-SL1 (rev20a).zip \| 1.2 MB EAG Eagle_WE-SL1 (rev19a).lbr \| 17.9 KB KIC KiCad_WE-SL1 (rev25b).zip \| 1.4 MB ZUK Cadstar_WE-SL1 (rev19a).zip \| 5.5 KB CAD files ZIP IGS WE-SL1_744212 (rev1).igs \| 7 MB STP WE-SL1_744212 (rev1).stp \| 1.6 MB Electric models ZIP PSP PSpice_WE-SL1 (rev25a).zip \| 5.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Winding Stylesectional	Number of windings2	Inductance180 µH	Maximum Impedance1000 Ω	Rated Current300 mA	DC Resistance0.25 Ω	Rated Voltage80 V	Design Kit –
744212221	sectional, 2, 220 µH	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-SL1 (rev22a).IntLib \| 327.5 KB CDS Cadence_WE-SL1 (rev20a).zip \| 1.2 MB EAG Eagle_WE-SL1 (rev19a).lbr \| 17.9 KB KIC KiCad_WE-SL1 (rev25b).zip \| 1.4 MB ZUK Cadstar_WE-SL1 (rev19a).zip \| 5.5 KB CAD files ZIP IGS WE-SL1_744212 (rev1).igs \| 7 MB STP WE-SL1_744212 (rev1).stp \| 1.6 MB Electric models ZIP PSP PSpice_WE-SL1 (rev25a).zip \| 5.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Winding Stylesectional	Number of windings2	Inductance220 µH	Maximum Impedance1200 Ω	Rated Current300 mA	DC Resistance0.28 Ω	Rated Voltage80 V	Design Kit –
744212331	sectional, 2, 330 µH	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-SL1 (rev22a).IntLib \| 327.5 KB CDS Cadence_WE-SL1 (rev20a).zip \| 1.2 MB EAG Eagle_WE-SL1 (rev19a).lbr \| 17.9 KB KIC KiCad_WE-SL1 (rev25b).zip \| 1.4 MB ZUK Cadstar_WE-SL1 (rev19a).zip \| 5.5 KB CAD files ZIP IGS WE-SL1_744212 (rev1).igs \| 7 MB STP WE-SL1_744212 (rev1).stp \| 1.6 MB Electric models ZIP PSP PSpice_WE-SL1 (rev25a).zip \| 5.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Winding Stylesectional	Number of windings2	Inductance330 µH	Maximum Impedance2000 Ω	Rated Current300 mA	DC Resistance0.3 Ω	Rated Voltage80 V	Design Kit 744725

Assortments

Articles from this product series can be found in the following assortments:

Design Kit SMT Common Mode Filters for Data Line Chokes
