WE-OLRM Offline Flyback Transformers

Size	Dimensions	3D	L (mm)	W (mm)	H (mm)	Mount

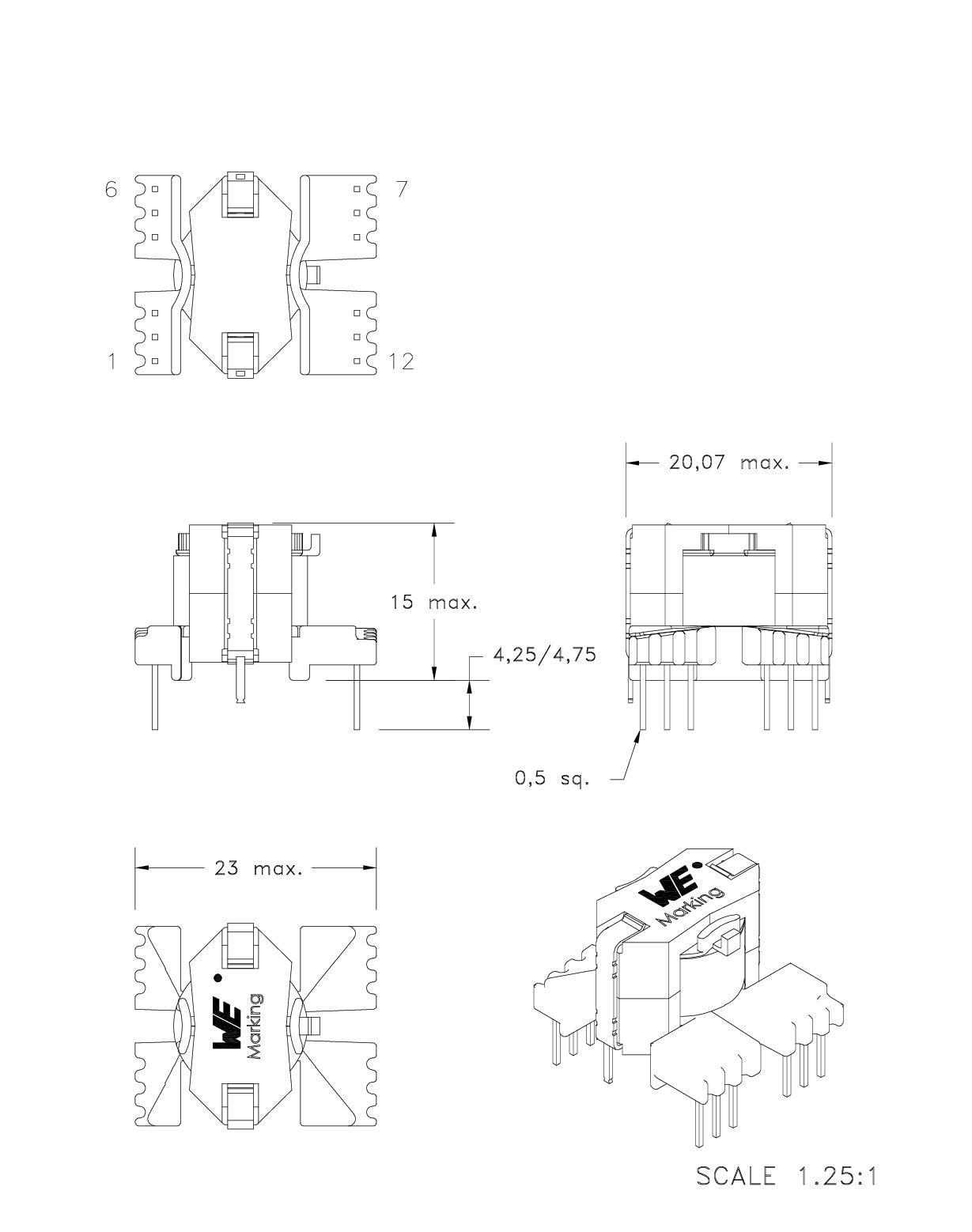

RM6			20.07	23	15	THT

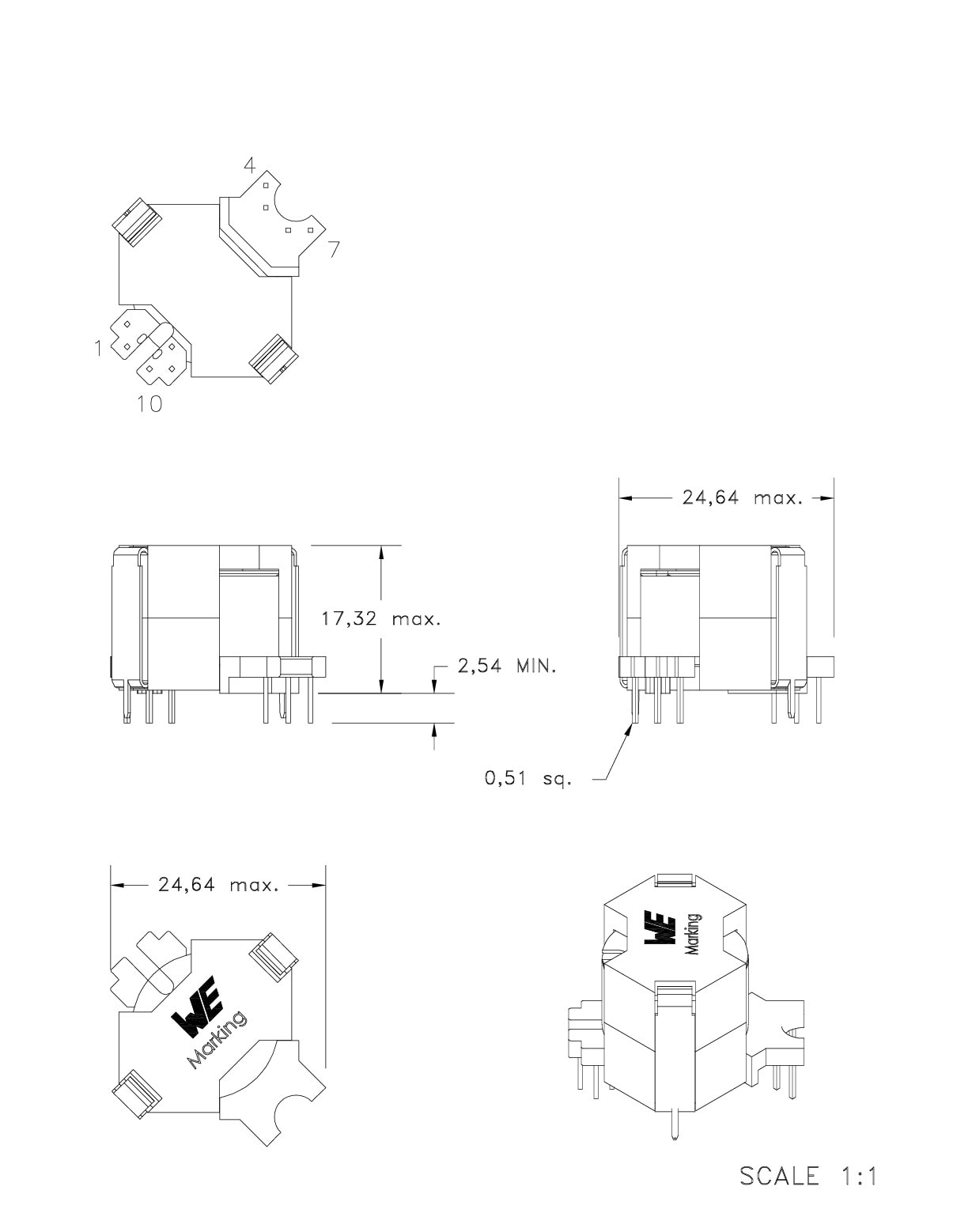

RM8			24.64	24.64	17.32	THT

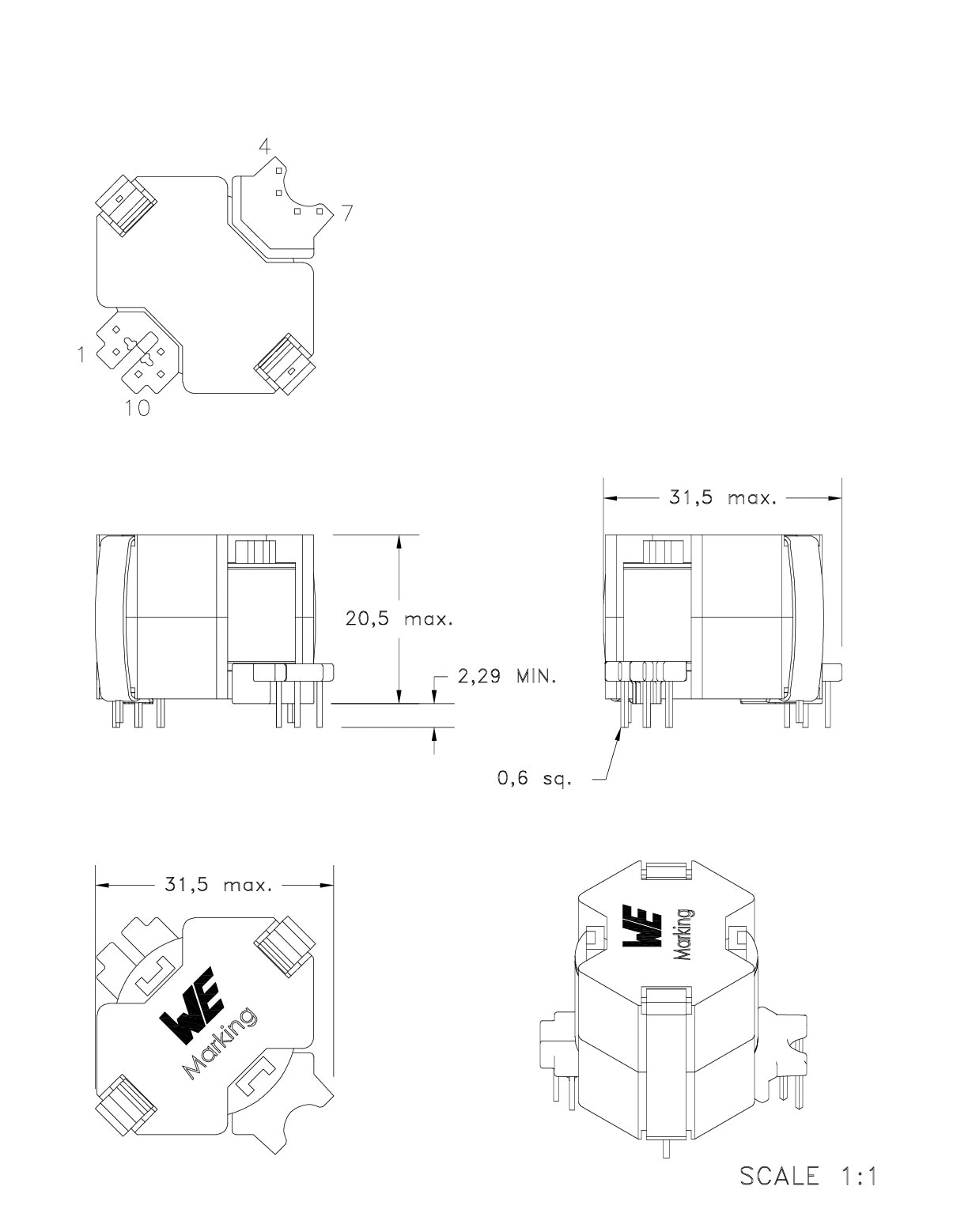

RM10			31.5	31.5	20.5	THT

LTSpice files

LT
LTSpice_WE-OLRM (rev24a).zip
|
11.6 KB

Characteristics

Designed for IEC 61558-2-16 reinforced 265Vrms working voltage
Extended rail
Vertical core direction
Universal input from 85 VAC up to 265 VAC
Compact
Grounded core for improved EMI performance

Applications

White goods
Offline flyback applications
Industrial controls
LED lighting
Smart adapters
Metering

Can’t find the suitable product?

We will be glad to help you! We will take your specifications and work to find a solution that fits your needs. Simply fill out our inquiry form with your specifications.

Find your custom solution

Products

All

RM6

RM8

RM10

Filter article data

show article in 3 product lines

article in 3 product lines

	Order Code	Datasheet	Simulation	Downloads	Status	V_IN	V_Out1(V)	I_Out1(A)	V_Out2(V)	I_Out2(A)	V_aux(V)	f_switch(kHz)	L(µH)	N_PRI : N_SEC : N_AUX	I_SAT(A)	V_T(V (AC))	L(mm)	W(mm)	H(mm)	Mount	Size	Samples
	7508112110	SPEC	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLRM (rev23a).IntLib \| 662.5 KB CDS Cadence_WE-OLRM (rev23a).zip \| 4 MB EAG Eagle_WE-OLRM (rev23a).lbr \| 90.7 KB KIC KiCad_WE-OLRM (rev25b).zip \| 1.4 MB CAD files ZIP 3D 3D_070-6836 (rev1).pdf \| 39.6 KB IGS Downloads_IGS_070-6836 (rev1).IGS \| 1 MB STP Download_STP_070-6836 (rev1).STEP \| 463.4 KB Electric models ZIP LT Download_LTSPICE_7508112110 (rev1).zip \| 8.8 KB LT LTSpice_WE-OLRM (rev24a).zip \| 11.6 KB PSP PSpice_WE-OLRM (rev25a).zip \| 8.9 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 15 V	Output Current 14.8 A	–	–	Auxiliary Voltage16 V	Switching Frequency 44 - 80	Inductance670 µH	Turns Ratio19:1:2.75	Saturation Current2.7 A	Insulation Test Voltage3900 V (AC)	Length24.64 mm	Width24.64 mm	Height17.32 mm	MountTHT	SizeRM8
	7508112349	SPEC	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLRM (rev23a).IntLib \| 662.5 KB CDS Cadence_WE-OLRM (rev23a).zip \| 4 MB EAG Eagle_WE-OLRM (rev23a).lbr \| 90.7 KB KIC KiCad_WE-OLRM (rev25b).zip \| 1.4 MB CAD files ZIP 3D 3D_070-6836 (rev1).pdf \| 39.6 KB IGS Downloads_IGS_070-6836 (rev1).IGS \| 1 MB STP Download_STP_070-6836 (rev1).STEP \| 463.4 KB Electric models ZIP LT Download_LTSPICE_7508112349 (rev1).zip \| 8.7 KB LT LTSpice_WE-OLRM (rev24a).zip \| 11.6 KB PSP PSpice_WE-OLRM (rev25a).zip \| 8.9 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 112 V	Output Current 12.2 A	–	–	Auxiliary Voltage16 V	Switching Frequency 44 - 77	Inductance681 µH	Turns Ratio8.75:1:1.38	Saturation Current2.5 A	Insulation Test Voltage3900 V (AC)	Length24.64 mm	Width24.64 mm	Height17.32 mm	MountTHT	SizeRM8
	750811618	SPEC	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLRM (rev23a).IntLib \| 662.5 KB CDS Cadence_WE-OLRM (rev23a).zip \| 4 MB EAG Eagle_WE-OLRM (rev23a).lbr \| 90.7 KB KIC KiCad_WE-OLRM (rev25b).zip \| 1.4 MB CAD files ZIP 3D 3D_070-6836 (rev1).pdf \| 39.6 KB IGS Downloads_IGS_070-6836 (rev1).IGS \| 1 MB STP Download_STP_070-6836 (rev1).STEP \| 463.4 KB Electric models ZIP LT Download_LTSPICE_750811618 (rev1).zip \| 8.7 KB LT LTSpice_WE-OLRM (rev24a).zip \| 11.6 KB PSP PSpice_WE-OLRM (rev25a).zip \| 8.9 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 15 V	Output Current 12 A	Output Voltage 212 V	Output Current 21.1 A	Auxiliary Voltage16 V	Switching Frequency 44 - 105	Inductance742 µH	Turns Ratio20:2.25:1:3	Saturation Current2.6 A	Insulation Test Voltage3900 V (AC)	Length24.64 mm	Width24.64 mm	Height17.32 mm	MountTHT	SizeRM8
	7508116316	SPEC	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLRM (rev23a).IntLib \| 662.5 KB CDS Cadence_WE-OLRM (rev23a).zip \| 4 MB EAG Eagle_WE-OLRM (rev23a).lbr \| 90.7 KB KIC KiCad_WE-OLRM (rev25b).zip \| 1.4 MB CAD files ZIP 3D 3D_070-6836 (rev1).pdf \| 39.6 KB IGS Downloads_IGS_070-6836 (rev1).IGS \| 1 MB STP Download_STP_070-6836 (rev1).STEP \| 463.4 KB Electric models ZIP LT Download_LTSPICE_7508116316 (rev1).zip \| 8.7 KB LT LTSpice_WE-OLRM (rev24a).zip \| 11.6 KB PSP PSpice_WE-OLRM (rev25a).zip \| 8.9 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 112 V	Output Current 11.75 A	Output Voltage 25 V	Output Current 20.45 A	Auxiliary Voltage16 V	Switching Frequency 44 - 84	Inductance742 µH	Turns Ratio20:2.25:1:3	Saturation Current2.6 A	Insulation Test Voltage3900 V (AC)	Length24.64 mm	Width24.64 mm	Height17.32 mm	MountTHT	SizeRM8
	7508112111	SPEC	Simulation	Downloads11 files EDA models: Components ZIP ALT Altium_WE-OLRM (rev23a).IntLib \| 662.5 KB CDS Cadence_WE-OLRM (rev23a).zip \| 4 MB EAG Eagle_WE-OLRM (rev23a).lbr \| 90.7 KB KIC KiCad_WE-OLRM (rev25b).zip \| 1.4 MB CAD files ZIP 3D 3D_070-6920_MP3 (rev1).PDF \| 79.6 KB IGS Download_IGS_070-6920_MP3 (rev1).IGS \| 2.1 MB STP Download_STP_070-6920_MP3 (rev1).STEP \| 869.4 KB Electric models ZIP LT Download_LTspice_7508112111 (rev1).zip \| 8.7 KB LT LTSpice_WE-OLRM (rev24a).zip \| 11.6 KB PSP PSpice_WE-OLRM (rev25a).zip \| 8.9 KB Others ZIP WRL Download_WRL_070-6920_MP3 (rev1).WRL \| 524.7 KB Download all 11 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 15 V	Output Current 14 A	–	–	Auxiliary Voltage20 V	Switching Frequency 100	Inductance600 µH	Turns Ratio18 : 1 : 4	Saturation Current3.75 A	Insulation Test Voltage3900 V (AC)	Length31.5 mm	Width31.5 mm	Height20.5 mm	MountTHT	SizeRM10
	7508112355	SPEC	Simulation	Downloads11 files EDA models: Components ZIP ALT Altium_WE-OLRM (rev23a).IntLib \| 662.5 KB CDS Cadence_WE-OLRM (rev23a).zip \| 4 MB EAG Eagle_WE-OLRM (rev23a).lbr \| 90.7 KB KIC KiCad_WE-OLRM (rev25b).zip \| 1.4 MB CAD files ZIP 3D 3D_070-6920_MP3 (rev1).PDF \| 79.6 KB IGS Download_IGS_070-6920_MP3 (rev1).IGS \| 2.1 MB STP Download_STP_070-6920_MP3 (rev1).STEP \| 869.4 KB Electric models ZIP LT Download_LTspice_7508112355 (rev1).zip \| 8.7 KB LT LTSpice_WE-OLRM (rev24a).zip \| 11.6 KB PSP PSpice_WE-OLRM (rev25a).zip \| 8.9 KB Others ZIP WRL Download_WRL_070-6920_MP3 (rev1).WRL \| 524.7 KB Download all 11 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 112 V	Output Current 11.667 A	–	–	Auxiliary Voltage24 V	Switching Frequency 100	Inductance600 µH	Turns Ratio9 : 1 : 2	Saturation Current3.75 A	Insulation Test Voltage3900 V (AC)	Length31.5 mm	Width31.5 mm	Height20.5 mm	MountTHT	SizeRM10
	7508116318	SPEC	Simulation	Downloads11 files EDA models: Components ZIP ALT Altium_WE-OLRM (rev23a).IntLib \| 662.5 KB CDS Cadence_WE-OLRM (rev23a).zip \| 4 MB EAG Eagle_WE-OLRM (rev23a).lbr \| 90.7 KB KIC KiCad_WE-OLRM (rev25b).zip \| 1.4 MB CAD files ZIP 3D 3D_070-6920_MP3 (rev1).PDF \| 79.6 KB IGS Download_IGS_070-6920_MP3 (rev1).IGS \| 2.1 MB STP Download_STP_070-6920_MP3 (rev1).STEP \| 869.4 KB Electric models ZIP LT Download_LTspice_7508116318 (rev1).zip \| 8.7 KB LT LTSpice_WE-OLRM (rev24a).zip \| 11.6 KB PSP PSpice_WE-OLRM (rev25a).zip \| 8.9 KB Others ZIP WRL Download_WRL_070-6920_MP3 (rev1).WRL \| 524.7 KB Download all 11 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 112 V	Output Current 10.8 A	Output Voltage 212 V	Output Current 20.8 A	Auxiliary Voltage24 V	Switching Frequency 100	Inductance600 µH	Turns Ratio9 : 1 : 1 : 2	Saturation Current3.75 A	Insulation Test Voltage3900 V (AC)	Length31.5 mm	Width31.5 mm	Height20.5 mm	MountTHT	SizeRM10
	750811648	SPEC	Simulation	Downloads11 files EDA models: Components ZIP ALT Altium_WE-OLRM (rev23a).IntLib \| 662.5 KB CDS Cadence_WE-OLRM (rev23a).zip \| 4 MB EAG Eagle_WE-OLRM (rev23a).lbr \| 90.7 KB KIC KiCad_WE-OLRM (rev25b).zip \| 1.4 MB CAD files ZIP 3D 3D_070-6920_MP3 (rev1).PDF \| 79.6 KB IGS Download_IGS_070-6920_MP3 (rev1).IGS \| 2.1 MB STP Download_STP_070-6920_MP3 (rev1).STEP \| 869.4 KB Electric models ZIP LT Download_LTspice_750811648 (rev1).zip \| 8.7 KB LT LTSpice_WE-OLRM (rev24a).zip \| 11.6 KB PSP PSpice_WE-OLRM (rev25a).zip \| 8.9 KB Others ZIP WRL Download_WRL_070-6920_MP3 (rev1).WRL \| 524.7 KB Download all 11 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 124 V	Output Current 10.4 A	Output Voltage 224 V	Output Current 20.4 A	Auxiliary Voltage24 V	Switching Frequency 100	Inductance600 µH	Turns Ratio4.5 : 1 : 1 : 1	Saturation Current3.75 A	Insulation Test Voltage3900 V (AC)	Length31.5 mm	Width31.5 mm	Height20.5 mm	MountTHT	SizeRM10
	7508110172	SPEC	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLRM (rev23a).IntLib \| 662.5 KB CDS Cadence_WE-OLRM (rev23a).zip \| 4 MB EAG Eagle_WE-OLRM (rev23a).lbr \| 90.7 KB KIC KiCad_WE-OLRM (rev25b).zip \| 1.4 MB CAD files ZIP IGS Download_IGS_070-6915 (rev1).IGS \| 4.8 MB STP Download_STP_070-6915 (rev1).STEP \| 2 MB Electric models ZIP LT Download_LTspice_7508110172 (rev1).zip \| 8.7 KB LT LTSpice_WE-OLRM (rev24a).zip \| 11.6 KB PSP PSpice_WE-OLRM (rev25a).zip \| 8.9 KB Others ZIP WRL Download_WRL_070-6915 (rev1).wrl \| 1.1 MB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 100 - 265 V (AC)	Output Voltage 15 V	Output Current 11.5 A	–	–	Auxiliary Voltage20 V	Switching Frequency 40 - 100	Inductance4000 µH	Turns Ratio24 : 1 : 4	Saturation Current0.45 A	Insulation Test Voltage3900 V (AC)	Length20.07 mm	Width23 mm	Height15 mm	MountTHT	SizeRM6
	7508110348	SPEC	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLRM (rev23a).IntLib \| 662.5 KB CDS Cadence_WE-OLRM (rev23a).zip \| 4 MB EAG Eagle_WE-OLRM (rev23a).lbr \| 90.7 KB KIC KiCad_WE-OLRM (rev25b).zip \| 1.4 MB CAD files ZIP IGS Download_IGS_070-6915 (rev1).IGS \| 4.8 MB STP Download_STP_070-6915 (rev1).STEP \| 2 MB Electric models ZIP LT Download_LTspice_7508110348 (rev1).zip \| 8.7 KB LT LTSpice_WE-OLRM (rev24a).zip \| 11.6 KB PSP PSpice_WE-OLRM (rev25a).zip \| 8.9 KB Others ZIP WRL Download_WRL_070-6915 (rev1).wrl \| 1.1 MB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 100 - 265 V (AC)	Output Voltage 112 V	Output Current 10.6 A	–	–	Auxiliary Voltage24 V	Switching Frequency 40 - 100	Inductance4000 µH	Turns Ratio10 : 1 : 2	Saturation Current0.45 A	Insulation Test Voltage3900 V (AC)	Length20.07 mm	Width23 mm	Height15 mm	MountTHT	SizeRM6
	7508114310	SPEC	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLRM (rev23a).IntLib \| 662.5 KB CDS Cadence_WE-OLRM (rev23a).zip \| 4 MB EAG Eagle_WE-OLRM (rev23a).lbr \| 90.7 KB KIC KiCad_WE-OLRM (rev25b).zip \| 1.4 MB CAD files ZIP IGS Download_IGS_070-6915 (rev1).IGS \| 4.8 MB STP Download_STP_070-6915 (rev1).STEP \| 2 MB Electric models ZIP LT Download_LTspice_7508114310 (rev1).zip \| 8.7 KB LT LTSpice_WE-OLRM (rev24a).zip \| 11.6 KB PSP PSpice_WE-OLRM (rev25a).zip \| 8.9 KB Others ZIP WRL Download_WRL_070-6915 (rev1).wrl \| 1.1 MB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 100 - 265 V (AC)	Output Voltage 112 V	Output Current 10.3 A	Output Voltage 212 V	Output Current 20.3 A	Auxiliary Voltage24 V	Switching Frequency 40 - 100	Inductance4000 µH	Turns Ratio10 : 1 : 1 : 2	Saturation Current0.45 A	Insulation Test Voltage3900 V (AC)	Length20.07 mm	Width23 mm	Height15 mm	MountTHT	SizeRM6
	750811418	SPEC	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLRM (rev23a).IntLib \| 662.5 KB CDS Cadence_WE-OLRM (rev23a).zip \| 4 MB EAG Eagle_WE-OLRM (rev23a).lbr \| 90.7 KB KIC KiCad_WE-OLRM (rev25b).zip \| 1.4 MB CAD files ZIP IGS Download_IGS_070-6915 (rev1).IGS \| 4.8 MB STP Download_STP_070-6915 (rev1).STEP \| 2 MB Electric models ZIP LT Download_LTspice_750811418 (rev1).zip \| 8.7 KB LT LTSpice_WE-OLRM (rev24a).zip \| 11.6 KB PSP PSpice_WE-OLRM (rev25a).zip \| 8.9 KB Others ZIP WRL Download_WRL_070-6915 (rev1).wrl \| 1.1 MB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 100 - 265 V (AC)	Output Voltage 15 V	Output Current 10.7 A	Output Voltage 212 V	Output Current 20.29 A	Auxiliary Voltage24 V	Switching Frequency 40 - 100	Inductance4000 µH	Turns Ratio26 : 1 : 2.4 : 4.8	Saturation Current0.45 A	Insulation Test Voltage3900 V (AC)	Length20.07 mm	Width23 mm	Height15 mm	MountTHT	SizeRM6
