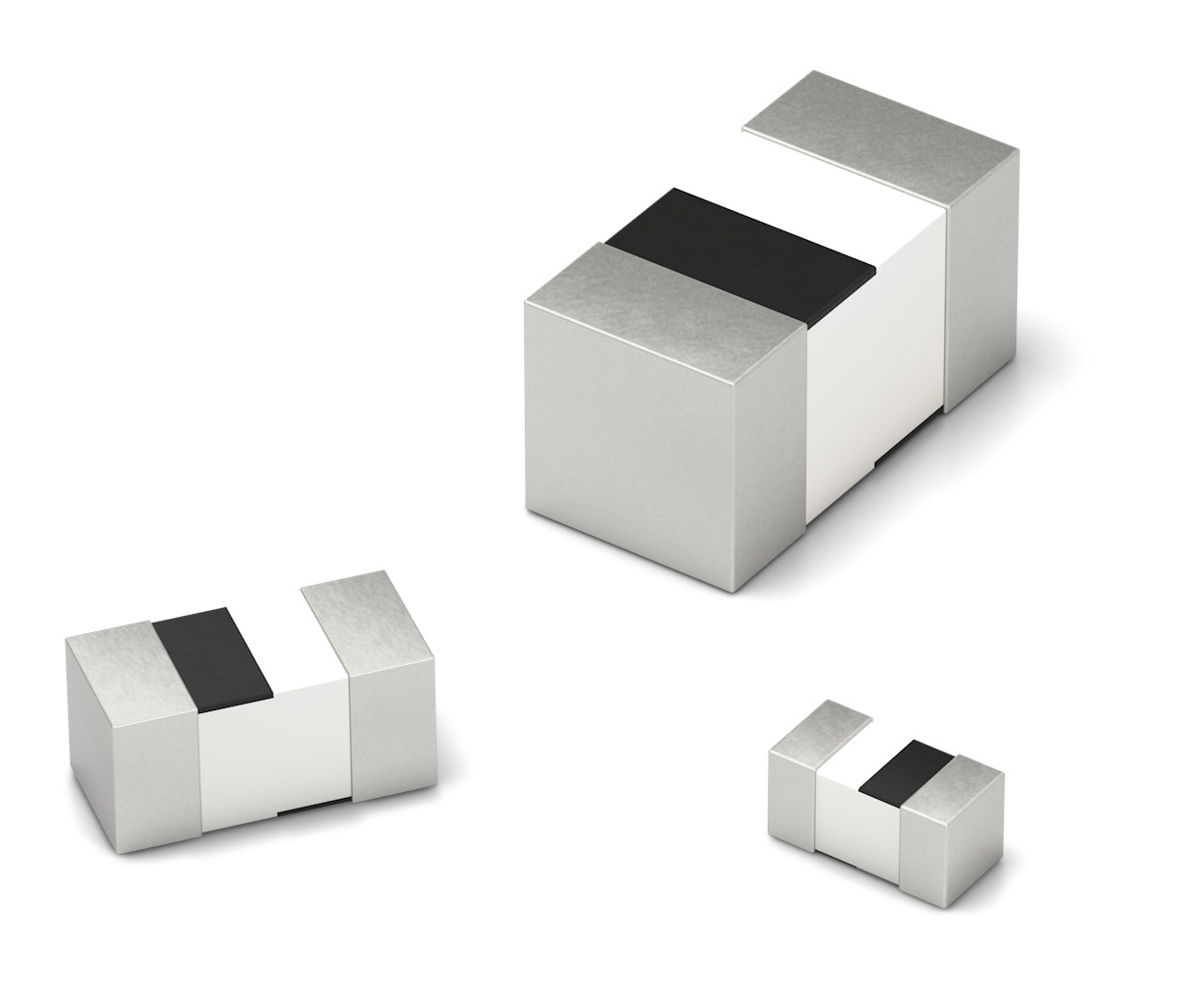

WE-MK Multilayer Ceramic SMT Inductor

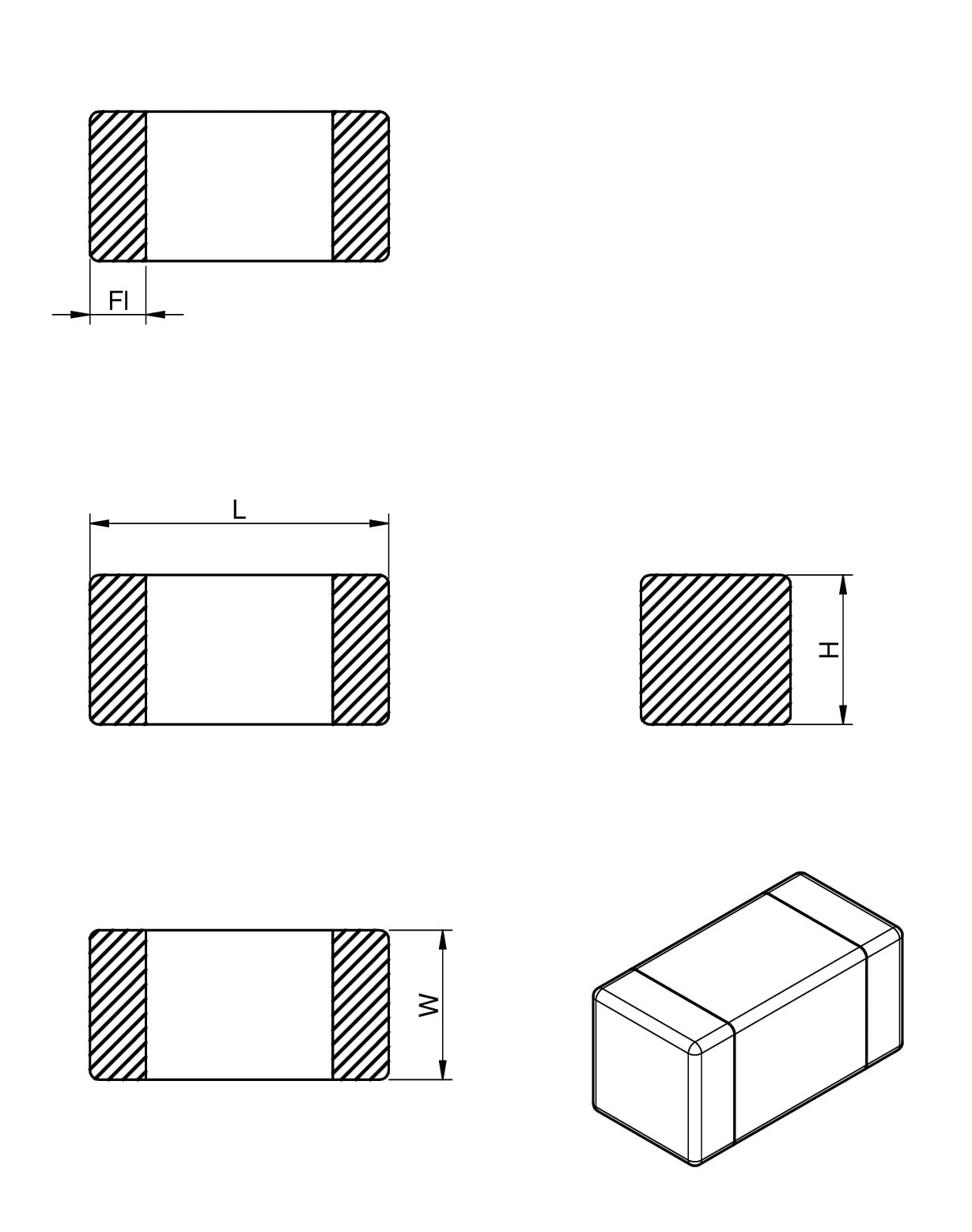

| Size | Dimensions | L
(mm) |
W
(mm) |
H
(mm) |
Mount | |
|---|---|---|---|---|---|---|
|

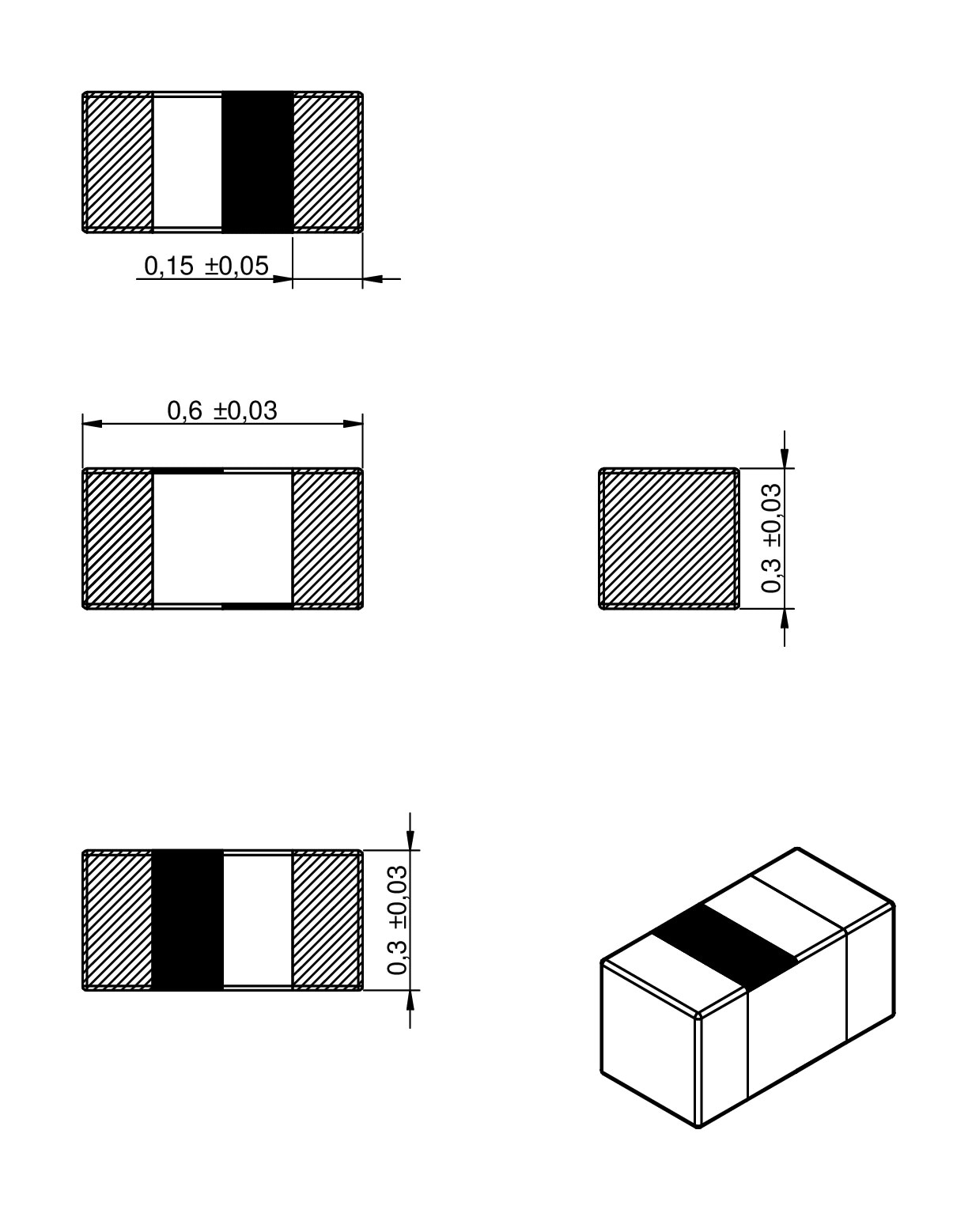

0201
|
0.6 | 0.3 | 0.3 | SMT |
|
|
|

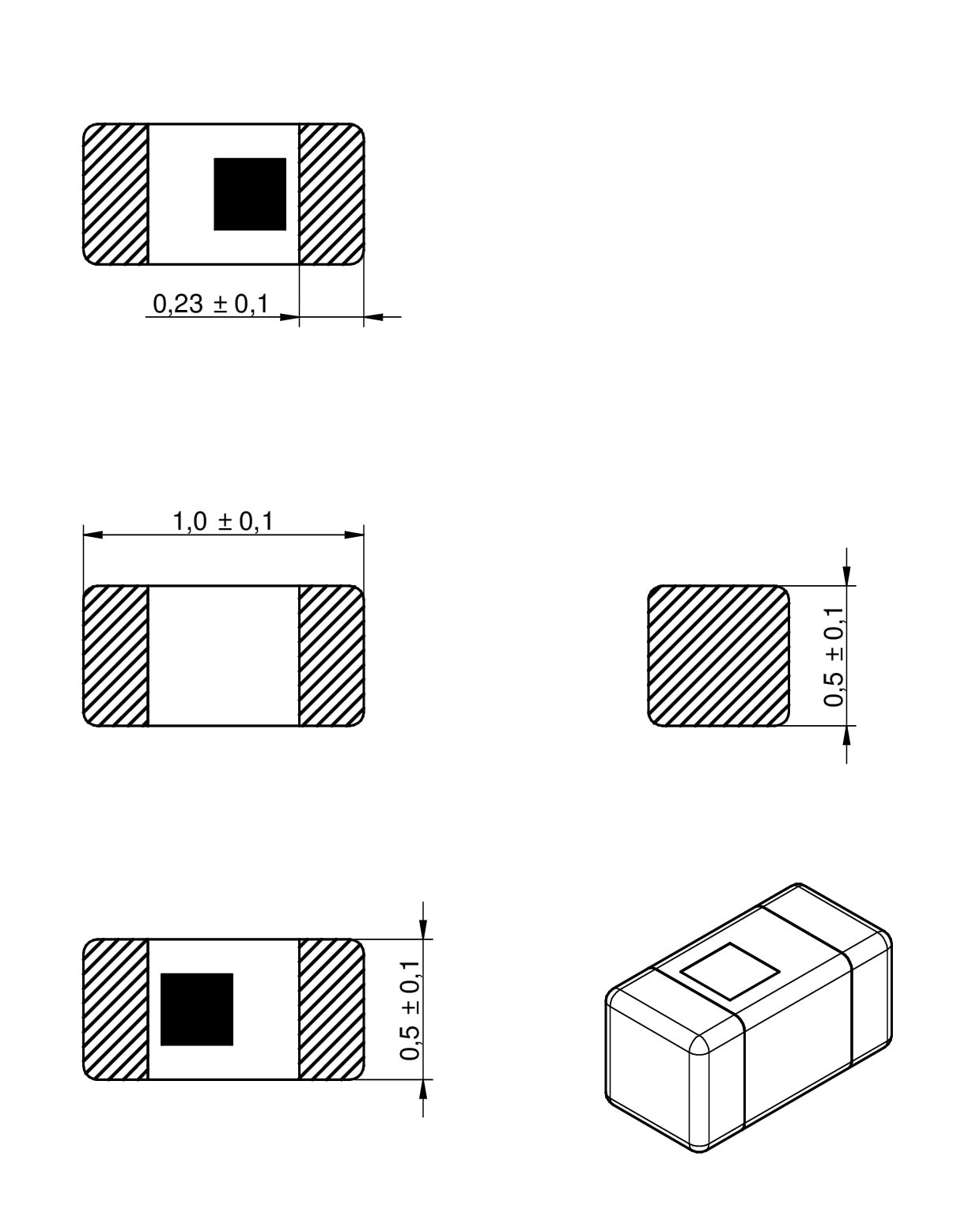

0402
|
1 | 0.5 | 0.5 | SMT |
|
|
|

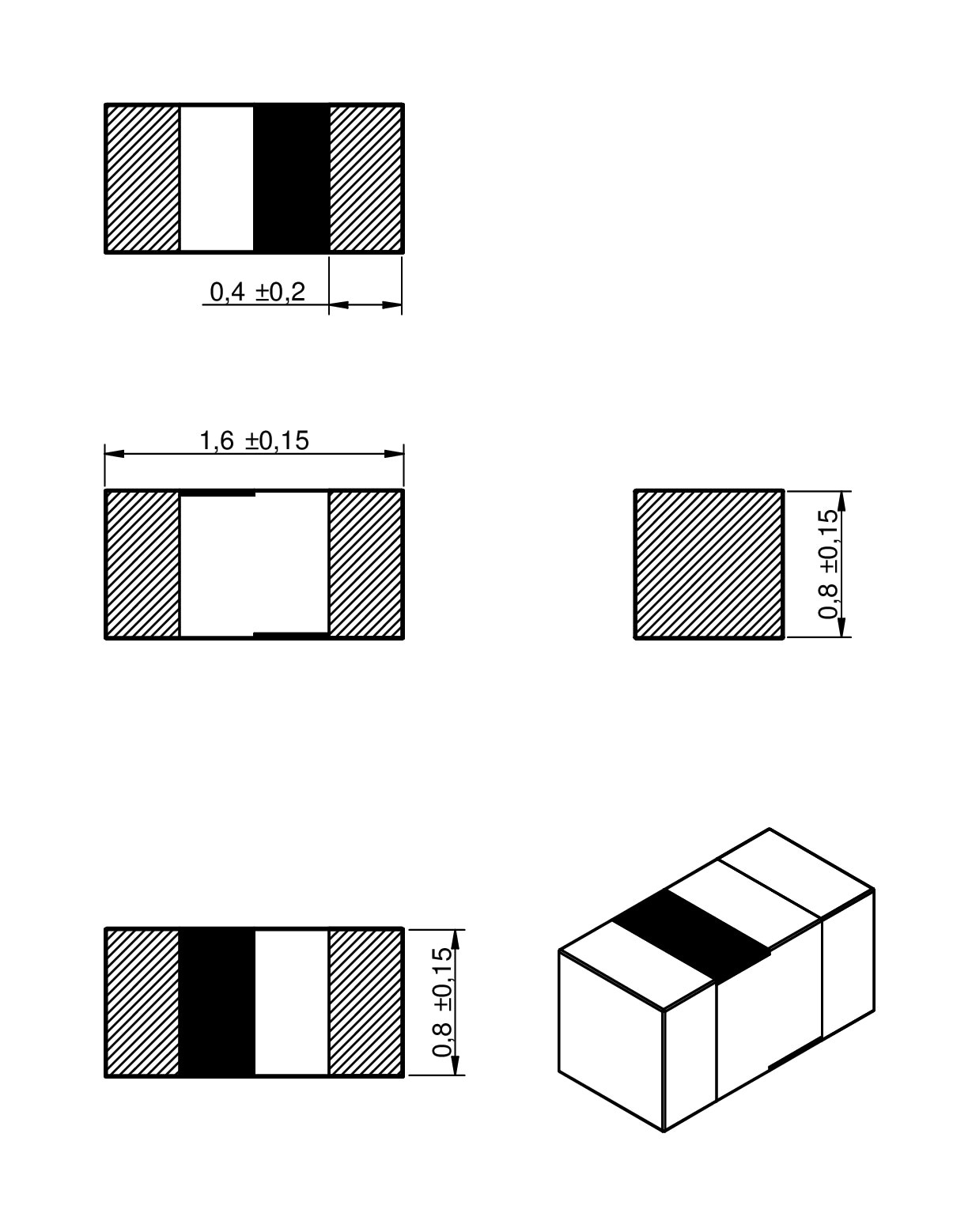

0603
|
1.6 | 0.8 | 0.8 | SMT |
|
|
|
0805
|
2 | 1.25 | - | SMT |
|
LTSpice files
Characteristics
- Coil integrated in a multilayer ceramic structure
- All inductors with polarity marking (excepting 0805 size)
- High self resonant frequency
- Inductive tolerances of ±2% (or ±0.1nH) and ±5% (or ±0.3nH)
- Inductance very stable over temperature
- Recommended solder profile: Reflow
- Operating temperature: –55°C to +125°C
Applications
- High frequency circuits
- Bluetooth
- Wireless LAN
- Filter circuits
- Oscillators
- Pagers
- Laptops
- PCMCIA-cards
Application Notes
Products
All
0201
0402
0603
0805
Filter by
show
in
article
in
4 product lines
Reset all
|
Order Code
|
Datasheet
|
Simulation
|
Downloads
|
Status
|
L
(nH)
|
Tol. L
|
Test Condition L
|
Qmin.
|
Test Condition Q
|
RDC max.
(Ω)
|
IR
(mA)
|
fres
(MHz)
|
Design Kit
|
Samples
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447840010
|
1 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.1 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
8000 MHz
|
Design Kit
|
|
|
|
7447820010
|
1 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.11 Ω
|
Rated Current
470 mA
|
Self Resonant Frequency
10000 MHz
|
Design Kit
|
|
|
|
7447860010
|
1 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.05 Ω
|
Rated Current
1300 mA
|
Self Resonant Frequency
10000 MHz
|
Design Kit
|
|
|
|
7447820010G
|
1 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.11 Ω
|
Rated Current
470 mA
|
Self Resonant Frequency
10000 MHz
|
Design Kit
|
|
||
|
7447840010G
|
1 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.1 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
8000 MHz
|
Design Kit
|
|
||
|
7447860010G
|
1 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.05 Ω
|
Rated Current
1300 mA
|
Self Resonant Frequency
10000 MHz
|
|
|||
|
7447840012
|
1.2 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1.2 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.1 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
8000 MHz
|
Design Kit
|
|
|
|
7447820012
|
1.2 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1.2 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.12 Ω
|
Rated Current
450 mA
|
Self Resonant Frequency
10000 MHz
|
Design Kit
|
|
|
|
7447860012
|
1.2 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1.2 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.05 Ω
|
Rated Current
1300 mA
|
Self Resonant Frequency
10000 MHz
|
Design Kit
|
|
|
|
7447820012G
|
1.2 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1.2 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.12 Ω
|
Rated Current
450 mA
|
Self Resonant Frequency
10000 MHz
|
Design Kit
|
|
||
|
7447840012G
|
1.2 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1.2 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.1 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
8000 MHz
|
|
|||
|
7447860012G
|
1.2 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1.2 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.05 Ω
|
Rated Current
1300 mA
|
Self Resonant Frequency
10000 MHz
|
Design Kit
|
|
||
|
7447840015
|
1.5 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1.5 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.1 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
8000 MHz
|
Design Kit
|
|
|
|
7447820015
|
1.5 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1.5 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.13 Ω
|
Rated Current
430 mA
|
Self Resonant Frequency
10000 MHz
|
Design Kit
|
|
|
|
7447860015
|
1.5 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1.5 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.1 Ω
|
Rated Current
1300 mA
|
Self Resonant Frequency
6000 MHz
|
Design Kit
|
|
|
|
7447820015G
|
1.5 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1.5 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.13 Ω
|
Rated Current
430 mA
|
Self Resonant Frequency
10000 MHz
|
Design Kit
|
|
||
|
7447840015G
|
1.5 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1.5 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.1 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
8000 MHz
|
|
|||
|
7447860015G
|
1.5 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1.5 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.1 Ω
|
Rated Current
1300 mA
|
Self Resonant Frequency
6000 MHz
|
Design Kit
|
|
||
|
7447880015
|
1.5 nH, ±0.3nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1.5 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
10
|
Q-Factor
100 MHz
|
DC Resistance
0.1 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
4000 MHz
|
Design Kit
–
|
|
||
|
7447840018
|
1.8 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1.8 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.1 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
6000 MHz
|
Design Kit
|
|
|
|
7447820018
|
1.8 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1.8 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.16 Ω
|
Rated Current
390 mA
|
Self Resonant Frequency
10000 MHz
|
Design Kit
|
|
|
|
7447860018
|
1.8 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1.8 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.1 Ω
|
Rated Current
1300 mA
|
Self Resonant Frequency
6000 MHz
|
Design Kit
|
|
|
|
7447820018G
|
1.8 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1.8 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.16 Ω
|
Rated Current
390 mA
|
Self Resonant Frequency
10000 MHz
|
Design Kit
|
|
||
|
7447840018G
|
1.8 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1.8 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.1 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
6000 MHz
|
|
|||
|
7447860018G
|
1.8 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
1.8 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.1 Ω
|
Rated Current
1300 mA
|
Self Resonant Frequency
6000 MHz
|
Design Kit
|
|
||
|
7447840020
|
2 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
2 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.12 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
6000 MHz
|
Design Kit
|
|
|
|
7447820020
|
2 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
2 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.17 Ω
|
Rated Current
380 mA
|
Self Resonant Frequency
8800 MHz
|
Design Kit
|
|
|
|
7447820020G
|
2 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
2 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.17 Ω
|
Rated Current
380 mA
|
Self Resonant Frequency
8800 MHz
|
Design Kit
|
|
||
|
7447840020G
|
2 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
2 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.12 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
6000 MHz
|
|
|||
|
7447820022
|
2.2 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
2.2 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.19 Ω
|
Rated Current
360 mA
|
Self Resonant Frequency
8800 MHz
|
Design Kit
|
|
|
|
7447840022
|
2.2 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
2.2 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.15 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
6000 MHz
|
Design Kit
|
|
|
|
7447860022
|
2.2 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
2.2 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.1 Ω
|
Rated Current
950 mA
|
Self Resonant Frequency
6000 MHz
|
Design Kit
|
|
|
|
7447820022G
|
2.2 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
2.2 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.19 Ω
|
Rated Current
360 mA
|
Self Resonant Frequency
8800 MHz
|
Design Kit
|
|
||
|
7447840022G
|
2.2 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
2.2 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.15 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
6000 MHz
|
|
|||
|
7447860022G
|
2.2 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
2.2 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.1 Ω
|
Rated Current
950 mA
|
Self Resonant Frequency
6000 MHz
|
Design Kit
|
|
||
|
7447820024
|
2.4 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
2.4 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.2 Ω
|
Rated Current
350 mA
|
Self Resonant Frequency
8300 MHz
|
Design Kit
|
|
|
|
7447820024G
|
2.4 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
2.4 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.2 Ω
|
Rated Current
350 mA
|
Self Resonant Frequency
8300 MHz
|
Design Kit
|
|
||
|
7447820027
|
2.7 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
2.7 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.21 Ω
|
Rated Current
340 mA
|
Self Resonant Frequency
7700 MHz
|
Design Kit
|
|
|
|
7447840027
|
2.7 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
2.7 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.17 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
6000 MHz
|
Design Kit
|
|
|
|
7447860027
|
2.7 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
2.7 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
10
|
Q-Factor
100 MHz
|
DC Resistance
0.1 Ω
|
Rated Current
950 mA
|
Self Resonant Frequency
6000 MHz
|
Design Kit
|
|
|
|
7447820027G
|
2.7 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
2.7 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.21 Ω
|
Rated Current
340 mA
|
Self Resonant Frequency
7700 MHz
|
Design Kit
|
|
||
|
7447840027G
|
2.7 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
2.7 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.17 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
6000 MHz
|
|
|||
|
7447860027G
|
2.7 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
2.7 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
10
|
Q-Factor
100 MHz
|
DC Resistance
0.1 Ω
|
Rated Current
950 mA
|
Self Resonant Frequency
6000 MHz
|
Design Kit
|
|
||
|
7447880027
|
2.7 nH, ±0.3nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
2.7 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.1 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
4000 MHz
|
Design Kit
–
|
|
||
|
7447820030
|
3 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
3 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.22 Ω
|
Rated Current
330 mA
|
Self Resonant Frequency
7200 MHz
|
Design Kit
|
|
|
|
7447840030
|
3 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
3 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.18 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
6000 MHz
|
Design Kit
|
|
|
|
7447820030G
|
3 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
3 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.22 Ω
|
Rated Current
330 mA
|
Self Resonant Frequency
7200 MHz
|
Design Kit
|
|
||
|
7447840030G
|
3 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
3 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.18 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
6000 MHz
|
|
|||
|
7447820033
|
3.3 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
3.3 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.23 Ω
|
Rated Current
320 mA
|
Self Resonant Frequency
6700 MHz
|
Design Kit
|
|
|
|
7447840033
|
3.3 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
3.3 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.19 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
6000 MHz
|
Design Kit
|
|
|
|
7447860033
|
3.3 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
3.3 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
10
|
Q-Factor
100 MHz
|
DC Resistance
0.12 Ω
|
Rated Current
850 mA
|
Self Resonant Frequency
6000 MHz
|
Design Kit
|
|
|
|
7447820033G
|
3.3 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
3.3 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.23 Ω
|
Rated Current
320 mA
|
Self Resonant Frequency
6700 MHz
|
Design Kit
|
|
||
|
7447840033G
|
3.3 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
3.3 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.19 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
6000 MHz
|
|
|||
|
7447860033G
|
3.3 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
3.3 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
10
|
Q-Factor
100 MHz
|
DC Resistance
0.12 Ω
|
Rated Current
850 mA
|
Self Resonant Frequency
6000 MHz
|
Design Kit
|
|
||
|
7447820036
|
3.6 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
3.6 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.25 Ω
|
Rated Current
310 mA
|
Self Resonant Frequency
6400 MHz
|
Design Kit
|
|
|
|
7447820036G
|
3.6 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
3.6 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.25 Ω
|
Rated Current
310 mA
|
Self Resonant Frequency
6400 MHz
|
Design Kit
|
|
||
|
7447820039
|
3.9 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
3.9 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.27 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
6000 MHz
|
Design Kit
|
|
|
|
7447840039
|
3.9 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
3.9 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.19 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
6000 MHz
|
Design Kit
|
|
|
|
7447860039
|
3.9 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
3.9 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
10
|
Q-Factor
100 MHz
|
DC Resistance
0.12 Ω
|
Rated Current
850 mA
|
Self Resonant Frequency
6000 MHz
|
Design Kit
|
|
|
|
7447820039G
|
3.9 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
3.9 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.27 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
6000 MHz
|
Design Kit
|
|
||
|
7447840039G
|
3.9 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
3.9 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.19 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
6000 MHz
|
|
|||
|
7447860039G
|
3.9 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
3.9 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
10
|
Q-Factor
100 MHz
|
DC Resistance
0.12 Ω
|
Rated Current
850 mA
|
Self Resonant Frequency
6000 MHz
|
Design Kit
|
|
||
|
7447820043
|
4.3 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
4.3 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.3 Ω
|
Rated Current
280 mA
|
Self Resonant Frequency
5700 MHz
|
Design Kit
|
|
|
|
7447820043G
|
4.3 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
4.3 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.3 Ω
|
Rated Current
280 mA
|
Self Resonant Frequency
5700 MHz
|
Design Kit
|
|
||
|
7447820047
|
4.7 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
4.7 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.3 Ω
|
Rated Current
280 mA
|
Self Resonant Frequency
5300 MHz
|
Design Kit
|
|
|
|
7447840047
|
4.7 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
4.7 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.23 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
6000 MHz
|
Design Kit
|
|
|
|
7447860047
|
4.7 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
4.7 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
10
|
Q-Factor
100 MHz
|
DC Resistance
0.14 Ω
|
Rated Current
700 mA
|
Self Resonant Frequency
4000 MHz
|
Design Kit
|
|
|
|
7447820047G
|
4.7 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
4.7 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.3 Ω
|
Rated Current
280 mA
|
Self Resonant Frequency
5300 MHz
|
Design Kit
|
|
||
|
7447840047G
|
4.7 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
4.7 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.23 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
6000 MHz
|
|
|||
|
7447860047G
|
4.7 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
4.7 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
10
|
Q-Factor
100 MHz
|
DC Resistance
0.14 Ω
|
Rated Current
700 mA
|
Self Resonant Frequency
4000 MHz
|
Design Kit
|
|
||
|
7447880047
|
4.7 nH, ±0.3nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
4.7 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.2 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
3500 MHz
|
Design Kit
–
|
|
||
|
7447820051
|
5.1 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
5.1 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.33 Ω
|
Rated Current
270 mA
|
Self Resonant Frequency
5000 MHz
|
Design Kit
|
|
|
|
7447820051G
|
5.1 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
5.1 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.33 Ω
|
Rated Current
270 mA
|
Self Resonant Frequency
5000 MHz
|
Design Kit
|
|
||
|
7447820056
|
5.6 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
5.6 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.36 Ω
|
Rated Current
260 mA
|
Self Resonant Frequency
4600 MHz
|
Design Kit
|
|
|
|
7447840056
|
5.6 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
5.6 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.26 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
5300 MHz
|
Design Kit
|
|
|
|
7447860056
|
5.6 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
5.6 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
10
|
Q-Factor
100 MHz
|
DC Resistance
0.14 Ω
|
Rated Current
700 mA
|
Self Resonant Frequency
4000 MHz
|
Design Kit
|
|
|
|
7447820056G
|
5.6 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
5.6 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.36 Ω
|
Rated Current
260 mA
|
Self Resonant Frequency
4600 MHz
|
Design Kit
|
|
||
|
7447840056G
|
5.6 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
5.6 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.26 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
5300 MHz
|
|
|||
|
7447860056G
|
5.6 nH, ±0.1nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
5.6 nH
|
Inductance
±0.1nH
|
Inductance
100 MHz
|
Q-Factor
10
|
Q-Factor
100 MHz
|
DC Resistance
0.14 Ω
|
Rated Current
700 mA
|
Self Resonant Frequency
4000 MHz
|
Design Kit
|
|
||
|
7447880056
|
5.6 nH, ±0.3nH, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
5.6 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
15
|
Q-Factor
100 MHz
|
DC Resistance
0.23 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
3200 MHz
|
Design Kit
–
|
|
||
|
7447820062
|
6.2 nH, ±0.3nH, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
6.2 nH
|
Inductance
±0.3nH
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.38 Ω
|
Rated Current
250 mA
|
Self Resonant Frequency
4200 MHz
|
Design Kit
|
|
|
|
7447820062G
|
6.2 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
6.2 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.38 Ω
|
Rated Current
250 mA
|
Self Resonant Frequency
4200 MHz
|
Design Kit
|
|
||
|
7447820068
|
6.8 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
6.8 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.39 Ω
|
Rated Current
250 mA
|
Self Resonant Frequency
3900 MHz
|
Design Kit
|
|
|
|
7447840068
|
6.8 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
6.8 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.29 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
4200 MHz
|
Design Kit
|
|
|
|
7447860068
|
6.8 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
6.8 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
10
|
Q-Factor
100 MHz
|
DC Resistance
0.16 Ω
|
Rated Current
650 mA
|
Self Resonant Frequency
4000 MHz
|
Design Kit
|
|
|
|
7447820068G
|
6.8 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
6.8 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.39 Ω
|
Rated Current
250 mA
|
Self Resonant Frequency
3900 MHz
|
Design Kit
|
|
||
|
7447840068G
|
6.8 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
6.8 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.29 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
4200 MHz
|
|
|||
|
7447860068G
|
6.8 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
6.8 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
10
|
Q-Factor
100 MHz
|
DC Resistance
0.16 Ω
|
Rated Current
650 mA
|
Self Resonant Frequency
4000 MHz
|
Design Kit
|
|
||
|
7447880068
|
6.8 nH, ±5%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
6.8 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
15
|
Q-Factor
100 MHz
|
DC Resistance
0.25 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
2800 MHz
|
Design Kit
–
|
|
||
|
7447820075
|
7.5 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
7.5 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.41 Ω
|
Rated Current
240 mA
|
Self Resonant Frequency
3600 MHz
|
Design Kit
|
|
|
|
7447840075
|
7.5 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
7.5 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.31 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
4200 MHz
|
Design Kit
|
|
|
|
7447820075G
|
7.5 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
7.5 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.41 Ω
|
Rated Current
240 mA
|
Self Resonant Frequency
3600 MHz
|
Design Kit
|
|
||
|
7447840075G
|
7.5 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
7.5 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.31 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
4200 MHz
|
|
|||
|
7447820082
|
8.2 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
8.2 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.45 Ω
|
Rated Current
230 mA
|
Self Resonant Frequency
3400 MHz
|
Design Kit
|
|
|
|
7447840082
|
8.2 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
8.2 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.33 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
3600 MHz
|
Design Kit
|
|
|
|
7447860082
|
8.2 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
8.2 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
10
|
Q-Factor
100 MHz
|
DC Resistance
0.16 Ω
|
Rated Current
650 mA
|
Self Resonant Frequency
3500 MHz
|
Design Kit
|
|
|
|
7447820082G
|
8.2 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
8.2 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.45 Ω
|
Rated Current
230 mA
|
Self Resonant Frequency
3400 MHz
|
Design Kit
|
|
||
|
7447840082G
|
8.2 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
8.2 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.33 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
3600 MHz
|
|
|||
|
7447860082G
|
8.2 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
8.2 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
10
|
Q-Factor
100 MHz
|
DC Resistance
0.16 Ω
|
Rated Current
650 mA
|
Self Resonant Frequency
3500 MHz
|
Design Kit
|
|
||
|
7447880082
|
8.2 nH, ±5%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
8.2 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
15
|
Q-Factor
100 MHz
|
DC Resistance
0.28 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
2400 MHz
|
Design Kit
–
|
|
||
|
7447820091
|
9.1 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
9.1 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.48 Ω
|
Rated Current
220 mA
|
Self Resonant Frequency
3200 MHz
|
Design Kit
|
|
|
|
7447820091G
|
9.1 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
9.1 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.48 Ω
|
Rated Current
220 mA
|
Self Resonant Frequency
3200 MHz
|
Design Kit
|
|
||
|
7447820110
|
10 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
10 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.51 Ω
|
Rated Current
220 mA
|
Self Resonant Frequency
2900 MHz
|
Design Kit
|
|
|
|
7447840110
|
10 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
10 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.35 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
3200 MHz
|
Design Kit
|
|
|
|
7447860110
|
10 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
10 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.24 Ω
|
Rated Current
550 mA
|
Self Resonant Frequency
3400 MHz
|
Design Kit
|
|
|
|
7447820110G
|
10 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
10 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.51 Ω
|
Rated Current
220 mA
|
Self Resonant Frequency
2900 MHz
|
Design Kit
|
|
||
|
7447840110G
|
10 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
10 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.35 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
3200 MHz
|
|
|||
|
7447860110G
|
10 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
10 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.24 Ω
|
Rated Current
550 mA
|
Self Resonant Frequency
3400 MHz
|
Design Kit
|
|
||
|
7447880110
|
10 nH, ±5%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
10 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
15
|
Q-Factor
100 MHz
|
DC Resistance
0.3 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
2100 MHz
|
Design Kit
–
|
|
||
|
7447820112
|
12 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
12 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.68 Ω
|
Rated Current
190 mA
|
Self Resonant Frequency
2700 MHz
|
Design Kit
|
|
|
|
7447840112
|
12 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
12 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.41 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
2800 MHz
|
Design Kit
|
|
|
|
7447860112
|
12 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
12 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.24 Ω
|
Rated Current
550 mA
|
Self Resonant Frequency
2600 MHz
|
Design Kit
|
|
|
|
7447820112G
|
12 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
12 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.68 Ω
|
Rated Current
190 mA
|
Self Resonant Frequency
2700 MHz
|
Design Kit
|
|
||
|
7447840112G
|
12 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
12 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.41 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
2800 MHz
|
|
|||
|
7447860112G
|
12 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
12 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.24 Ω
|
Rated Current
550 mA
|
Self Resonant Frequency
2600 MHz
|
Design Kit
|
|
||
|
7447820115
|
15 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
15 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.71 Ω
|
Rated Current
180 mA
|
Self Resonant Frequency
2300 MHz
|
Design Kit
|
|
|
|
7447840115
|
15 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
15 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.46 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
2300 MHz
|
Design Kit
|
|
|
|
7447860115
|
15 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
15 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.24 Ω
|
Rated Current
550 mA
|
Self Resonant Frequency
2300 MHz
|
Design Kit
|
|
|
|
7447820115G
|
15 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
15 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.71 Ω
|
Rated Current
180 mA
|
Self Resonant Frequency
2300 MHz
|
Design Kit
|
|
||
|
7447840115G
|
15 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
15 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.46 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
2300 MHz
|
|
|||
|
7447860115G
|
15 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
15 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.24 Ω
|
Rated Current
550 mA
|
Self Resonant Frequency
2300 MHz
|
Design Kit
|
|
||
|
7447860118
|
18 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
18 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.24 Ω
|
Rated Current
550 mA
|
Self Resonant Frequency
2000 MHz
|
Design Kit
|
|
|
|
7447820118
|
18 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
18 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.81 Ω
|
Rated Current
170 mA
|
Self Resonant Frequency
2100 MHz
|
Design Kit
|
|
|
|
7447840118
|
18 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
18 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.51 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
2100 MHz
|
Design Kit
|
|
|
|
7447820118G
|
18 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
18 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
0.81 Ω
|
Rated Current
170 mA
|
Self Resonant Frequency
2100 MHz
|
Design Kit
|
|
||
|
7447840118G
|
18 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
18 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.51 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
2100 MHz
|
|
|||
|
7447860118G
|
18 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
18 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.24 Ω
|
Rated Current
550 mA
|
Self Resonant Frequency
2000 MHz
|
Design Kit
|
|
||
|
7447820122
|
22 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
22 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
1 Ω
|
Rated Current
150 mA
|
Self Resonant Frequency
1800 MHz
|
Design Kit
|
|
|
|
7447840122
|
22 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
22 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.58 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
1800 MHz
|
Design Kit
|
|
|
|
7447860122
|
22 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
22 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.34 Ω
|
Rated Current
500 mA
|
Self Resonant Frequency
1600 MHz
|
Design Kit
|
|
|
|
7447820122G
|
22 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
22 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
1 Ω
|
Rated Current
150 mA
|
Self Resonant Frequency
1800 MHz
|
Design Kit
|
|
||
|
7447840122G
|
22 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
22 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.58 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
1800 MHz
|
|
|||
|
7447860122G
|
22 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
22 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.34 Ω
|
Rated Current
500 mA
|
Self Resonant Frequency
1600 MHz
|
Design Kit
|
|
||
|
7447820127
|
27 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
27 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
1.35 Ω
|
Rated Current
120 mA
|
Self Resonant Frequency
1800 MHz
|
Design Kit
|
|
|
|
7447840127
|
27 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
27 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.67 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
1600 MHz
|
Design Kit
|
|
|
|
7447860127
|
27 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
27 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.34 Ω
|
Rated Current
500 mA
|
Self Resonant Frequency
1400 MHz
|
Design Kit
|
|
|
|
7447820127G
|
27 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
27 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
1.35 Ω
|
Rated Current
120 mA
|
Self Resonant Frequency
1800 MHz
|
Design Kit
|
|
||
|
7447840127G
|
27 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
27 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.67 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
1600 MHz
|
|
|||
|
7447860127G
|
27 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
27 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.34 Ω
|
Rated Current
500 mA
|
Self Resonant Frequency
1400 MHz
|
Design Kit
|
|
||
|
7447880127
|
27 nH, ±5%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
27 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
18
|
Q-Factor
100 MHz
|
DC Resistance
0.55 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
1300 MHz
|
Design Kit
–
|
|
||
|
7447820133
|
33 nH, ±5%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
33 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
1.5 Ω
|
Rated Current
110 mA
|
Self Resonant Frequency
1700 MHz
|
Design Kit
|
|
||
|
7447840133
|
33 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
33 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.67 Ω
|
Rated Current
200 mA
|
Self Resonant Frequency
1500 MHz
|
Design Kit
|
|
|
|
7447860133
|
33 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
33 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.45 Ω
|
Rated Current
400 mA
|
Self Resonant Frequency
1200 MHz
|
Design Kit
|
|
|
|
7447820133G
|
33 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
33 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
4
|
Q-Factor
100 MHz
|
DC Resistance
1.5 Ω
|
Rated Current
110 mA
|
Self Resonant Frequency
1700 MHz
|
Design Kit
|
|
||
|
7447840133G
|
33 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
33 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
0.67 Ω
|
Rated Current
200 mA
|
Self Resonant Frequency
1500 MHz
|
|
|||
|
7447860133G
|
33 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
33 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.45 Ω
|
Rated Current
400 mA
|
Self Resonant Frequency
1200 MHz
|
Design Kit
|
|
||
|
7447880133
|
33 nH, ±5%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
33 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
18
|
Q-Factor
100 MHz
|
DC Resistance
0.6 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
1200 MHz
|
Design Kit
–
|
|
||
|
7447840139
|
39 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
39 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
1.06 Ω
|
Rated Current
200 mA
|
Self Resonant Frequency
1200 MHz
|
Design Kit
|
|
|
|
7447860139
|
39 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
39 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.45 Ω
|
Rated Current
400 mA
|
Self Resonant Frequency
1100 MHz
|
Design Kit
|
|
|
|
7447840139G
|
39 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
39 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
1.06 Ω
|
Rated Current
200 mA
|
Self Resonant Frequency
1200 MHz
|
|
|||
|
7447860139G
|
39 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
39 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.45 Ω
|
Rated Current
400 mA
|
Self Resonant Frequency
1100 MHz
|
Design Kit
|
|
||
|
7447840147
|
47 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
47 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
1.15 Ω
|
Rated Current
200 mA
|
Self Resonant Frequency
1000 MHz
|
Design Kit
|
|
|
|
7447860147
|
47 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
47 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.65 Ω
|
Rated Current
350 mA
|
Self Resonant Frequency
900 MHz
|
Design Kit
|
|
|
|
7447840147G
|
47 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
47 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
1.15 Ω
|
Rated Current
200 mA
|
Self Resonant Frequency
1000 MHz
|
|
|||
|
7447860147G
|
47 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
47 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.65 Ω
|
Rated Current
350 mA
|
Self Resonant Frequency
900 MHz
|
Design Kit
|
|
||
|
7447840156
|
56 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
56 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
1.2 Ω
|
Rated Current
200 mA
|
Self Resonant Frequency
800 MHz
|
Design Kit
|
|
|
|
7447860156
|
56 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
56 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.65 Ω
|
Rated Current
350 mA
|
Self Resonant Frequency
900 MHz
|
Design Kit
|
|
|
|
7447840156G
|
56 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
56 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
1.2 Ω
|
Rated Current
200 mA
|
Self Resonant Frequency
800 MHz
|
|
|||
|
7447860156G
|
56 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
56 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.65 Ω
|
Rated Current
350 mA
|
Self Resonant Frequency
900 MHz
|
Design Kit
|
|
||
|
7447880156
|
56 nH, ±5%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
56 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
18
|
Q-Factor
100 MHz
|
DC Resistance
0.75 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
800 MHz
|
Design Kit
–
|
|
||
|
7447840168
|
68 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
68 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
1.25 Ω
|
Rated Current
180 mA
|
Self Resonant Frequency
800 MHz
|
Design Kit
|
|
|
|
7447860168
|
68 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
68 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.65 Ω
|
Rated Current
350 mA
|
Self Resonant Frequency
700 MHz
|
Design Kit
|
|
|
|
7447840168G
|
68 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
68 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
1.25 Ω
|
Rated Current
180 mA
|
Self Resonant Frequency
800 MHz
|
|
|||
|
7447860168G
|
68 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
68 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.65 Ω
|
Rated Current
350 mA
|
Self Resonant Frequency
700 MHz
|
Design Kit
|
|
||
|
7447840182
|
82 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
82 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
1.6 Ω
|
Rated Current
150 mA
|
Self Resonant Frequency
600 MHz
|
Design Kit
|
|
|
|
7447860182
|
82 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
82 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.85 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
600 MHz
|
Design Kit
|
|
|
|
7447840182G
|
82 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
82 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
1.6 Ω
|
Rated Current
150 mA
|
Self Resonant Frequency
600 MHz
|
|
|||
|
7447860182G
|
82 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
82 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.85 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
600 MHz
|
Design Kit
|
|
||
|
7447840210
|
100 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
100 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
1.6 Ω
|
Rated Current
150 mA
|
Self Resonant Frequency
600 MHz
|
Design Kit
|
|
|
|
7447860210
|
100 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
100 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.85 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
600 MHz
|
Design Kit
|
|
|
|
7447840210G
|
100 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
100 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
1.6 Ω
|
Rated Current
150 mA
|
Self Resonant Frequency
600 MHz
|
|
|||
|
7447860210G
|
100 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
100 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
12
|
Q-Factor
100 MHz
|
DC Resistance
0.85 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
600 MHz
|
Design Kit
|
|
||
|
7447880210
|
100 nH, ±5%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
100 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
18
|
Q-Factor
100 MHz
|
DC Resistance
0.9 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
600 MHz
|
Design Kit
–
|
|
||
|
7447840212
|
120 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
120 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
1.6 Ω
|
Rated Current
150 mA
|
Self Resonant Frequency
600 MHz
|
Design Kit
|
|
|
|
7447860212
|
120 nH, ±5%, 50 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
120 nH
|
Inductance
±5%
|
Inductance
50 MHz
|
Q-Factor
8
|
Q-Factor
50 MHz
|
DC Resistance
0.85 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
500 MHz
|
Design Kit
|
|
|
|
7447840212G
|
120 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
120 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
1.6 Ω
|
Rated Current
150 mA
|
Self Resonant Frequency
600 MHz
|
Design Kit
|
|
||
|
7447860212G
|
120 nH, ±2%, 50 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
120 nH
|
Inductance
±2%
|
Inductance
50 MHz
|
Q-Factor
8
|
Q-Factor
50 MHz
|
DC Resistance
0.85 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
500 MHz
|
Design Kit
|
|
||
|
7447880212
|
120 nH, ±5%, 50 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
120 nH
|
Inductance
±5%
|
Inductance
50 MHz
|
Q-Factor
13
|
Q-Factor
50 MHz
|
DC Resistance
0.95 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
500 MHz
|
Design Kit
–
|
|
||
|
7447840215
|
150 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
150 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
2.99 Ω
|
Rated Current
140 mA
|
Self Resonant Frequency
500 MHz
|
Design Kit
|
|
|
|
7447860215
|
150 nH, ±5%, 50 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
150 nH
|
Inductance
±5%
|
Inductance
50 MHz
|
Q-Factor
8
|
Q-Factor
50 MHz
|
DC Resistance
1.2 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
500 MHz
|
Design Kit
|
|
|
|
7447840215G
|
150 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
150 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
2.99 Ω
|
Rated Current
140 mA
|
Self Resonant Frequency
500 MHz
|
Design Kit
|
|
||
|
7447860215G
|
150 nH, ±2%, 50 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
150 nH
|
Inductance
±2%
|
Inductance
50 MHz
|
Q-Factor
8
|
Q-Factor
50 MHz
|
DC Resistance
1.2 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
500 MHz
|
Design Kit
|
|
||
|
7447840218
|
180 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
180 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
3.38 Ω
|
Rated Current
150 mA
|
Self Resonant Frequency
500 MHz
|
Design Kit
|
|
|
|
7447860218
|
180 nH, ±5%, 50 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
180 nH
|
Inductance
±5%
|
Inductance
50 MHz
|
Q-Factor
8
|
Q-Factor
50 MHz
|
DC Resistance
1.2 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
400 MHz
|
Design Kit
|
|
|
|
7447840218G
|
180 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
180 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
3.38 Ω
|
Rated Current
150 mA
|
Self Resonant Frequency
500 MHz
|
Design Kit
|
|
||
|
7447860218G
|
180 nH, ±2%, 50 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
180 nH
|
Inductance
±2%
|
Inductance
50 MHz
|
Q-Factor
8
|
Q-Factor
50 MHz
|
DC Resistance
1.2 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
400 MHz
|
Design Kit
|
|
||
|
7447840222
|
220 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
220 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
3.77 Ω
|
Rated Current
120 mA
|
Self Resonant Frequency
500 MHz
|
Design Kit
|
|
|
|
7447860222
|
220 nH, ±5%, 50 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
220 nH
|
Inductance
±5%
|
Inductance
50 MHz
|
Q-Factor
8
|
Q-Factor
50 MHz
|
DC Resistance
1.2 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
400 MHz
|
Design Kit
|
|
|
|
7447840222G
|
220 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
220 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
3.77 Ω
|
Rated Current
120 mA
|
Self Resonant Frequency
500 MHz
|
Design Kit
|
|
||
|
7447860222G
|
220 nH, ±2%, 50 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
220 nH
|
Inductance
±2%
|
Inductance
50 MHz
|
Q-Factor
8
|
Q-Factor
50 MHz
|
DC Resistance
1.2 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
400 MHz
|
Design Kit
|
|
||
|
7447880222
|
220 nH, ±5%, 50 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
220 nH
|
Inductance
±5%
|
Inductance
50 MHz
|
Q-Factor
12
|
Q-Factor
50 MHz
|
DC Resistance
1.2 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
350 MHz
|
Design Kit
–
|
|
||
|
7447840227
|
270 nH, ±5%, 100 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
270 nH
|
Inductance
±5%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
4.9 Ω
|
Rated Current
110 mA
|
Self Resonant Frequency
500 MHz
|
Design Kit
|
|
|
|
7447860227
|
270 nH, ±5%, 50 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
270 nH
|
Inductance
±5%
|
Inductance
50 MHz
|
Q-Factor
8
|
Q-Factor
50 MHz
|
DC Resistance
1.9 Ω
|
Rated Current
250 mA
|
Self Resonant Frequency
400 MHz
|
Design Kit
|
|
|
|
7447840227G
|
270 nH, ±2%, 100 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
270 nH
|
Inductance
±2%
|
Inductance
100 MHz
|
Q-Factor
8
|
Q-Factor
100 MHz
|
DC Resistance
4.9 Ω
|
Rated Current
110 mA
|
Self Resonant Frequency
500 MHz
|
Design Kit
|
|
||
|
7447860227G
|
270 nH, ±2%, 50 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
270 nH
|
Inductance
±2%
|
Inductance
50 MHz
|
Q-Factor
8
|
Q-Factor
50 MHz
|
DC Resistance
1.9 Ω
|
Rated Current
250 mA
|
Self Resonant Frequency
400 MHz
|
Design Kit
|
|
||
|
7447860233
|
330 nH, ±5%, 50 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
330 nH
|
Inductance
±5%
|
Inductance
50 MHz
|
Q-Factor
8
|
Q-Factor
50 MHz
|
DC Resistance
1.9 Ω
|
Rated Current
250 mA
|
Self Resonant Frequency
350 MHz
|
Design Kit
|
|
|
|
7447860233G
|
330 nH, ±2%, 50 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
330 nH
|
Inductance
±2%
|
Inductance
50 MHz
|
Q-Factor
8
|
Q-Factor
50 MHz
|
DC Resistance
1.9 Ω
|
Rated Current
250 mA
|
Self Resonant Frequency
350 MHz
|
Design Kit
|
|
||
|
7447860239
|
390 nH, ±5%, 50 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
390 nH
|
Inductance
±5%
|
Inductance
50 MHz
|
Q-Factor
8
|
Q-Factor
50 MHz
|
DC Resistance
2.3 Ω
|
Rated Current
150 mA
|
Self Resonant Frequency
350 MHz
|
Design Kit
|
|
|
|
7447860239G
|
390 nH, ±2%, 50 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
390 nH
|
Inductance
±2%
|
Inductance
50 MHz
|
Q-Factor
8
|
Q-Factor
50 MHz
|
DC Resistance
2.3 Ω
|
Rated Current
150 mA
|
Self Resonant Frequency
350 MHz
|
Design Kit
|
|
||
|
7447860243
|
430 nH, ±5%, 50 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
430 nH
|
Inductance
±5%
|
Inductance
50 MHz
|
Q-Factor
8
|
Q-Factor
50 MHz
|
DC Resistance
2.5 Ω
|
Rated Current
150 mA
|
Self Resonant Frequency
300 MHz
|
Design Kit
|
|
|
|
7447860243G
|
430 nH, ±2%, 50 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
430 nH
|
Inductance
±2%
|
Inductance
50 MHz
|
Q-Factor
8
|
Q-Factor
50 MHz
|
DC Resistance
2.5 Ω
|
Rated Current
150 mA
|
Self Resonant Frequency
300 MHz
|
Design Kit
|
|
||
|
7447860247
|
470 nH, ±5%, 50 MHz |
Downloads
12 files
RF & Microwave simulation models
Download all 12 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
470 nH
|
Inductance
±5%
|
Inductance
50 MHz
|
Q-Factor
8
|
Q-Factor
50 MHz
|
DC Resistance
2.5 Ω
|
Rated Current
150 mA
|
Self Resonant Frequency
300 MHz
|
Design Kit
|
|
|
|
7447860247G
|
470 nH, ±2%, 50 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
470 nH
|
Inductance
±2%
|
Inductance
50 MHz
|
Q-Factor
8
|
Q-Factor
50 MHz
|
DC Resistance
2.5 Ω
|
Rated Current
150 mA
|
Self Resonant Frequency
300 MHz
|
Design Kit
|
|
||
|
7447880247
|
470 nH, ±5%, 50 MHz |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Inductance
470 nH
|
Inductance
±5%
|
Inductance
50 MHz
|
Q-Factor
10
|
Q-Factor
50 MHz
|
DC Resistance
2 Ω
|
Rated Current
300 mA
|
Self Resonant Frequency
200 MHz
|
Design Kit
–
|
|
Würth Elektronik offers several product series with different construction technology
RF Inductors selection guide
WE-KI SMT Wire Wound Ceramic Inductor
- Inductance values from 1nH up to 1800nH
- High Q factor
- Up to 12.5GHz self resonant frequency
- Up to ± 2% inductance tolerance
- High thermal stability
- Design Kits available for the different sizes
WE-KI High Current Wire Wound Ceramic Inductor
- Inductance values from 1nH up to 390nH
- Excellent Q factor
- High current up to 2.3 A
- ± 2% Inductance Tolerance
- High thermal stability
- Design Kit available
WE-MK Multilayer Ceramic Inductor
- Inductance values from 1nH up to 470nH
- Extremly small size (up to 0201)
- Up to ±2% (or ±0.1nH) inductance tolerance
- Robust structure
- Polarity marking available
- Design Kits available for the different sizes
- High thermal stability
WE-CAIR Air Core Inductor
- Inductance values from 1.65nH up to 538nH
- Extremly high Q factor (Q>100)
- Very high current up to 4 A
- High self resonant frequency
- Design Kit available
- High thermal stability
WE-TCI Thin Film Inductor
- Inductance values from 1nH up to 27nH
- High self resonant frequency
- Tight tolerance of 2 % (1% on request) or ± 0.1
- Very small size (up to 0201)
WE-RFI Wire Wound ferrite inductor
- High inductance values available from 20 nH up to 47 µH
- Operating temperature:–40 °C to +85 °C
- Size: 0402 to 1008
- Design Kit available
What is the Quality Factor Q?
What is the Quality Factor Q?
The quality factor Q is an essential characteristic parameter and one of the first creterias that every RF engineer should take into account. The Q factor is given either as minimum or as typical value at a defined frequency point. In the case of Würth Elektronik, the Q factor is given as the minimum value in order to guarantee customers a reliable minimum level.
Basically, the Q factor is the ratio between the inductive reactance XL and the losses RS and is an indicator of how ideal an inductor is. For inductors with air or ceramic cores, the resistance RS is mainly due to the resistivity of the conductor in the inductor device. A higher Q factor means less losses in the component.
Self Resonant Frequency
Self Resonant Frequency
Because the winding structure of any coil of wire will exhibit some capacitance, the inductor will serve as a parallel resonant tank circuit with an associated self-resonance frequency (SRF). As with conventional inductors, SRF indicates up to which frequency the inductor behaves as an inductor.
Exactly at the SRF the inductor with its parasitic capacitance behaves as a resonance circuit with an almost infinite high impedance, only circuit losses limit the high value of the impedance. Beyond the SRF the “inductor” behaves like a capacitor
Increasing the inductance and/or the parasitic capacitance lowers the SRF, and vice versa. This is the reason why the higher the inductance value, the lower the SRF.
In case of choke applications in which inductors are used, the best signal blocking occurs shortly below the SRF, where the impedance is very high and thus the attenuation reaches its maximum. For filter or impedance-matching applications, it is more important to have constant inductance in the relevant frequency range, which means the SRF of the inductor should be well above the operating frequency of the circuit.
Rated Current in high frequency application
Rated Current in high frequency application
The rated current is specified as the maximum DC current (A or mA) that causes a defined temperature rise (i.e. ΔT = 40 K). The temperature rise plus the ambient temperature must not exceed the maximum operating temperature. For high current applications, please select the specific air core inductors: WE-KI HC, WE-ACHC and WE-CAIR.
RF inductors and Antenna Matching
How Antenna Matching works
RF inductors and Antenna Matching
How Antenna Matching works
With the help of the Smith chart, the complex antenna feed point impedance, consisting of resistive and reactive values, can be represented graphically. In a matched antenna, the impedance at the operating frequency is close to the middle of the Smith chart and therefore close to the impedance of 50 Ω. This can be achieved by using RF inductors and RF capacitors. A pi matching network is particularly useful for this purpose, since it can be used flexibly for antenna matching from almost any other impedance. In practice, antenna matching works through iterative steps.
In addition to the WE-MCA Antennas, we offer our customers a development-accompanying antenna service. We support from the antenna selection over the antenna placement up to the antenna matching.
Website: www.we-online.com/antennamatching
E-Mail: antenna.matching@we-online.com
We are also offering an Antenna Matching Design Kit that contains all the components needed for your antenna matching. This Design Kit with order code 748001, contains chip antennas WE-MCA, multilayer ceramic inductors WE-MK size 0402, high frequency chip capacitors WCAP-CSRF in size 0402 and RF coaxial cables WR-CXARY working up to 18 GHz
PERFORMANCE. RELIABILITY. SERVICE.
Optocoupler by Würth Elektronik
PERFORMANCE. RELIABILITY. SERVICE.
Optocoupler by Würth Elektronik
With the new optocouplers, Würth Elektronik presents one of the latest additions to its optoelectronic product portfolio. The innovative design features a coplanar structure and high-grade silicon for total internal reflection. This ensures the isolation gap stay fixed during the production process and provide perfect isolation and protection for your application. The total internal reflection provide stable CTR over the whole temperature range and high CTR even at low current operation.
Provided in all industry standard packages. Available with all binnings ex stock. Samples free of charge.
Suitable for
Assortments
Articles from this product series can be found in the following assortments:
Design Kit WE-MK SMT Multilayer Ceramic Inductor 0201 - ±5% Tol.
Design Kit WE-MK SMT Multilayer Ceramic Inductor 0402 - ±5% Tol.
Design Kit WE-MK SMT Multilayer Ceramic Inductor 0603 - ±5% Tol.
Design Kit Antenna Matching
Design Kit WE-MK SMT Multilayer Ceramic Inductor 0603 - ±2% Tol.
Design Kit WE-MK SMT Multilayer Ceramic Inductor 0201 - ±2% Tol.
Design Kit WE-MK SMT Multilayer Ceramic Inductor 0402 - ±2% Tol.
