| Size | Dimensions | Material | |
|---|---|---|---|
| Square | Polyether Urethane Foam | ||
| D-Profile | Polyether Urethane Foam | ||
| C-Profile | Polyether Urethane Foam | ||
| P-Profile | Polyether Urethane Foam | ||
| KnifeEdge-Profile | Polyether Urethane Foam | ||
| L-Profile | Polyether Urethane Foam | ||
| M-Profile | Polyether Urethane Foam |
Characteristics

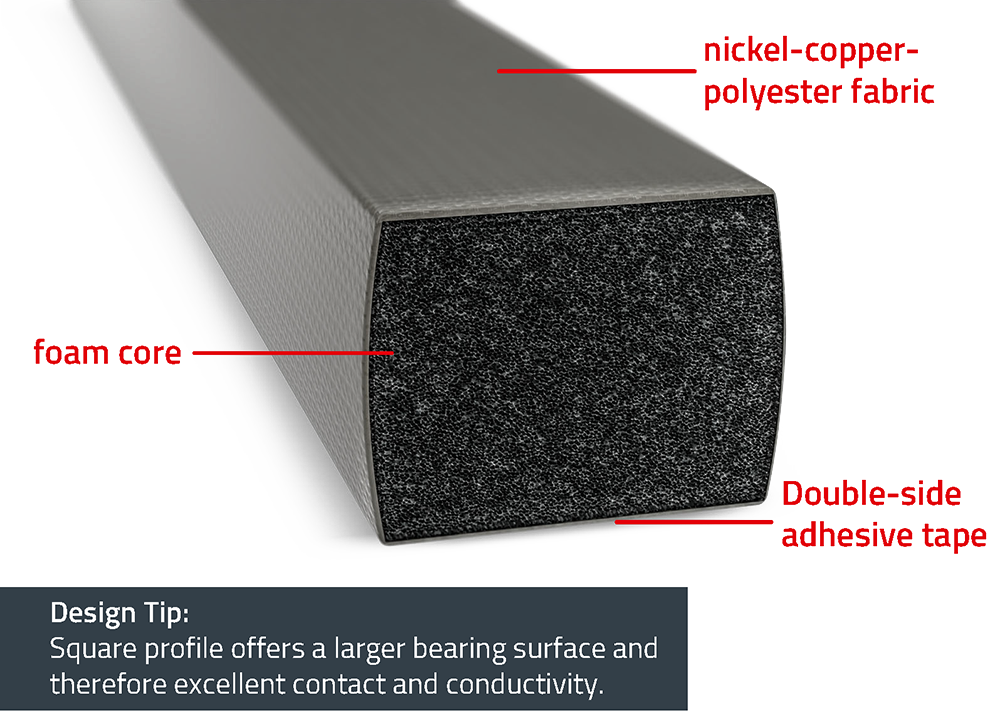

- Centered, double-sided adhesive tape with removable tape for easy mounting
- Shielding of over 80 dB @ 100 MHz can be reached
- Typical surface resistance far below 8 mΩ
- Flammability class: UL-94 V0
- IP54 protection against dust and splashed water
- Various profiles ex stock or customizable products available. Request now! Request for customized components WE-LT
Applications
- Displays
- Metal housings
- Switching cabinets
- Depending on the application an IP54 protection
class could be reached, that means by the use of the
shielding gasket a protection against dust (index 5)
and protection against splashed water (index 4)
could be offered
Products
All
Square
D-Profile
C-Profile
P-Profile
KnifeEdge-Profile
L-Profile
M-Profile
| Order Code | Datasheet | Simulation | Downloads | Status | L (mm) | W (mm) | H (mm) | Shielding Effectiveness @ 100 MHz (dB) | Shielding Effectiveness @ 1 GHz (dB) | RS (Ω) | Material | Alpha-Rack | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 3020202 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 2 | 2 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020301 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 3 | 1 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020302 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 3 | 2 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020303 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 3 | 3 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020401 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 4 | 1 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020402 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 4 | 2 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020403 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 4 | 3 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 30205005 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 5 | 0.5 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020501 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 5 | 1 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 30205015 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 5 | 1.5 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020502 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 5 | 2 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020503 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 5 | 3 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020504 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 5 | 4 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020505 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 5 | 5 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020601 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 6 | 1 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020602 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 6 | 2 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 30206025 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 6 | 2.5 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020603 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 6 | 3 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020604 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 6 | 4 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020605 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 6 | 5 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020606 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 6 | 6 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020607 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 6 | 7 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020608 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 6 | 8 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 302064032 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 6.4 | 3.2 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 302064064 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 6.4 | 6.4 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020701 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 7 | 1 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020702 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 7 | 2 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 30207032 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 7 | 3.2 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020705 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 7 | 5 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020706 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 7 | 6 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020707 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 7 | 7 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020802 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 8 | 2 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020803 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 8 | 3 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020804 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 8 | 4 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020805 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 8 | 5 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020808 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 8 | 8 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020812 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 8 | 12 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020903 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 9 | 3 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020905 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 9 | 5 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020906 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 9 | 6 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020907 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 9 | 7 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3020909 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 9 | 9 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 302095032 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 9.5 | 3.2 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3029564 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 9.5 | 6.4 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 302095095 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 9.5 | 9.5 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 30210005 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 10 | 0.5 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021001 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 10 | 1 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021002 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 10 | 2 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021003 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 10 | 3 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021004 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 10 | 4 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021005 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 10 | 5 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021007 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 10 | 7 | 80 | 86 | 0.08 | Polyether Urethane Foam | 742707004 | ||
| 3021008 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 10 | 8 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021010 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 10 | 10 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021012 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 10 | 12 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021013 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 10 | 13 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021015 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 10 | 15 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021025 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 10 | 25 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021030 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 10 | 30 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 302105115 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 10.5 | 11.5 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 302115105 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 11.5 | 10.5 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 30213064 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 12 | 6.4 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 30213095 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 12 | 9.5 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021210 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 12 | 10 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021313 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 13 | 13 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021213 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 12 | 13 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021301 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 13 | 1 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021302 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 13 | 2 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021303 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 13 | 3 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021305 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 13 | 5 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021307 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 13 | 7 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021310 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 13 | 10 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021414 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 14 | 14 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021504 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 15 | 4 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021508 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 15 | 8 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021510 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 15 | 10 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021707 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 17 | 7 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3021717 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 17 | 17 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3022010 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 20 | 10 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3022104 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 21 | 4 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3022202 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 22 | 2 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3022303 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 23 | 3 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 30225015 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 25 | 1.5 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3022510 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 25 | 10 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3023002 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 30 | 2 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3023502 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 35 | 2 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3024502 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 45 | 2 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3025602 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 56 | 2 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
 | 30302015 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 2 | 1.5 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 3030202 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 2 | 2 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 30323231 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 2.3 | 2.3 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 3030303 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 3 | 3 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 303035015 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 3.5 | 1.5 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 303038023 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 3.8 | 2.3 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 3030403 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 3.8 | 3 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 30304031 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 4 | 3 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 303045018 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 4.5 | 1.8 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 3030602 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 6 | 2 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 3030604 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 6 | 4 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 3030605 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 6 | 5 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 303064032 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 6.4 | 3.2 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 30364361 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 6.4 | 3.6 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 30307025 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 7 | 2.5 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 303076016 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 7.6 | 1.6 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 303076048 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 7.6 | 4.8 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 3030804 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 8 | 4 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 30308055 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 8 | 5.5 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 3030806 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 8 | 6 | 80 | 75 | 0.08 | Polyether Urethane Foam | 742707004 | ||
| 303085035 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 8.5 | 3.5 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 3030903 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 9 | 3 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 30395641 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 9.5 | 6.4 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 3031004 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 10 | 4 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 3031007 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 10 | 7 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 3031008 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 10 | 8 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 3031010 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 10 | 10 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 3031018 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 10 | 18 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 3031210 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 12 | 10 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 3031313 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 12.7 | 12.7 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
 | 30906035 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 6 | 3.5 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3090606 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 6 | 6 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3091010 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 10 | 10 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3091009 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 10.7 | 9.8 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3091111 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 11 | 11 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
| 3091418 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 14.7 | 17.9 | 80 | 86 | 0.08 | Polyether Urethane Foam | – | ||
 | 3080803 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 8 | 3 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 3081710 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 17 | 10 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 3081804 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 18 | 4 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 30818045 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 18 | 4.5 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 30829048 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 29 | 4.8 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
 | 38008027 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 8 | 2.7 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 38111023 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 11.3 | 2.3 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
| 38111027 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 11.3 | 2.7 | 80 | 75 | 0.08 | Polyether Urethane Foam | 742707004 | ||
 | 38205603 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 5.6 | 3 | 80 | 75 | 0.08 | Polyether Urethane Foam | – | ||
 | 38313095 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 12.7 | 9.5 | 80 | 75 | 0.08 | Polyether Urethane Foam | – |
| Order Code | Datasheet | Simulation | |
|---|---|---|---|
| 3020202 | SPEC | |
| 3020301 | SPEC | |
| 3020302 | SPEC | |
| 3020303 | SPEC | |
| 3020401 | SPEC | |
| 3020402 | SPEC | |
| 3020403 | SPEC | |
| 30205005 | SPEC | |
| 3020501 | SPEC | |
| 30205015 | SPEC | |
| 3020502 | SPEC | |
| 3020503 | SPEC | |
| 3020504 | SPEC | |
| 3020505 | SPEC | |
| 3020601 | SPEC | |
| 3020602 | SPEC | |
| 30206025 | SPEC | |
| 3020603 | SPEC | |
| 3020604 | SPEC | |
| 3020605 | SPEC | |
| 3020606 | SPEC | |
| 3020607 | SPEC | |
| 3020608 | SPEC | |
| 302064032 | SPEC | |
| 302064064 | SPEC | |
| 3020701 | SPEC | |
| 3020702 | SPEC | |
| 30207032 | SPEC | |
| 3020705 | SPEC | |
| 3020706 | SPEC | |
| 3020707 | SPEC | |
| 3020802 | SPEC | |
| 3020803 | SPEC | |
| 3020804 | SPEC | |
| 3020805 | SPEC | |
| 3020808 | SPEC | |
| 3020812 | SPEC | |
| 3020903 | SPEC | |
| 3020905 | SPEC | |
| 3020906 | SPEC | |
| 3020907 | SPEC | |
| 3020909 | SPEC | |
| 302095032 | SPEC | |
| 3029564 | SPEC | |
| 302095095 | SPEC | |
| 30210005 | SPEC | |
| 3021001 | SPEC | |
| 3021002 | SPEC | |
| 3021003 | SPEC | |
| 3021004 | SPEC | |
| 3021005 | SPEC | |
| 3021007 | SPEC | |
| 3021008 | SPEC | |
| 3021010 | SPEC | |
| 3021012 | SPEC | |
| 3021013 | SPEC | |
| 3021015 | SPEC | |
| 3021025 | SPEC | |
| 3021030 | SPEC | |
| 302105115 | SPEC | |
| 302115105 | SPEC | |
| 30213064 | SPEC | |
| 30213095 | SPEC | |
| 3021210 | SPEC | |
| 3021313 | SPEC | |
| 3021213 | SPEC | |
| 3021301 | SPEC | |
| 3021302 | SPEC | |
| 3021303 | SPEC | |
| 3021305 | SPEC | |
| 3021307 | SPEC | |
| 3021310 | SPEC | |
| 3021414 | SPEC | |
| 3021504 | SPEC | |
| 3021508 | SPEC | |
| 3021510 | SPEC | |
| 3021707 | SPEC | |
| 3021717 | SPEC | |
| 3022010 | SPEC | |
| 3022104 | SPEC | |
| 3022202 | SPEC | |
| 3022303 | SPEC | |
| 30225015 | SPEC | |
| 3022510 | SPEC | |
| 3023002 | SPEC | |
| 3023502 | SPEC | |
| 3024502 | SPEC | |
| 3025602 | SPEC | |
| 30302015 | SPEC | |
| 3030202 | SPEC | |
| 30323231 | SPEC | |
| 3030303 | SPEC | |
| 303035015 | SPEC | |
| 303038023 | SPEC | |
| 3030403 | SPEC | |
| 30304031 | SPEC | |
| 303045018 | SPEC | |
| 3030602 | SPEC | |
| 3030604 | SPEC | |
| 3030605 | SPEC | |
| 303064032 | SPEC | |
| 30364361 | SPEC | |
| 30307025 | SPEC | |
| 303076016 | SPEC | |
| 303076048 | SPEC | |
| 3030804 | SPEC | |
| 30308055 | SPEC | |
| 3030806 | SPEC | |
| 303085035 | SPEC | |
| 3030903 | SPEC | |
| 30395641 | SPEC | |
| 3031004 | SPEC | |
| 3031007 | SPEC | |
| 3031008 | SPEC | |
| 3031010 | SPEC | |
| 3031018 | SPEC | |
| 3031210 | SPEC | |
| 3031313 | SPEC | |
| 30906035 | SPEC | |
| 3090606 | SPEC | |
| 3091010 | SPEC | |
| 3091009 | SPEC | |
| 3091111 | SPEC | |
| 3091418 | SPEC | |
| 3080803 | SPEC | |
| 3081710 | SPEC | |
| 3081804 | SPEC | |
| 30818045 | SPEC | |
| 30829048 | SPEC | |
| 38008027 | SPEC | |
| 38111023 | SPEC | |
| 38111027 | SPEC | |
| 38205603 | SPEC | |
| 38313095 | SPEC |
| Samples |
|---|
| Order Code | Datasheet | Simulation | Downloads | Status | L (mm) | W (mm) | H (mm) | Shielding Effectiveness @ 100 MHz (dB) | Shielding Effectiveness @ 1 GHz (dB) | RS (Ω) | Material | Alpha-Rack | Samples |
|---|
WE-LT Conductive Shielding Gasket
WE-LT Conductive Shielding Gasket
A lightweight with excellent shielding properties and surface conductivity due to the nickel-copper-polyester fabric. The foam core is fire retardant and for easy assembly the gasket comes with a self-adhesive film.
The WE-LT series was developed to solve diverse EMI/RFI situations and to meet shielding requirements.
Cost-effective and time-saving
Save costs and time with one of our various profiles ex stock. Special lengths, die-cut patterns as well as other materials (e.g. aluminum) and conductive tape are available on request.
Suitability of the material matching
The material pairing of certain materials starts a galvanic process that leads to the corrosion of the surfaces and reduces the conductivity. Especially in environments where increased corrosion is to be expected, the shielding material should be selected to match the housing material.

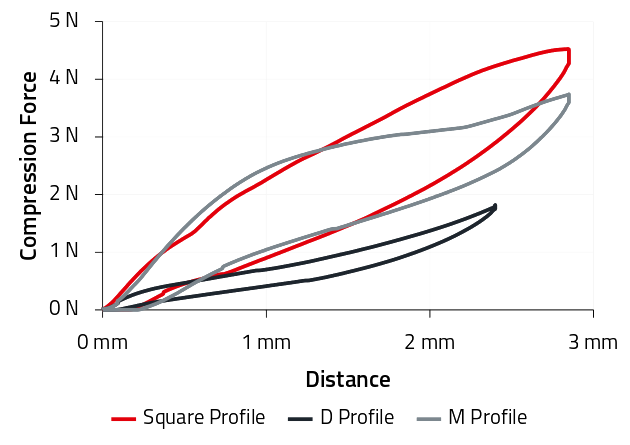

Compression
A steady compression of 30 % is recommended to keep the transitional resistance low and stable over a long time and to balance tolerances. The compression force depends on the profile of the gasket.
Assortments
Articles from this product series can be found in the following assortments:
Videos
Würth Elektronik Webinar: A Practical Guide to EMI Shielding of Electronic Devices
Videos
Würth Elektronik Webinar: EMC Shielding 101 - Designer's Approach
Videos
#askLorandt explains: Shielding Gasket effectivity on radiated noise
