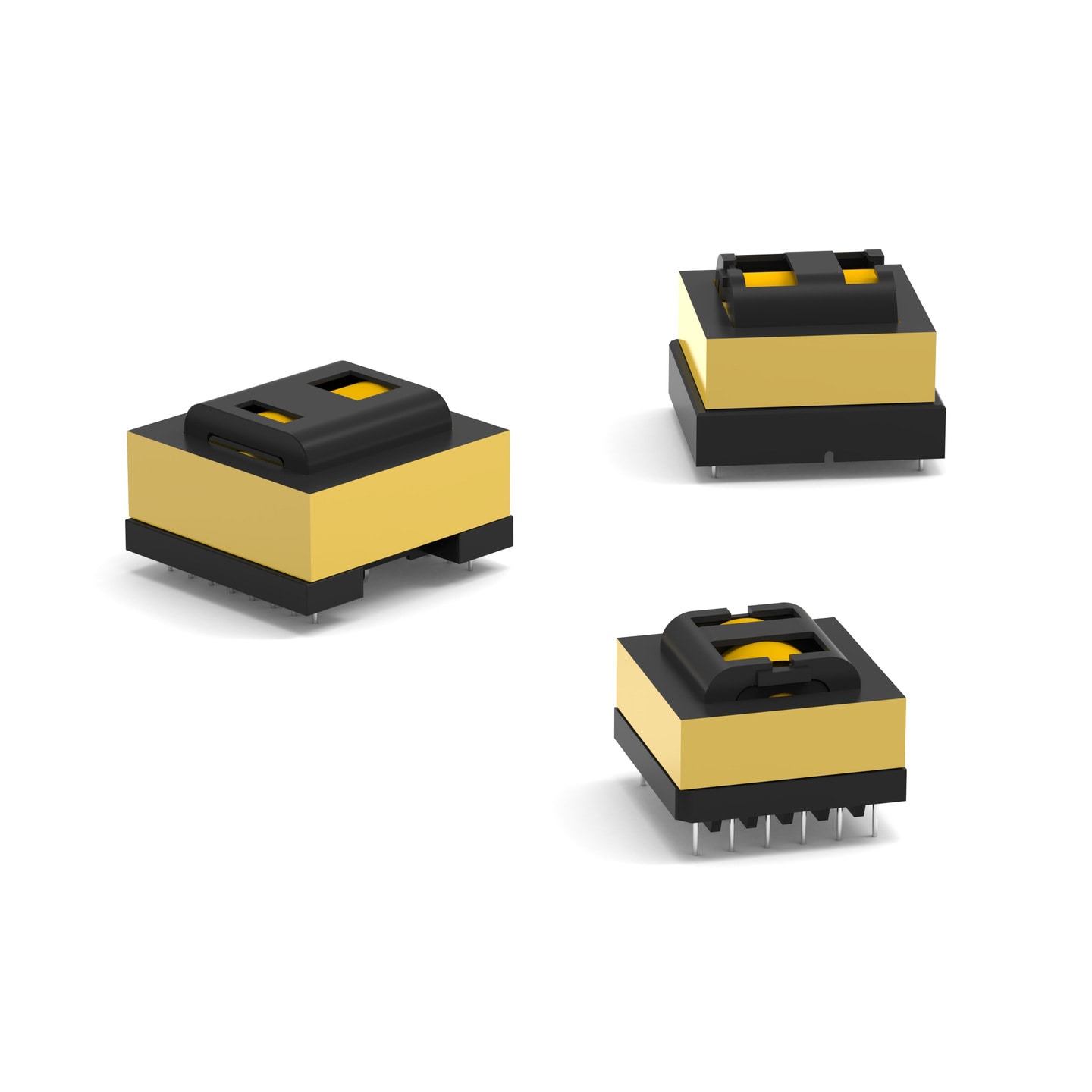

WE-LLCR Resonant Converter

Size	Dimensions	3D	L (mm)	W (mm)	H (mm)	Mount

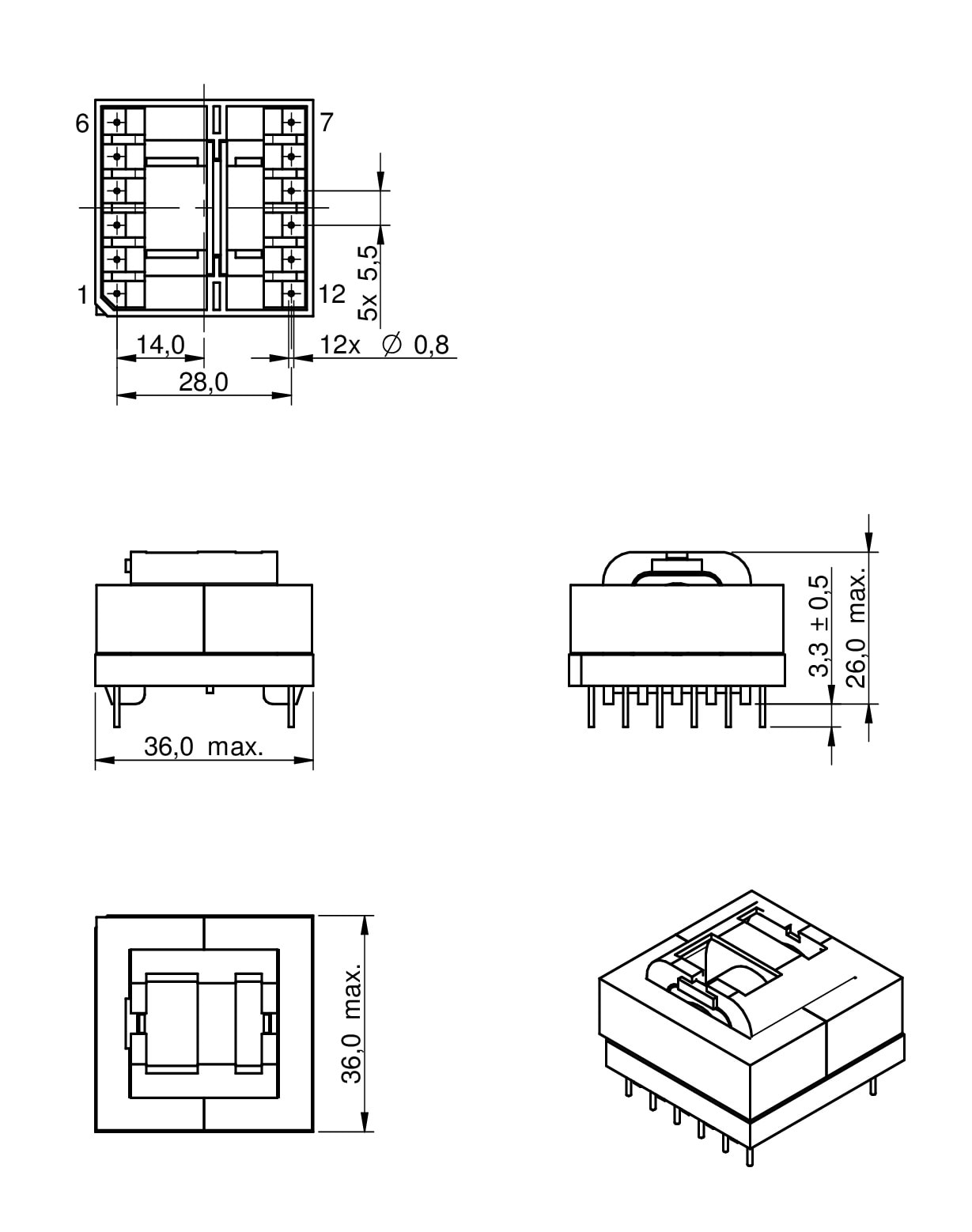

ETD34			36	36	26	THT

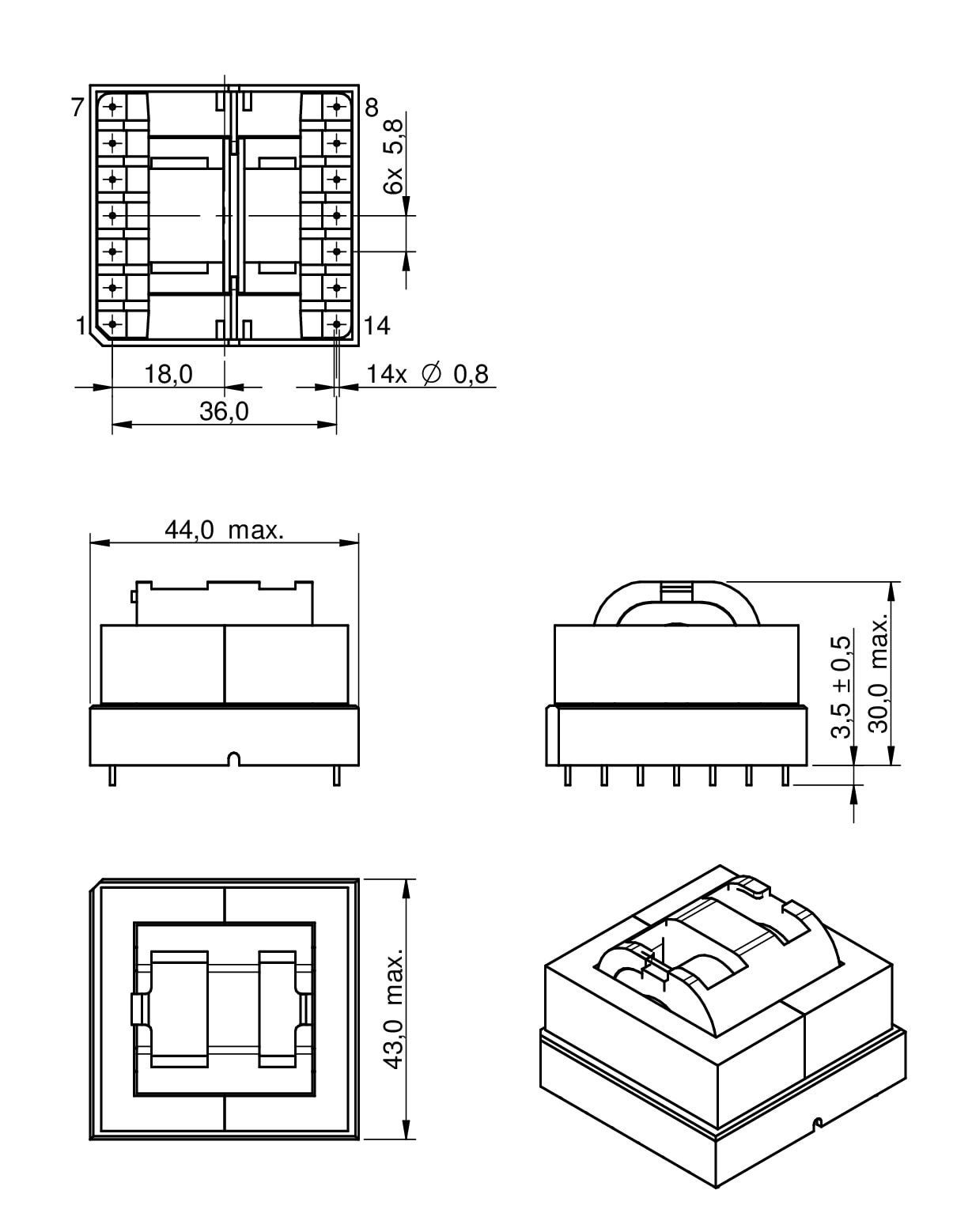

ETD39			43	44	30	THT

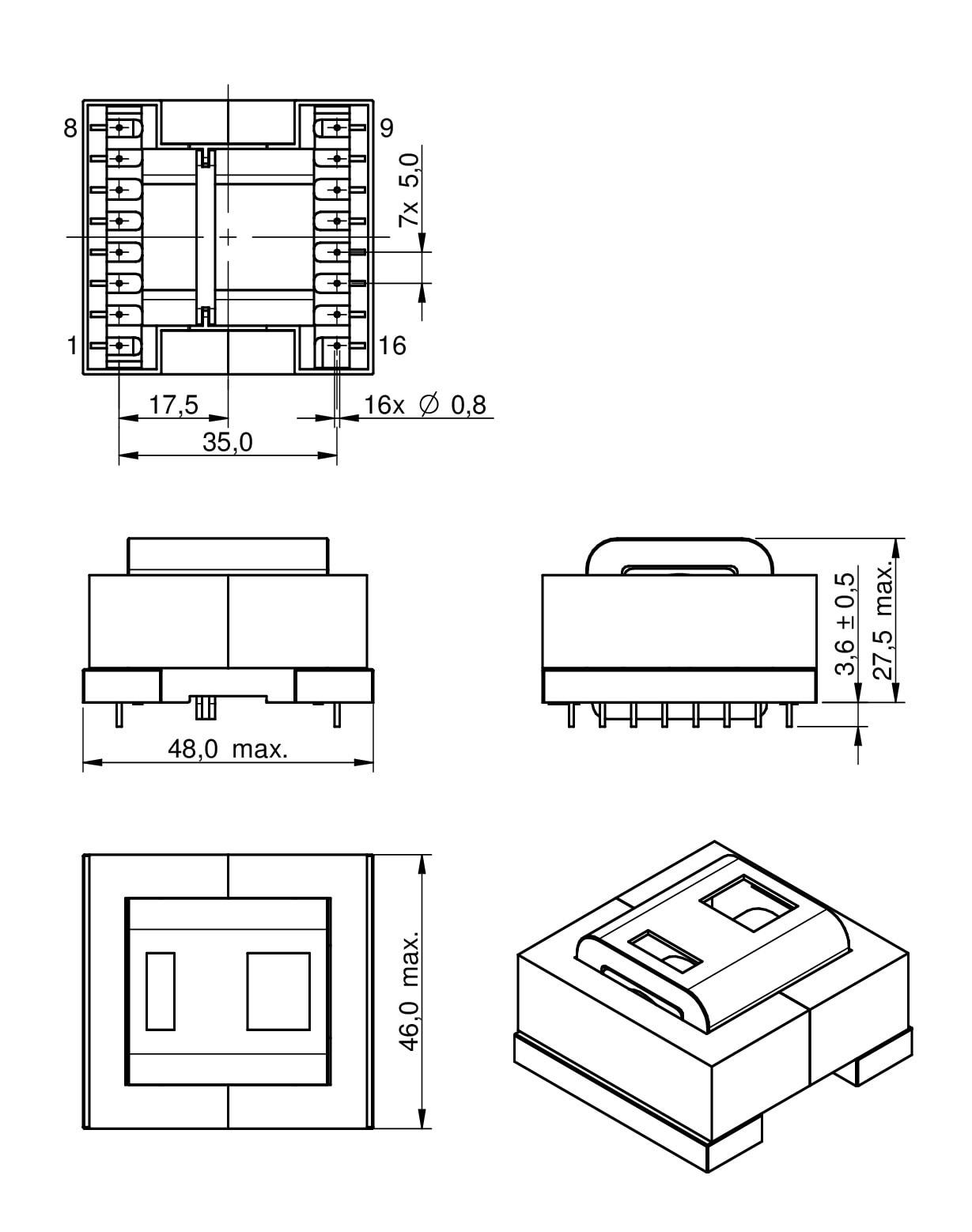

ETD44			46	48	27.5	THT

LTSpice files

LT
LTspice_WE-LLCR (rev22a).zip
|
8.7 KB

Characteristics

Transformer for high efficiency power supply
Input voltage 360-400 V (DC)
Output voltage 12V, 24V or 48V
Switching frequency 70-120 kHz
Output power 150-250 W
Insulation test voltage 4 kV (AC)
Litz wire for low eddy current losses
Defined leakage inductance for use without additional resonant inductor

Applications

Power supply for PC, Notebook etc., LED lighting, other power supplies
High efficient resonant converters

Can’t find the suitable product?

We will be glad to help you! We will take your specifications and work to find a solution that fits your needs. Simply fill out our inquiry form with your specifications.

Find your custom solution

Products

All

ETD34

ETD39

ETD44

Filter article data

show article in 3 product lines

article in 3 product lines

Order Code	Datasheet	Downloads	Status	V_IN	V_Out1(V)	I_Out1(A)	V_aux(V)	L(µH)	f_switch(kHz)	n	L_S(µH)	I_SAT(A)	R_{DC 1}(mΩ)	R_{DC 2}(mΩ)	R_{DC 3}(mΩ)	R_{DC 4}(mΩ)	Size	Mount	Samples
760895431	360 - 400 V (DC), 12 V, 12.5 A	Downloads8 files EDA models: Components ZIP ALT WE-LLCR (rev23a).IntLib \| 914 KB CDS Cadence_WE-LLCR (rev22a).zip \| 2.9 MB EAG Eagle_WE-LLCR (rev19a).lbr \| 34 KB KIC KiCad_WE-LLCR (rev25b).zip \| 554.1 KB ZUK Cadstar_WE-LLCR (rev19a).zip \| 8.1 KB CAD files ZIP IGS WE-LLCR_ETD34_LLCR (rev1).igs \| 1.9 MB STP WE-LLCR_ETD34_LLCR (rev1).stp \| 651.5 KB Electric models ZIP PSP Pspice_WE-LLCR (rev22a).zip \| 6.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 360 - 400 V (DC)	Output Voltage 112 V	Output Current 112.5 A	Auxiliary Voltage18 V	Inductance600 µH	Switching Frequency 70 - 120	Turns Ratio35:2:2:3	Leakage Inductance100 µH	Saturation Current2 A	DC Resistance 1260 mΩ	DC Resistance 23.1 mΩ	DC Resistance 33.1 mΩ	DC Resistance 4144 mΩ	SizeETD34	MountTHT
760895441	360 - 400 V (DC), 24 V, 6.2 A	Downloads8 files EDA models: Components ZIP ALT WE-LLCR (rev23a).IntLib \| 914 KB CDS Cadence_WE-LLCR (rev22a).zip \| 2.9 MB EAG Eagle_WE-LLCR (rev19a).lbr \| 34 KB KIC KiCad_WE-LLCR (rev25b).zip \| 554.1 KB ZUK Cadstar_WE-LLCR (rev19a).zip \| 8.1 KB CAD files ZIP IGS WE-LLCR_ETD34_LLCR (rev1).igs \| 1.9 MB STP WE-LLCR_ETD34_LLCR (rev1).stp \| 651.5 KB Electric models ZIP PSP Pspice_WE-LLCR (rev22a).zip \| 6.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 360 - 400 V (DC)	Output Voltage 124 V	Output Current 16.2 A	Auxiliary Voltage18 V	Inductance600 µH	Switching Frequency 70 - 120	Turns Ratio35:4:4:3	Leakage Inductance100 µH	Saturation Current2 A	DC Resistance 1260 mΩ	DC Resistance 28 mΩ	DC Resistance 38 mΩ	DC Resistance 4144 mΩ	SizeETD34	MountTHT
760895451	360 - 400 V (DC), 48 V, 3.1 A	Downloads8 files EDA models: Components ZIP ALT WE-LLCR (rev23a).IntLib \| 914 KB CDS Cadence_WE-LLCR (rev22a).zip \| 2.9 MB EAG Eagle_WE-LLCR (rev19a).lbr \| 34 KB KIC KiCad_WE-LLCR (rev25b).zip \| 554.1 KB ZUK Cadstar_WE-LLCR (rev19a).zip \| 8.1 KB CAD files ZIP IGS WE-LLCR_ETD34_LLCR (rev1).igs \| 1.9 MB STP WE-LLCR_ETD34_LLCR (rev1).stp \| 651.5 KB Electric models ZIP PSP Pspice_WE-LLCR (rev22a).zip \| 6.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 360 - 400 V (DC)	Output Voltage 148 V	Output Current 13.1 A	Auxiliary Voltage18 V	Inductance600 µH	Switching Frequency 70 - 120	Turns Ratio35:8:8:3	Leakage Inductance100 µH	Saturation Current2 A	DC Resistance 1260 mΩ	DC Resistance 226.5 mΩ	DC Resistance 326.5 mΩ	DC Resistance 4145 mΩ	SizeETD34	MountTHT
760895631	360 - 400 V (DC), 12 V, 16.7 A	Downloads8 files EDA models: Components ZIP ALT WE-LLCR (rev23a).IntLib \| 914 KB CDS Cadence_WE-LLCR (rev22a).zip \| 2.9 MB EAG Eagle_WE-LLCR (rev19a).lbr \| 34 KB KIC KiCad_WE-LLCR (rev25b).zip \| 554.1 KB ZUK Cadstar_WE-LLCR (rev19a).zip \| 8.1 KB CAD files ZIP IGS WE-LLCR_ETD39_LLCR (rev1).igs \| 2.4 MB STP WE-LLCR_ETD39_LLCR (rev1).stp \| 827.1 KB Electric models ZIP PSP Pspice_WE-LLCR (rev22a).zip \| 6.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 360 - 400 V (DC)	Output Voltage 112 V	Output Current 116.7 A	Auxiliary Voltage18 V	Inductance500 µH	Switching Frequency 70 - 120	Turns Ratio35:2:2:3	Leakage Inductance95 µH	Saturation Current3.5 A	DC Resistance 1145 mΩ	DC Resistance 22.5 mΩ	DC Resistance 32.5 mΩ	DC Resistance 4150 mΩ	SizeETD39	MountTHT
760895641	360 - 400 V (DC), 24 V, 8.3 A	Downloads8 files EDA models: Components ZIP ALT WE-LLCR (rev23a).IntLib \| 914 KB CDS Cadence_WE-LLCR (rev22a).zip \| 2.9 MB EAG Eagle_WE-LLCR (rev19a).lbr \| 34 KB KIC KiCad_WE-LLCR (rev25b).zip \| 554.1 KB ZUK Cadstar_WE-LLCR (rev19a).zip \| 8.1 KB CAD files ZIP IGS WE-LLCR_ETD39_LLCR (rev1).igs \| 2.4 MB STP WE-LLCR_ETD39_LLCR (rev1).stp \| 827.1 KB Electric models ZIP PSP Pspice_WE-LLCR (rev22a).zip \| 6.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 360 - 400 V (DC)	Output Voltage 124 V	Output Current 18.3 A	Auxiliary Voltage18 V	Inductance500 µH	Switching Frequency 70 - 120	Turns Ratio35:4:4:3	Leakage Inductance95 µH	Saturation Current3.5 A	DC Resistance 1145 mΩ	DC Resistance 27.5 mΩ	DC Resistance 37.5 mΩ	DC Resistance 4160 mΩ	SizeETD39	MountTHT
760895651	360 - 400 V (DC), 48 V, 4.2 A	Downloads8 files EDA models: Components ZIP ALT WE-LLCR (rev23a).IntLib \| 914 KB CDS Cadence_WE-LLCR (rev22a).zip \| 2.9 MB EAG Eagle_WE-LLCR (rev19a).lbr \| 34 KB KIC KiCad_WE-LLCR (rev25b).zip \| 554.1 KB ZUK Cadstar_WE-LLCR (rev19a).zip \| 8.1 KB CAD files ZIP IGS WE-LLCR_ETD39_LLCR (rev1).igs \| 2.4 MB STP WE-LLCR_ETD39_LLCR (rev1).stp \| 827.1 KB Electric models ZIP PSP Pspice_WE-LLCR (rev22a).zip \| 6.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 360 - 400 V (DC)	Output Voltage 148 V	Output Current 14.2 A	Auxiliary Voltage18 V	Inductance500 µH	Switching Frequency 70 - 120	Turns Ratio35:8:8:3	Leakage Inductance95 µH	Saturation Current3.5 A	DC Resistance 1145 mΩ	DC Resistance 221.5 mΩ	DC Resistance 321.5 mΩ	DC Resistance 4160 mΩ	SizeETD39	MountTHT
760895731	360 - 400 V (DC), 12 V, 20.8 A	Downloads8 files EDA models: Components ZIP ALT WE-LLCR (rev23a).IntLib \| 914 KB CDS Cadence_WE-LLCR (rev22a).zip \| 2.9 MB EAG Eagle_WE-LLCR (rev19a).lbr \| 34 KB KIC KiCad_WE-LLCR (rev25b).zip \| 554.1 KB ZUK Cadstar_WE-LLCR (rev19a).zip \| 8.1 KB CAD files ZIP IGS WE-LLCR_ETD44_LLCR (rev1).igs \| 3.4 MB STP WE-LLCR_ETD44_LLCR (rev1).stp \| 1.1 MB Electric models ZIP PSP Pspice_WE-LLCR (rev22a).zip \| 6.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 360 - 400 V (DC)	Output Voltage 112 V	Output Current 120.8 A	Auxiliary Voltage18 V	Inductance475 µH	Switching Frequency 70 - 120	Turns Ratio35:2:2:3	Leakage Inductance100 µH	Saturation Current5 A	DC Resistance 1128 mΩ	DC Resistance 24 mΩ	DC Resistance 34 mΩ	DC Resistance 4192 mΩ	SizeETD44	MountTHT
760895741	360 - 400 V (DC), 24 V, 10.4 A	Downloads8 files EDA models: Components ZIP ALT WE-LLCR (rev23a).IntLib \| 914 KB CDS Cadence_WE-LLCR (rev22a).zip \| 2.9 MB EAG Eagle_WE-LLCR (rev19a).lbr \| 34 KB KIC KiCad_WE-LLCR (rev25b).zip \| 554.1 KB ZUK Cadstar_WE-LLCR (rev19a).zip \| 8.1 KB CAD files ZIP IGS WE-LLCR_ETD44_LLCR (rev1).igs \| 3.4 MB STP WE-LLCR_ETD44_LLCR (rev1).stp \| 1.1 MB Electric models ZIP PSP Pspice_WE-LLCR (rev22a).zip \| 6.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 360 - 400 V (DC)	Output Voltage 124 V	Output Current 110.4 A	Auxiliary Voltage16 V	Inductance400 µH	Switching Frequency 70 - 120	Turns Ratio27:3:3:2	Leakage Inductance65 µH	Saturation Current4.3 A	DC Resistance 175 mΩ	DC Resistance 24.5 mΩ	DC Resistance 34.5 mΩ	DC Resistance 4150 mΩ	SizeETD44	MountTHT
760895751	360 - 400 V (DC), 48 V, 5.2 A	Downloads8 files EDA models: Components ZIP ALT WE-LLCR (rev23a).IntLib \| 914 KB CDS Cadence_WE-LLCR (rev22a).zip \| 2.9 MB EAG Eagle_WE-LLCR (rev19a).lbr \| 34 KB KIC KiCad_WE-LLCR (rev25b).zip \| 554.1 KB ZUK Cadstar_WE-LLCR (rev19a).zip \| 8.1 KB CAD files ZIP IGS WE-LLCR_ETD44_LLCR (rev1).igs \| 3.4 MB STP WE-LLCR_ETD44_LLCR (rev1).stp \| 1.1 MB Electric models ZIP PSP Pspice_WE-LLCR (rev22a).zip \| 6.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 360 - 400 V (DC)	Output Voltage 148 V	Output Current 15.2 A	Auxiliary Voltage16 V	Inductance400 µH	Switching Frequency 70 - 120	Turns Ratio27:6:6:2	Leakage Inductance65 µH	Saturation Current4.3 A	DC Resistance 175 mΩ	DC Resistance 212.2 mΩ	DC Resistance 312.2 mΩ	DC Resistance 4150 mΩ	SizeETD44	MountTHT
