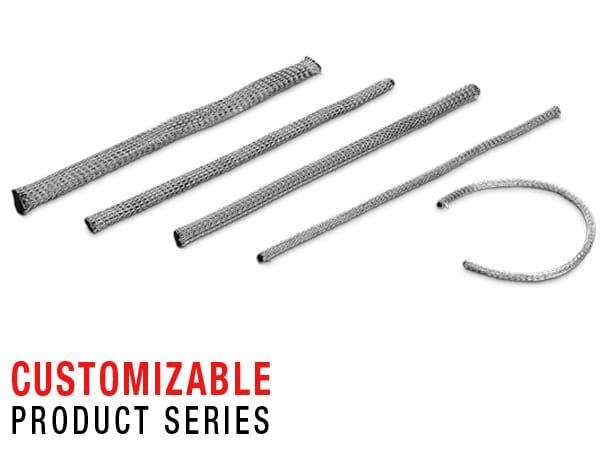

WE-GS Woven Strings

WE-GS Woven Strings
SizeDimen­sionsL
(mm)

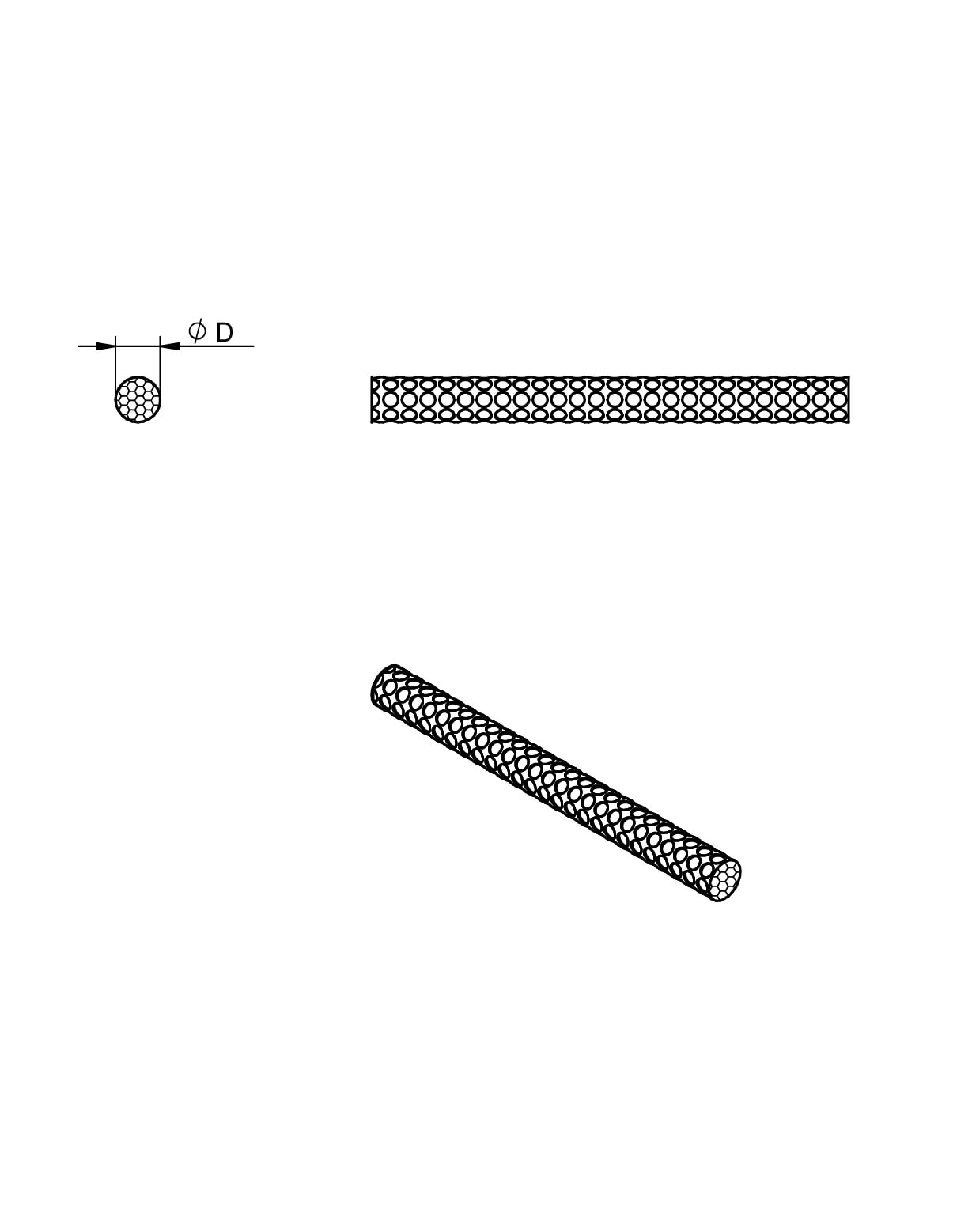

Round Profile
 1000

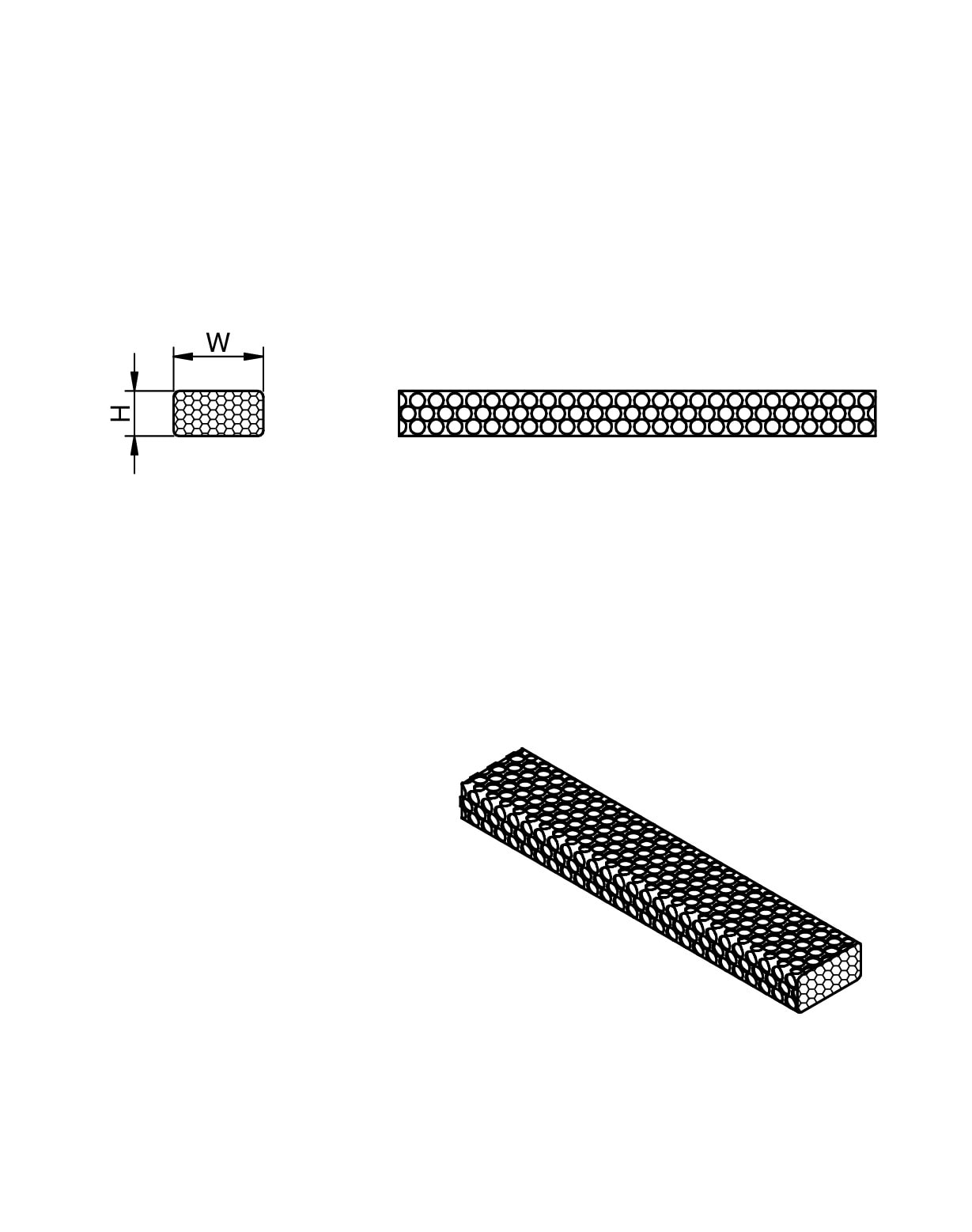

Rectangular Profile
 1000

Characteristics

  • Elastomer core covered with Monel-fabric (copper and nickel alloy)
  • Excellent screening effect, high elasticity and protection against dust and air circulation
  • Fixing possible with self adhesive foil
  • Round profile can be delivered with fin or alternatively as double string with intermediate fin
  • Operating temperature: –30 ºC to +80 ºC

Applications

  • Application for doors and housings

Products

All
Round Profile
Rectangular Profile
Reset all
Filter article data
Filter by
Delete all
 show  articles in 2 product lines
 articles in 2 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Downloads
Status
L(mm)
W(mm)
Ø OD(mm)
Shielding
Effectiveness
@ 1 GHz(dB)
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
WE-GS Woven Strings
30624S
SPEC1000 mm, 2.4 mm, 2.4 mm
Availability
–
Downloads–
Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length1000 mm
Width2.4 mm
Outer Diameter2.4 mm
Shielding Effectiveness @ 1 GHz80 dB
–Check availability
WE-GS Woven Strings
30632S
SPEC1000 mm, 3.2 mm, 3.2 mm
Availability
–
Downloads–
Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length1000 mm
Width3.2 mm
Outer Diameter3.2 mm
Shielding Effectiveness @ 1 GHz80 dB
–Check availability
WE-GS Woven Strings
30648S
SPEC1000 mm, 4.8 mm, 4.8 mm
Availability
–
Downloads–
Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length1000 mm
Width4.8 mm
Outer Diameter4.8 mm
Shielding Effectiveness @ 1 GHz80 dB
–Check availability
WE-GS Woven Strings
30664S
SPEC1000 mm, 6.4 mm, 6.4 mm
Availability
–
Downloads–
Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length1000 mm
Width6.4 mm
Outer Diameter6.4 mm
Shielding Effectiveness @ 1 GHz80 dB
–Check availability
WE-GS Woven Strings
3074824S
SPEC1000 mm, 4.8 mm, –
Availability
–
Downloads–
Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length1000 mm
Width4.8 mm
–
Shielding Effectiveness @ 1 GHz80 dB
–Check availability
WE-GS Woven Strings
3076432S
SPEC1000 mm, 6.4 mm, –
Availability
–
Downloads–
Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length1000 mm
Width6.4 mm
–
Shielding Effectiveness @ 1 GHz80 dB
–Check availability
WE-GS Woven Strings
3079548S
SPEC1000 mm, 9.5 mm, –
Availability
–
Downloads–
Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length1000 mm
Width9.5 mm
–
Shielding Effectiveness @ 1 GHz80 dB
–Check availability
