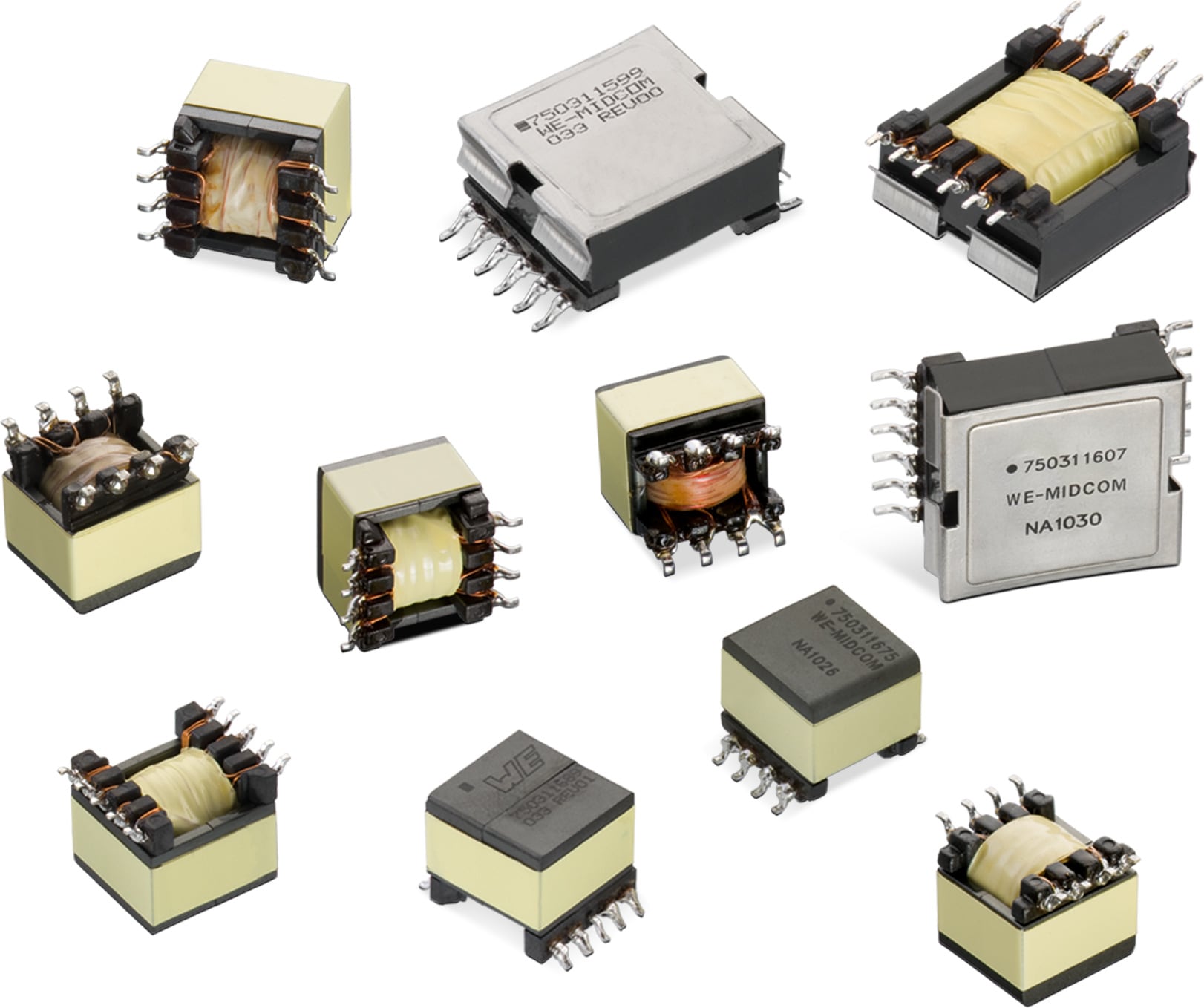

750370042
5 V (DC), 5 V, 0.1 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
5 V (DC)
Output Voltage 1
5 V
Output Current 1
0.1 A
Output Voltage 2
5 V
Output Current 2
0.1 A
–
–
–
–
Auxiliary Voltage
5 V
Inductance
15 µH
Turns Ratio
1:1:1:1
Saturation Current
1.5 A
Leakage Inductance
0.6 µH
Insulation Test Voltage
1500 V (AC)
Size
ER9.5
IC Reference
LT3573
750311691
8 - 15 V (DC), 150 V, 0.001 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
8 - 15 V (DC)
Output Voltage 1
150 V
Output Current 1
0.001 A
–
–
–
–
–
–
–
Inductance
60 µH
Turns Ratio
1:5
Saturation Current
0.25 A
Leakage Inductance
1 µH
Insulation Test Voltage
1500 V (AC)
Size
EP5
IC Reference
LT3748
750311692
8 - 15 V (DC), 150 V, 0.001 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
8 - 15 V (DC)
Output Voltage 1
150 V
Output Current 1
0.001 A
Output Voltage 2
-150 V
Output Current 2
0.001 A
–
–
–
–
–
Inductance
80 µH
Turns Ratio
1:5:5
Saturation Current
1 A
Leakage Inductance
2 µH
Insulation Test Voltage
1500 V (AC)
Size
EP7
IC Reference
LT3748
750311856
8 - 24 V (DC), 15 V, 0.15 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
8 - 24 V (DC)
Output Voltage 1
15 V
Output Current 1
0.15 A
Output Voltage 2
15 V
Output Current 2
0.15 A
Output Voltage 3
15 V
Output Current 3
0.15 A
Output Voltage 4
15 V
Output Current 4
0.15 A
–
Inductance
3.8 µH
Turns Ratio
1:1:4:4:4:4
Saturation Current
12 A
Leakage Inductance
0.4 µH
Insulation Test Voltage
1500 V (AC)
Size
EP13
IC Reference
LT3575 & LT3748
750311911
8 - 24 V (DC), 15 V, 0.2 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
8 - 24 V (DC)
Output Voltage 1
15 V
Output Current 1
0.2 A
Output Voltage 2
15 V
Output Current 2
0.2 A
Output Voltage 3
15 V
Output Current 3
0.2 A
Output Voltage 4
15 V
Output Current 4
0.2 A
Auxiliary Voltage
5 V
Inductance
6.78 µH
Turns Ratio
1:3:3:3:3:1
Saturation Current
13 A
Leakage Inductance
0.2 µH
Insulation Test Voltage
1500 V (AC)
Size
EE20/10/6
IC Reference
LT3748
750310471
9 - 30 V (DC), 5 V, 2 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
9 - 30 V (DC)
Output Voltage 1
5 V
Output Current 1
2 A
–
–
–
–
–
–
Auxiliary Voltage
5 V
Inductance
25 µH
Turns Ratio
3:1:1
Saturation Current
2.6 A
Leakage Inductance
0.43 µH
Insulation Test Voltage
1500 V (AC)
Size
EP10
IC Reference
LT3573 & LT3575
750311675
9 - 30 V (DC), 5 V, 2 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
9 - 30 V (DC)
Output Voltage 1
5 V
Output Current 1
2 A
–
–
–
–
–
–
Auxiliary Voltage
5 V
Inductance
25 µH
Turns Ratio
3:1:1
Saturation Current
2.5 A
Leakage Inductance
0.25 µH
Insulation Test Voltage
1500 V (AC)
Size
EP10
IC Reference
LT3573 & LT3575 & LT3748
750311306
9 - 36 V (DC), 12 V, 1 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
9 - 36 V (DC)
Output Voltage 1
12 V
Output Current 1
1 A
–
–
–
–
–
–
Auxiliary Voltage
8 V
Inductance
100 µH
Turns Ratio
3:1:0.667
Saturation Current
1.65 A
Leakage Inductance
3 µH
Insulation Test Voltage
1500 V (AC)
Size
EP10
IC Reference
LT3575
750311308
9 - 36 V (DC), 24 V, 0.5 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
9 - 36 V (DC)
Output Voltage 1
24 V
Output Current 1
0.5 A
–
–
–
–
–
–
Auxiliary Voltage
8 V
Inductance
100 µH
Turns Ratio
1:1:0.333
Saturation Current
2.1 A
Leakage Inductance
3 µH
Insulation Test Voltage
1500 V (AC)
Size
EP10
IC Reference
LT3574 & LT3575
750310617
9 - 36 V (DC), 12 V, 3 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
9 - 36 V (DC)
Output Voltage 1
12 V
Output Current 1
3 A
–
–
–
–
–
–
Auxiliary Voltage
12 V
Inductance
4.5 µH
Turns Ratio
1:1.16:1.16
Saturation Current
14 A
Leakage Inductance
0.15 µH
Insulation Test Voltage
1875 V (AC)
Size
EFD20
IC Reference
LT3748
750370059
10 - 30 V (DC), 5 V, 1 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
10 - 30 V (DC)
Output Voltage 1
5 V
Output Current 1
1 A
–
–
–
–
–
–
Auxiliary Voltage
5 V
Inductance
50 µH
Turns Ratio
3:1:1
Saturation Current
1.6 A
Leakage Inductance
1 µH
Insulation Test Voltage
1500 V (AC)
Size
EP7
IC Reference
LT3573
750370041
10 - 30 V (DC), 5 V, 1 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
10 - 30 V (DC)
Output Voltage 1
5 V
Output Current 1
1 A
–
–
–
–
–
–
Auxiliary Voltage
5 V
Inductance
50 µH
Turns Ratio
3:1:1
Saturation Current
1.6 A
Leakage Inductance
1 µH
Insulation Test Voltage
1500 V (AC)
Size
EP7
IC Reference
LT3574 & LT3573
750370040
10 - 30 V (DC), 5 V, 1 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
10 - 30 V (DC)
Output Voltage 1
5 V
Output Current 1
1 A
–
–
–
–
–
–
Auxiliary Voltage
5 V
Inductance
30 µH
Turns Ratio
3:1:1
Saturation Current
1.7 A
Leakage Inductance
1 µH
Insulation Test Voltage
1500 V (AC)
Size
EP7
IC Reference
LT3574 & LT3573
750370047
10 - 30 V (DC), 5 V, 1 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
10 - 30 V (DC)
Output Voltage 1
5 V
Output Current 1
1 A
–
–
–
–
–
–
Auxiliary Voltage
5 V
Inductance
30 µH
Turns Ratio
3:1:1
Saturation Current
1.7 A
Leakage Inductance
1 µH
Insulation Test Voltage
1500 V (AC)
Size
EP7
IC Reference
LT3574 & LT3573
750370058
10 - 30 V (DC), 15 V, 0.4 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
10 - 30 V (DC)
Output Voltage 1
15 V
Output Current 1
0.4 A
–
–
–
–
–
–
Auxiliary Voltage
5 V
Inductance
25 µH
Turns Ratio
1:1:0.33
Saturation Current
2 A
Leakage Inductance
0.3 µH
Insulation Test Voltage
1500 V (AC)
Size
EP7
IC Reference
LT3573
750310799
10 - 30 V (DC), 15 V, 0.4 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
10 - 30 V (DC)
Output Voltage 1
15 V
Output Current 1
0.4 A
–
–
–
–
–
–
Auxiliary Voltage
5 V
Inductance
25 µH
Turns Ratio
1:1:0.33
Saturation Current
2 A
Leakage Inductance
0.125 µH
Insulation Test Voltage
1500 V (AC)
Size
EP7
IC Reference
LT3573
750311567
10 - 40 V (DC), 5 V, 3 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
10 - 40 V (DC)
Output Voltage 1
5 V
Output Current 1
3 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
7 µH
Turns Ratio
2:1:2
Saturation Current
11.2 A
Leakage Inductance
0.8 µH
Insulation Test Voltage
1500 V (AC)
Size
EP10
IC Reference
LT3575 & LT3748
750311625
10 - 40 V (DC), 3.3 V, 4 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
10 - 40 V (DC)
Output Voltage 1
3.3 V
Output Current 1
4 A
–
–
–
–
–
–
Auxiliary Voltage
8 V
Inductance
9 µH
Turns Ratio
4:1:2.2
Saturation Current
8 A
Leakage Inductance
0.5 µH
Insulation Test Voltage
1500 V (AC)
Size
EP13
IC Reference
LT3575 & LT3748
750311564
10 - 40 V (DC), 5 V, 3 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
10 - 40 V (DC)
Output Voltage 1
5 V
Output Current 1
3 A
–
–
–
–
–
–
Auxiliary Voltage
8 V
Inductance
9.07 µH
Turns Ratio
3:1:1.75
Saturation Current
8 A
Leakage Inductance
0.25 µH
Insulation Test Voltage
1500 V (AC)
Size
EP13
IC Reference
LT3575 & LT3748
750311624
10 - 40 V (DC), 15 V, 1 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
10 - 40 V (DC)
Output Voltage 1
15 V
Output Current 1
1 A
–
–
–
–
–
–
Auxiliary Voltage
8 V
Inductance
9 µH
Turns Ratio
1.5:1:0.5
Saturation Current
8 A
Leakage Inductance
0.25 µH
Insulation Test Voltage
1500 V (AC)
Size
EP13
IC Reference
LT3575 & LT3748
750310559
12 - 30 V (DC), 3.3 V, 1.3 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
12 - 30 V (DC)
Output Voltage 1
3.3 V
Output Current 1
1.3 A
–
–
–
–
–
–
Auxiliary Voltage
5 V
Inductance
24 µH
Turns Ratio
4:1:1
Saturation Current
2.1 A
Leakage Inductance
0.5 µH
Insulation Test Voltage
1500 V (AC)
Size
EP10
IC Reference
LT3573 & LT3575
750310564
12 - 30 V (DC), 5 V, 1 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
12 - 30 V (DC)
Output Voltage 1
5 V
Output Current 1
1 A
Output Voltage 2
-5 V
Output Current 2
1 A
–
–
–
–
Auxiliary Voltage
5 V
Inductance
63 µH
Turns Ratio
3:1:1:1
Saturation Current
1.45 A
Leakage Inductance
0.6 µH
Insulation Test Voltage
1500 V (AC)
Size
EP10
IC Reference
LT3574 & LT3573 & LT3575
750311486
12 V (DC), 200 V, 0.002 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
12 V (DC)
Output Voltage 1
200 V
Output Current 1
0.002 A
Output Voltage 2
-200 V
Output Current 2
0.002 A
–
–
–
–
Auxiliary Voltage
4 V
Inductance
100 µH
Turns Ratio
1:10:10:0.219
Saturation Current
2 A
Leakage Inductance
4.5 µH
Insulation Test Voltage
1500 V (AC)
Size
EP13
IC Reference
LT3748
750311681
12 V (DC), 200 V, 0.002 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
12 V (DC)
Output Voltage 1
200 V
Output Current 1
0.002 A
Output Voltage 2
-200 V
Output Current 2
0.002 A
–
–
–
–
–
Inductance
100 µH
Turns Ratio
1:10:10
Saturation Current
2 A
Leakage Inductance
3 µH
Insulation Test Voltage
1500 V (AC)
Size
EP13
IC Reference
LT3748
750310988
12 V (DC), 48 V, 0.85 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
12 V (DC)
Output Voltage 1
48 V
Output Current 1
0.85 A
–
–
–
–
–
–
–
Inductance
14 µH
Turns Ratio
1:4.42
Saturation Current
15 A
Leakage Inductance
0.2 µH
Insulation Test Voltage
1500 V (AC)
Size
EFD25
IC Reference
LT3748
750310562
18 - 30 V (DC), 12 V, 0.8 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
18 - 30 V (DC)
Output Voltage 1
12 V
Output Current 1
0.8 A
–
–
–
–
–
–
Auxiliary Voltage
12 V
Inductance
25 µH
Turns Ratio
2:1:1
Saturation Current
2.8 A
Leakage Inductance
0.5 µH
Insulation Test Voltage
1500 V (AC)
Size
EP10
IC Reference
LT3573 & LT3575
750310563
18 - 30 V (DC), 12 V, 0.8 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
18 - 30 V (DC)
Output Voltage 1
12 V
Output Current 1
0.8 A
–
–
–
–
–
–
Auxiliary Voltage
6 V
Inductance
25 µH
Turns Ratio
1:1:0.5
Saturation Current
2.8 A
Leakage Inductance
0.5 µH
Insulation Test Voltage
1500 V (AC)
Size
EP10
IC Reference
LT3573 & LT3575
750311797
18 - 100 V (DC), 12 V, 2.5 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
18 - 100 V (DC)
Output Voltage 1
12 V
Output Current 1
2.5 A
–
–
–
–
–
–
Auxiliary Voltage
12 V
Inductance
14 µH
Turns Ratio
2.5:1:1
Saturation Current
11.5 A
Leakage Inductance
0.21 µH
Insulation Test Voltage
4000 V (AC)
Size
EFD20
IC Reference
LT3748
750311385
18 - 60 V (DC), 13 V, 2.3 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
18 - 60 V (DC)
Output Voltage 1
13 V
Output Current 1
2.3 A
–
–
–
–
–
–
Auxiliary Voltage
14 V
Inductance
15 µH
Turns Ratio
1.25:1:1.1
Saturation Current
6.75 A
Leakage Inductance
0.2 µH
Insulation Test Voltage
1500 V (AC)
Size
EFD20
IC Reference
LT3748
750311783
19 - 70 V (DC), 24 V, 2.5 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
19 - 70 V (DC)
Output Voltage 1
24 V
Output Current 1
2.5 A
–
–
–
–
–
–
Auxiliary Voltage
12 V
Inductance
20 µH
Turns Ratio
1.5:1:0.5
Saturation Current
16 A
Leakage Inductance
0.225 µH
Insulation Test Voltage
1500 V (AC)
Size
EFD25
IC Reference
LT3748
750311597
20 - 48 V (DC), 5 V, 6 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
20 - 48 V (DC)
Output Voltage 1
5 V
Output Current 1
6 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
6 µH
Turns Ratio
3:1:2
Saturation Current
9.5 A
Leakage Inductance
0.3 µH
Insulation Test Voltage
1500 V (AC)
Size
EFD20
IC Reference
LT3748
750311598
20 - 48 V (DC), 12 V, 2.5 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
20 - 48 V (DC)
Output Voltage 1
12 V
Output Current 1
2.5 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
8.3 µH
Turns Ratio
2:1:0.8
Saturation Current
9 A
Leakage Inductance
0.3 µH
Insulation Test Voltage
1500 V (AC)
Size
EFD20
IC Reference
LT3748
750311599
20 - 48 V (DC), 15 V, 2 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
20 - 48 V (DC)
Output Voltage 1
15 V
Output Current 1
2 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
8 µH
Turns Ratio
1.5:1:0.67
Saturation Current
12 A
Leakage Inductance
1 µH
Insulation Test Voltage
1500 V (AC)
Size
EFD20
IC Reference
LT3748
750311604
20 - 48 V (DC), 24 V, 1.3 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
20 - 48 V (DC)
Output Voltage 1
24 V
Output Current 1
1.3 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
8 µH
Turns Ratio
1:1:0.42
Saturation Current
9.5 A
Leakage Inductance
0.4 µH
Insulation Test Voltage
1500 V (AC)
Size
EFD20
IC Reference
LT3748
750311589
20 - 48 V (DC), 5 V, 9 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
20 - 48 V (DC)
Output Voltage 1
5 V
Output Current 1
9 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
6 µH
Turns Ratio
3:1:2
Saturation Current
18 A
Leakage Inductance
0.4 µH
Insulation Test Voltage
1500 V (AC)
Size
EFD25
IC Reference
LT3748
750311591
20 - 48 V (DC), 15 V, 3 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
20 - 48 V (DC)
Output Voltage 1
15 V
Output Current 1
3 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
8 µH
Turns Ratio
1.5:1:0.67
Saturation Current
20 A
Leakage Inductance
0.4 µH
Insulation Test Voltage
1500 V (AC)
Size
EFD25
IC Reference
LT3748
750311590
20 - 48 V (DC), 12 V, 3.8 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
20 - 48 V (DC)
Output Voltage 1
12 V
Output Current 1
3.8 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
8 µH
Turns Ratio
2:1:1
Saturation Current
18 A
Leakage Inductance
0.4 µH
Insulation Test Voltage
1500 V (AC)
Size
EFD25
IC Reference
LT3748
750311592
20 - 48 V (DC), 24 V, 1.9 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
20 - 48 V (DC)
Output Voltage 1
24 V
Output Current 1
1.9 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
8 µH
Turns Ratio
1:1:0.44
Saturation Current
18 A
Leakage Inductance
0.4 µH
Insulation Test Voltage
1500 V (AC)
Size
EFD25
IC Reference
LT3748
750311889
28 V (DC), 250 V, 0.1 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
28 V (DC)
Output Voltage 1
250 V
Output Current 1
0.1 A
–
–
–
–
–
–
–
Inductance
37 µH
Turns Ratio
1:2.5:2.5
Saturation Current
2.95 A
Leakage Inductance
0.16 µH
Insulation Test Voltage
500 V (AC)
Size
EFD25
IC Reference
LT3748
750311605
30 - 75 V (DC), 5 V, 6 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
30 - 75 V (DC)
Output Voltage 1
5 V
Output Current 1
6 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
15 µH
Turns Ratio
3.5:1:2
Saturation Current
9.5 A
Leakage Inductance
0.55 µH
Insulation Test Voltage
1500 V (AC)
Size
EFD20
IC Reference
LT3748
750311607
30 - 75 V (DC), 12 V, 2.5 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
30 - 75 V (DC)
Output Voltage 1
12 V
Output Current 1
2.5 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
14 µH
Turns Ratio
2.5:1:0.83
Saturation Current
9.5 A
Leakage Inductance
0.5 µH
Insulation Test Voltage
1500 V (AC)
Size
EFD20
IC Reference
LT3748
750311600
30 - 75 V (DC), 15 V, 2 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
30 - 75 V (DC)
Output Voltage 1
15 V
Output Current 1
2 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
12 µH
Turns Ratio
2:1:0.67
Saturation Current
11 A
Leakage Inductance
0.4 µH
Insulation Test Voltage
1500 V (AC)
Size
EFD20
IC Reference
LT3748
750311608
30 - 75 V (DC), 24 V, 1.3 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
30 - 75 V (DC)
Output Voltage 1
24 V
Output Current 1
1.3 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
12 µH
Turns Ratio
1.5:1:0.5
Saturation Current
9 A
Leakage Inductance
1 µH
Insulation Test Voltage
1500 V (AC)
Size
EFD20
IC Reference
LT3748
750311593
30 - 75 V (DC), 5 V, 9 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
30 - 75 V (DC)
Output Voltage 1
5 V
Output Current 1
9 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
15 µH
Turns Ratio
3.5:1:2
Saturation Current
18 A
Leakage Inductance
0.4 µH
Insulation Test Voltage
1500 V (AC)
Size
EFD25
IC Reference
LT3748
750311595
30 - 75 V (DC), 15 V, 3 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
30 - 75 V (DC)
Output Voltage 1
15 V
Output Current 1
3 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
12 µH
Turns Ratio
2:1:0.8
Saturation Current
16 A
Leakage Inductance
0.4 µH
Insulation Test Voltage
1500 V (AC)
Size
EFD25
IC Reference
LT3748
750311594
30 - 75 V (DC), 12 V, 3.8 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
30 - 75 V (DC)
Output Voltage 1
12 V
Output Current 1
3.8 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
15 µH
Turns Ratio
2.33:1:0.83
Saturation Current
18 A
Leakage Inductance
0.55 µH
Insulation Test Voltage
1500 V (AC)
Size
EFD25
IC Reference
LT3748
750311596
30 - 75 V (DC), 24 V, 1.9 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
30 - 75 V (DC)
Output Voltage 1
24 V
Output Current 1
1.9 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
12 µH
Turns Ratio
1.5:1:0.5
Saturation Current
18 A
Leakage Inductance
0.4 µH
Insulation Test Voltage
1500 V (AC)
Size
EFD25
IC Reference
LT3748
750311305
36 V (DC), 12 V, 1 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
36 V (DC)
Output Voltage 1
12 V
Output Current 1
1 A
–
–
–
–
–
–
Auxiliary Voltage
8 V
Inductance
50 µH
Turns Ratio
3:1:0.67
Saturation Current
2.8 A
Leakage Inductance
2 µH
Insulation Test Voltage
1500 V (AC)
Size
EP10
IC Reference
LT3575
750311307
36 V (DC), 24 V, 0.5 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
36 V (DC)
Output Voltage 1
24 V
Output Current 1
0.5 A
–
–
–
–
–
–
Auxiliary Voltage
8 V
Inductance
100 µH
Turns Ratio
2:1:0.33
Saturation Current
1.9 A
Leakage Inductance
3 µH
Insulation Test Voltage
1500 V (AC)
Size
EP10
IC Reference
LT3574 & LT3575
750311303
36 V (DC), 5 V, 3 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
36 V (DC)
Output Voltage 1
5 V
Output Current 1
3 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
50 µH
Turns Ratio
5:1:2
Saturation Current
2.25 A
Leakage Inductance
1.5 µH
Insulation Test Voltage
1500 V (AC)
Size
EP10
IC Reference
LT3575
750311304
36 V (DC), 5 V, 3 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
36 V (DC)
Output Voltage 1
5 V
Output Current 1
3 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
50 µH
Turns Ratio
4:1:1.5
Saturation Current
2.4 A
Leakage Inductance
1.5 µH
Insulation Test Voltage
1500 V (AC)
Size
EP10
IC Reference
LT3574 & LT3575
750311342
36 V (DC), 5 V, 3 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
36 V (DC)
Output Voltage 1
5 V
Output Current 1
3 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
15 µH
Turns Ratio
2:1:2
Saturation Current
5.8 A
Leakage Inductance
0.65 µH
Insulation Test Voltage
1500 V (AC)
Size
EP10
IC Reference
LT3575
750311424
36 V (DC), 12 V, 1 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
36 V (DC)
Output Voltage 1
12 V
Output Current 1
1 A
–
–
–
–
–
–
Auxiliary Voltage
8 V
Inductance
100 µH
Turns Ratio
3:1:0.667
Saturation Current
2.4 A
Leakage Inductance
1.5 µH
Insulation Test Voltage
1500 V (AC)
Size
EP13
IC Reference
LT3748
750311456
36 V (DC), 12 V, 1 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
36 V (DC)
Output Voltage 1
12 V
Output Current 1
1 A
–
–
–
–
–
–
Auxiliary Voltage
8 V
Inductance
100 µH
Turns Ratio
3:1:0.667
Saturation Current
2.4 A
Leakage Inductance
1.5 µH
Insulation Test Voltage
2500 V (AC)
Size
EP13
IC Reference
LT3748
750311458
36 V (DC), 3.3 V, 4 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
36 V (DC)
Output Voltage 1
3.3 V
Output Current 1
4 A
–
–
–
–
–
–
Auxiliary Voltage
8 V
Inductance
15 µH
Turns Ratio
3:1:2.5
Saturation Current
5 A
Leakage Inductance
0.3 µH
Insulation Test Voltage
2500 V (AC)
Size
EP13
IC Reference
LT3575 & LT3748
750311422
36 V (DC), 5 V, 4 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
36 V (DC)
Output Voltage 1
5 V
Output Current 1
4 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
50 µH
Turns Ratio
5:1:2
Saturation Current
3.3 A
Leakage Inductance
1.2 µH
Insulation Test Voltage
1500 V (AC)
Size
EP13
IC Reference
LT3575 & LT3748
750311423
36 V (DC), 5 V, 4 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
36 V (DC)
Output Voltage 1
5 V
Output Current 1
4 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
50 µH
Turns Ratio
4:1:2
Saturation Current
3.85 A
Leakage Inductance
1.2 µH
Insulation Test Voltage
1500 V (AC)
Size
EP13
IC Reference
LT3575 & LT3748
750311457
36 V (DC), 5 V, 4 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
36 V (DC)
Output Voltage 1
5 V
Output Current 1
4 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
50 µH
Turns Ratio
4:1:2
Saturation Current
3.7 A
Leakage Inductance
1.2 µH
Insulation Test Voltage
2500 V (AC)
Size
EP13
IC Reference
LT3575 & LT3748
750311688
36 V (DC), 5 V, 4 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
36 V (DC)
Output Voltage 1
5 V
Output Current 1
4 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
50 µH
Turns Ratio
5:1:2
Saturation Current
3.1 A
Leakage Inductance
1.2 µH
Insulation Test Voltage
1500 V (AC)
Size
EP13
IC Reference
LT3575 & LT3748
750311689
36 V (DC), 5 V, 4 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
36 V (DC)
Output Voltage 1
5 V
Output Current 1
4 A
–
–
–
–
–
–
Auxiliary Voltage
10 V
Inductance
50 µH
Turns Ratio
4:1:2
Saturation Current
3.7 A
Leakage Inductance
1.2 µH
Insulation Test Voltage
2500 V (AC)
Size
EP13
IC Reference
LT3575 & LT3748
750311439
37 - 57 V (DC), 12 V, 2.1 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
37 - 57 V (DC)
Output Voltage 1
12 V
Output Current 1
2.1 A
–
–
–
–
–
–
Auxiliary Voltage
12 V
Inductance
37 µH
Turns Ratio
2:1:1.1
Saturation Current
2.8 A
Leakage Inductance
0.75 µH
Insulation Test Voltage
1500 V (AC)
Size
EP13
IC Reference
LT3575 & LT3748
750311771
100 - 400 V (DC), 15 V, 3 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
100 - 400 V (DC)
Output Voltage 1
15 V
Output Current 1
3 A
–
–
–
–
–
–
Auxiliary Voltage
15 V
Inductance
500 µH
Turns Ratio
3:3:1:1
Saturation Current
2.5 A
Leakage Inductance
10 µH
Insulation Test Voltage
2000 V (AC)
Size
EFD25
IC Reference
LT3748
750811048
120 - 375 V (DC), 30 V, 0.3 A
Status
Active
i
| Production is active. Expected lifetime: >10 years.
Input Voltage
120 - 375 V (DC)
Output Voltage 1
30 V
Output Current 1
0.3 A
–
–
–
–
–
–
Auxiliary Voltage
15 V
Inductance
1500 µH
Turns Ratio
4.53:1:0.5
Saturation Current
0.65 A
Leakage Inductance
35 µH
Insulation Test Voltage
4500 V (AC)
Size
EE16/8/5
IC Reference
LT3748
Comments
