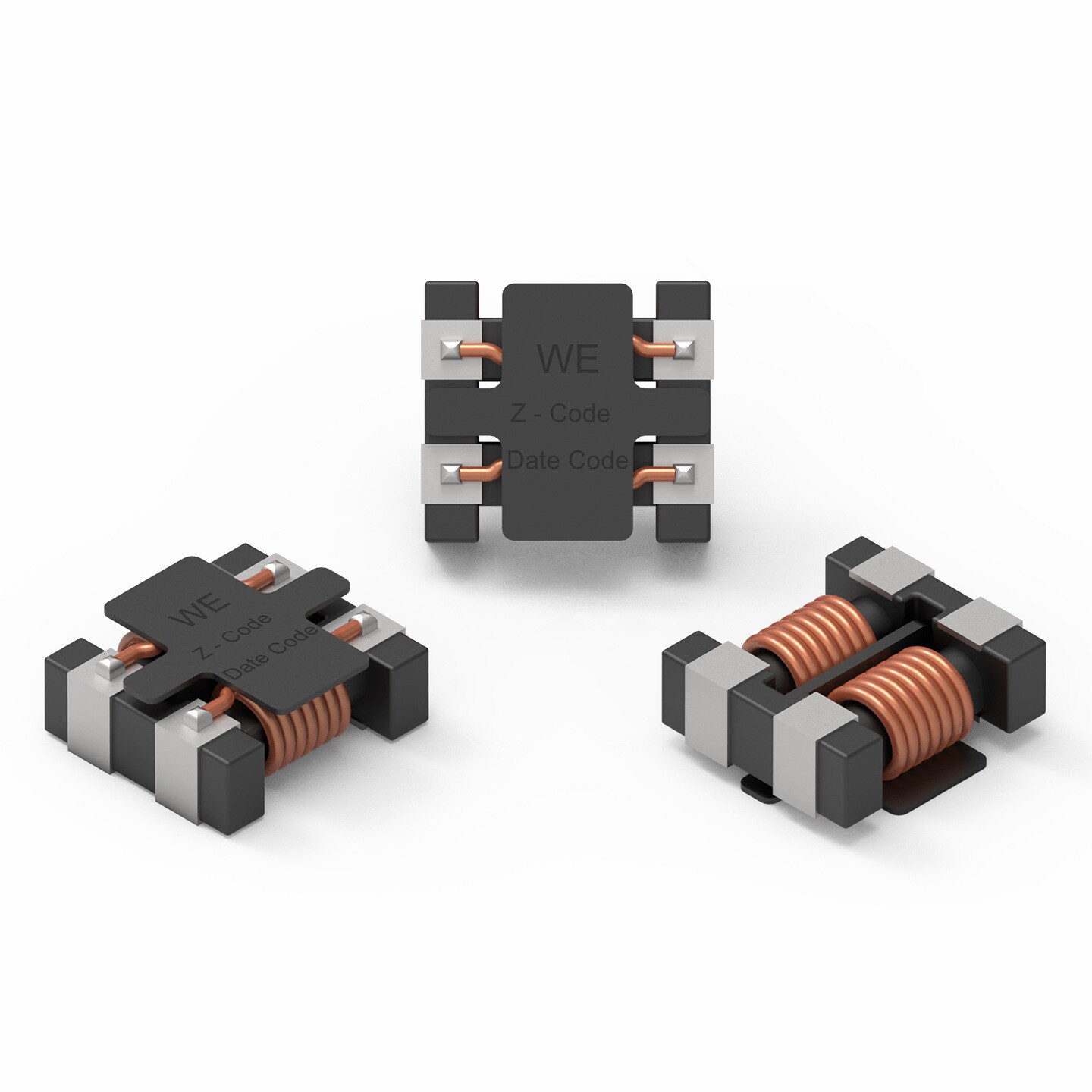

WE-CMDC Common Mode Data Line Filter

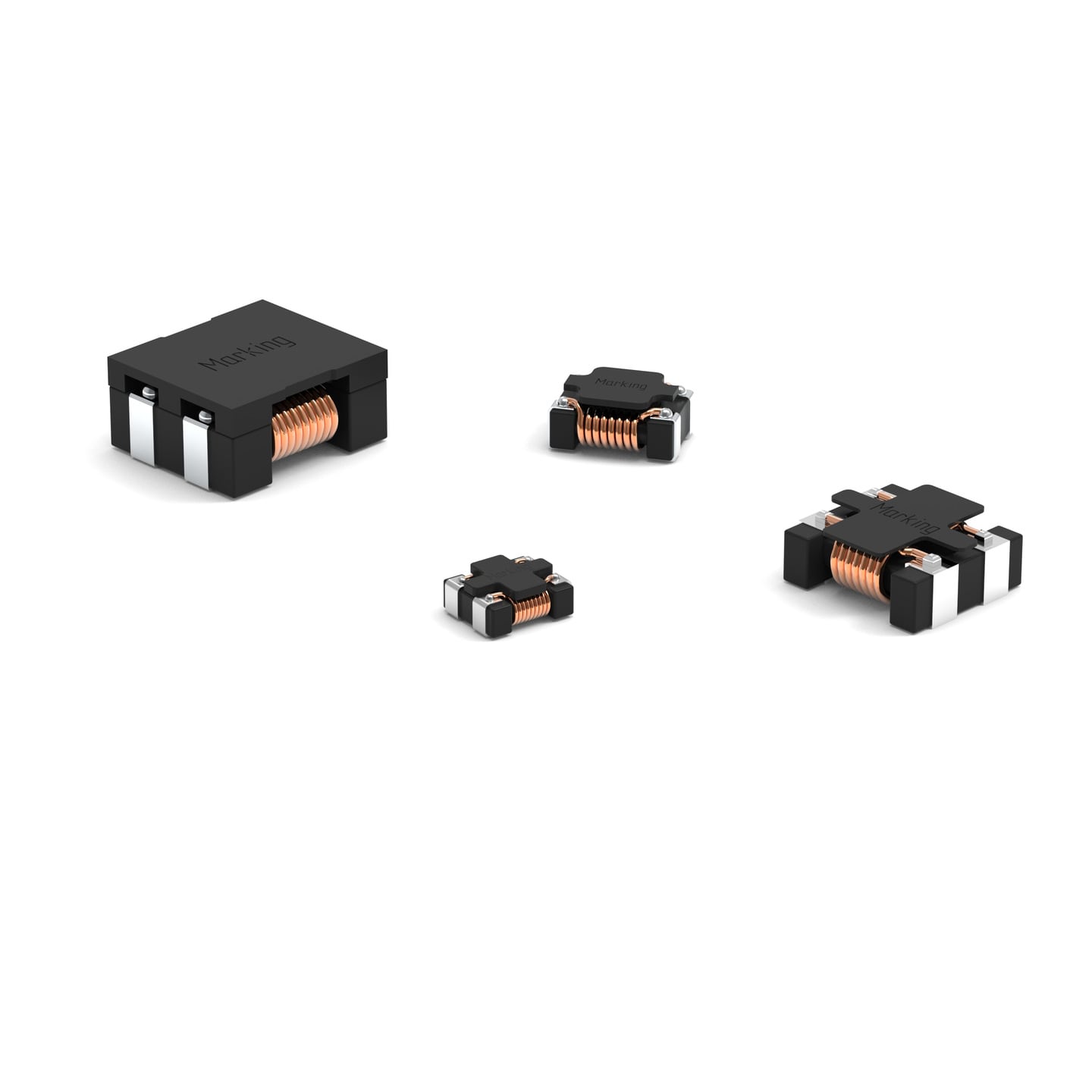

	Size	Dimensions	3D	L (mm)	W (mm)	H (mm)	Fl (mm)
NEW	1513			15	13	6	2.3
	1211			12	11	6	2.3
NEW	7060			7	6	3.5	1.5
NEW	9070			9	7	4.5	1.5

LTSpice files

LT
LTSpice_WE-CMDC (rev25a).zip
|
3.9 KB

Characteristics

High current up to 10 A
High impedance up to 2500 ohms
Low profile in SMT construction
Compact case
AEC-Q200 qualification

Applications

DC/DC converter
DC low voltage power lines
Data and signal lines
Power supply systems

Application Notes

ANP146 Theoretical Insights and Practical Applications of the WE-CMDC Series Common Mode Chokes
PDF

Products

All

1513

1211

7060

9070

Order Code	Datasheet	Simulation	Downloads	Status	L (µH)	Z (Ω)	I_R (A)	R_DC (mΩ)	V_R (V (DC))	Winding Style	Samples
