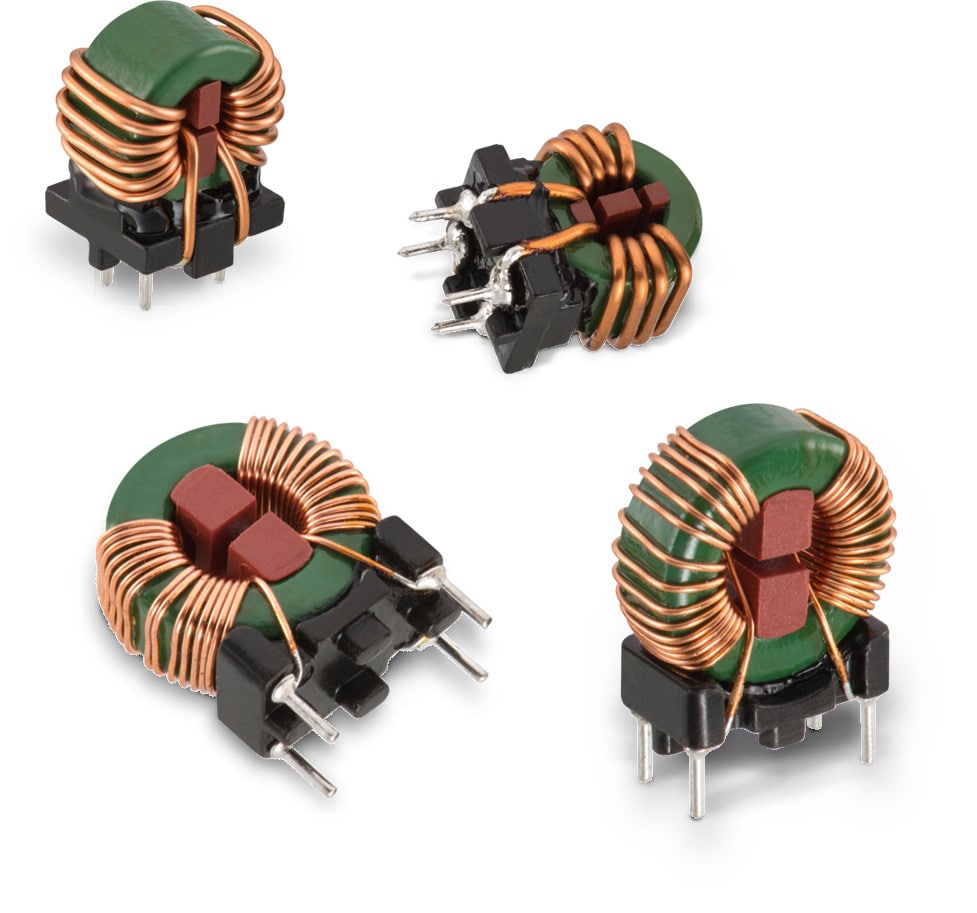

WE-CMB NiZn Common Mode Power Line Choke

Size	Dimensions	3D	L (mm)	H (mm)	W (mm)	Mount
Type XS			16	17.5	7.5	THT
Type S			18.5	22	14.5	THT

LTSpice files

LT
LTSpice_WE-CMB-NiZn (rev25a).zip
|
3.6 KB

Characteristics

Core material: Nickel-Zinc Ferrite
High suppression rates of asymmetrical interferences at high and middle frequencies
High interference stability against RF interference and burst signals
Compact design
Noise suppression up to 300 MHz
Operating temperature: –40 ºC to +125 ºC
Flammability corresponding to UL 94 V-0
Climatic category: 40/125/21
Certified according to IEC 60938-2

Applications

Power electronics
Power line in- and output filter
Optimized for burst signals

Application Notes

SN023 Conducted emissions test
PDF

Products

All

Type XS

Type S

Reset all

Filter article data

show article in 2 product lines

article in 2 product lines

Reset all

Order Code	Datasheet	Simulation	Downloads	Status	I_R(A)	L(µH)	R_{DC max.}(mΩ)	V_R(V (AC))	V_T(V (AC))	Material	L(mm)	W(mm)	H(mm)	Mount	Design Kit
744841210	1.5 A, 100 µH, 80 mΩ	Simulation	Downloads9 files EDA models: Components ZIP ALT WE-CMB_NiZn (rev22b).IntLib \| 1.5 MB CDS Cadence_WE-CMB_NiZn (rev25a).zip \| 23.3 MB EAG Eagle_WE-CMB-NiZn (rev25a).lbr KIC KiCad_WE-CMBNiZn (rev25b).zip \| 8.4 MB ZUK Cadstar_WE-CMB NiZn (rev21a).zip \| 7.3 KB CAD files ZIP IGS IGS_744841210 (rev1).igs \| 7 MB STP STP_744841210 (rev1).stp \| 6.1 MB Electric models ZIP PSP PSpice_WE-CMB-NiZn (rev25a).zip \| 6.7 KB S S-Parameter_744841210 (rev20a).s4p \| 316.4 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current1.5 A	Inductance100 µH	DC Resistance80 mΩ	Rated Voltage250 V (AC)	Insulation Test Voltage1500 V (AC)	MaterialNiZn	Length16 mm	Width7.5 mm	Height17.5 mm	MountTHT	Design Kit 744821
744841247	2 A, 47 µH, 40 mΩ	Simulation	Downloads9 files EDA models: Components ZIP ALT WE-CMB_NiZn (rev22b).IntLib \| 1.5 MB CDS Cadence_WE-CMB_NiZn (rev25a).zip \| 23.3 MB EAG Eagle_WE-CMB-NiZn (rev25a).lbr KIC KiCad_WE-CMBNiZn (rev25b).zip \| 8.4 MB ZUK Cadstar_WE-CMB NiZn (rev21a).zip \| 7.3 KB CAD files ZIP IGS WE-CMB_NiZn_Type_XS_CMB (rev1).igs \| 5.8 MB STP WE-CMB_NiZn_Type_XS_CMB (rev1).stp \| 1.4 MB Electric models ZIP PSP PSpice_WE-CMB-NiZn (rev25a).zip \| 6.7 KB S S-Parameter_744841247 (rev20a).s4p \| 317 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current2 A	Inductance47 µH	DC Resistance40 mΩ	Rated Voltage250 V (AC)	Insulation Test Voltage1500 V (AC)	MaterialNiZn	Length16 mm	Width7.5 mm	Height17.5 mm	MountTHT	Design Kit 744821
744841330	3 A, 30 µH, 26 mΩ	Simulation	Downloads9 files EDA models: Components ZIP ALT WE-CMB_NiZn (rev22b).IntLib \| 1.5 MB CDS Cadence_WE-CMB_NiZn (rev25a).zip \| 23.3 MB EAG Eagle_WE-CMB-NiZn (rev25a).lbr KIC KiCad_WE-CMBNiZn (rev25b).zip \| 8.4 MB ZUK Cadstar_WE-CMB NiZn (rev21a).zip \| 7.3 KB CAD files ZIP IGS IGS_744841330 (rev1).igs \| 6.6 MB STP STP_744841330 (rev1).stp \| 1.4 MB Electric models ZIP PSP PSpice_WE-CMB-NiZn (rev25a).zip \| 6.7 KB S S-Parameter_744841330 (rev20a).s4p \| 318.3 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current3 A	Inductance30 µH	DC Resistance26 mΩ	Rated Voltage250 V (AC)	Insulation Test Voltage1500 V (AC)	MaterialNiZn	Length16 mm	Width7.5 mm	Height17.5 mm	MountTHT	Design Kit 744821
744841414	4 A, 14 µH, 15 mΩ	Simulation	Downloads9 files EDA models: Components ZIP ALT WE-CMB_NiZn (rev22b).IntLib \| 1.5 MB CDS Cadence_WE-CMB_NiZn (rev25a).zip \| 23.3 MB EAG Eagle_WE-CMB-NiZn (rev25a).lbr KIC KiCad_WE-CMBNiZn (rev25b).zip \| 8.4 MB ZUK Cadstar_WE-CMB NiZn (rev21a).zip \| 7.3 KB CAD files ZIP IGS IGS_744841414 (rev1).igs \| 5.9 MB STP STP_744841414 (rev1).stp \| 1.5 MB Electric models ZIP PSP PSpice_WE-CMB-NiZn (rev25a).zip \| 6.7 KB S S-Parameter_744841414 (rev20a).s4p \| 320.5 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current4 A	Inductance14 µH	DC Resistance15 mΩ	Rated Voltage250 V (AC)	Insulation Test Voltage1500 V (AC)	MaterialNiZn	Length16 mm	Width7.5 mm	Height17.5 mm	MountTHT	Design Kit 744821
7448421016	10 A, 16 µH, 3 mΩ	Simulation	Downloads9 files EDA models: Components ZIP ALT WE-CMB_NiZn (rev22b).IntLib \| 1.5 MB CDS Cadence_WE-CMB_NiZn (rev25a).zip \| 23.3 MB EAG Eagle_WE-CMB-NiZn (rev25a).lbr KIC KiCad_WE-CMBNiZn (rev25b).zip \| 8.4 MB ZUK Cadstar_WE-CMB NiZn (rev21a).zip \| 7.3 KB CAD files ZIP IGS IGS_7448421016 (rev1).igs \| 5.4 MB STP STP_7448421016 (rev1).stp \| 1.6 MB Electric models ZIP PSP PSpice_WE-CMB-NiZn (rev25a).zip \| 6.7 KB S S-Parameter_7448421016 (rev20a).s4p \| 320.2 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current10 A	Inductance16 µH	DC Resistance3 mΩ	Rated Voltage250 V (AC)	Insulation Test Voltage1500 V (AC)	MaterialNiZn	Length18.5 mm	Width14.5 mm	Height22 mm	MountTHT	Design Kit 744821
744842311	3 A, 110 µH, 34.1 mΩ	Simulation	Downloads9 files EDA models: Components ZIP ALT WE-CMB_NiZn (rev22b).IntLib \| 1.5 MB CDS Cadence_WE-CMB_NiZn (rev25a).zip \| 23.3 MB EAG Eagle_WE-CMB-NiZn (rev25a).lbr KIC KiCad_WE-CMBNiZn (rev25b).zip \| 8.4 MB ZUK Cadstar_WE-CMB NiZn (rev21a).zip \| 7.3 KB CAD files ZIP IGS IGS_744842311 (rev1).igs \| 6.3 MB STP STP_744842311 (rev1).stp \| 3.6 MB Electric models ZIP PSP PSpice_WE-CMB-NiZn (rev25a).zip \| 6.7 KB S S-Parameter_744842311 (rev20a).s4p \| 315.1 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current3 A	Inductance110 µH	DC Resistance34.1 mΩ	Rated Voltage250 V (AC)	Insulation Test Voltage1500 V (AC)	MaterialNiZn	Length18.5 mm	Width14.5 mm	Height22 mm	MountTHT	Design Kit 744821
744842565	5 A, 65 µH, 14.3 mΩ	Simulation	Downloads9 files EDA models: Components ZIP ALT WE-CMB_NiZn (rev22b).IntLib \| 1.5 MB CDS Cadence_WE-CMB_NiZn (rev25a).zip \| 23.3 MB EAG Eagle_WE-CMB-NiZn (rev25a).lbr KIC KiCad_WE-CMBNiZn (rev25b).zip \| 8.4 MB ZUK Cadstar_WE-CMB NiZn (rev21a).zip \| 7.3 KB CAD files ZIP IGS IGS_744842565 (rev1).igs \| 5.3 MB STP STP_744842565 (rev1).stp \| 9.6 MB Electric models ZIP PSP PSpice_WE-CMB-NiZn (rev25a).zip \| 6.7 KB S S-Parameter_744842565 (rev20a).s4p \| 315.5 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current5 A	Inductance65 µH	DC Resistance14.3 mΩ	Rated Voltage250 V (AC)	Insulation Test Voltage1500 V (AC)	MaterialNiZn	Length18.5 mm	Width14.5 mm	Height22 mm	MountTHT	Design Kit 744821
744842632	5.5 A, 32 µH, 8.3 mΩ	Simulation–	Downloads8 files EDA models: Components ZIP ALT WE-CMB_NiZn (rev22b).IntLib \| 1.5 MB CDS Cadence_WE-CMB_NiZn (rev25a).zip \| 23.3 MB EAG Eagle_WE-CMB-NiZn (rev25a).lbr KIC KiCad_WE-CMBNiZn (rev25b).zip \| 8.4 MB ZUK Cadstar_WE-CMB NiZn (rev21a).zip \| 7.3 KB CAD files ZIP IGS IGS_744842632 (rev1).igs \| 4.3 MB STP STP_744842632 (rev1).stp \| 858.7 KB Electric models ZIP PSP PSpice_WE-CMB-NiZn (rev25a).zip \| 6.7 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current5.5 A	Inductance32 µH	DC Resistance8.3 mΩ	Rated Voltage250 V (AC)	Insulation Test Voltage1500 V (AC)	MaterialNiZn	Length18.5 mm	Width14.5 mm	Height22 mm	MountTHT	Design Kit –
744842742	6.5 A, 42 µH, 9 mΩ	Simulation	Downloads9 files EDA models: Components ZIP ALT WE-CMB_NiZn (rev22b).IntLib \| 1.5 MB CDS Cadence_WE-CMB_NiZn (rev25a).zip \| 23.3 MB EAG Eagle_WE-CMB-NiZn (rev25a).lbr KIC KiCad_WE-CMBNiZn (rev25b).zip \| 8.4 MB ZUK Cadstar_WE-CMB NiZn (rev21a).zip \| 7.3 KB CAD files ZIP IGS IGS_744842742 (rev1).igs \| 4.7 MB STP STP_744842742 (rev1).stp \| 8.2 MB Electric models ZIP PSP PSpice_WE-CMB-NiZn (rev25a).zip \| 6.7 KB S S-Parameter_744842742 (rev20a).s4p \| 317.2 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current6.5 A	Inductance42 µH	DC Resistance9 mΩ	Rated Voltage250 V (AC)	Insulation Test Voltage1500 V (AC)	MaterialNiZn	Length18.5 mm	Width14.5 mm	Height22 mm	MountTHT	Design Kit 744821
744842816	7.5 A, 16 µH, 5.5 mΩ	Simulation–	Downloads8 files EDA models: Components ZIP ALT WE-CMB_NiZn (rev22b).IntLib \| 1.5 MB CDS Cadence_WE-CMB_NiZn (rev25a).zip \| 23.3 MB EAG Eagle_WE-CMB-NiZn (rev25a).lbr KIC KiCad_WE-CMBNiZn (rev25b).zip \| 8.4 MB ZUK Cadstar_WE-CMB NiZn (rev21a).zip \| 7.3 KB CAD files ZIP IGS IGS_744842816 (rev1).igs \| 4.6 MB STP STP_744842816 (rev1).stp \| 928.3 KB Electric models ZIP PSP PSpice_WE-CMB-NiZn (rev25a).zip \| 6.7 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current7.5 A	Inductance16 µH	DC Resistance5.5 mΩ	Rated Voltage250 V (AC)	Insulation Test Voltage1500 V (AC)	MaterialNiZn	Length18.5 mm	Width14.5 mm	Height22 mm	MountTHT	Design Kit –
744842932	8.5 A, 32 µH, 6 mΩ	Simulation	Downloads9 files EDA models: Components ZIP ALT WE-CMB_NiZn (rev22b).IntLib \| 1.5 MB CDS Cadence_WE-CMB_NiZn (rev25a).zip \| 23.3 MB EAG Eagle_WE-CMB-NiZn (rev25a).lbr KIC KiCad_WE-CMBNiZn (rev25b).zip \| 8.4 MB ZUK Cadstar_WE-CMB NiZn (rev21a).zip \| 7.3 KB CAD files ZIP IGS IGS_744842932 (rev1).igs \| 5.5 MB STP STP_744842932 (rev1).stp \| 1.3 MB Electric models ZIP PSP PSpice_WE-CMB-NiZn (rev25a).zip \| 6.7 KB S S-Parameter_744842932 (rev20a).s4p \| 317.6 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current8.5 A	Inductance32 µH	DC Resistance6 mΩ	Rated Voltage250 V (AC)	Insulation Test Voltage1500 V (AC)	MaterialNiZn	Length18.5 mm	Width14.5 mm	Height22 mm	MountTHT	Design Kit 744821

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WE-CMB / WE-CMB HC / WE-CMB NiZn Common Mode Power Line Chokes
