WCAP-FTXH Film Capacitors

LTSpice files

LT
LTSpice_WCAP-FTXH (rev25b).zip
|
2.6 KB

Characteristics

Product series for interference suppression
For harsh environmental conditions (THB: Temperature Humidity Bias)
THB Test: 1000 h @ 85°C @ 85% RH with rated voltage applied
Self-healing properties
Certificates: ENEC 10 by VDE, cULus, CQC
Safety class: X2
Dielectric: Polypropylene

Applications

Safety applications
Mains Voltage Filter
Interference suppression

Application Notes

ANP015 Line filter – The last barrier in the switch mode power supply
PDF
ANP109 Impedance Spectra of Different Capacitor Technologies
PDF
ANP117 Impact of output capacitor on feedback loop stability of a power supply
PDF
ANP151 Mastering Galvanic Isolation: Ensuring Safety in High-Power Electronics with Würth Elektronik Products
PDF

Products

All

Pitch 15 mm

Pitch 22.5 mm

Pitch 27.5 mm

Pitch 37.5 mm

Reset all

Filter article data

show article in 4 product lines

article in 4 product lines

Reset all

Order Code	Datasheet	Simulation	Downloads	Status	C	V_R(V (AC))	R_ISO	Operating Temperature	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
890414025001CS	SPECAcross the mains or in series with the mains, 100 nF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_15x18x7,5x13,5 (rev1).pdf \| 310.1 KB IGS Download_IGS_WCAP-FTXH_15x18x7,5x13,5 (rev1).igs \| 778.4 KB STP Download_STP_WCAP-FTXH_15x18x7,5x13,5 (rev1).stp \| 1006.1 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance100 nF	Rated Voltage310 V (AC)	Insulation Resistance25 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414025007CS	SPECAcross the mains or in series with the mains, 33 nF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_15x18x7x12,5 (rev1).pdf \| 80.2 KB IGS Download_IGS_WCAP-FTXH_15x18x7x12,5 (rev1).igs \| 775.7 KB STP Download_STP_WCAP-FTXH_15x18x7x12,5 (rev1).stp \| 232.7 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance33 nF	Rated Voltage310 V (AC)	Insulation Resistance25 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414025010CS	SPECAcross the mains, 560 nF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_15x18x11,2x19,2 (rev1).pdf \| 80.2 KB IGS Download_IGS_WCAP-FTXH_15x18x11,2x19,2 (rev1).igs \| 775.7 KB STP Download_STP_WCAP-FTXH_15x18x11,2x19,2 (rev1).stp \| 232.7 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance560 nF	Rated Voltage310 V (AC)	Insulation Resistance13.39 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414026001CS	SPECAcross the mains or in series with the mains, 330 nF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_22,5x26,5x8,5x17 (rev1).pdf \| 86.1 KB IGS Download_IGS_WCAP-FTXH_22,5x26,5x8,5x17 (rev1).igs \| 784.7 KB STP Download_STP_WCAP-FTXH_22,5x26,5x8,5x17 (rev1).stp \| 239.9 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance330 nF	Rated Voltage310 V (AC)	Insulation Resistance25 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414026003CS	SPECAcross the mains or in series with the mains, 470 nF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_22,5x26,5x8,5x17 (rev1).pdf \| 86.1 KB IGS Download_IGS_WCAP-FTXH_22,5x26,5x8,5x17 (rev1).igs \| 784.7 KB STP Download_STP_WCAP-FTXH_22,5x26,5x8,5x17 (rev1).stp \| 239.9 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance470 nF	Rated Voltage310 V (AC)	Insulation Resistance15.95 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414026004CS	SPECAcross the mains or in series with the mains, 560 nF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_22,5x26,5x10x19 (rev1).pdf \| 85.7 KB IGS Download_IGS_WCAP-FTXH_22,5x26,5x10x19 (rev1).igs \| 781.6 KB STP Download_STP_WCAP-FTXH_22,5x26,5x10x19 (rev1).stp \| 238.7 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance560 nF	Rated Voltage310 V (AC)	Insulation Resistance13.39 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414026005CS	SPECAcross the mains or in series with the mains, 680 nF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_22,5x26,5x10x19 (rev1).pdf \| 85.7 KB IGS Download_IGS_WCAP-FTXH_22,5x26,5x10x19 (rev1).igs \| 781.6 KB STP Download_STP_WCAP-FTXH_22,5x26,5x10x19 (rev1).stp \| 238.7 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance680 nF	Rated Voltage310 V (AC)	Insulation Resistance11.02 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414026007CS	SPECAcross the mains, 1 µF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_22,5x26x11x20 (rev1).pdf \| 82.4 KB IGS Download_IGS_WCAP-FTXH_22,5x26x11x20 (rev1).igs \| 782 KB STP Download_STP_WCAP-FTXH_22,5x26x11x20 (rev1).stp \| 239.2 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1 µF	Rated Voltage310 V (AC)	Insulation Resistance7.5 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414026009CS	SPECAcross the mains, 1.5 µF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_22,5x26,5x14,5x24,5 (rev1).pdf \| 81.6 KB IGS Download_IGS_WCAP-FTXH_22,5x26,5x14,5x24,5 (rev1).igs \| 785.1 KB STP Download_STP_WCAP-FTXH_22,5x26,5x14,5x24,5 (rev1).stp \| 240 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1.5 µF	Rated Voltage310 V (AC)	Insulation Resistance5 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414026011CS	SPECAcross the mains, 2.2 µF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_22,5x26,5x15x29,5 (rev1).pdf \| 80.6 KB IGS Download_IGS_WCAP-FTXH_22,5x26,5x15x29,5 (rev1).igs \| 783.7 KB STP Download_STP_WCAP-FTXH_22,5x26,5x15x29,5 (rev1).stp \| 239.3 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance2.2 µF	Rated Voltage310 V (AC)	Insulation Resistance3.4 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414027002CS	SPECAcross the mains, 3.3 µF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_27,5x32x16x30 (rev1).pdf \| 81.5 KB IGS Download_IGS_WCAP-FTXH_27,5x32x16x30 (rev1).igs \| 783.4 KB STP Download_STP_WCAP-FTXH_27,5x32x16x30 (rev1).stp \| 241.9 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance3.3 µF	Rated Voltage310 V (AC)	Insulation Resistance2.27 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414027003CS	SPECAcross the mains, 4.7 µF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_27,5x32x20x34 (rev1).pdf \| 81.5 KB IGS Download_IGS_WCAP-FTXH_27,5x32x20x34 (rev1).igs \| 783.4 KB STP Download_STP_WCAP-FTXH_27,5x32x20x34 (rev1).stp \| 241.9 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance4.7 µF	Rated Voltage310 V (AC)	Insulation Resistance1.59 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414027004CS	SPECAcross the mains or in series with the mains, 560 nF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_27,5x32x9x18 (rev1).pdf \| 83.2 KB IGS Download_IGS_WCAP-FTXH_27,5x32x9x18 (rev1).igs \| 784.5 KB STP Download_STP_WCAP-FTXH_27,5x32x9x18 (rev1).stp \| 243.3 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance560 nF	Rated Voltage310 V (AC)	Insulation Resistance13.39 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414027005CS	SPECAcross the mains or in series with the mains, 680 nF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_27,5x31x11x20 (rev1).pdf \| 83.3 KB IGS Download_IGS_WCAP-FTXH_27,5x31x11x20 (rev1).igs \| 783.7 KB STP Download_STP_WCAP-FTXH_27,5x31x11x20 (rev1).stp \| 242.9 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance680 nF	Rated Voltage310 V (AC)	Insulation Resistance11.02 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414027006CS	SPECAcross the mains or in series with the mains, 820 nF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_27,5x31x11x20 (rev1).pdf \| 83.3 KB IGS Download_IGS_WCAP-FTXH_27,5x31x11x20 (rev1).igs \| 783.7 KB STP Download_STP_WCAP-FTXH_27,5x31x11x20 (rev1).stp \| 242.9 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance820 nF	Rated Voltage310 V (AC)	Insulation Resistance9.14 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414027007CS	SPECAcross the mains, 1 µF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_27,5x31x11x20 (rev1).pdf \| 83.3 KB IGS Download_IGS_WCAP-FTXH_27,5x31x11x20 (rev1).igs \| 783.7 KB STP Download_STP_WCAP-FTXH_27,5x31x11x20 (rev1).stp \| 242.9 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1 µF	Rated Voltage310 V (AC)	Insulation Resistance7.5 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414027009CS	SPECAcross the mains, 1.5 µF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_27,5x32x13x22 (rev1).pdf \| 82.8 KB IGS Download_IGS_WCAP-FTXH_27,5x32x13x22 (rev1).igs \| 784.1 KB STP Download_STP_WCAP-FTXH_27,5x32x13x22 (rev1).stp \| 242.9 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1.5 µF	Rated Voltage310 V (AC)	Insulation Resistance5 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414027010CS	SPECAcross the mains, 1.8 µF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_27,5x32x13x22 (rev1).pdf \| 82.8 KB IGS Download_IGS_WCAP-FTXH_27,5x32x13x22 (rev1).igs \| 784.1 KB STP Download_STP_WCAP-FTXH_27,5x32x13x22 (rev1).stp \| 242.9 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1.8 µF	Rated Voltage310 V (AC)	Insulation Resistance4.16 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414028001CS	SPECAcross the mains, 4.7 µF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_37,5x41x17x31 (rev1).pdf \| 83.7 KB IGS Download_IGS_WCAP-FTXH_37,5x41x17x31 (rev1).igs \| 794.2 KB STP Download_STP_WCAP-FTXH_37,5x41x17x31 (rev1).stp \| 251.3 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance4.7 µF	Rated Voltage310 V (AC)	Insulation Resistance1.59 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414028002CS	SPECAcross the mains, 10 µF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_37,5x41x26x41 (rev1).pdf \| 75 KB IGS Download_IGS_WCAP-FTXH_37,5x41x26x41 (rev1).igs \| 794.3 KB STP Download_STP_WCAP-FTXH_37,5x41x26x41 (rev1).stp \| 251.4 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance10 µF	Rated Voltage310 V (AC)	Insulation Resistance750 MΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414028003CS	SPECAcross the mains, 6.8 µF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_37,5x41x20x35 (rev1).pdf \| 75.4 KB IGS Download_IGS_WCAP-FTXH_37,5x41x20x35 (rev1).igs \| 793.9 KB STP Download_STP_WCAP-FTXH_37,5x41x20x35 (rev1).stp \| 251.2 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance6.8 µF	Rated Voltage310 V (AC)	Insulation Resistance1.1 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414027001CS	SPECAcross the mains, 2.2 µF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_27,5x31x14x25 (rev1).pdf \| 82.4 KB IGS Download_IGS_WCAP-FTXH_27,5x31x14x25 (rev1).igs \| 783.3 KB STP Download_STP_WCAP-FTXH_27,5x31x14x25 (rev1).stp \| 242.2 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance2.2 µF	Rated Voltage310 V (AC)	Insulation Resistance3.4 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414025002CS	SPECAcross the mains or in series with the mains, 150 nF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_15x18x7,5x13,5 (rev1).pdf \| 310.1 KB IGS Download_IGS_WCAP-FTXH_15x18x7,5x13,5 (rev1).igs \| 778.4 KB STP Download_STP_WCAP-FTXH_15x18x7,5x13,5 (rev1).stp \| 1006.1 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance150 nF	Rated Voltage310 V (AC)	Insulation Resistance25 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414025003CS	SPECAcross the mains or in series with the mains, 220 nF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_15x18x8,5x14,5 (rev1).pdf \| 80.9 KB IGS Download_IGS_WCAP-FTXH_15x18x8,5x14,5 (rev1).igs \| 779 KB STP Download_STP_WCAP-FTXH_15x18x8,5x14,5 (rev1).stp \| 233.4 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance220 nF	Rated Voltage310 V (AC)	Insulation Resistance25 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414025005CS	SPECAcross the mains, 390 nF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_15x18x10x15,8 (rev1).pdf \| 81 KB IGS Download_IGS_WCAP-FTXH_15x18x10x15,8 (rev1).igs \| 774.7 KB STP Download_STP_WCAP-FTXH_15x18x10x15,8 (rev1).stp \| 232.3 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance390 nF	Rated Voltage310 V (AC)	Insulation Resistance19.23 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414025008CS	SPECAcross the mains or in series with the mains, 120 nF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_15x18x7,5x13,5 (rev1).pdf \| 310.1 KB IGS Download_IGS_WCAP-FTXH_15x18x7,5x13,5 (rev1).igs \| 778.4 KB STP Download_STP_WCAP-FTXH_15x18x7,5x13,5 (rev1).stp \| 1006.1 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance120 nF	Rated Voltage310 V (AC)	Insulation Resistance25 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414025009CS	SPECAcross the mains, 270 nF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_15x18x8,5x14,5 (rev1).pdf \| 80.9 KB IGS Download_IGS_WCAP-FTXH_15x18x8,5x14,5 (rev1).igs \| 779 KB STP Download_STP_WCAP-FTXH_15x18x8,5x14,5 (rev1).stp \| 233.4 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance270 nF	Rated Voltage310 V (AC)	Insulation Resistance25 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414026002CS	SPECAcross the mains or in series with the mains, 390 nF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_22,5x26,5x8,5x17 (rev1).pdf \| 86.1 KB IGS Download_IGS_WCAP-FTXH_22,5x26,5x8,5x17 (rev1).igs \| 784.7 KB STP Download_STP_WCAP-FTXH_22,5x26,5x8,5x17 (rev1).stp \| 239.9 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance390 nF	Rated Voltage310 V (AC)	Insulation Resistance19.23 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414026006CS	SPECAcross the mains or in series with the mains, 820 nF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_22,5x26x11x20 (rev1).pdf \| 82.4 KB IGS Download_IGS_WCAP-FTXH_22,5x26x11x20 (rev1).igs \| 782 KB STP Download_STP_WCAP-FTXH_22,5x26x11x20 (rev1).stp \| 239.2 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance820 nF	Rated Voltage310 V (AC)	Insulation Resistance9.14 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414026008CS	SPECAcross the mains, 1.2 µF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_22,5x26,5x12x22 (rev1).pdf \| 82.4 KB IGS Download_IGS_WCAP-FTXH_22,5x26,5x12x22 (rev1).igs \| 782.6 KB STP Download_STP_WCAP-FTXH_22,5x26,5x12x22 (rev1).stp \| 238.7 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1.2 µF	Rated Voltage310 V (AC)	Insulation Resistance6.25 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414026010CS	SPECAcross the mains, 1.8 µF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_22,5x26,5x15,5x24,5 (rev1).pdf \| 81.3 KB IGS Download_IGS_WCAP-FTXH_22,5x26,5x15,5x24,5 (rev1).igs \| 784.6 KB STP Download_STP_WCAP-FTXH_22,5x26,5x15,5x24,5 (rev1).stp \| 240.2 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1.8 µF	Rated Voltage310 V (AC)	Insulation Resistance4.16 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414027008CS	SPECAcross the mains, 1.2 µF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D Download_3D_WCAP-FTXH_27,5x31x11x20 (rev1).pdf \| 83.3 KB IGS Download_IGS_WCAP-FTXH_27,5x31x11x20 (rev1).igs \| 783.7 KB STP Download_STP_WCAP-FTXH_27,5x31x11x20 (rev1).stp \| 242.9 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1.2 µF	Rated Voltage310 V (AC)	Insulation Resistance6.25 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414025011CS	SPECAcross the mains or in series with the mains, 330 nF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D 3D_WCAP-FTXH_890414025011CS (rev1).pdf \| 82.3 KB IGS IGS_WCAP-FTXH_890414025011CS (rev1).igs \| 814.5 KB STP STP_WCAP-FTXH_890414025011CS (rev1).stp \| 244.1 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance330 nF	Rated Voltage310 V (AC)	Insulation Resistance25 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414025012CS	SPECAcross the mains or in series with the mains, 470 nF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D 3D_WCAP_FTXH_890414025012CS (rev1).pdf \| 82.3 KB IGS IGS_WCAP_FXTH_890414025012CS (rev1).igs \| 814.5 KB STP STP_WCAP_FTXH_890414025012CS (rev1).stp \| 244.1 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance470 nF	Rated Voltage310 V (AC)	Insulation Resistance15.95 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414025013CS	SPECAcross the mains or in series with the mains, 270 nF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D 3D_WCAP-FTXH_890414025013CS (rev1).pdf \| 82.3 KB IGS IGS_WCAP-FTXH_890414025013CS (rev1).igs \| 814.5 KB STP STP_WCAP-FTXH_890414025013CS (rev1).stp \| 244.1 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance270 nF	Rated Voltage310 V (AC)	Insulation Resistance25 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414026013CS	SPECAcross the mains or in series with the mains, 1.2 µF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D 3D_WCAP-FTXH_890414026013CS (rev1).pdf \| 80.6 KB IGS IGS_WCAP-FTXH_890414026013CS (rev1).igs \| 783.7 KB STP STP_WCAP-FTXH_890414026013CS (rev1).stp \| 239.3 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1.2 µF	Rated Voltage310 V (AC)	Insulation Resistance6.25 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414027011CS	SPECAcross the mains or in series with the mains, 2.2 µF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D 3D_WCAP-FTXH_890414027011CS (rev1).pdf \| 81.5 KB IGS IGS_WCAP-FTXH_890414027011CS (rev1).igs \| 783.4 KB STP STP_WCAP-FTXH_890414027011CS (rev1).stp \| 241.9 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance2.2 µF	Rated Voltage310 V (AC)	Insulation Resistance3.4 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414026014CS	SPECAcross the mains or in series with the mains, 1 µF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D 3D_WCAP-FTXH_890414026014CS (rev1).pdf \| 7.8 MB IGS IGS_WCAP-FTXH_890414026014CS (rev1).igs \| 778.1 KB STP STP_WCAP-FTXH_890414026014CS (rev1).stp \| 232.7 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1 µF	Rated Voltage310 V (AC)	Insulation Resistance7.5 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414027012CS	SPECAcross the mains or in series with the mains, 1 µF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D 3D_WCAP-FTXH_890414027012CS (rev1).pdf \| 82.8 KB IGS IGS_WCAP-FTXH_890414027012CS (rev1).igs \| 784.1 KB STP STP_WCAP-FTXH_890414027012CS (rev1).stp \| 242.9 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1 µF	Rated Voltage310 V (AC)	Insulation Resistance7.5 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414027013CS	SPECAcross the mains or in series with the mains, 1.2 µF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D 3D_WCAP-FTXH_890414027013CS (rev1).pdf \| 82.8 KB IGS IGS_WCAP-FTXH_890414027013CS (rev1).igs \| 784.1 KB STP STP_WCAP-FTXH_890414027013CS (rev1).stp \| 242.9 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1.2 µF	Rated Voltage310 V (AC)	Insulation Resistance6.25 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414027014CS	SPECAcross the mains or in series with the mains, 1.8 µF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D 3D_WCAP-FTXH_890414027014CS (rev1).pdf \| 7.8 MB IGS IGS_WCAP-FTXH_890414027014CS (rev1).igs \| 760.5 KB STP STP_WCAP-FTXH_890414027014CS (rev1).stp \| 235.3 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1.8 µF	Rated Voltage310 V (AC)	Insulation Resistance4.16 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414028005CS	SPECAcross the mains or in series with the mains, 3.3 µF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D 3D_WCAP-FTXH_890414028005CS (rev1).pdf \| 7.8 MB IGS IGS_WCAP-FTXH_890414028005CS (rev1).igs \| 794.7 KB STP STP_WCAP-FTXH_890414028005CS (rev1).stp \| 250.7 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance3.3 µF	Rated Voltage310 V (AC)	Insulation Resistance2.27 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414028006CS	SPECAcross the mains or in series with the mains, 4.7 µF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D 3D_WCAP-FTXH_890414028006CS (rev1).pdf \| 7.8 MB IGS IGS_WCAP-FTXH_890414028006CS (rev1).igs \| 794.1 KB STP STP_WCAP-FTXH_890414028006CS (rev1).stp \| 251 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance4.7 µF	Rated Voltage310 V (AC)	Insulation Resistance1.59 GΩ	Operating Temperature -40 °C up to +110 °C	–Check availability
890414028007CS	SPECAcross the mains or in series with the mains, 10 µF, 310 V (AC)	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-FTXH (rev25a).IntLib \| 1.5 MB CDS Cadence_WCAP-FTXH (rev25b).zip \| 5.1 MB EAG Eagle_WCAP-FTXH (rev25a).lbr \| 102.9 KB KIC KiCad_WCAP-FTXH (rev26b).zip \| 1.6 MB CAD files ZIP 3D 3D_WCAP-FTXH_890414028007CS (rev1).pdf \| 7.8 MB IGS IGS_WCAP-FTXH_890414028007CS (rev1).igs \| 784.5 KB STP STP_WCAP-FTXH_890414028007CS (rev1).stp \| 242 KB Electric models ZIP PSP PSpice_WCAP-FTXH (rev25b).zip \| 9.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance10 µF	Rated Voltage310 V (AC)	Insulation Resistance750 MΩ	Operating Temperature -40 °C up to +110 °C	–Check availability

Expected Availability	Opening inventory	Quantity
Current Availability	–	–

Perfect fit for class X2 safety

WCAP-FTXH THB X2 Capacitors

Perfect fit for class X2 safety

WCAP-FTXH THB X2 Capacitors

The WCAP-FTXH series from Würth Elektronik film capacitors are designed for class X2 safety applications in harsh environmental conditions.

The main features and properties are as follows:

For interference suppression

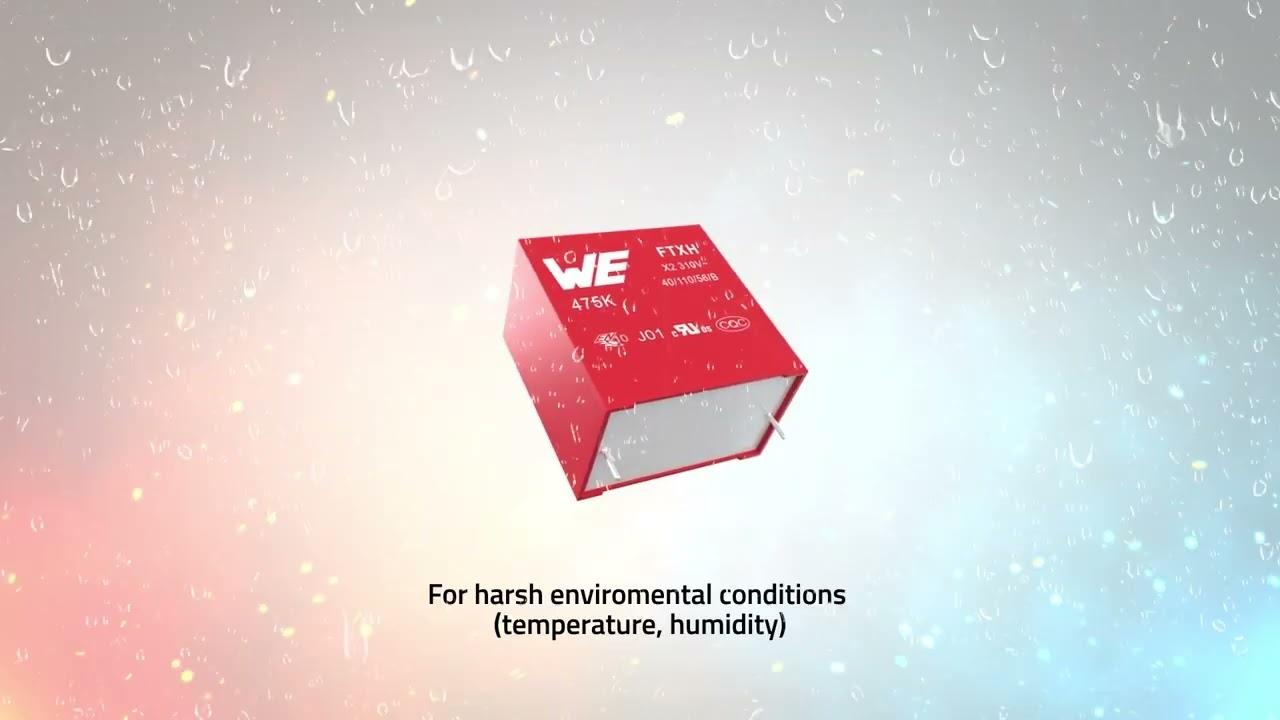

For harsh environmental conditions (temperature, humidity)
Self-healing properties

Test conditions THB

The THB tests are different in practice. Our series being tested for 1000 hours at 85°C and 85% relative humidity with rated voltage applied.

Typical Applications

Solar Inverter

Wind Power Inverter

High Temperature Applications

High Relative Humidity

Measurements

Redexpert

Measurements

Redexpert

With the help of REDEXPERT you will find the right capacitor based on your technical requirements. The tool supports, for example, with measured values for capacitance, impedance, ESR and dissipation factor (DF). The ability to compare individual components with each other in terms of measured values enables convenient component selection.

REDEXPERT

Application Notes, Documents and Videos

: Impedance and capacitance spectra are common representations of frequency dependent electrical properties of capacitors. The interpretation of such spectra provides a wide range of electrochemical, physical and technical relevant information and need to be separated from the ever-present measurement artifacts as well as parasitic effects.
Read more

: There is an ongoing discussion within the audio engineering community about the sound quality of amplifiers concerning the audibility of signal distortions. Apparently, capacitors used for coupling and decoupling signals are suspected to be the source or at least a contributor to highfrequency distortions that influence the hearing impression.
Read more

: Humidity and temperature have always been critical for capacitors. Depending on the application, a wide variety of environmental conditions can occur. The location of use also determines the resulting humidity and temperature. An application in subtropical countries has a different demand on the components than the application in countries with more moderate climatic conditions. What can be done to meet such requirements?
Read More

: Different capacitors are used for interference suppression, which have to fulfill certain properties. You will find in this PDF an overview about our different series and their use.
Read more
