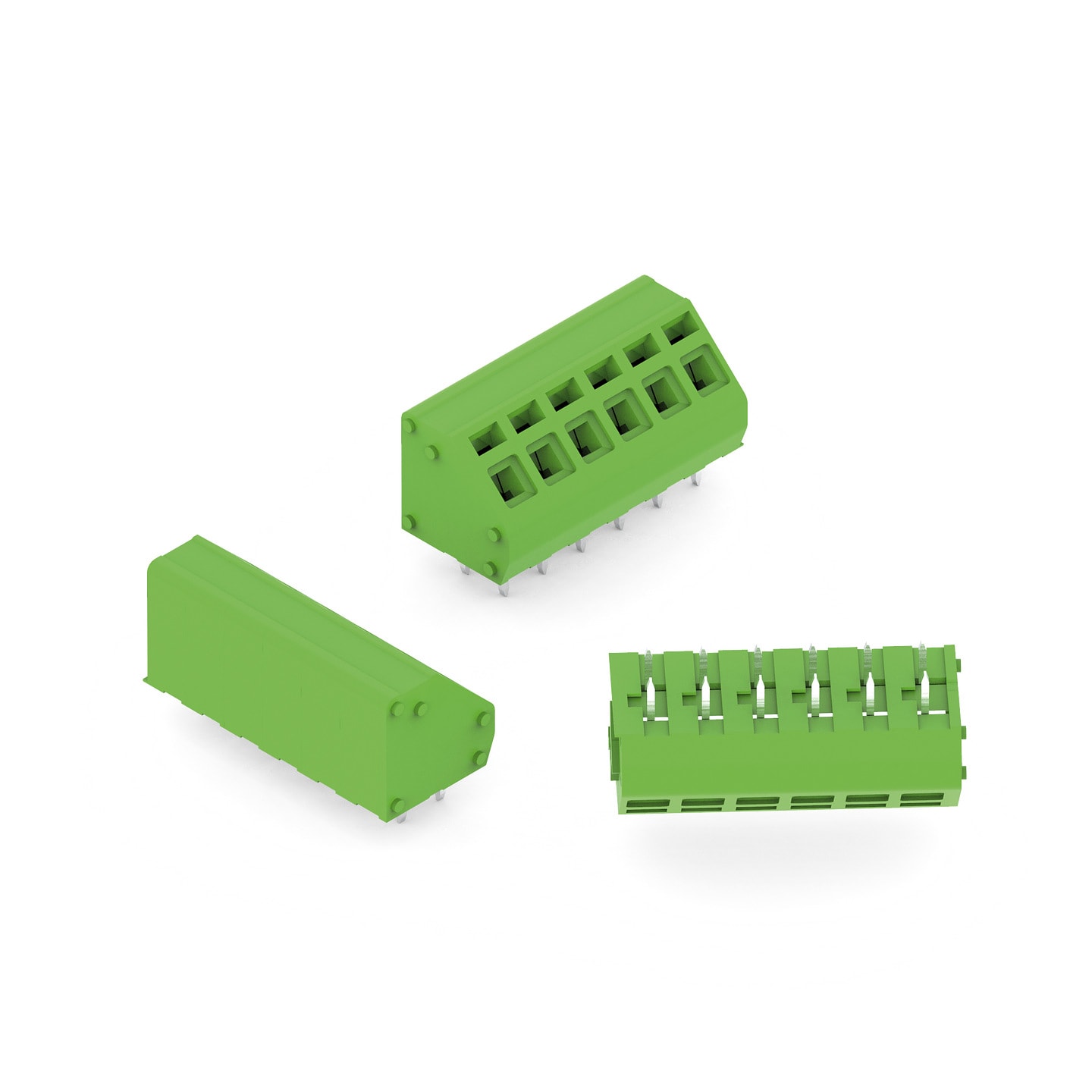

WR-TBL Series 4087B - Screwless Push In 5.0mm pitch - 45° cable entry - THT | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Spring Material	Stainless Steel
Pin Material	Brass
Pin Plating	Tin over Nickel

Electrical Properties
I_R[cULus]	15 A
Working Voltage [cULus]	300 V
Withstanding Voltage [cULus]	1600 V
R_C	20 mΩ

Mechanical Properties
Wire Strip Length	9 up to 10 (mm)

Wire Properties
Solid Wire Section (AWG)	28 to 12 (AWG)
Solid Wire Section (Metric)	0.2 to 2.5 (mm²)
Stranded Wire Section (AWG)	28 to 12 (AWG)
Stranded Wire Section (Metric)	0.2 to 2.5 (mm²)

Certification
cULus Approval	E315414

Packaging Properties
Packaging	Box

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section
691408720002B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_691408720002B (rev1).pdf \| 194.8 KB IGS Download_IGES_691408720002B (rev1).iges \| 2 MB STP Download_STP_691408720002B (rev1).stp \| 408.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Screwless Push In	PCB	Yes	45°	28 to 12 (AWG) 0.2 to 2.5 (mm²)
691408720003B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_691408720003B (rev1).pdf \| 195.3 KB IGS Download_IGES_691408720003B (rev1).iges \| 2 MB STP Download_STP_691408720003B (rev1).stp \| 409.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Screwless Push In	PCB	Yes	45°	28 to 12 (AWG) 0.2 to 2.5 (mm²)
691408720004B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_691408720004B (rev1).pdf \| 196.2 KB IGS Download_IGES_691408720004B (rev1).iges \| 2 MB STP Download_STP_691408720004B (rev1).stp \| 409.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Screwless Push In	PCB	Yes	45°	28 to 12 (AWG) 0.2 to 2.5 (mm²)
691408720005B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_691408720005B (rev1).pdf \| 197 KB IGS Download_IGES_691408720005B (rev1).iges \| 2 MB STP Download_STP_691408720005B (rev1).stp \| 410.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Screwless Push In	PCB	Yes	45°	28 to 12 (AWG) 0.2 to 2.5 (mm²)
691408720006B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_691408720006B (rev1).pdf \| 197.9 KB IGS Download_IGES_691408720006B (rev1).iges \| 2 MB STP Download_STP_691408720006B (rev1).stp \| 411.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Screwless Push In	PCB	Yes	45°	28 to 12 (AWG) 0.2 to 2.5 (mm²)
