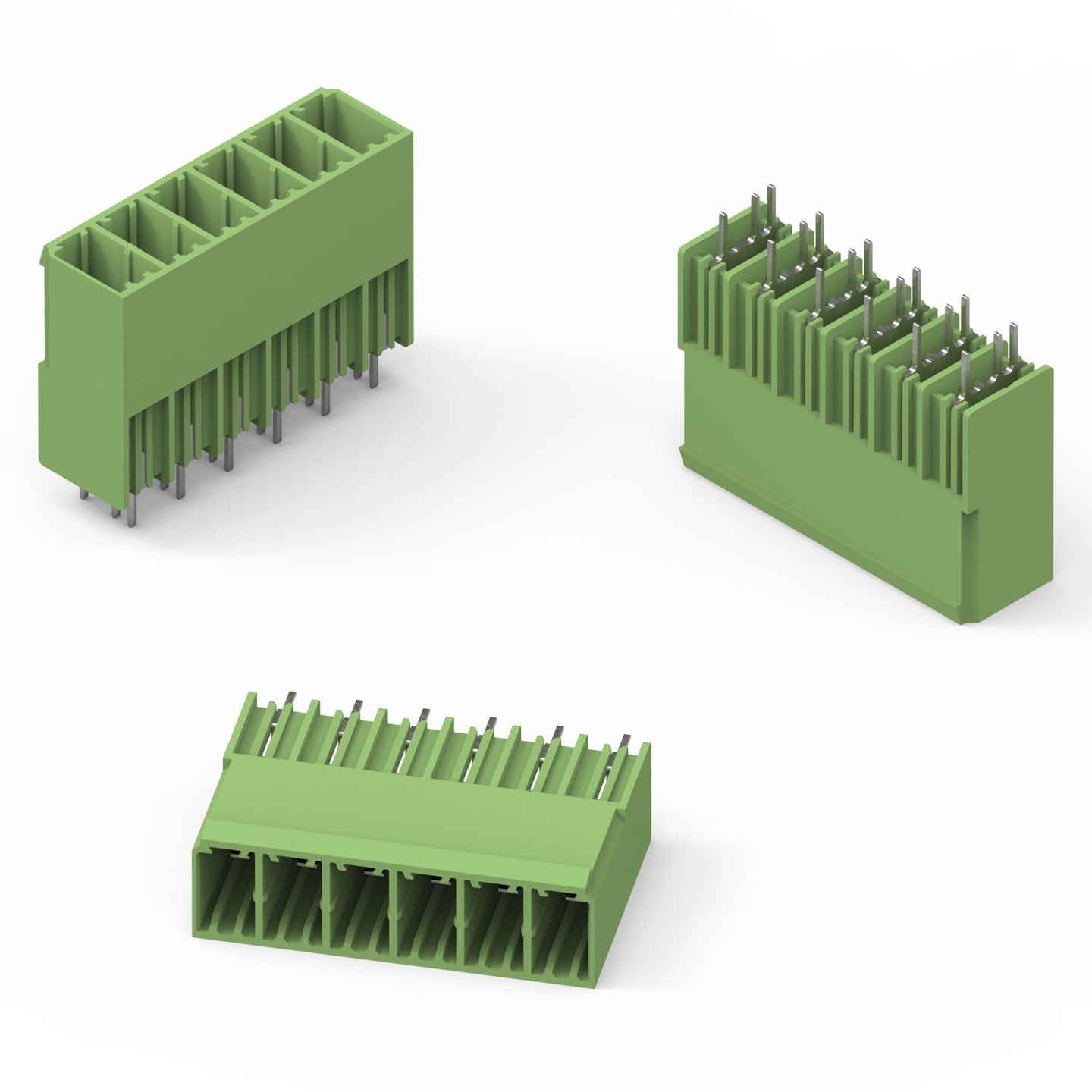

WR-TBL Series 3754 - PCB Header 7.62mm pitch - Vertical cable entry - THT

General Information
Operating Temperature	-30 °C up to +160 °C
Pitch	7.62 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Pin Material	Copper Alloy
Pin Plating	Tin over Nickel

Electrical Properties
I_R	41 A
I_R[cULus]	41 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage	1600 V (AC)
Contact Resistance	5 mΩ

Certification
cULus Approval	E150931
Glow Wire Approval	Conform [IEC 60335-1]

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Samples
691375400002	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D Downloads_3D_ConTBL3_691375400002 (rev1).pdf \| 330 KB IGS Downloads_IGS_ConTBL3_691375400002 (rev1).igs \| 6.1 MB STP Downloads_STP_ConTBL3_691375400002 (rev1).stp \| 1.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	2	PCB Header	PCB	No	Vertical
691375400003	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D Downloads_3D_ConTBL3_691375400003 (rev1).pdf \| 330.1 KB IGS Downloads_IGS_ConTBL3_691375400003 (rev1).igs \| 6.1 MB STP Downloads_STP_ConTBL3_691375400003 (rev1).stp \| 1.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	3	PCB Header	PCB	No	Vertical
691375400004	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D Downloads_3D_ConTBL3_691375400004 (rev1).pdf \| 330.3 KB IGS Downloads_IGS_ConTBL3_691375400004 (rev1).igs \| 6.1 MB STP Downloads_STP_ConTBL3_691375400004 (rev1).stp \| 1.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	4	PCB Header	PCB	No	Vertical
691375400005	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D Downloads_3D_ConTBL3_691375400005 (rev1).pdf \| 330.5 KB IGS Downloads_IGS_ConTBL3_691375400005 (rev1).igs \| 6.1 MB STP Downloads_STP_ConTBL3_691375400005 (rev1).stp \| 1.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	5	PCB Header	PCB	No	Vertical
691375400006	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D Downloads_3D_ConTBL3_691375400006 (rev1).pdf \| 330.7 KB IGS Downloads_IGS_ConTBL3_691375400006 (rev1).igs \| 6.1 MB STP Downloads_STP_ConTBL3_691375400006 (rev1).stp \| 1.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	6	PCB Header	PCB	No	Vertical

Order Code	Datasheet
691375400002	SPEC
691375400003	SPEC
691375400004	SPEC
691375400005	SPEC
691375400006	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Samples

Mates with

WR-TBL Adhesive Marker Card Horizontally Printed

WR-TBL Series 3764 - Plug with Rising Cage Clamp 7.62mm pitch - Vertical cable entry - Cable
