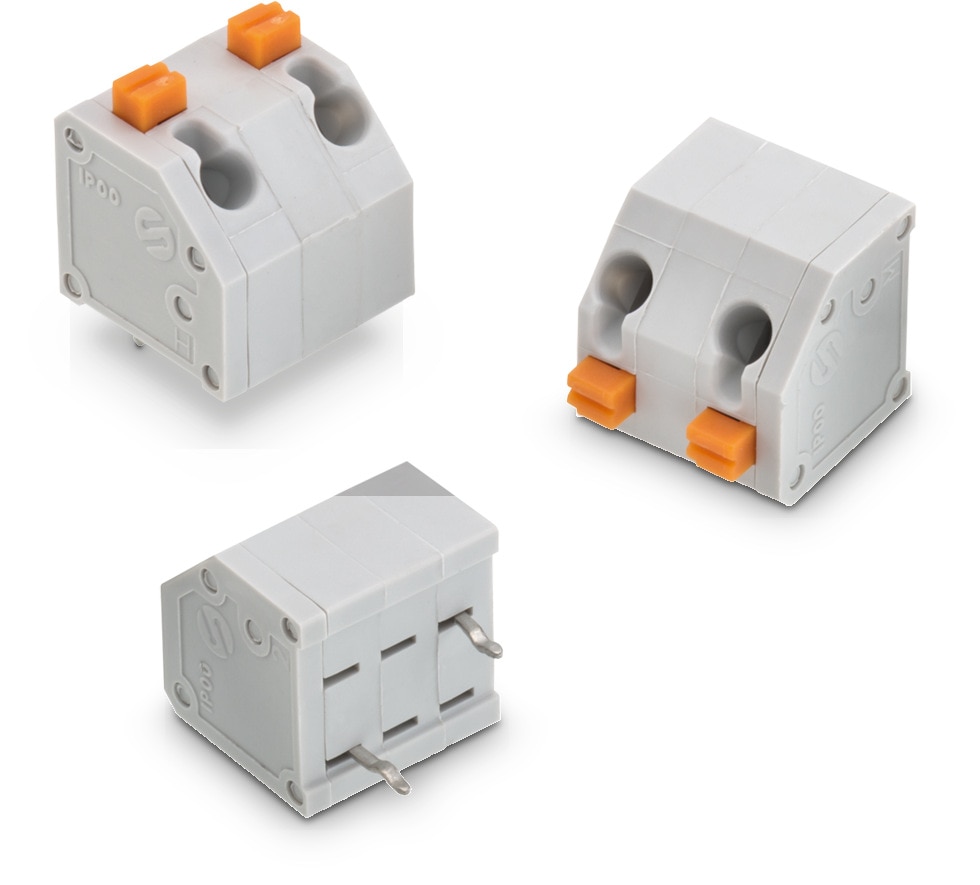

WR-TBL Series 4124M - 7.62 mm Screwless 45° Entry | Electromechanical Components

General Information
Operating Temperature	-30 °C up to +120 °C
Compliance	Lead free / RoHS
Pitch	7.62 mm

Material Properties
Insulator Material	PA6/66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Grey
Contact Material	Phosphor Bronze
Contact Plating	Tin
Wire Guard Material	Phosphor Bronze with Tin

Electrical Properties
I_R[cULus]	4 A
I_R[VDE]	4 A
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	750 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
Contact Resistance	20 mΩ

Mechanical Properties
Wire Strip Length	7 (mm)

Wire Properties
Solid Wire Section (AWG)	16 to 30 (AWG)
Solid Wire Section (Metric)	1.31 to 0.05 (mm²)
Stranded Wire Section (AWG)	16 to 30 (AWG)
Stranded Wire Section (Metric)	1.31 to 0.05 (mm²)

Certification
cULus Approval	E150931
VDE Approval	40013441 Type MRT24

Packaging Properties
Packaging	Box

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

	Order Code	Datasheet	Downloads	Status	Pins	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	691412420002M	SPEC2, Screwless, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev26b).zip \| 436.4 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr \| 2.5 MB KIC KiCad_WR-TBL (rev26a).zip \| 372.5 MB 3D 691412420002M (rev1).pdf \| 129 KB IGS 691412420002M (rev1).iges \| 1.6 MB STP 691412420002M (rev1).stp \| 362.6 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	ApplicationScrewless	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 16 to 30 (AWG) 1.31 to 0.05 (mm²)	–Check availability
	691412420003M	SPEC3, Screwless, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev26b).zip \| 436.4 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr \| 2.5 MB KIC KiCad_WR-TBL (rev26a).zip \| 372.5 MB 3D 691412420003M (rev1).pdf \| 129.4 KB IGS 691412420003M (rev1).iges \| 1.6 MB STP 691412420003M (rev1).stp \| 364 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	ApplicationScrewless	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 16 to 30 (AWG) 1.31 to 0.05 (mm²)	–Check availability
	691412420004M	SPEC4, Screwless, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev26b).zip \| 436.4 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr \| 2.5 MB KIC KiCad_WR-TBL (rev26a).zip \| 372.5 MB 3D 691412420004M (rev1).pdf \| 129.8 KB IGS 691412420004M (rev1).iges \| 1.6 MB STP 691412420004M (rev1).stp \| 365.4 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	ApplicationScrewless	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 16 to 30 (AWG) 1.31 to 0.05 (mm²)	–Check availability
	691412420005M	SPEC5, Screwless, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev26b).zip \| 436.4 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr \| 2.5 MB KIC KiCad_WR-TBL (rev26a).zip \| 372.5 MB 3D 691412420005M (rev1).pdf \| 130.2 KB IGS 691412420005M (rev1).iges \| 1.6 MB STP 691412420005M (rev1).stp \| 366.8 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	ApplicationScrewless	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 16 to 30 (AWG) 1.31 to 0.05 (mm²)	–Check availability
	691412420006M	SPEC6, Screwless, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev26b).zip \| 436.4 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr \| 2.5 MB KIC KiCad_WR-TBL (rev26a).zip \| 372.5 MB 3D 691412420006M (rev1).pdf \| 130.6 KB IGS 691412420006M (rev1).iges \| 1.6 MB STP 691412420006M (rev1).stp \| 368.3 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	ApplicationScrewless	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 16 to 30 (AWG) 1.31 to 0.05 (mm²)	–Check availability
	691412420007M	SPEC7, Screwless, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev26b).zip \| 436.4 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr \| 2.5 MB KIC KiCad_WR-TBL (rev26a).zip \| 372.5 MB 3D 691412420007M (rev1).pdf \| 131 KB IGS 691412420007M (rev1).iges \| 1.6 MB STP 691412420007M (rev1).stp \| 369.7 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins7	ApplicationScrewless	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 16 to 30 (AWG) 1.31 to 0.05 (mm²)	–Check availability
	691412420008M	SPEC8, Screwless, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev26b).zip \| 436.4 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr \| 2.5 MB KIC KiCad_WR-TBL (rev26a).zip \| 372.5 MB 3D 691412420008M (rev1).pdf \| 131.4 KB IGS 691412420008M (rev1).iges \| 1.6 MB STP 691412420008M (rev1).stp \| 371.1 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	ApplicationScrewless	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 16 to 30 (AWG) 1.31 to 0.05 (mm²)	–Check availability
	691412420009M	SPEC9, Screwless, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev26b).zip \| 436.4 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr \| 2.5 MB KIC KiCad_WR-TBL (rev26a).zip \| 372.5 MB 3D 691412420009M (rev1).pdf \| 131.8 KB IGS 691412420009M (rev1).iges \| 1.6 MB STP 691412420009M (rev1).stp \| 372.5 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins9	ApplicationScrewless	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 16 to 30 (AWG) 1.31 to 0.05 (mm²)	–Check availability
	691412420010M	SPEC10, Screwless, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev26b).zip \| 436.4 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr \| 2.5 MB KIC KiCad_WR-TBL (rev26a).zip \| 372.5 MB 3D 691412420010M (rev1).pdf \| 132.2 KB IGS 691412420010M (rev1).iges \| 1.6 MB STP 691412420010M (rev1).stp \| 374 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins10	ApplicationScrewless	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 16 to 30 (AWG) 1.31 to 0.05 (mm²)	–Check availability
	691412420011M	SPEC11, Screwless, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev26b).zip \| 436.4 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr \| 2.5 MB KIC KiCad_WR-TBL (rev26a).zip \| 372.5 MB 3D 691412420011M (rev1).pdf \| 132.6 KB IGS 691412420011M (rev1).iges \| 1.6 MB STP 691412420011M (rev1).stp \| 375.4 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins11	ApplicationScrewless	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 16 to 30 (AWG) 1.31 to 0.05 (mm²)	–Check availability
	691412420012M	SPEC12, Screwless, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev26b).zip \| 436.4 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr \| 2.5 MB KIC KiCad_WR-TBL (rev26a).zip \| 372.5 MB 3D 691412420012M (rev1).pdf \| 133 KB IGS 691412420012M (rev1).iges \| 1.6 MB STP 691412420012M (rev1).stp \| 376.8 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins12	ApplicationScrewless	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 16 to 30 (AWG) 1.31 to 0.05 (mm²)	–Check availability
