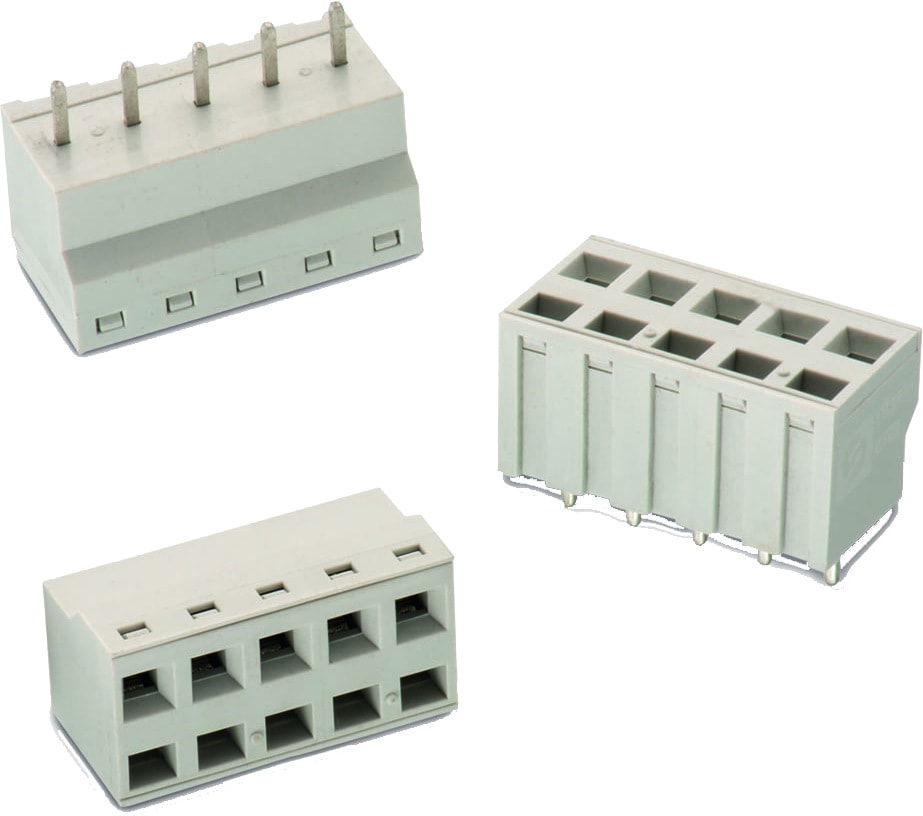

WR-TBL Series 4165 - 5.08 mm Screwless Vertical Entry | Electromechanical Components

General Information
Operating Temperature	-30 °C up to +120 °C
Compliance	Lead free / RoHS; RoHS
Pitch	5.08 mm

Material Properties
Insulator Material	PA6/66; PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Grey
Contact Material	INOX Steel
Wire Guard Material	Copper Alloy

Electrical Properties
I_R[cULus]	10 A
I_R[VDE]	16 A
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	450 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2000 V (AC)
Contact Resistance	20 mΩ
R_C	20 mΩ
R_C	20 mΩ

Mechanical Properties
Wire Strip Length	7; 7 (mm)

Wire Properties
Solid Wire Section (AWG)	16 to 30 (AWG)
Solid Wire Section (Metric)	1.31 to 0.0509 (mm²)
Stranded Wire Section (AWG)	16 to 30 (AWG)
Stranded Wire Section (Metric)	1.31 to 0.0509 (mm²)

Certification
cULus Approval	E150931
VDE Approval	40023402

Packaging Properties
Packaging	Box

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691416500002	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691416500002_1 (rev1).pdf \| 46.3 KB IGS 691416500002 (rev1).iges \| 850.3 KB STP 691416500002 (rev1).stp \| 321.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Screwless	PCB	No	Vertical	16 to 30 (AWG) 1.31 to 0.0509 (mm²)	691001
691416500003	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691416500003_1 (rev1).pdf \| 54.1 KB IGS 691416500003 (rev1).iges \| 1019.9 KB STP 691416500003 (rev1).stp \| 386.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Screwless	PCB	No	Vertical	16 to 30 (AWG) 1.31 to 0.0509 (mm²)	691001
691416500004	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691416500004_1 (rev1).pdf \| 62.1 KB IGS 691416500004 (rev1).iges \| 1.2 MB STP 691416500004 (rev1).stp \| 452.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Screwless	PCB	No	Vertical	16 to 30 (AWG) 1.31 to 0.0509 (mm²)	–
691416500005	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691416500005_1 (rev1).pdf \| 74.2 KB IGS 691416500005 (rev1).iges \| 1.3 MB STP 691416500005 (rev1).stp \| 517.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Screwless	PCB	No	Vertical	16 to 30 (AWG) 1.31 to 0.0509 (mm²)	–
691416500006	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691416500006_1 (rev1).pdf \| 81.6 KB IGS 691416500006 (rev1).iges \| 1.5 MB STP 691416500006 (rev1).stp \| 582.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Screwless	PCB	No	Vertical	16 to 30 (AWG) 1.31 to 0.0509 (mm²)	–
691416500007	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691416500007_1 (rev1).pdf \| 91.7 KB IGS 691416500007 (rev1).iges \| 1.7 MB STP 691416500007 (rev1).stp \| 650.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	Screwless	PCB	No	Vertical	16 to 30 (AWG) 1.31 to 0.0509 (mm²)	–
691416500008	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691416500008_1 (rev1).pdf \| 101.8 KB IGS 691416500008 (rev1).iges \| 1.8 MB STP 691416500008 (rev1).stp \| 717.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Screwless	PCB	No	Vertical	16 to 30 (AWG) 1.31 to 0.0509 (mm²)	–
691416500009	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691416500009_1 (rev1).pdf \| 110.7 KB IGS 691416500009 (rev1).iges \| 2 MB STP 691416500009 (rev1).stp \| 785.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	9	Screwless	PCB	No	Vertical	16 to 30 (AWG) 1.31 to 0.0509 (mm²)	–
691416500010	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691416500010_1 (rev1).pdf \| 119.2 KB IGS 691416500010 (rev1).iges \| 2.2 MB STP 691416500010 (rev1).stp \| 853.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Screwless	PCB	No	Vertical	16 to 30 (AWG) 1.31 to 0.0509 (mm²)	–

Order Code	Datasheet
691416500002	SPEC
691416500003	SPEC
691416500004	SPEC
691416500005	SPEC
691416500006	SPEC
691416500007	SPEC
691416500008	SPEC
691416500009	SPEC
691416500010	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	Samples
