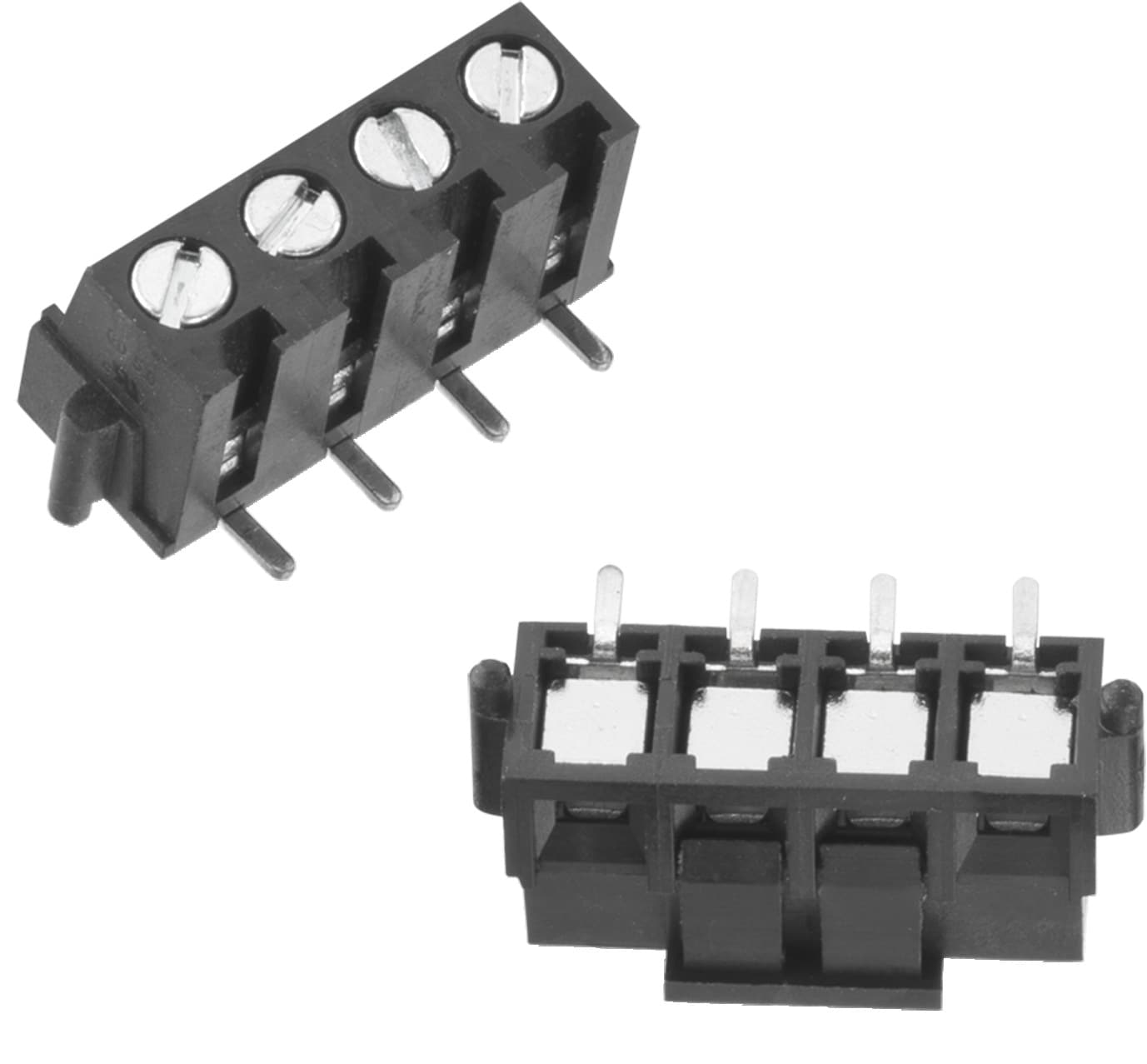

WR-TBL Series 7097 - Rising Cage Clamp 5.00mm pitch - Horizontal cable entry - SMT | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +130 °C
Compliance	RoHS
Pitch	5 mm

Material Properties
Insulator Material	PA46
Insulator Flammability Rating	UL94 V-0
Pin Material	Brass
Pin Plating	Tin over Nickel
Cage Material	Brass
Cage Plating	Nickel
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Screw	M3

Electrical Properties
I_R[cULus]	6 A
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
R_C	20 mΩ

Certification
cULus Approval	E315414

Mechanical Properties
Wire Strip Length	7 up to 8 (mm)
Screw	M3

Packaging Properties
Packaging	Tape and Reel with Cap

Wire Properties
Wire Strip Length	7 up to 8 (mm)
Solid Wire Section (AWG)	30 to 14 (AWG)
Solid Wire Section (Metric)	0.2 to 1.5 (mm²)
Stranded Wire Section (AWG)	30 to 14 (AWG)
Stranded Wire Section (Metric)	0.2 to 1.5 (mm²)

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691709710302	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691709710302 (rev1).pdf \| 166 KB IGS Download_IGES_691709710302 (rev1).iges \| 1.3 MB STP 691709710302 (rev1).stp \| 296.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Rising Cage Clamp	PCB	No	Horizontal	30 to 14 (AWG) 0.2 to 1.5 (mm²)	691001
691709710303	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691709710303 (rev1).pdf \| 181.8 KB IGS Download_IGES_691709710303 (rev1).iges \| 1.5 MB STP 691709710303 (rev1).stp \| 351.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Rising Cage Clamp	PCB	No	Horizontal	30 to 14 (AWG) 0.2 to 1.5 (mm²)	691001
691709710304	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691709710304 (rev1).pdf \| 198.6 KB IGS Download_IGES_691709710304 (rev1).iges \| 1.8 MB STP 691709710304 (rev1).stp \| 408.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Rising Cage Clamp	PCB	No	Horizontal	30 to 14 (AWG) 0.2 to 1.5 (mm²)	–
691709710305	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691709710305 (rev1).pdf \| 216.7 KB IGS Download_IGES_691709710305 (rev1).iges \| 2 MB STP 691709710305 (rev1).stp \| 468.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Rising Cage Clamp	PCB	No	Horizontal	30 to 14 (AWG) 0.2 to 1.5 (mm²)	–
691709710306	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691709710306 (rev1).pdf \| 234.2 KB IGS Download_IGES_691709710306 (rev1).iges \| 2.2 MB STP 691709710306 (rev1).stp \| 902.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Rising Cage Clamp	PCB	No	Horizontal	30 to 14 (AWG) 0.2 to 1.5 (mm²)	–
691709710308	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691709710308 (rev1).pdf \| 265.4 KB IGS Download_IGES_691709710308 (rev1).iges \| 2.7 MB STP 691709710308 (rev1).stp \| 648.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Rising Cage Clamp	PCB	No	Horizontal	30 to 14 (AWG) 0.2 to 1.5 (mm²)	–

Order Code	Datasheet
691709710302	SPEC
691709710303	SPEC
691709710304	SPEC
691709710305	SPEC
691709710306	SPEC
691709710308	SPEC
