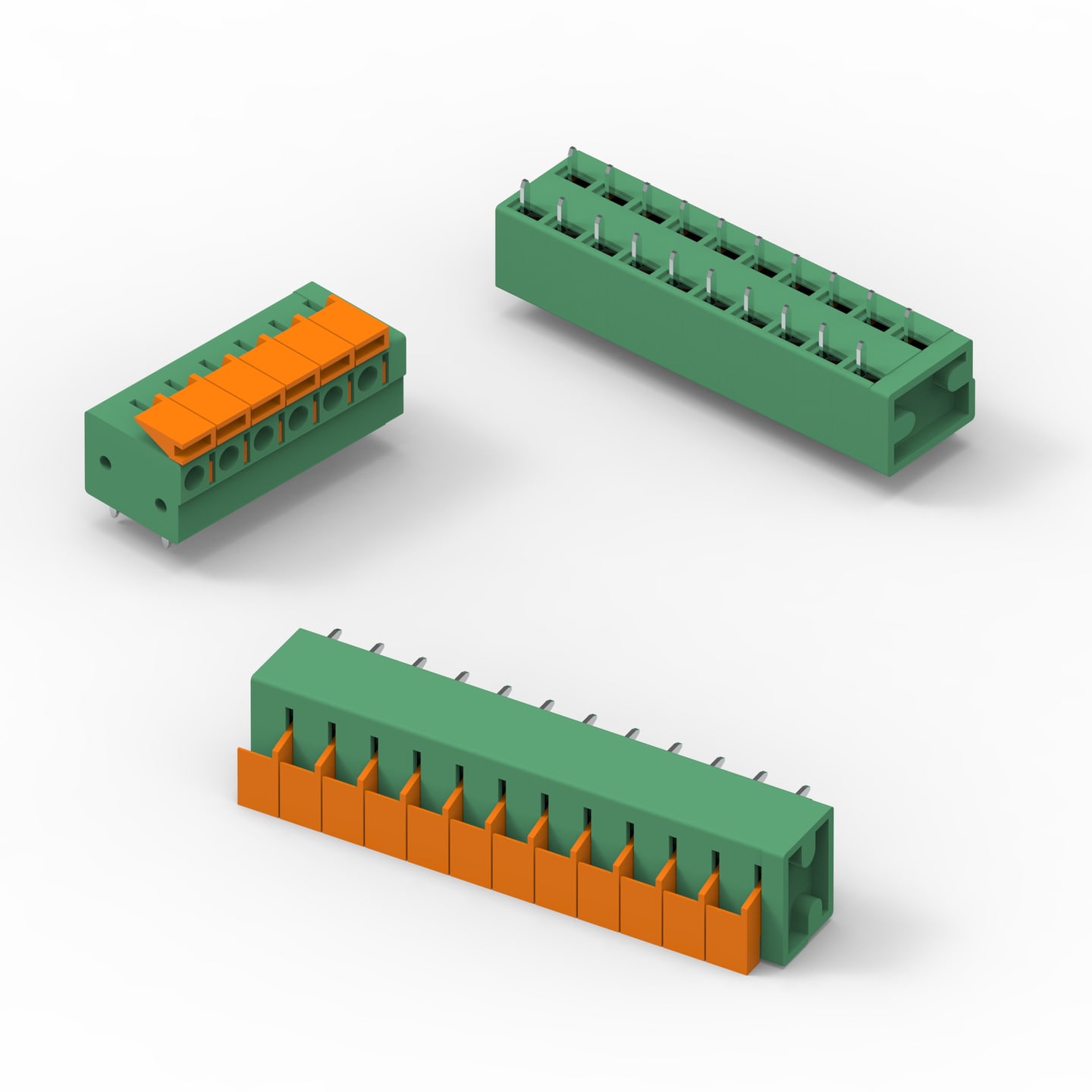

WR-TBL Series 401B - 5.00 mm Screwless Horizontal Entry - 2.0 mm 2 Wires | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Wire Guard Material	Stainless Steel
Spring Material	Stainless Steel
Pin Material	Brass
Pin Plating	Tin over Nickel

Electrical Properties
I_R[cULus]	10 A
I_R[VDE]	16 A
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	250 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2000 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Mechanical Properties
Wire Strip Length	10 (mm)

Wire Properties
Solid Wire Section (AWG)	14 to 24 (AWG)
Solid Wire Section (Metric)	0.2 to 2.5 (mm²)
Stranded Wire Section (AWG)	14 to 24 (AWG)
Stranded Wire Section (Metric)	0.2 to 2.5 (mm²)

Certification
cULus Approval	E315414
VDE Approval	40036896

Packaging Properties
Packaging	Box

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691401710002B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691401710002B (rev1).pdf \| 116.4 KB IGS Download_IGES_691401710002B (rev1).iges \| 1.2 MB STP 691401710002B (rev1).stp \| 470.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Screwless	PCB	No	Horizontal	14 to 24 (AWG) 0.2 to 2.5 (mm²)	691001
691401710003B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691401710003B (rev1).pdf \| 117.4 KB IGS Download_IGES_691401710003B (rev1).iges \| 1.2 MB STP 691401710003B (rev1).stp \| 471.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Screwless	PCB	No	Horizontal	14 to 24 (AWG) 0.2 to 2.5 (mm²)	691001
691401710004B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691401710004B (rev1).pdf \| 118.4 KB IGS Download_IGES_691401710004B (rev1).iges \| 1.2 MB STP 691401710004B (rev1).stp \| 472.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Screwless	PCB	No	Horizontal	14 to 24 (AWG) 0.2 to 2.5 (mm²)	–
691401710005B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691401710005B (rev1).pdf \| 119.4 KB IGS Download_IGES_691401710005B (rev1).iges \| 1.2 MB STP 691401710005B (rev1).stp \| 473 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Screwless	PCB	No	Horizontal	14 to 24 (AWG) 0.2 to 2.5 (mm²)	–
691401710006B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691401710006B (rev1).pdf \| 120.4 KB IGS Download_IGES_691401710006B (rev1).iges \| 1.2 MB STP 691401710006B (rev1).stp \| 473.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Screwless	PCB	No	Horizontal	14 to 24 (AWG) 0.2 to 2.5 (mm²)	–
691401710007B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691401710007B (rev1).pdf \| 121.3 KB IGS Download_IGES_691401710007B (rev1).iges \| 1.2 MB STP 691401710007B (rev1).stp \| 474.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	Screwless	PCB	No	Horizontal	14 to 24 (AWG) 0.2 to 2.5 (mm²)	–
691401710008B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691401710008B (rev1).pdf \| 122.3 KB IGS Download_IGES_691401710008B (rev1).iges \| 1.2 MB STP 691401710008B (rev1).stp \| 475.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Screwless	PCB	No	Horizontal	14 to 24 (AWG) 0.2 to 2.5 (mm²)	–
691401710009B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691401710009B (rev1).pdf \| 123.3 KB IGS Download_IGES_691401710009B (rev1).iges \| 1.3 MB STP 691401710009B (rev1).stp \| 476.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	9	Screwless	PCB	No	Horizontal	14 to 24 (AWG) 0.2 to 2.5 (mm²)	–
691401710010B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691401710010B (rev1).pdf \| 124.3 KB IGS Download_IGES_691401710010B (rev1).iges \| 1.3 MB STP 691401710010B (rev1).stp \| 476.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Screwless	PCB	No	Horizontal	14 to 24 (AWG) 0.2 to 2.5 (mm²)	–
691401710011B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691401710011B (rev1).pdf \| 125.3 KB IGS Download_IGES_691401710011B (rev1).iges \| 1.3 MB STP 691401710011B (rev1).stp \| 477.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	11	Screwless	PCB	No	Horizontal	14 to 24 (AWG) 0.2 to 2.5 (mm²)	–
691401710012B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691401710012B (rev1).pdf \| 126.2 KB IGS Download_IGES_691401710012B (rev1).iges \| 1.3 MB STP 691401710012B (rev1).stp \| 478.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	12	Screwless	PCB	No	Horizontal	14 to 24 (AWG) 0.2 to 2.5 (mm²)	–

Order Code	Datasheet
691401710002B	SPEC
691401710003B	SPEC
691401710004B	SPEC
691401710005B	SPEC
691401710006B	SPEC
691401710007B	SPEC
691401710008B	SPEC
691401710009B	SPEC
691401710010B	SPEC
691401710011B	SPEC
691401710012B	SPEC
