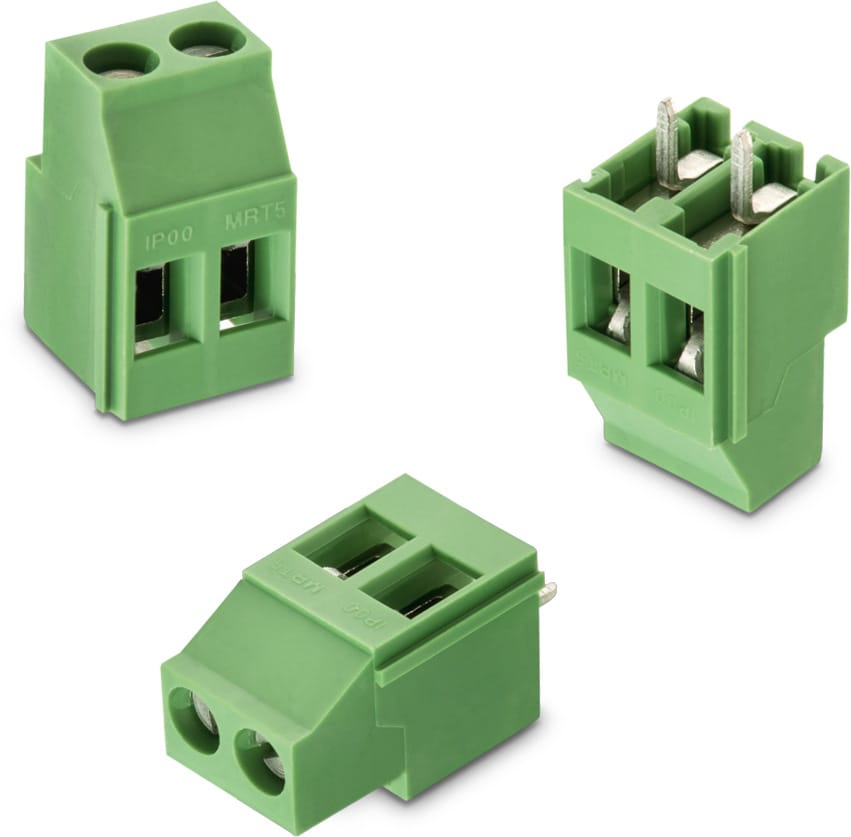

WR-TBL Series 2537 - 5.00 mm Horizontal Entry Modular w. Rising Cage Clamp | Electromechanical Components

General Information
Operating Temperature	-30 °C up to +120 °C
Compliance	Lead free / RoHS; RoHS
Pitch	5 mm

Material Properties
Insulator Material	PA6/66
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Tin over Nickel
Contact Type	Stamped
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Copper Alloy

Electrical Properties
I_R[cULus]	16 A
I_R[VDE]	24 A
Working Voltage	300 V (AC); 450 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	450 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
Contact Resistance	20 mΩ
R_C	20 mΩ
R_C	20 mΩ

Mechanical Properties
Wire Strip Length	6 (mm)
Screw	M3

Certification
cULus Approval	E150931
VDE Approval	40021392
VDE Approval	40021392 TYPE: MRT5

Packaging Properties
Packaging	Box

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	Samples
691253710002	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691253710002 (rev1).pdf \| 53.5 KB IGS Download_IGES_691253710002 (rev1).iges \| 785.4 KB STP Download_STP_691253710002 (rev1).stp \| 304.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Rising Cage Clamp	PCB	Yes	Horizontal	30 to 12 (AWG) 0.0509 to 3.31 (mm²)	–
691253710003	–	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691253710003 (rev1).pdf \| 63.9 KB IGS Download_IGES_691253710003 (rev1).iges \| 950.7 KB STP Download_STP_691253710003 (rev1).stp \| 364.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Rising Cage Clamp	PCB	Yes	Horizontal	30 to 12 (AWG) 0.0509 to 3.31 (mm²)	691001

Order Code	Datasheet
691253710002	SPEC
691253710003	–

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	Samples
